Here you will find all available parts and drawings of the 'Hikoki C15FB'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

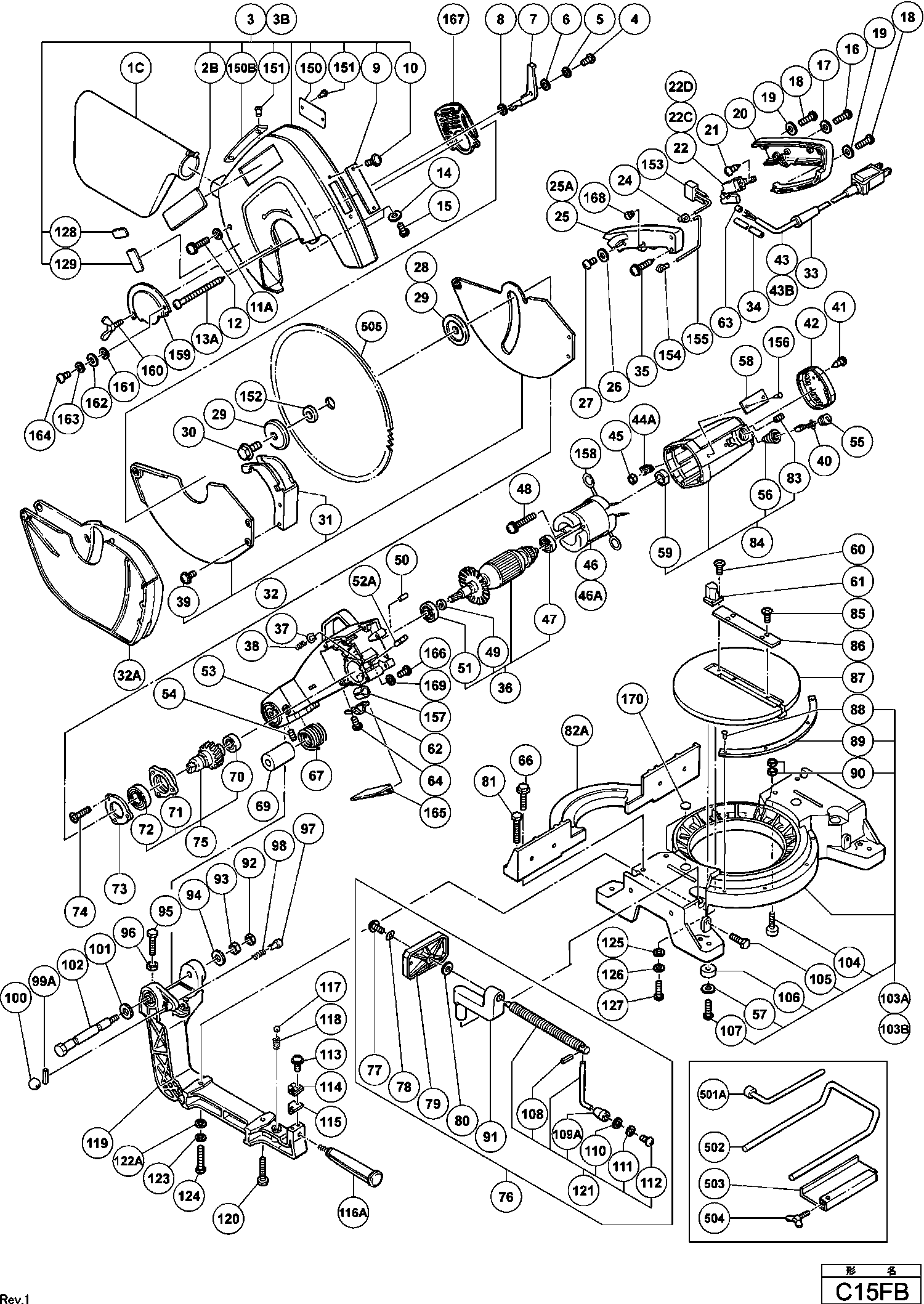

Technical drawing of model Hikoki C15FB
Spare parts list of model Hikoki C15FB
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1C | 322955 | |||
| No information available, not orderable | ||||
| 2B | 951653 | |||
| No longer available, no replacement | ||||
| 3B | 988908 | |||
| No information available, not orderable | ||||
| 3S | 988912 | |||
| No information available, not orderable | ||||
| 3T | 988914 | |||
| Machine Screw M6x12 (10 Pcs.) | ||||
| 4 | 949255 | 1.35 | 1.63 | |
| Spring Washer M6 (old 949455z, 10 pcs) | ||||
| 5 | 949455 | 1.05 | 1.27 | |
| RING | ||||
| 6 | 972256 | 1.98 | 2.40 | |
| No information available, not orderable | ||||
| 7 | 988901 | |||
| Ring | ||||
| 8 | 974484 | 1.05 | 1.27 | |
| COVER | ||||
| 9 | 988112 | 3.30 | 3.99 | |
| Machine Screw (w/washers) M5x10 | ||||
| 10 | 976706 | 1.04 | 1.26 | |
| RING (B) | ||||
| 11A | 936311 | 1.00 | 1.21 | |
| Machine Screw (w/sp. Washer) M5x16 | ||||
| 12 | 987512 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 13A | 320186 | |||
| Bolt Washer M5 (10 Pcs.) | ||||
| 14 | 949431 | 1.04 | 1.26 | |
| Machine screw M4x10 (10 pieces) (OLD 949216Z) | ||||
| 15 | 949216 | 1.05 | 1.27 | |
| Machine Screw M5X16 (10 pieces) | ||||
| 16 | 949239 | 1.05 | 1.27 | |
| Bolt Washer M5 (10 Pcs.) | ||||
| 17 | 949431 | 1.04 | 1.26 | |
| Machine Screw M5x20 (10 pieces) | ||||
| 18 | 949241 | 1.35 | 1.63 | |
| Bolt Washer M5 (10 Pcs.) | ||||
| 19 | 949431 | 1.04 | 1.26 | |
| Handle | ||||
| 20 | 988107 | 13.95 | 16.88 | |
| Tapping Screw D4x10 | ||||
| 21 | 974572 | 1.05 | 1.27 | |
| Switch | ||||
| 22 | 976450 | 27.09 | 32.78 | |
| No longer available, no replacement | ||||
| 25A | 988920 | |||
| HANDGREEPDEKSEL | ||||
| 25S | 988108 | 5.04 | 6.10 | |
| Bolt Washer M5 (10 Pcs.) | ||||
| 26 | 949431 | 1.04 | 1.26 | |
| Machine Screw M5x12 (10 Pcs.) | ||||
| 27 | 949237 | 1.05 | 1.27 | |
| Ring | ||||
| 29 | 988896 | 17.33 | 20.96 | |
| Bolt (a) M10 | ||||
| 30 | 988101 | 1.95 | 2.36 | |
| Cord Armor D10.7 | ||||
| 33 | 940778 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 34 | 988893 | |||
| Tapping Screw (w/washer) D4x25 | ||||
| 35 | 988889 | 1.05 | 1.27 | |
| Armature 230v | ||||
| 36 | 360065E | 183.70 | 222.28 | |
| Washer Spring | ||||
| 37 | 974577 | 1.05 | 1.27 | |
| Gauge Spring | ||||
| 38 | 948363 | 1.05 | 1.27 | |
| Carbon Brush (1 Pair) | ||||
| 40 | 999044 | 4.50 | 5.44 | |
| Tapping Screw D4x10 | ||||
| 41 | 974572 | 1.05 | 1.27 | |
| Cover | ||||
| 42 | 974571 | 5.25 | 6.35 | |
| No information available, not orderable | ||||
| 43 | 952802Z | |||
| MOERDEKSEL | ||||
| 44A | 937892 | 1.00 | 1.21 | |
| Nut M5 (10 Pieces) (OLD 949555Z) | ||||
| 45 | 949555 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 46 | 974613D | |||
| Stator Ass'y 220v-230v Includ.158 | ||||
| 46A | 340198H | 99.00 | 119.79 | |
| No information available, not orderable | ||||
| 46S | 974613F | |||
| Ball Bearing 6200vvcmps2l | ||||
| 47 | 6200VV | 6.15 | 7.44 | |
| Machine Screw (w/sp. Washer) M5x75 | ||||
| 48 | 974603 | 1.05 | 1.27 | |
| Spacer bushing | ||||
| 49 | 947622 | 1.04 | 1.26 | |
| RUBBER PIN (OLD 976441) | ||||
| 50 | 946362 | 1.05 | 1.27 | |
| Ball Bearing 6002ddcmps2l | ||||
| 51 | 6002DD | 7.05 | 8.53 | |
| Stopper Pin | ||||
| 52A | 974576 | 1.35 | 1.63 | |
| Gear Cover | ||||
| 53 | 988881 | 99.14 | 119.96 | |
| Hex socket set screw M6x10 | ||||
| 54 | 968247 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 55 | 978445 | |||
| Brush Holder | ||||
| 56 | 980487 | 5.68 | 6.87 | |
| Bolt Washer M5 (10 Pcs.) | ||||
| 57 | 949431 | 1.04 | 1.26 | |
| BEARING BUSHING | ||||
| 59 | 988886 | 8.16 | 9.87 | |
| Flat Hd. Screw M4x10 (10 Pcs.) | ||||
| 60 | 949322 | 1.05 | 1.27 | |
| Guard (1) | ||||
| 61 | 988900 | 1.95 | 2.36 | |
| SNOERKLEM | ||||
| 62 | 934028 | 1.00 | 1.21 | |
| Threaded cable sleeve | ||||
| 63 | 981373 | 1.05 | 1.27 | |
| Machine screw M4x10 (10 pieces) (OLD 949216Z) | ||||
| 64 | 949216 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 66 | 988877 | |||
| Spring | ||||
| 67 | 988878 | 10.95 | 13.25 | |
| Sleeve | ||||
| 69 | 988879 | 11.55 | 13.98 | |
| Ball Bearing 6001vv | ||||
| 70 | 6001VV | 6.60 | 7.99 | |
| BEARING HOLDER | ||||
| 71 | 988883 | 8.76 | 10.60 | |
| Ball Bearing 6006zzcmps2l | ||||
| 72 | 6006ZZ | 10.20 | 12.34 | |
| No information available, not orderable | ||||
| 73 | 988884 | |||
| Flat Hd. Screw M6x25 (10 Pcs.) | ||||
| 74 | 949342 | 1.65 | 2.00 | |
| Spindle Ass'y | ||||
| 75 | 988882 | 84.56 | 102.32 | |
| No information available, not orderable | ||||
| 76 | 988897 | |||
| Machine Screw (w/washers) M6x10 | ||||
| 77 | 997314 | 1.05 | 1.27 | |
| WAVE WASHER M10 | ||||
| 78 | 974612 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 79 | 988106 | |||
| Bolt Washer M10 (10 Pcs.) | ||||
| 80 | 949434 | 1.35 | 1.63 | |
| Bolt M10x60 (10 Pcs.) | ||||
| 81 | 949634 | 5.10 | 6.17 | |
| Vise (b) | ||||
| 82A | 988876 | 78.79 | 95.33 | |
| INBUSSTELSCHROEF M4X5 | ||||
| 83 | 967508 | 1.00 | 1.21 | |
| HUIS | ||||
| 84 | 974566 | 52.80 | 63.89 | |
| Flat Hd. Screw M4x10 (10 Pcs.) | ||||
| 85 | 949322 | 1.05 | 1.27 | |
| Table Insert | ||||
| 86 | 974579 | 3.90 | 4.72 | |
| No information available, not orderable | ||||
| 87 | 988870 | |||
| Rivet D2.5x4.8 (10 Pcs.) Three-phase | ||||
| 88 | 949510 | 1.04 | 1.26 | |
| Scale (1) | ||||
| 89 | 988907 | 5.85 | 7.08 | |
| Lock Nut M10 (10 Pcs.) | ||||
| 90 | 949572 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 91 | 988898 | |||
| Lock Nut M12 (10 Pcs.) | ||||
| 92 | 949574 | 3.00 | 3.63 | |
| Nut M12 (10 Pcs.) | ||||
| 93 | 949561 | 3.00 | 3.63 | |
| Bolt Washer M12 (10 Pcs.) | ||||
| 94 | 949437 | 1.95 | 2.36 | |
| No information available, not orderable | ||||
| 95 | 988872 | |||
| Lock Nut M10 (10 Pcs.) | ||||
| 96 | 949572 | 2.40 | 2.90 | |
| Pin | ||||
| 97 | 988874 | 4.80 | 5.81 | |
| Gauge Spring | ||||
| 98 | 948363 | 1.05 | 1.27 | |
| Roll Pin D3x20 (10 Pcs.) | ||||
| 99A | 949685 | 2.55 | 3.09 | |
| Grip | ||||
| 100 | 967896 | 2.55 | 3.09 | |
| Bolt Washer M16 | ||||
| 101 | 955818 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 102 | 988880 | |||
| No information available, not orderable | ||||
| 103A | 988906 | |||
| SET SCREW | ||||
| 104 | 988891 | 3.75 | 4.54 | |
| BOUT M10X30 (10 STUKS) | ||||
| 105 | 949698 | 3.06 | 3.70 | |
| Base Rubber | ||||
| 106 | 964851 | 1.05 | 1.27 | |
| Machine Screw M5x20 (10 pieces) | ||||
| 107 | 949241 | 1.35 | 1.63 | |
| Roll Pin D3x16 (10 Pcs.) | ||||
| 108 | 949496 | 1.65 | 2.00 | |
| BUS (OUD 964860) | ||||
| 109A | 962561 | 1.00 | 1.21 | |
| Closing Washer (b) (old 976448) | ||||
| 110 | 962569 | 1.05 | 1.27 | |
| Spring Washer M4 (10 pieces) | ||||
| 111 | 949453 | 1.05 | 1.27 | |
| Machine screw M4x10 (10 pieces) (OLD 949216Z) | ||||
| 112 | 949216 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M5x10 | ||||
| 113 | 976706 | 1.04 | 1.26 | |
| Indicator | ||||
| 114 | 976826 | 1.05 | 1.27 | |
| SPACER | ||||
| 115 | 976804 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 116A | 988875 | |||
| Steel Ball D12.7 (10 pieces) | ||||
| 117 | 959153 | 5.40 | 6.53 | |
| VEER | ||||
| 118 | 967150 | 1.00 | 1.21 | |
| Hinge | ||||
| 119 | 988871 | 154.55 | 187.01 | |
| BOLT M10X65 (W/WASHERS) | ||||
| 120 | 988873 | 1.08 | 1.31 | |
| Screw Ass'y Includ.108-112 | ||||
| 121 | 988104 | 25.71 | 31.11 | |
| Ring | ||||
| 122A | 302998 | 1.05 | 1.27 | |
| Spring Washer M10 (10 Pcs.) | ||||
| 123 | 949458 | 1.05 | 1.27 | |
| SCREW (G) | ||||
| 124 | 988905 | 1.00 | 1.21 | |
| RING (B) | ||||
| 125 | 936311 | 1.00 | 1.21 | |
| Spring Washer M6 (old 949455z, 10 pcs) | ||||
| 126 | 949455 | 1.05 | 1.27 | |
| Machine Screw M6x16 (10 Pcs.) | ||||
| 127 | 949256 | 1.35 | 1.63 | |
| Collar (c) For D25,25.4 Hole For Aus | ||||
| 152 | 976451 | 3.30 | 3.99 | |
| Brush Terminal | ||||
| 158 | 998744 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 501A | 985051 | |||
| HOUDER | ||||
| 502 | 974562 | 9.36 | 11.33 | |
| Stopper | ||||
| 503 | 974561 | 7.05 | 8.53 | |
| Wing Bolt M6x20 (10 Pcs.) | ||||
| 504 | 949404 | 7.65 | 9.26 | |
| No information available, not orderable | ||||
| 601 | 988904 | |||
