Here you will find all available parts and drawings of the 'Hikoki C12RSH'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

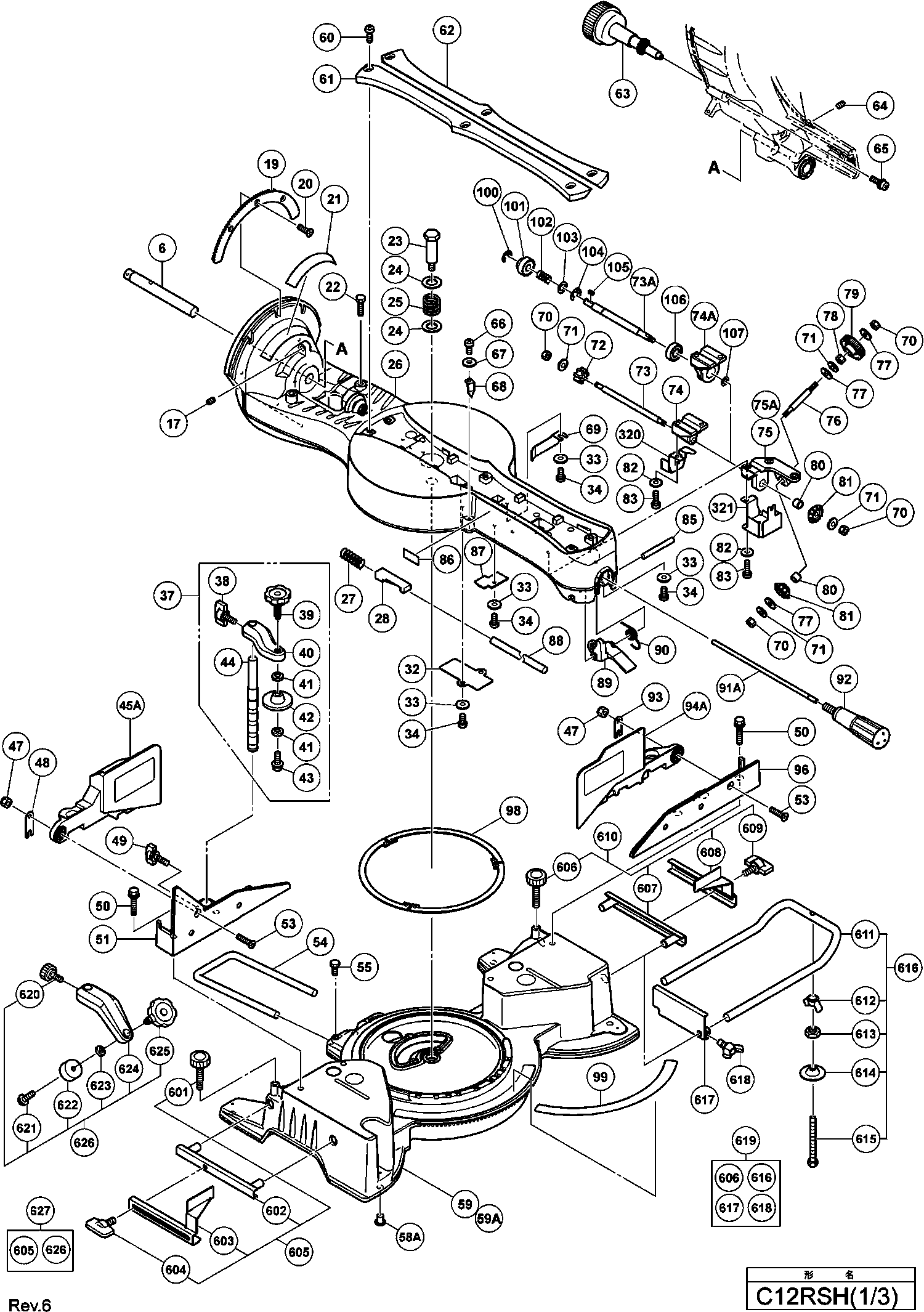

Technical drawing of model Hikoki C12RSH
Spare parts list of model Hikoki C12RSH
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Holder Shaft | ||||
| 6 | 324391 | 14.40 | 17.42 | |
| Nylock Hex. Socket Set Screw M8x16 | ||||
| 17 | 324612 | 1.65 | 2.00 | |
| Gear (a) | ||||
| 19 | 324399 | 6.30 | 7.62 | |
| Flat Hd. Screw M4x16 (10 Pcs.) | ||||
| 20 | 949325 | 1.05 | 1.27 | |
| Scale | ||||
| 21 | 324416 | 3.15 | 3.81 | |
| NYLOCK BOLT M8 X 25 | ||||
| 22 | 303409 | 1.00 | 1.21 | |
| Shaft (b) | ||||
| 23 | 324401 | 7.20 | 8.71 | |
| Bolt Washer M16 | ||||
| 24 | 955818 | 1.05 | 1.27 | |
| SPRING | ||||
| 25 | 324402 | 2.70 | 3.27 | |
| Rotary Table | ||||
| 26 | 324394 | 170.78 | 206.64 | |
| Spring (e) | ||||
| 27 | 321417 | 3.45 | 4.17 | |
| Stopper | ||||
| 28 | 322280 | 4.95 | 5.99 | |
| Pin Cover | ||||
| 32 | 321336 | 1.65 | 2.00 | |
| Bolt Washer M4 (10 Pcs.) | ||||
| 33 | 949429 | 1.05 | 1.27 | |
| Machine Screw M4x8 (10 Pcs.) | ||||
| 34 | 949215 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 37 | 324378 | |||
| Wing Bolt M6x12 | ||||
| 38 | 307947 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 39 | 308396 | |||
| Ring | ||||
| 41 | 996722 | 1.05 | 1.27 | |
| Clamping plate | ||||
| 42 | 322047 | 1.38 | 1.67 | |
| Machine Screw (w/washers) M5x12 (black) | ||||
| 43 | 996247 | 1.05 | 1.27 | |
| Vise Shaft | ||||
| 44 | 324380 | 7.05 | 8.53 | |
| No longer available, no replacement | ||||
| 45A | 324454 | |||
| Nylon Nut M6 | ||||
| 47 | 311144 | 1.05 | 1.27 | |
| Plate (b) | ||||
| 48 | 324377 | 1.50 | 1.82 | |
| Wing Bolt M6x17 | ||||
| 49 | 302459 | 1.05 | 1.27 | |
| Bolt (w/washers) M8x35 (black) | ||||
| 50 | 307221 | 1.04 | 1.26 | |
| Fence (b) | ||||
| 51 | 324385 | 14.85 | 17.97 | |
| Flat Hd. Screw M6x25 (10 Pcs.) | ||||
| 53 | 949342 | 1.65 | 2.00 | |
| Holder | ||||
| 54 | 998834 | 9.30 | 11.25 | |
| Bolt M6x10 (10 Pcs.) | ||||
| 55 | 949610 | 1.20 | 1.45 | |
| Base Rubber | ||||
| 58A | 323606 | 1.05 | 1.27 | |
| Base | ||||
| 59 | 324456 | 157.71 | 190.83 | |
| No information available, not orderable | ||||
| 59A | 336253 | |||
| Machine Screw M5x16 (black) | ||||
| 60 | 302317 | 1.05 | 1.27 | |
| Table Insert (b) | ||||
| 61 | 324411 | 3.00 | 3.63 | |
| Table Insert (a) | ||||
| 62 | 324410 | 3.00 | 3.63 | |
| KNOB | ||||
| 63 | 324370 | 14.55 | 17.61 | |
| Seal Lock Hex. Socket Set Screw M6x10 | ||||
| 64 | 307956 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M5x16 (black) | ||||
| 65 | 307294 | 1.05 | 1.27 | |
| Machine Screw M4x12 (10 Pcs.) | ||||
| 66 | 949217 | 1.05 | 1.27 | |
| Bolt Washer M4 (10 Pcs.) | ||||
| 67 | 949429 | 1.05 | 1.27 | |
| Indicator | ||||
| 68 | 321329 | 1.65 | 2.00 | |
| Spacer (a) | ||||
| 69 | 321342 | 1.65 | 2.00 | |
| Lock Nut M6 (10 Pcs.) | ||||
| 70 | 949567 | 1.05 | 1.27 | |
| Spring Washer M6 (old 949455z, 10 pcs) | ||||
| 71 | 949455 | 1.05 | 1.27 | |
| Gear | ||||
| 72 | 324407 | 1.65 | 2.00 | |
| Shaft (b) | ||||
| 73 | 324405 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 73A | 336255 | |||
| Holder | ||||
| 74 | 324404 | 4.65 | 5.63 | |
| No information available, not orderable | ||||
| 74A | 336257 | |||
| Holder | ||||
| 75 | 324403 | 6.75 | 8.17 | |
| No information available, not orderable | ||||
| 75A | 336258 | |||
| Bevel Shaft (a) | ||||
| 76 | 324408 | 4.50 | 5.44 | |
| Bolt Washer M6 (10 Pcs.) | ||||
| 77 | 949432 | 1.05 | 1.27 | |
| Tpe (sl),kor (sl) | ||||
| 78 | 949556 | 1.05 | 1.27 | |
| Knob | ||||
| 79 | 324409 | 2.55 | 3.09 | |
| Metal | ||||
| 80 | 950817 | 1.05 | 1.27 | |
| Gear | ||||
| 81 | 324406 | 4.80 | 5.81 | |
| Spring Washer M5 (10 pieces) | ||||
| 82 | 949454 | 1.04 | 1.26 | |
| Machine Screw M5x20 (10 pieces) | ||||
| 83 | 949241 | 1.35 | 1.63 | |
| Lever Shaft | ||||
| 85 | 321339 | 1.80 | 2.18 | |
| Cover | ||||
| 87 | 324395 | 1.50 | 1.82 | |
| Shaft (c) D6 | ||||
| 88 | 324396 | 3.00 | 3.63 | |
| Lever | ||||
| 89 | 321338 | 1.65 | 2.00 | |
| Spring | ||||
| 90 | 321340 | 1.80 | 2.18 | |
| Shaft (a) | ||||
| 91A | 334378 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 92 | 322283 | |||
| Plate | ||||
| 93 | 324381 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 94A | 324455 | |||
| Fence (a) | ||||
| 96 | 324384 | 14.55 | 17.61 | |
| Liner | ||||
| 98 | 324400 | 1.50 | 1.82 | |
| Scale (a) | ||||
| 99 | 315210 | 5.85 | 7.08 | |
| Ring | ||||
| 100 | 673489 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 101 | 336256 | |||
| No information available, not orderable | ||||
| 102 | 336254 | |||
| Washer M10 (10 Pcs.) | ||||
| 103 | 949445 | 1.35 | 1.63 | |
| Washer Spring | ||||
| 104 | 942827 | 1.04 | 1.26 | |
| Feather Key 3x3x8 | ||||
| 105 | 944109 | 1.70 | 2.06 | |
| Ball Bearing 6000ddcmps2l | ||||
| 106 | 6000DD | 6.00 | 7.26 | |
| Washer M8 (10 Pcs.) | ||||
| 107 | 949426 | 1.05 | 1.27 | |
| Machine Screw M4x12 (10 Pcs.) | ||||
| 131 | 949217 | 1.05 | 1.27 | |
| Bolt Washer M4 (10 Pcs.) | ||||
| 132 | 949429 | 1.05 | 1.27 | |
| Nylon Clip | ||||
| 133 | 948193 | 1.05 | 1.27 | |
| Nylon Clip | ||||
| 133 | 948614 | 1.05 | 1.27 | |
| Holder | ||||
| 134 | 324417 | 13.80 | 16.70 | |
| Hex socket set screw M8x10 | ||||
| 135 | 961554 | 1.00 | 1.21 | |
| Machine Screw (w/washers) M5x16 (black) | ||||
| 139 | 307294 | 1.05 | 1.27 | |
| Protective Shield | ||||
| 140 | 324383 | 10.35 | 12.52 | |
| Machine Screw M4x8 (10 Pcs.) | ||||
| 141 | 949215 | 1.05 | 1.27 | |
| Bolt Washer M4 (10 Pcs.) | ||||
| 142 | 949429 | 1.05 | 1.27 | |
| Socket | ||||
| 143 | 324415 | 6.45 | 7.80 | |
| Bushing | ||||
| 144 | 324414 | 19.11 | 23.13 | |
| Holder (a) | ||||
| 145 | 324413 | 72.19 | 87.35 | |
| KNOP M6X25 | ||||
| 146 | 324418 | 3.00 | 3.63 | |
| Spring (old 996224) | ||||
| 147 | 947859 | 1.04 | 1.26 | |
| Seal Lock Hex. Socket Set Screw M6x10 | ||||
| 148 | 307956 | 1.05 | 1.27 | |
| Guide Rod | ||||
| 149 | 324465 | 17.88 | 21.63 | |
| Seal Lock Hex. Socket Hd. Bolt M5x10 | ||||
| 150 | 877839 | 1.05 | 1.27 | |
| Sleeve | ||||
| 151 | 324388 | 4.80 | 5.81 | |
| Spring | ||||
| 152A | 310898 | 13.75 | 16.64 | |
| Clutch Screw | ||||
| 153 | 305180 | 4.50 | 5.44 | |
| Clutch Spring | ||||
| 154 | 305179 | 1.05 | 1.27 | |
| Clamp Lever | ||||
| 156A | 325298 | 3.15 | 3.81 | |
| Bolt M8x65 | ||||
| 157 | 323903 | 6.45 | 7.80 | |
| Bolt Washer M8 (10 Pcs.) | ||||
| 158 | 949433 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt M6x50 (10 Pcs.) Since 1.1985 | ||||
| 159 | 949782 | 6.75 | 8.17 | |
| Stopper Holder (c) | ||||
| 160 | 323904 | 8.70 | 10.53 | |
| Stopper | ||||
| 161 | 323905 | 12.15 | 14.70 | |
| Set Pin (a) | ||||
| 162 | 324420 | 6.00 | 7.26 | |
| Machine Screw (w/washers) M4x12 (black) Till 8.20 | ||||
| 163 | 935196 | 1.04 | 1.26 | |
| Indicator | ||||
| 164 | 321329 | 1.65 | 2.00 | |
| Guide Rod | ||||
| 166 | 324466 | 36.16 | 43.76 | |
| Tapping Screw (w/flange) D5x25 (black) | ||||
| 172 | 305558 | 1.04 | 1.26 | |
| Hinge (a) | ||||
| 173 | 324467 | 64.63 | 78.20 | |
| Bracket | ||||
| 174 | 324421 | 1.65 | 2.00 | |
| Machine Screw (w/washers) M5x16 (black) | ||||
| 175 | 307294 | 1.05 | 1.27 | |
| Holder | ||||
| 176 | 324372 | 7.50 | 9.08 | |
| Machine Screw M4x8 (10 Pcs.) | ||||
| 179 | 949215 | 1.05 | 1.27 | |
| Bolt Washer M4 (10 Pcs.) | ||||
| 180 | 949429 | 1.05 | 1.27 | |
| Cover | ||||
| 181 | 320183 | 3.30 | 3.99 | |
| Stopper Pin Ass'y Includ.107 | ||||
| 182 | 324419 | 5.40 | 6.53 | |
| O-ring (p-9) | ||||
| 183 | 872645 | 1.65 | 2.00 | |
| Machine Screw M4x8 (10 Pcs.) | ||||
| 184 | 949215 | 1.05 | 1.27 | |
| Bolt Washer M4 (10 Pcs.) | ||||
| 185 | 949429 | 1.05 | 1.27 | |
| Pivot Pin | ||||
| 186A | 324387 | 2.10 | 2.54 | |
| Base Rubber | ||||
| 187A | 323606 | 1.05 | 1.27 | |
| Machine Screw M5x12 (10 Pcs.) | ||||
| 188 | 949237 | 1.05 | 1.27 | |
| Socket | ||||
| 189 | 303854 | 1.05 | 1.27 | |
| Link For Europe,aus,nzl | ||||
| 190 | 328522 | 13.05 | 15.79 | |
| Adjuster | ||||
| 191 | 319270 | 5.85 | 7.08 | |
| Clutch Screw | ||||
| 193 | 305180 | 4.50 | 5.44 | |
| Clutch Spring | ||||
| 194 | 305179 | 1.05 | 1.27 | |
| Adjusting Washer (b) T0.5 | ||||
| 195 | 962614 | 1.04 | 1.26 | |
| Plate (b) | ||||
| 196 | 319268 | 1.65 | 2.00 | |
| Clutch Spring | ||||
| 197 | 305179 | 1.05 | 1.27 | |
| Laser Marker | ||||
| 198B | 329863 | 43.18 | 52.24 | |
| Spring | ||||
| 199 | 319267 | 1.50 | 1.82 | |
| Seal Lock Hex. Socket Set Screw M5x6 | ||||
| 200 | 319541 | 1.50 | 1.82 | |
| Cover (a) | ||||
| 201 | 319271 | 15.54 | 18.80 | |
| Plate (a) | ||||
| 202 | 322291 | 3.30 | 3.99 | |
| Bolt Washer M4 (10 Pcs.) | ||||
| 204 | 949429 | 1.05 | 1.27 | |
| Machine Screw M4x12 (10 Pcs.) | ||||
| 205 | 949217 | 1.05 | 1.27 | |
| Spring | ||||
| 206 | 319267 | 1.50 | 1.82 | |
| Holder (b) | ||||
| 207 | 319269 | 7.80 | 9.44 | |
| Handle | ||||
| 231 | 324460 | 11.40 | 13.79 | |
| Tapping Screw (w/flange) D5x25 (black) | ||||
| 232 | 305558 | 1.04 | 1.26 | |
| Switching Power Supply | ||||
| 233 | 371121 | 18.98 | 22.96 | |
| No information available, not orderable | ||||
| 234 | 984750 | |||
| Cord (cord Armor D8.8) For Uae (240v) | ||||
| 235 | 500461Z | 17.88 | 21.63 | |
| Cord (cord Armor D8.8) For Pan | ||||
| 235 | 500447Z | 6.60 | 7.99 | |
| Cord 10.7 (USE 714500=2X1 5M) | ||||
| 235 | 500247Z | 6.18 | 7.48 | |
| Cord Bush | ||||
| 237 | 319349 | 1.50 | 1.82 | |
| Handle | ||||
| 238 | 324461 | 8.85 | 10.71 | |
| Cord Armor D10.1 | ||||
| 239 | 938051 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 240 | 937631 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 241 | 301653 | 1.04 | 1.26 | |
| Machine Screw (w/washers) M5x25 (black) | ||||
| 242 | 880734 | 1.04 | 1.26 | |
| Brush Cap | ||||
| 243 | 945161 | 1.20 | 1.45 | |
| Carbon Brush (1 Pair) | ||||
| 244 | 999038 | 9.30 | 11.25 | |
| Carbon Brush (1 Pair) | ||||
| 244 | 999065 | 7.95 | 9.62 | |
| Brush Holder | ||||
| 245 | 938241 | 6.45 | 7.80 | |
| Machine Screw (w/washers) M5x16 | ||||
| 248 | 990541 | 1.05 | 1.27 | |
| Tail Cover | ||||
| 249 | 324445 | 3.30 | 3.99 | |
| Hex Adjustment Screw M5x8 | ||||
| 250 | 938477 | 1.05 | 1.27 | |
| Housing | ||||
| 251 | 324459 | 27.09 | 32.78 | |
| Brush Terminal | ||||
| 252 | 937623 | 1.04 | 1.26 | |
| Stator 220v-230v | ||||
| 253 | 340703E | 59.68 | 72.21 | |
| No information available, not orderable | ||||
| 254 | 324397 | |||
| Hex. Hd. Tapping Screw D5x50 | ||||
| 255 | 953121 | 1.04 | 1.26 | |
| Armature 230v | ||||
| 256 | 360790B | 74.11 | 89.68 | |
| Armature 110–120 V | ||||
| 256A | 360711U | 69.24 | 83.78 | |
| Ball Bearing 6000vvcmps2l | ||||
| 257 | 6000VV | 6.15 | 7.44 | |
| Fan Guide | ||||
| 258 | 324442 | 3.30 | 3.99 | |
| Ball Bearing 6201vv | ||||
| 259 | 6201VV | 6.45 | 7.80 | |
| Machine Screw (w/washers) M5x10 | ||||
| 262 | 976706 | 1.04 | 1.26 | |
| Switch Handle (l) | ||||
| 263 | 324448 | 12.30 | 14.88 | |
| Machine Screw (w/washers) M5x12 (black) | ||||
| 264 | 996247 | 1.05 | 1.27 | |
| Spindle Cover | ||||
| 265 | 324462 | 6.45 | 7.80 | |
| Internal wire (a) | ||||
| 266 | 324425 | 6.45 | 7.80 | |
| Connector 50092 (10 Pcs.) | ||||
| 267 | 959141 | 3.75 | 4.54 | |
| Switch | ||||
| 268 | 324424 | 6.45 | 7.80 | |
| Switch Handle (r) | ||||
| 269 | 324449 | 8.85 | 10.71 | |
| Knob | ||||
| 270 | 961468 | 1.35 | 1.63 | |
| Holding Spring | ||||
| 271 | 988821 | 3.60 | 4.36 | |
| Stopper Holder | ||||
| 272 | 322314 | 8.70 | 10.53 | |
| Spring Plate | ||||
| 273 | 322313 | 1.65 | 2.00 | |
| Nylock Bolt M8x40 | ||||
| 274 | 303410 | 1.05 | 1.27 | |
| Gear Cover | ||||
| 275 | 324437 | 79.89 | 96.66 | |
| Machine Screw M4x12 (10 Pcs.) | ||||
| 276 | 949217 | 1.05 | 1.27 | |
| Bolt Washer M4 (10 Pcs.) | ||||
| 277 | 949429 | 1.05 | 1.27 | |
| Nylon Clip | ||||
| 278 | 973313 | 1.05 | 1.27 | |
| Machine Screw M6x25 (10 Pcs.) | ||||
| 279 | 949260 | 1.35 | 1.63 | |
| Ball Bearing 606vv | ||||
| 280 | 606ZZM | 15.40 | 18.63 | |
| Spring Washer M6 (old 949455z, 10 pcs) | ||||
| 281 | 949455 | 1.05 | 1.27 | |
| Washer M6 (10 Pcs.) | ||||
| 282 | 949425 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M4x12 (black) Till 8.20 | ||||
| 283 | 935196 | 1.04 | 1.26 | |
| Bolt (a) M10 | ||||
| 284 | 988101 | 1.95 | 2.36 | |
| No information available, not orderable | ||||
| 285B | 323652 | |||
| No information available, not orderable | ||||
| 286 | 328326 | |||
| No information available, not orderable | ||||
| 287 | 324452 | |||
| Flat Hd. Screw M4x10 (10 Pcs.) | ||||
| 288 | 949322 | 1.05 | 1.27 | |
| Cover | ||||
| 289 | 307731 | 2.55 | 3.09 | |
| No information available, not orderable | ||||
| 290 | 328523 | |||
| Guard | ||||
| 290A | 336341 | 10.95 | 13.25 | |
| Return Spring | ||||
| 291A | 328188 | 1.50 | 1.82 | |
| Spindle Ass'y | ||||
| 292 | 324438 | 36.99 | 44.75 | |
| Ball Bearing 6003dd | ||||
| 293 | 6003DD | 7.50 | 9.08 | |
| Bearing Holder | ||||
| 294 | 324439 | 10.20 | 12.34 | |
| Ball Bearing 608vvc2ps2l | ||||
| 295 | 608VVM | 5.70 | 6.90 | |
| Machine Screw M5x20 (10 pieces) | ||||
| 296 | 949241 | 1.35 | 1.63 | |
| Spring Washer M5 (10 pieces) | ||||
| 297 | 949454 | 1.04 | 1.26 | |
| Dust Guide | ||||
| 298 | 321364 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 299 | 312492 | |||
| Gear | ||||
| 300 | 324440 | 32.04 | 38.77 | |
| Feather Key 4x4x15 Till 9.1981 | ||||
| 301 | 948919 | 1.05 | 1.27 | |
| Ball Bearing 6201vv | ||||
| 302 | 6201VV | 6.45 | 7.80 | |
| Cover | ||||
| 303 | 322301 | 3.30 | 3.99 | |
| Flat Hd. Screw M4x10 (10 Pcs.) | ||||
| 304 | 949322 | 1.05 | 1.27 | |
| Pulley (b) | ||||
| 305 | 324441 | 10.65 | 12.89 | |
| Ball Bearing | ||||
| 306 | 321399 | 6.45 | 7.80 | |
| Pulley (a) | ||||
| 307 | 324443 | 4.20 | 5.08 | |
| Super Lock Washer | ||||
| 308 | 961157 | 1.05 | 1.27 | |
| Nut M10 (10 Pcs.) | ||||
| 309 | 949560 | 2.40 | 2.90 | |
| Ring | ||||
| 310 | 324427 | 26.26 | 31.78 | |
| Needle Roller | ||||
| 311 | 983545 | 1.05 | 1.27 | |
| Bearing Holder | ||||
| 312A | 325259 | 3.15 | 3.81 | |
| Machine Screw (w/washers) M5x20 (black) | ||||
| 313 | 995096 | 1.05 | 1.27 | |
| Stopper Pin | ||||
| 314 | 307732 | 4.50 | 5.44 | |
| Bolt Washer M4 (10 Pcs.) | ||||
| 315 | 949429 | 1.05 | 1.27 | |
| Machine Screw M4x8 (10 Pcs.) | ||||
| 316 | 949215 | 1.05 | 1.27 | |
| Pulley Cover | ||||
| 317 | 324450 | 8.25 | 9.98 | |
| Internal wire | ||||
| 318 | 324458 | 1.65 | 2.00 | |
| Switch | ||||
| 319 | 319503 | 12.60 | 15.25 | |
| Gear Cover | ||||
| 320 | 324821 | 3.00 | 3.63 | |
| Gear Cover | ||||
| 321 | 324822 | 3.30 | 3.99 | |
| Noise Suppressor | ||||
| 333 | 930039 | 1.95 | 2.36 | |
| No information available, not orderable | ||||
| 334 | 958308Z | |||
| Knob Bolt For Europe,model (s) | ||||
| 335 | 998879 | 1.05 | 1.27 | |
| Protection Arm | ||||
| 336 | 326828 | 11.85 | 14.34 | |
| Holder | ||||
| 337 | 321394 | 1.65 | 2.00 | |
| Sub Cover For Europe,aus,nzl | ||||
| 338 | 328521 | 10.05 | 12.16 | |
| Lever | ||||
| 339 | 328518 | 12.45 | 15.06 | |
| Spacer | ||||
| 340 | 302757 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 341 | 307811 | |||
| Machine Screw M4x16 | ||||
| 342 | 954878 | 1.05 | 1.27 | |
| Lever Cover For Europe,aus,nzl | ||||
| 343 | 328519 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 344 | 307811 | |||
| Spring | ||||
| 345 | 322457 | 1.50 | 1.82 | |
| Machine Screw (w/washers) M5x16 (black) | ||||
| 346 | 307294 | 1.05 | 1.27 | |
| Ferrite Core For Europe,aus,ina,model (s) | ||||
| 347 | 324518 | 12.15 | 14.70 | |
| Washer (d) For Europe | ||||
| 348 | 324633 | 5.85 | 7.08 | |
| Washer (c) For Aus | ||||
| 349 | 328520 | 9.45 | 11.43 | |
| Machine Screw (w/washers) M5x10 (black) | ||||
| 351 | 336342 | 1.04 | 1.26 | |
| Guard (c) Since 9.2012 For Europe | ||||
| 352 | 336343 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 501 | 985051 | |||
| No information available, not orderable | ||||
| 502A | 322955 | |||
| Knob Bolt M6x32 | ||||
| 601 | 960017 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 602 | 321390 | |||
| Wing Bolt M6x15 | ||||
| 604 | 301806 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 605 | 321374 | |||
| Knob Bolt M6x32 | ||||
| 606 | 960017 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 607 | 321390 | |||
| Wing Bolt M6x15 | ||||
| 609 | 301806 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 610 | 321373 | |||
| No information available, not orderable | ||||
| 611 | 321549 | |||
| Wing Nut M6 (10 Pcs.) | ||||
| 612 | 949313 | 4.65 | 5.63 | |
| Tpe (sl),kor (sl) | ||||
| 613 | 949556 | 1.05 | 1.27 | |
| Clamping plate | ||||
| 614 | 322047 | 1.38 | 1.67 | |
| Bolt | ||||
| 615 | 324412 | 13.95 | 16.88 | |
| Holder Ass'y Includ.605-609 | ||||
| 616 | 324464 | 40.84 | 49.41 | |
| Stopper | ||||
| 617 | 974561 | 7.05 | 8.53 | |
| Wing Bolt M6x20 (10 Pcs.) | ||||
| 618 | 949404 | 7.65 | 9.26 | |
| No information available, not orderable | ||||
| 619 | 324369 | |||
| Knob Bolt M6x11 | ||||
| 620 | 998836 | 1.65 | 2.00 | |
| Machine Screw (w/washers) M4x10 (black) | ||||
| 621 | 304043 | 1.05 | 1.27 | |
| Base Rubber | ||||
| 622 | 964851 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 623 | 306985 | |||
| No information available, not orderable | ||||
| 625 | 321551 | |||
| No information available, not orderable | ||||
| 626 | 321388 | |||
| No information available, not orderable | ||||
| 627 | 321434 | |||
| No information available, not orderable | ||||
| 628 | 305546 | |||
| No information available, not orderable | ||||
| 629 | 309418 | |||
| No information available, not orderable | ||||
| 630 | 301721 | |||
| No information available, not orderable | ||||
| 631 | 310875 | |||
