Here you will find all available parts and drawings of the 'Hikoki C12FDH'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

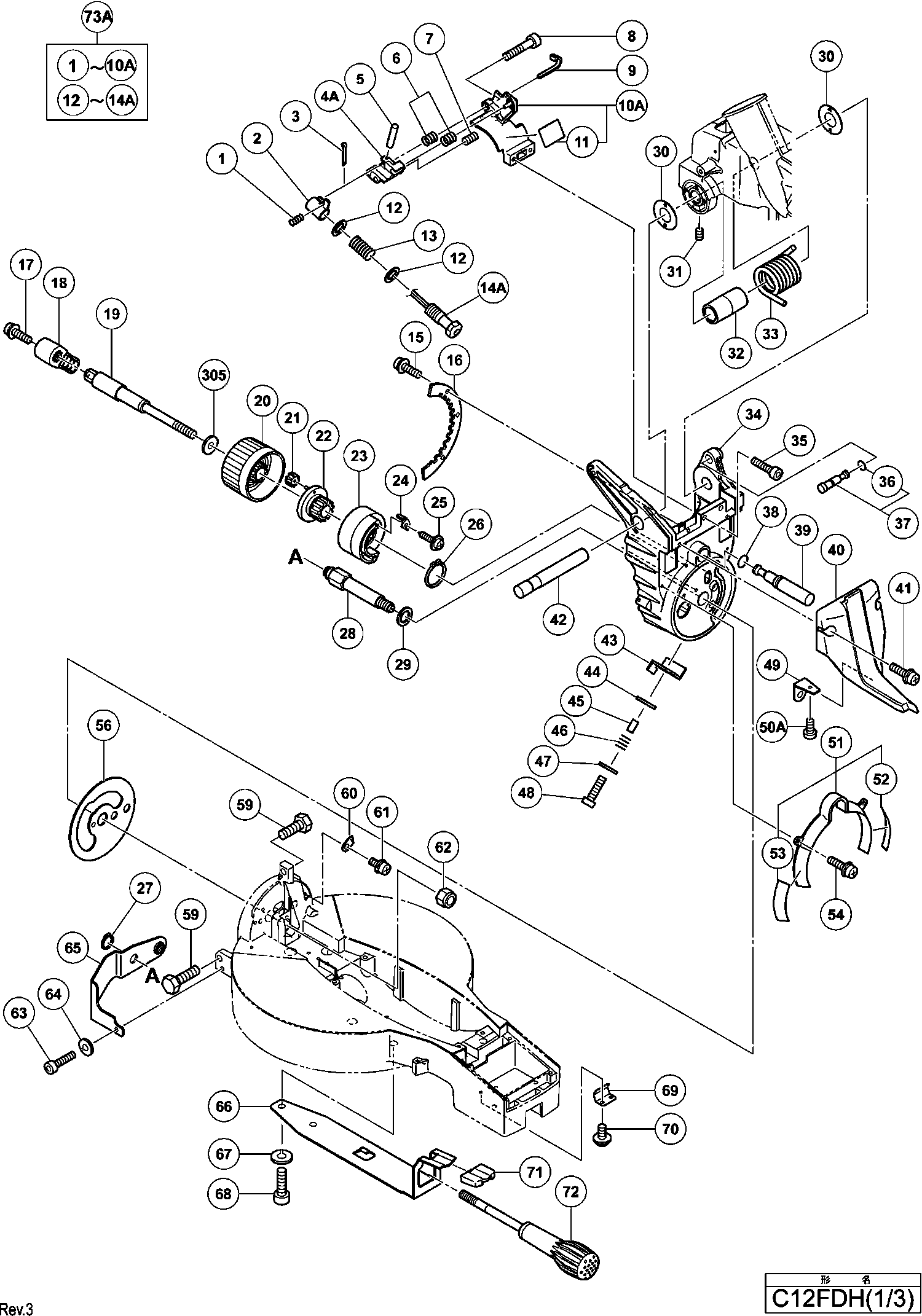

Technical drawing of model Hikoki C12FDH
Spare parts list of model Hikoki C12FDH
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *503 | 322955M | |||
| Spring (b) | ||||
| 1 | 323141 | 1.05 | 1.27 | |
| Laser Holder (a) | ||||
| 2 | 323137 | 1.05 | 1.27 | |
| Split Pin D2x12 (10 Pcs.) | ||||
| 3 | 949531 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 4A | 328943 | |||
| Roll Pin D3x14 (10 Pcs.) | ||||
| 5 | 949900 | 2.40 | 2.90 | |
| Spring (c) | ||||
| 6 | 323142 | 1.05 | 1.27 | |
| Hex. Socket Set Screw M5x6 Till 2.1986 | ||||
| 7 | 962782 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 8 | 323144 | |||
| CORD CLAMP | ||||
| 9 | 975144 | 1.04 | 1.26 | |
| Laser Base Ass'y Include.11 | ||||
| 10A | 331876 | 4.65 | 5.63 | |
| Ring | ||||
| 12 | 323143 | 1.05 | 1.27 | |
| Spring (a) | ||||
| 13 | 323140 | 1.05 | 1.27 | |
| Laser Module (a) Ass'y | ||||
| 14A | 331879 | 82.36 | 99.66 | |
| Machine Screw (w/washers) M5x16 | ||||
| 15 | 990541 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 16 | 324971 | |||
| No information available, not orderable | ||||
| 17 | 323208 | |||
| CLAMP HANDLE (OLD 322935) | ||||
| 18A | 371742 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 19 | 325032 | |||
| No information available, not orderable | ||||
| 20 | 325033 | |||
| No information available, not orderable | ||||
| 21 | 325035 | |||
| No information available, not orderable | ||||
| 22 | 325036 | |||
| No information available, not orderable | ||||
| 23 | 325034 | |||
| No information available, not orderable | ||||
| 24 | 325037 | |||
| No information available, not orderable | ||||
| 25 | 307811 | |||
| Retaining Ring (1) | ||||
| 26 | 962553 | 1.05 | 1.27 | |
| Spring Washer D12 (10 pieces) | ||||
| 27 | 939542 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 28 | 325030 | |||
| Washer M16 | ||||
| 29 | 322934 | 1.05 | 1.27 | |
| Liner (d) | ||||
| 30 | 323684 | 1.05 | 1.27 | |
| Seal Lock Hex. Socket Set Screw M6x10 | ||||
| 31 | 307956 | 1.05 | 1.27 | |
| Sleeve | ||||
| 32 | 323594 | 1.05 | 1.27 | |
| Spring (a) | ||||
| 33 | 323595 | 5.10 | 6.17 | |
| No information available, not orderable | ||||
| 34 | 325279 | |||
| No information available, not orderable | ||||
| 34A | 375124 | |||
| Hex. Socket Hd. Bolt M6x20 (10 Pcs.) | ||||
| 35 | 949660 | 3.30 | 3.99 | |
| O-ring (p-6) | ||||
| 36 | 984528 | 1.05 | 1.27 | |
| Stopper Pin Ass'y Includ.94 | ||||
| 37 | 302518 | 4.50 | 5.44 | |
| No information available, not orderable | ||||
| 37A | 375125 | |||
| O-ring (1ap-12) | ||||
| 38 | 996407 | 1.05 | 1.27 | |
| Set Pin | ||||
| 39 | 325028 | 4.20 | 5.08 | |
| No information available, not orderable | ||||
| 40 | 324973 | |||
| Machine Screw (w/washers) M5x16 | ||||
| 41 | 990541 | 1.05 | 1.27 | |
| Shaft (c) | ||||
| 42 | 323593 | 3.15 | 3.81 | |
| No information available, not orderable | ||||
| 43 | 325029 | |||
| Bolt Washer M6 (10 Pcs.) | ||||
| 44 | 949432 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 45 | 303006 | |||
| Spring (c) | ||||
| 46 | 323142 | 1.05 | 1.27 | |
| Washer M4 (10 Pcs.) | ||||
| 47 | 949423 | 1.05 | 1.27 | |
| Machine Screw M4x20 (10 Pcs.) | ||||
| 48 | 949221 | 1.05 | 1.27 | |
| Dust Guide Holder | ||||
| 49 | 322963 | 1.05 | 1.27 | |
| Machine Screw M4x8 (10 Pcs.) | ||||
| 50A | 949215 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 51 | 324960 | |||
| No information available, not orderable | ||||
| 52 | 324961 | |||
| No information available, not orderable | ||||
| 53 | 324962 | |||
| Machine Screw (w/washers) M4x16 | ||||
| 54 | 993539 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 56 | 324978 | |||
| No information available, not orderable | ||||
| 59 | 325019 | |||
| No information available, not orderable | ||||
| 60 | 324974 | |||
| Machine Screw (w/washers) M4x10 (black) | ||||
| 61 | 304043 | 1.05 | 1.27 | |
| Nylon Nut M12 | ||||
| 62 | 680418 | 3.30 | 3.99 | |
| Hex. Socket Hd. Bolt M5x16 (10 Pcs.) | ||||
| 63 | 949821 | 2.55 | 3.09 | |
| Spring Washer M5 (10 pieces) | ||||
| 64 | 949454 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 65 | 325031 | |||
| Spring Plate | ||||
| 66 | 323627 | 6.30 | 7.62 | |
| Spring Washer M8 (10 Pcs.) | ||||
| 67 | 949457 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt M8x16 (10 Pcs.) | ||||
| 68 | 949655 | 3.90 | 4.72 | |
| No information available, not orderable | ||||
| 69 | 323609 | |||
| Machine Screw (w/sp. Washer) M4x10 | ||||
| 70 | 307635 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 71 | 324987 | |||
| Side Handle | ||||
| 72 | 323680 | 3.15 | 3.81 | |
| Laser Holder Ass'y Include.1-10a,12-14a | ||||
| 73A | 329314 | 36.10 | 43.68 | |
| No information available, not orderable | ||||
| 101 | 325046 | |||
| Table Insert (b) | ||||
| 102 | 323649 | 2.10 | 2.54 | |
| Machine Screw (w/washers) M5x16 | ||||
| 103 | 990541 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 104 | 975348 | |||
| No information available, not orderable | ||||
| 105 | 318929 | |||
| Machine Screw (w/washers) M4x10 (black) | ||||
| 106 | 304043 | 1.05 | 1.27 | |
| INDICATOR (A) | ||||
| 107 | 318927 | 1.26 | 1.52 | |
| No information available, not orderable | ||||
| 108 | 325277 | |||
| Machine Screw (w/washers) M4x16 | ||||
| 109 | 993539 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 110 | 325021 | |||
| Monitor Case (b) | ||||
| 111 | 323693 | 5.85 | 7.08 | |
| Machine Screw (w/washers) M4x16 | ||||
| 112 | 993539 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 113 | 323677 | |||
| No information available, not orderable | ||||
| 114 | 323678 | |||
| Wing Bolt M6x15 | ||||
| 115 | 301806 | 1.05 | 1.27 | |
| Bolt Washer M6 (10 Pcs.) | ||||
| 117 | 949432 | 1.05 | 1.27 | |
| Clamping Plate | ||||
| 118 | 302532 | 2.40 | 2.90 | |
| Machine screw M4x10 (10 pieces) (OLD 949216Z) | ||||
| 119 | 949216 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 120 | 322954 | |||
| Bolt M8x35 (10 Pcs.) | ||||
| 121 | 949678 | 2.55 | 3.09 | |
| Spring Washer M8 (10 Pcs.) | ||||
| 122 | 949457 | 1.05 | 1.27 | |
| Bolt Washer M8 (10 Pcs.) | ||||
| 123 | 949433 | 1.05 | 1.27 | |
| Wing Bolt M6x15 | ||||
| 124 | 301806 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 125 | 324995 | |||
| Spring (c) | ||||
| 126 | 323142 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 127 | 324993 | |||
| No information available, not orderable | ||||
| 129 | 325049 | |||
| Flat Hd. Screw M6x25 (10 Pcs.) | ||||
| 130 | 949342 | 1.65 | 2.00 | |
| FLAT HD.SCREW M6X35 (10 PCS.) | ||||
| 131 | 949795 | 1.08 | 1.31 | |
| Nylon Nut M6 | ||||
| 132 | 311144 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 133 | 324994 | |||
| No information available, not orderable | ||||
| 134 | 325271 | |||
| No information available, not orderable | ||||
| 134A | 325271 | |||
| Liner (a) | ||||
| 136 | 323625 | 3.15 | 3.81 | |
| No information available, not orderable | ||||
| 137 | 322910 | |||
| Bolt M6x10 (10 Pcs.) | ||||
| 138 | 949610 | 1.20 | 1.45 | |
| Machine Screw (w/sp. Washer) M5x16 | ||||
| 139 | 987512 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 140 | 323605 | |||
| No information available, not orderable | ||||
| 142 | 324965 | |||
| No information available, not orderable | ||||
| 143 | 323626 | |||
| No information available, not orderable | ||||
| 144 | 325270 | |||
| No information available, not orderable | ||||
| 144A | 325270 | |||
| No information available, not orderable | ||||
| 146 | 324990 | |||
| No information available, not orderable | ||||
| 147 | 324988 | |||
| Rivet D2.5x4.8 (10 Pcs.) Three-phase | ||||
| 148 | 949510 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 151 | 323692 | |||
| Bolt Washer M6 (10 Pcs.) | ||||
| 152 | 949432 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 201 | 325048 | |||
| Machine Screw (w/washers) M5x16 | ||||
| 202 | 990541 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 203 | 324964 | |||
| No information available, not orderable | ||||
| 204 | 325022 | |||
| No information available, not orderable | ||||
| 205 | 949828 | |||
| Bolt Washer M5 (10 Pcs.) | ||||
| 206 | 949431 | 1.04 | 1.26 | |
| Spring Washer M5 (10 pieces) | ||||
| 207 | 949454 | 1.04 | 1.26 | |
| Cord Armor D10.7 | ||||
| 208 | 940778 | 2.10 | 2.54 | |
| Cord Clip | ||||
| 209 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 210 | 984750 | |||
| No information available, not orderable | ||||
| 212 | 307811 | |||
| No information available, not orderable | ||||
| 213 | 307811 | |||
| Connector 50092 (10 Pcs.) | ||||
| 214 | 959141 | 3.75 | 4.54 | |
| No information available, not orderable | ||||
| 215 | 324966 | |||
| Switch | ||||
| 216 | 323634 | 5.70 | 6.90 | |
| No information available, not orderable | ||||
| 217 | 984750 | |||
| No information available, not orderable | ||||
| 218A | 371119 | |||
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 219 | 301653 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 220 | 325043 | |||
| No information available, not orderable | ||||
| 220A | 375122 | |||
| No information available, not orderable | ||||
| 221 | 325261 | |||
| No information available, not orderable | ||||
| 222 | 325262 | |||
| No information available, not orderable | ||||
| 223 | 325263 | |||
| No information available, not orderable | ||||
| 224 | 324998 | |||
| SCHAKELAAR 3P FASTON TYPE W/O LOCK | ||||
| 224A | 375115 | 8.82 | 10.67 | |
| No information available, not orderable | ||||
| 226 | 325002 | |||
| Machine Screw (w/washers) M5x40 (black) | ||||
| 227 | 322123 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 228 | 325000 | |||
| Brush Terminal | ||||
| 229 | 937623 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 230 | 340648D | |||
| Hex. Hd. Tapping Screw D5x55 | ||||
| 231 | 953174 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 232 | 325045 | |||
| No information available, not orderable | ||||
| 232A | 325045 | |||
| Hex Adjustment Screw M5x8 | ||||
| 233 | 938477 | 1.05 | 1.27 | |
| Brush Holder | ||||
| 234 | 938241 | 6.45 | 7.80 | |
| Carbon Brush (1 Pair) | ||||
| 235 | 999038 | 9.30 | 11.25 | |
| Brush Cap | ||||
| 236 | 945161 | 1.20 | 1.45 | |
| Fan Guide | ||||
| 237 | 322915 | 2.25 | 2.72 | |
| No information available, not orderable | ||||
| 238 | 360743U | |||
| Ball Bearing 6000vvcmps2l | ||||
| 239 | 6000VV | 6.15 | 7.44 | |
| Ring | ||||
| 240 | 302428 | 1.04 | 1.26 | |
| Dust Washer (b) | ||||
| 241 | 325003 | 1.05 | 1.27 | |
| Ball Bearing 6201vv | ||||
| 242 | 6201VV | 6.45 | 7.80 | |
| Hex. Socket Hd. Bolt M6x16 (10 Pcs.) | ||||
| 243 | 949755 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 244 | 325004 | |||
| No information available, not orderable | ||||
| 244A | 325004 | |||
| Nylon Clip | ||||
| 245 | 980523 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M4x12 (black) Till 8.20 | ||||
| 246 | 935196 | 1.04 | 1.26 | |
| Bolt (a) M10 | ||||
| 247 | 988101 | 1.95 | 2.36 | |
| No information available, not orderable | ||||
| 248 | 323652 | |||
| WASHER (B) (OLD 323652) | ||||
| 248A | 339652 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 250 | 325023 | |||
| No information available, not orderable | ||||
| 251 | 325005 | |||
| Flat Hd. Screw M4x10 (black) | ||||
| 252 | 318363 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 253 | 325008 | |||
| No information available, not orderable | ||||
| 254 | 6904DD | |||
| No information available, not orderable | ||||
| 255 | 323208 | |||
| No information available, not orderable | ||||
| 256 | 325007 | |||
| No information available, not orderable | ||||
| 257 | 325006 | |||
| Ball Bearing 608vvc2ps2l | ||||
| 258 | 608VVM | 5.70 | 6.90 | |
| Machine Screw M5x10 (black) | ||||
| 261 | 323040 | 1.05 | 1.27 | |
| Bolt Washer M5 (10 Pcs.) | ||||
| 262 | 949431 | 1.04 | 1.26 | |
| Spindle Cover | ||||
| 263 | 323675 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M4x16 | ||||
| 264 | 993539 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 265 | 325047 | |||
| No information available, not orderable | ||||
| 266 | 323654 | |||
| Pulley (a) | ||||
| 269 | 324443 | 4.20 | 5.08 | |
| Super Lock Washer | ||||
| 270 | 961157 | 1.05 | 1.27 | |
| Nut M10 (10 Pcs.) | ||||
| 271 | 949560 | 2.40 | 2.90 | |
| Ring | ||||
| 272 | 324427 | 26.26 | 31.78 | |
| No information available, not orderable | ||||
| 273 | 325009 | |||
| Ball Bearing 608vvc2ps2l | ||||
| 278 | 608VVM | 5.70 | 6.90 | |
| Needle Roller | ||||
| 279 | 983545 | 1.05 | 1.27 | |
| Bearing Holder | ||||
| 280 | 325259 | 3.15 | 3.81 | |
| Machine Screw M5x20 (10 pieces) | ||||
| 281 | 949241 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 282 | 325018 | |||
| Stopper Pin (b) | ||||
| 283 | 325017 | 2.10 | 2.54 | |
| Machine Screw (w/washers) M4x10 (black) | ||||
| 284 | 304043 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 285 | 325016 | |||
| No information available, not orderable | ||||
| 285A | 325016 | |||
| Washer M7 | ||||
| 287 | 322948 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 288 | 325041 | |||
| No information available, not orderable | ||||
| 288A | 375123 | |||
| No longer available, no replacement | ||||
| 289 | 322950 | |||
| Special Screw (c) M5 | ||||
| 290 | 322947 | 1.05 | 1.27 | |
| Washer | ||||
| 291 | 322938 | 1.05 | 1.27 | |
| Flat Hd. Screw M4x10 (black) | ||||
| 292 | 318363 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 293 | 324967 | |||
| No information available, not orderable | ||||
| 293B | 324967 | |||
| Cover Plate (b) Ass'y Includ.296 | ||||
| 294 | 323672 | 6.75 | 8.17 | |
| Cushion | ||||
| 295 | 323673 | 1.05 | 1.27 | |
| Protective Cover (a) | ||||
| 296 | 323667 | 31.49 | 38.10 | |
| Return Spring | ||||
| 297 | 323671 | 1.05 | 1.27 | |
| Machine Screw M5x10 (black) | ||||
| 298 | 323040 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 299 | 325040 | |||
| Label | ||||
| 300 | 323670 | 1.05 | 1.27 | |
| Spring Washer M5 (10 pieces) | ||||
| 301 | 949454 | 1.04 | 1.26 | |
| Machine Screw M5x10 (10 Pcs.) For Irl | ||||
| 302 | 949236 | 1.05 | 1.27 | |
| Machine Screw M4x8 (10 Pcs.) | ||||
| 303 | 949215 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 304 | 325038 | |||
| Bolt Washer M10 (10 Pcs.) | ||||
| 305 | 949434 | 1.35 | 1.63 | |
| TRIGGER | ||||
| 307 | 375116 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 501 | 944458 | |||
| No information available, not orderable | ||||
| 502 | 985051 | |||
| No information available, not orderable | ||||
| 503 | 322955 | |||
| No information available, not orderable | ||||
| 601 | 323546 | |||
| Wing Bolt M6x15 | ||||
| 602 | 301806 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 604 | 321390 | |||
| No information available, not orderable | ||||
| 605 | 323682 | |||
| No information available, not orderable | ||||
| 606 | 323547 | |||
| No information available, not orderable | ||||
| 607 | 323682 | |||
| No information available, not orderable | ||||
| 608 | 321390 | |||
| Wing Bolt M6x15 | ||||
| 610 | 301806 | 1.05 | 1.27 | |
| Holder Ass'y Includ.612-617 | ||||
| 611 | 323657 | 43.86 | 53.07 | |
| No information available, not orderable | ||||
| 612 | 321549 | |||
| Wing Nut M6 (10 Pcs.) | ||||
| 613 | 949313 | 4.65 | 5.63 | |
| Tpe (sl),kor (sl) | ||||
| 614 | 949556 | 1.05 | 1.27 | |
| KLEMPLAAT | ||||
| 615 | 322047 | 1.38 | 1.67 | |
| Washer M6 (10 Pcs.) | ||||
| 616 | 949425 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 617 | 323681 | |||
| Stopper | ||||
| 618 | 974561 | 7.05 | 8.53 | |
| Wing Bolt M6x20 (10 Pcs.) | ||||
| 619 | 949404 | 7.65 | 9.26 | |
| No information available, not orderable | ||||
| 620 | 323523 | |||
| No information available, not orderable | ||||
| 621 | 322957 | |||
| No information available, not orderable | ||||
| 622 | 321551 | |||
| Knob Bolt M6x11 | ||||
| 623 | 998836 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 625 | 306985 | |||
| Base Rubber | ||||
| 626 | 964851 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M4x10 (black) | ||||
| 627 | 304043 | 1.05 | 1.27 | |
| Vise Shaft | ||||
| 628 | 318967 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 629 | 323545 | |||
| No information available, not orderable | ||||
| 630 | 323522 | |||
| No information available, not orderable | ||||
| 631 | 305546 | |||
| No information available, not orderable | ||||
| 632 | 309418 | |||
| No information available, not orderable | ||||
| 633 | 301721 | |||
| No information available, not orderable | ||||
| 634 | 310875 | |||
