Here you will find all available parts and drawings of the 'Hikoki C10FSB'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

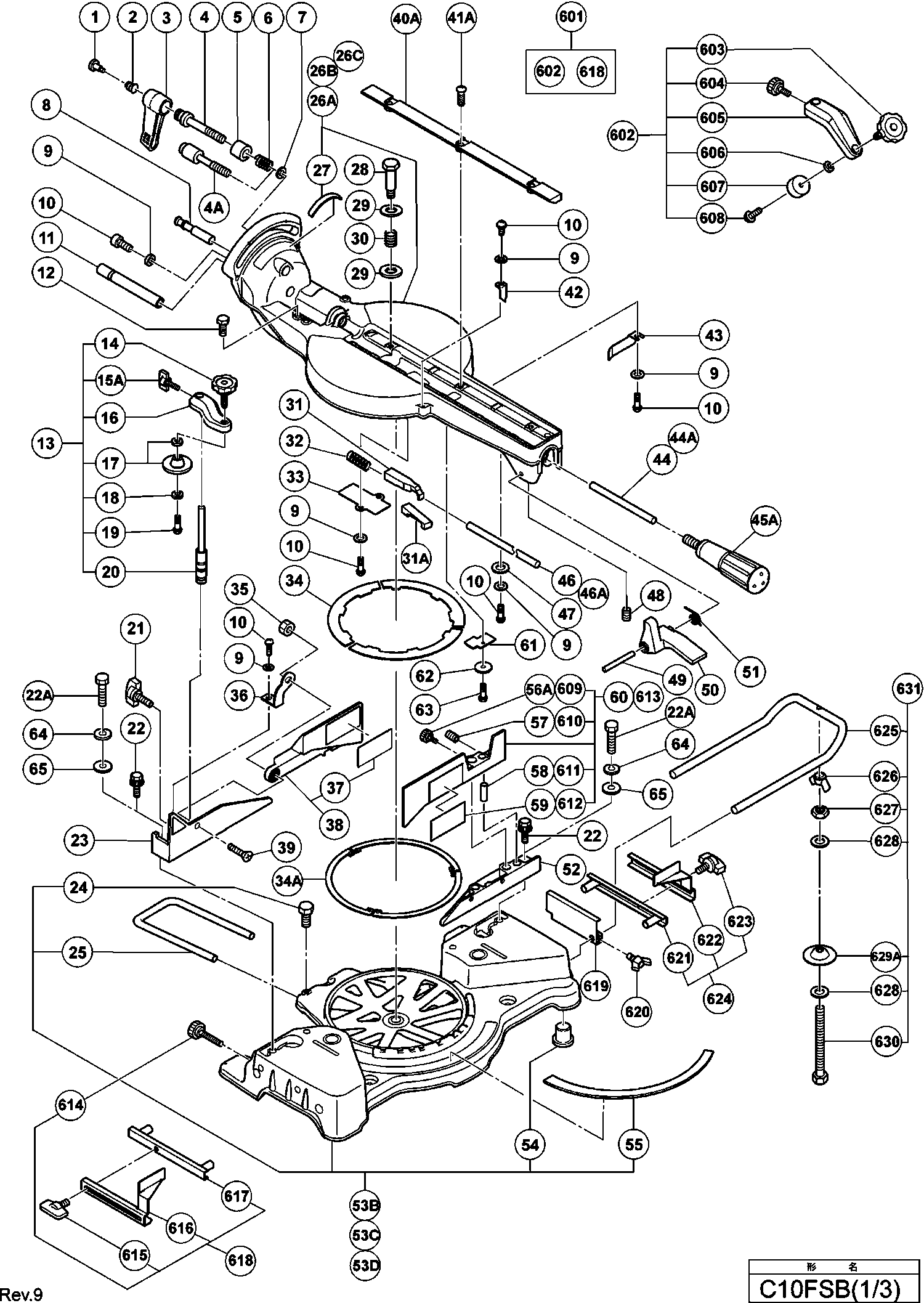

Technical drawing of model Hikoki C10FSB
Spare parts list of model Hikoki C10FSB
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Clutch Screw | ||||
| 1 | 305180 | 4.50 | 5.44 | |
| Clutch Spring | ||||
| 2 | 305179 | 1.05 | 1.27 | |
| Clamp Lever | ||||
| 3 | 312488 | 9.21 | 11.15 | |
| Bolt (left Hand) M10 (till 08.2010) | ||||
| 4 | 307725 | 12.75 | 15.43 | |
| Bolt (left Hand) D10 | ||||
| 4A | 329409 | 4.20 | 5.08 | |
| Sleeve | ||||
| 5 | 315195 | 6.45 | 7.80 | |
| Metal Spring (a) | ||||
| 6 | 305190 | 2.55 | 3.09 | |
| Ring | ||||
| 7 | 965077 | 1.05 | 1.27 | |
| Set Pin (a) | ||||
| 8 | 321330 | 6.75 | 8.17 | |
| Bolt Washer M4 (10 Pcs.) | ||||
| 9 | 949429 | 1.05 | 1.27 | |
| Machine Screw M4x8 (10 Pcs.) | ||||
| 10 | 949215 | 1.05 | 1.27 | |
| Hinge Shaft (a) | ||||
| 11 | 320141 | 10.20 | 12.34 | |
| No information available, not orderable | ||||
| 12 | 303409 | |||
| No information available, not orderable | ||||
| 13 | 321370 | |||
| Knob Bolt M10 | ||||
| 14 | 308396 | 7.65 | 9.26 | |
| Wing Bolt M6x12 | ||||
| 15A | 307947 | 1.35 | 1.63 | |
| Vise Plate Set | ||||
| 17 | 319974 | 3.45 | 4.17 | |
| Ring | ||||
| 18 | 996722 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M5x12 (black) | ||||
| 19 | 996247 | 1.05 | 1.27 | |
| Vise Shaft | ||||
| 20 | 321371 | 7.65 | 9.26 | |
| Wing Bolt M6x17 | ||||
| 21 | 302459 | 1.05 | 1.27 | |
| Bolt (w/washers) M8x35 (black) | ||||
| 22 | 307221 | 1.04 | 1.26 | |
| Bolt M8x35 (10 Pcs.) | ||||
| 22A | 949678 | 2.55 | 3.09 | |
| Fence (b) | ||||
| 23 | 321346 | 28.88 | 34.94 | |
| Bolt M6x10 (10 Pcs.) | ||||
| 24 | 949610 | 1.20 | 1.45 | |
| Holder | ||||
| 25 | 998844 | 7.95 | 9.62 | |
| Base | ||||
| 26A | 330768 | 224.81 | 272.02 | |
| No information available, not orderable | ||||
| 26B | 334463 | |||
| Table Ass'y Includ.9,10,26c-34a,40,41a,43,44a,47a | ||||
| 26C | 336311 | 103.13 | 124.78 | |
| No information available, not orderable | ||||
| 27 | 321343 | |||
| No information available, not orderable | ||||
| 28 | 312480 | |||
| Bolt Washer M12 (10 Pcs.) | ||||
| 29 | 949437 | 1.95 | 2.36 | |
| Spring | ||||
| 30 | 312481 | 2.55 | 3.09 | |
| Spring retaining ring | ||||
| 31 | 321335 | 7.20 | 8.71 | |
| Stopper | ||||
| 31A | 322280 | 4.95 | 5.99 | |
| Spring (e) | ||||
| 32 | 321417 | 3.45 | 4.17 | |
| Pin Cover | ||||
| 33 | 321336 | 1.65 | 2.00 | |
| Liner (till 08.2008) | ||||
| 34 | 998811 | 1.95 | 2.36 | |
| Liner | ||||
| 34A | 324400 | 1.50 | 1.82 | |
| Nylon Nut M6 | ||||
| 35 | 311144 | 1.05 | 1.27 | |
| Holder | ||||
| 36 | 321331 | 1.65 | 2.00 | |
| WARNING LABEL | ||||
| 37 | 321386 | 5.10 | 6.17 | |
| No information available, not orderable | ||||
| 38 | 321385 | |||
| Flat Hd. Screw M6x25 (10 Pcs.) | ||||
| 39 | 949342 | 1.65 | 2.00 | |
| Table Insert | ||||
| 40A | 329421 | 2.10 | 2.54 | |
| Saw blade guide | ||||
| 40A | 337816 | 1.65 | 2.00 | |
| Machine Screw M6x16 (10 Pcs.) | ||||
| 41A | 949256 | 1.35 | 1.63 | |
| Indicator | ||||
| 42 | 321329 | 1.65 | 2.00 | |
| Spacer (a) | ||||
| 43 | 321342 | 1.65 | 2.00 | |
| Shaft (a) (till 08.2008) | ||||
| 44 | 321341 | 3.30 | 3.99 | |
| Shaft (a) | ||||
| 44A | 329416 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 45A | 322283 | |||
| Shaft (c) (till 08.2008) | ||||
| 46 | 321337 | 3.30 | 3.99 | |
| Shaft (c) | ||||
| 46A | 329415 | 2.10 | 2.54 | |
| Thrust Washer | ||||
| 47 | 875249 | 1.35 | 1.63 | |
| Seal Lock Hex. Socket Set Screw M6x6 | ||||
| 48 | 987860 | 1.05 | 1.27 | |
| Lever Shaft | ||||
| 49 | 321339 | 1.80 | 2.18 | |
| Lever | ||||
| 50 | 321338 | 1.65 | 2.00 | |
| Spring | ||||
| 51 | 321340 | 1.80 | 2.18 | |
| Fence (a) | ||||
| 52 | 321345 | 33.96 | 41.09 | |
| Base | ||||
| 53B | 330768 | 224.81 | 272.02 | |
| No information available, not orderable | ||||
| 53C | 334463 | |||
| Table Ass'y Includ.9,10,26c-34a,40,41a,43,44a,47a | ||||
| 53D | 336311 | 103.13 | 124.78 | |
| No information available, not orderable | ||||
| 54 | 312672 | |||
| Scale (a) | ||||
| 55 | 315210 | 5.85 | 7.08 | |
| No information available, not orderable | ||||
| 60 | 322617 | |||
| Cover | ||||
| 61 | 324395 | 1.50 | 1.82 | |
| Bolt Washer M4 (10 Pcs.) | ||||
| 62 | 949429 | 1.05 | 1.27 | |
| Machine Screw M4x8 (10 Pcs.) | ||||
| 63 | 949215 | 1.05 | 1.27 | |
| Spring Washer M8 (10 Pcs.) | ||||
| 64 | 949457 | 1.05 | 1.27 | |
| Bolt Washer M8 (10 Pcs.) | ||||
| 65 | 949433 | 1.05 | 1.27 | |
| Packing Cover | ||||
| 71 | 996227 | 2.40 | 2.90 | |
| Bolt Washer M4 (10 Pcs.) | ||||
| 72 | 949429 | 1.05 | 1.27 | |
| Machine Screw M4x8 (10 Pcs.) | ||||
| 73 | 949215 | 1.05 | 1.27 | |
| Hinge (b) Ass'y Includ.89a,100a | ||||
| 74A | 332818 | 134.89 | 163.21 | |
| No information available, not orderable | ||||
| 74B | 334460 | |||
| Socket | ||||
| 75A | 334337 | 5.10 | 6.17 | |
| Spring | ||||
| 76 | 321332 | 13.50 | 16.34 | |
| No information available, not orderable | ||||
| 77 | 961554 | |||
| Stopper Pin Ass'y Includ.94 | ||||
| 78 | 302518 | 4.50 | 5.44 | |
| O-ring (p-6) | ||||
| 79 | 984528 | 1.05 | 1.27 | |
| Wing Nut M8 (10 Pcs.) | ||||
| 80 | 949312 | 5.40 | 6.53 | |
| Bolt M8x50 (10 Pcs.) | ||||
| 81 | 949633 | 3.60 | 4.36 | |
| Hinge Shaft (a) | ||||
| 82 | 320141 | 10.20 | 12.34 | |
| Machine Screw M5x12 (10 Pcs.) | ||||
| 83 | 949237 | 1.05 | 1.27 | |
| Spring Washer M5 (10 pieces) | ||||
| 84 | 949454 | 1.04 | 1.26 | |
| Spacer | ||||
| 85 | 998980 | 1.04 | 1.26 | |
| Connecting rod | ||||
| 86 | 321368 | 15.26 | 18.47 | |
| Connecting rod | ||||
| 86 | 322199 | 15.26 | 18.47 | |
| Machine Screw M4x12 (10 Pcs.) | ||||
| 87 | 949217 | 1.05 | 1.27 | |
| Nylon Clip | ||||
| 88 | 948193 | 1.05 | 1.27 | |
| Nylon Clip | ||||
| 88 | 948614 | 1.05 | 1.27 | |
| Holder | ||||
| 89A | 331419 | 8.85 | 10.71 | |
| Support | ||||
| 89B | 334458 | 8.85 | 10.71 | |
| Bushing | ||||
| 90 | 321347 | 120.18 | 145.41 | |
| Felt | ||||
| 91 | 996226 | 1.35 | 1.63 | |
| Bushing | ||||
| 92 | 996223 | 2.40 | 2.90 | |
| Lock Nut M8 (10 Pcs.) | ||||
| 93 | 949568 | 1.50 | 1.82 | |
| Hex. Socket Set Screw M8x16 | ||||
| 94 | 974500 | 1.05 | 1.27 | |
| Wing Bolt M6x17 | ||||
| 95 | 302459 | 1.05 | 1.27 | |
| Spring (old 996224) | ||||
| 96 | 947859 | 1.04 | 1.26 | |
| Clamp Piece (b) | ||||
| 97 | 963174 | 1.35 | 1.63 | |
| Caution Label (a) | ||||
| 98 | 320206 | 1.65 | 2.00 | |
| Holder (a) | ||||
| 99 | 321375 | 77.00 | 93.17 | |
| No information available, not orderable | ||||
| 99A | 334462 | |||
| Roll Pin D6x40 (10 Pcs.) | ||||
| 100 | 949686 | 6.75 | 8.17 | |
| No information available, not orderable | ||||
| 100A | 961554 | |||
| Indicator | ||||
| 101 | 321329 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 102 | 303409 | |||
| Seal Lock Hex. Socket Set Screw M6x10 | ||||
| 103 | 307956 | 1.05 | 1.27 | |
| Guard (a) For Europe,model (s) | ||||
| 105 | 321333 | 11.85 | 14.34 | |
| Holder | ||||
| 105A | 324372 | 7.50 | 9.08 | |
| Holder | ||||
| 106A | 331845 | 1.80 | 2.18 | |
| Cord | ||||
| 107 | 500241Z | 17.19 | 20.80 | |
| Cord (cord Armor D8.8) For Pan | ||||
| 107 | 500447Z | 6.60 | 7.99 | |
| Washer | ||||
| 108 | 960092 | 1.05 | 1.27 | |
| Liner (a) | ||||
| 109 | 322210 | 1.65 | 2.00 | |
| Flat Hd. Screw M5x12 (10 Pcs.) | ||||
| 110 | 949332 | 1.04 | 1.26 | |
| Sub Cover For Aus,nzl | ||||
| 111 | 322206 | 19.53 | 23.63 | |
| Cord Armor D10.1 | ||||
| 121 | 938051 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 122 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 123 | 984750 | |||
| Handle | ||||
| 124 | 321392 | 9.15 | 11.07 | |
| No information available, not orderable | ||||
| 124A | 333986 | |||
| Tapping Screw (w/flange) D5x25 (black) | ||||
| 125 | 305558 | 1.04 | 1.26 | |
| Sheet | ||||
| 126 | 321355 | 8.40 | 10.16 | |
| Controller 100v-120v | ||||
| 127A | 321354 | 113.71 | 137.59 | |
| Controller 220v-240v | ||||
| 127A | 322200 | 113.71 | 137.59 | |
| Terminal M4.0 (10 Pcs.) | ||||
| 128 | 930804 | 3.00 | 3.63 | |
| Handle | ||||
| 129 | 321393 | 6.60 | 7.99 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 130 | 301653 | 1.04 | 1.26 | |
| Machine Screw (w/washers) M5x25 (black) | ||||
| 131 | 880734 | 1.04 | 1.26 | |
| Pulley Cover | ||||
| 132 | 321383 | 7.20 | 8.71 | |
| Connector 50092 (10 Pcs.) | ||||
| 133 | 959141 | 3.75 | 4.54 | |
| connecting terminal | ||||
| 134 | 980063 | 1.04 | 1.26 | |
| Set Of Handles | ||||
| 135 | 322884 | 9.60 | 11.62 | |
| Handle (r) | ||||
| 135 | 321381 | 6.45 | 7.80 | |
| Pulley | ||||
| 136 | 321356 | 8.40 | 10.16 | |
| Washer M8 (10 Pcs.) | ||||
| 137 | 949426 | 1.05 | 1.27 | |
| Washer | ||||
| 138 | 978559 | 1.05 | 1.27 | |
| Nut M8 (10 Pcs.) | ||||
| 139 | 949558 | 1.05 | 1.27 | |
| Ball Bearing 6201vv | ||||
| 140 | 6201VV | 6.45 | 7.80 | |
| Cover | ||||
| 141 | 307731 | 2.55 | 3.09 | |
| Flat Hd. Screw M4x10 (10 Pcs.) | ||||
| 142 | 949322 | 1.05 | 1.27 | |
| Pulley (b) | ||||
| 143 | 321357 | 13.50 | 16.34 | |
| Belt (10ph432) | ||||
| 144A | 332810 | 18.08 | 21.87 | |
| Switch | ||||
| 145 | 998839 | 14.70 | 17.79 | |
| Switch | ||||
| 145A | 958400Z | 18.98 | 22.96 | |
| Threaded cable sleeve | ||||
| 146 | 981373 | 1.05 | 1.27 | |
| Internal Wire (a) Ass'y Includ.159,171 | ||||
| 147 | 322207 | 11.85 | 14.34 | |
| Cord (a) | ||||
| 147A | 321532 | 10.50 | 12.70 | |
| Brush Terminal | ||||
| 148 | 930703 | 2.40 | 2.90 | |
| FIELD 120 VOLT | ||||
| 149 | 340539D | 84.56 | 102.32 | |
| Stator Ass'y (b) 230v Includ.173 Since 9.2010 For | ||||
| 149A | 340811E | 28.60 | 34.61 | |
| Hex. Hd. Tapping Screw D5x55 | ||||
| 150 | 953174 | 1.04 | 1.26 | |
| Ball Bearing | ||||
| 151 | 321399 | 6.45 | 7.80 | |
| ANKER 120 VOLT | ||||
| 152A | 360588U | 95.43 | 115.46 | |
| Armature Assembly 230 Volt (old 360588e) | ||||
| 152A | 360898E | 68.61 | 83.02 | |
| Armature Ass'y 240v | ||||
| 152A | 360898F | 68.48 | 82.85 | |
| No information available, not orderable | ||||
| 152B | 360924U | |||
| RUBBER PIN (OLD 976441) | ||||
| 153A | 946362 | 1.05 | 1.27 | |
| Brush Cap | ||||
| 154 | 945161 | 1.20 | 1.45 | |
| Carbon Brush (1 Pair) | ||||
| 155 | 999043 | 4.50 | 5.44 | |
| Brush Holder | ||||
| 156 | 960685 | 6.45 | 7.80 | |
| Brush Holder | ||||
| 156 | 958900 | 6.45 | 7.80 | |
| Hex Adjustment Screw M5x8 | ||||
| 157 | 938477 | 1.05 | 1.27 | |
| HOUSING | ||||
| 158 | 321379 | 33.96 | 41.09 | |
| Casing Box DUO 110 - Set | ||||
| 158 | 322208 | 32.18 | 38.93 | |
| Machine Screw (w/washers) M5x12 (black) | ||||
| 159 | 996247 | 1.05 | 1.27 | |
| Spacer | ||||
| 160 | 998980 | 1.04 | 1.26 | |
| Bolt (w/washers) M6x12 (black) | ||||
| 161 | 996577 | 1.05 | 1.27 | |
| Spindle Cover | ||||
| 162 | 318958 | 3.00 | 3.63 | |
| Machine Screw M6x20 (10 Pcs.) | ||||
| 163 | 949258 | 1.65 | 2.00 | |
| Ball Bearing 606vv | ||||
| 164 | 606ZZM | 15.40 | 18.63 | |
| Spring Washer M6 (old 949455z, 10 pcs) | ||||
| 165 | 949455 | 1.05 | 1.27 | |
| Washer M6 (10 Pcs.) | ||||
| 166 | 949425 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M4x10 (black) | ||||
| 169 | 304043 | 1.05 | 1.27 | |
| Seal Lock Hex. Socket Hd. Bolt M5x10 | ||||
| 170 | 877839 | 1.05 | 1.27 | |
| Gearbox Housing C10fsb | ||||
| 171 | 321384 | 145.89 | 176.52 | |
| No information available, not orderable | ||||
| 171A | 334461 | |||
| No information available, not orderable | ||||
| 173 | 322443 | |||
| Flange (D) | ||||
| 174 | 308789 | 15.84 | 19.16 | |
| Cover | ||||
| 175 | 307731 | 2.55 | 3.09 | |
| Lower Guard (since 04.2007 For Aus,nzl) | ||||
| 176 | 322452 | 14.70 | 17.79 | |
| Guard | ||||
| 176 | 321367 | 9.30 | 11.25 | |
| Return Spring (a) | ||||
| 177 | 322453 | 1.65 | 2.00 | |
| Return Spring (a) | ||||
| 177A | 322453 | 1.65 | 2.00 | |
| Machine Screw M5x20 (10 pieces) | ||||
| 178 | 949241 | 1.35 | 1.63 | |
| Spring Washer M5 (10 pieces) | ||||
| 179 | 949454 | 1.04 | 1.26 | |
| Bolt (left Hand) W/washer M7x17.5 | ||||
| 180 | 998335 | 1.05 | 1.27 | |
| Flat Hd. Screw M4x10 (10 Pcs.) | ||||
| 181 | 949322 | 1.05 | 1.27 | |
| Spindle Ass'y | ||||
| 182 | 308787 | 99.14 | 119.96 | |
| Ball Bearing 6003dd | ||||
| 183 | 6003DD | 7.50 | 9.08 | |
| Bearing Holder | ||||
| 184 | 308788 | 22.83 | 27.62 | |
| Ball Bearing 608vvc2ps2l | ||||
| 185 | 608VVM | 5.70 | 6.90 | |
| Feather Key 4x4x12 | ||||
| 187 | 931008 | 1.05 | 1.27 | |
| Nut M5 (10 Pieces) (OLD 949555Z) | ||||
| 188 | 949555 | 1.05 | 1.27 | |
| Holding Spring | ||||
| 189 | 988821 | 3.60 | 4.36 | |
| Stopper Pin | ||||
| 190 | 307732 | 4.50 | 5.44 | |
| Dust Guide | ||||
| 192 | 321364 | 1.80 | 2.18 | |
| Fan Guide | ||||
| 192 | 322454 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 193 | 312492 | |||
| Lock button | ||||
| 194 | 951895 | 3.30 | 3.99 | |
| Handle (l) | ||||
| 195 | 321382 | 6.45 | 7.80 | |
| No information available, not orderable | ||||
| 196 | 321398 | |||
| Bolt Washer M6 (10 Pcs.) | ||||
| 197 | 949432 | 1.05 | 1.27 | |
| Collar (b) For D25.4 Hole For Sin | ||||
| 198 | 976819 | 4.80 | 5.81 | |
| Lever Ass'y | ||||
| 199 | 322456 | 11.55 | 13.98 | |
| Spacer | ||||
| 200 | 302757 | 1.04 | 1.26 | |
| Return Spring (a) | ||||
| 201A | 322453 | 1.65 | 2.00 | |
| Spring | ||||
| 202 | 322457 | 1.50 | 1.82 | |
| Cover Ring (c) | ||||
| 203 | 322458 | 1.50 | 1.82 | |
| Tapschroef D3x10 (black) | ||||
| 204 | 306371 | 1.04 | 1.26 | |
| Ring | ||||
| 205 | 322459 | 12.75 | 15.43 | |
| Washer (b) | ||||
| 206 | 318962 | 3.00 | 3.63 | |
| Pillar Terminal (a) | ||||
| 207 | 958308Z | 5.55 | 6.72 | |
| Spacer | ||||
| 208 | 305171 | 1.04 | 1.26 | |
| Sub Cover (a) | ||||
| 210 | 322623 | 6.45 | 7.80 | |
| Ferrite Core For Europe,aus,ina,model (s) | ||||
| 211 | 324518 | 12.15 | 14.70 | |
| Machine Screw (w/washers) M4x12 (black) Till 8.20 | ||||
| 212 | 935196 | 1.04 | 1.26 | |
| Guide Holder (b) Since 09.2012 For Europe,kor | ||||
| 213 | 336310 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 501 | 940543 | |||
| No information available, not orderable | ||||
| 502 | 998845 | |||
| Collar (a) For D30 Hole For Europe,aus,model (s) | ||||
| 503 | 974663Z | 4.66 | 5.64 | |
| No information available, not orderable | ||||
| 601 | 321434 | |||
| No information available, not orderable | ||||
| 602 | 321388 | |||
| No information available, not orderable | ||||
| 603 | 321551 | |||
| Knob Bolt M6x11 | ||||
| 604 | 998836 | 1.65 | 2.00 | |
| Washer (h) | ||||
| 606 | 306985 | 1.05 | 1.27 | |
| Base Rubber | ||||
| 607 | 964851 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M4x10 (black) | ||||
| 608 | 304043 | 1.05 | 1.27 | |
| Seal Lock Hex. Socket Set Screw M6x6 | ||||
| 610 | 987860 | 1.05 | 1.27 | |
| Pin | ||||
| 611 | 321552 | 6.45 | 7.80 | |
| No information available, not orderable | ||||
| 613 | 321387 | |||
| Knob Bolt M6x32 | ||||
| 614 | 960017 | 1.65 | 2.00 | |
| Wing Bolt M6x15 | ||||
| 615 | 301806 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 617 | 321390 | |||
| No information available, not orderable | ||||
| 618 | 321374 | |||
| Stopper | ||||
| 619 | 974561 | 7.05 | 8.53 | |
| Wing Bolt M6x20 (10 Pcs.) | ||||
| 620 | 949404 | 7.65 | 9.26 | |
| No information available, not orderable | ||||
| 621 | 321390 | |||
| Wing Bolt M6x15 | ||||
| 623 | 301806 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 624 | 321373 | |||
| No information available, not orderable | ||||
| 625 | 321549 | |||
| Wing Nut M6 (10 Pcs.) | ||||
| 626 | 949313 | 4.65 | 5.63 | |
| Tpe (sl),kor (sl) | ||||
| 627 | 949556 | 1.05 | 1.27 | |
| Ring | ||||
| 628 | 967329 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 629A | 322047 | |||
| High Tension Bolt M6x65 | ||||
| 630 | 996283 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 631 | 321553 | |||
| No information available, not orderable | ||||
| 632 | 322444 | |||
