Here you will find all available parts and drawings of the 'Hikoki C10FCH2'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

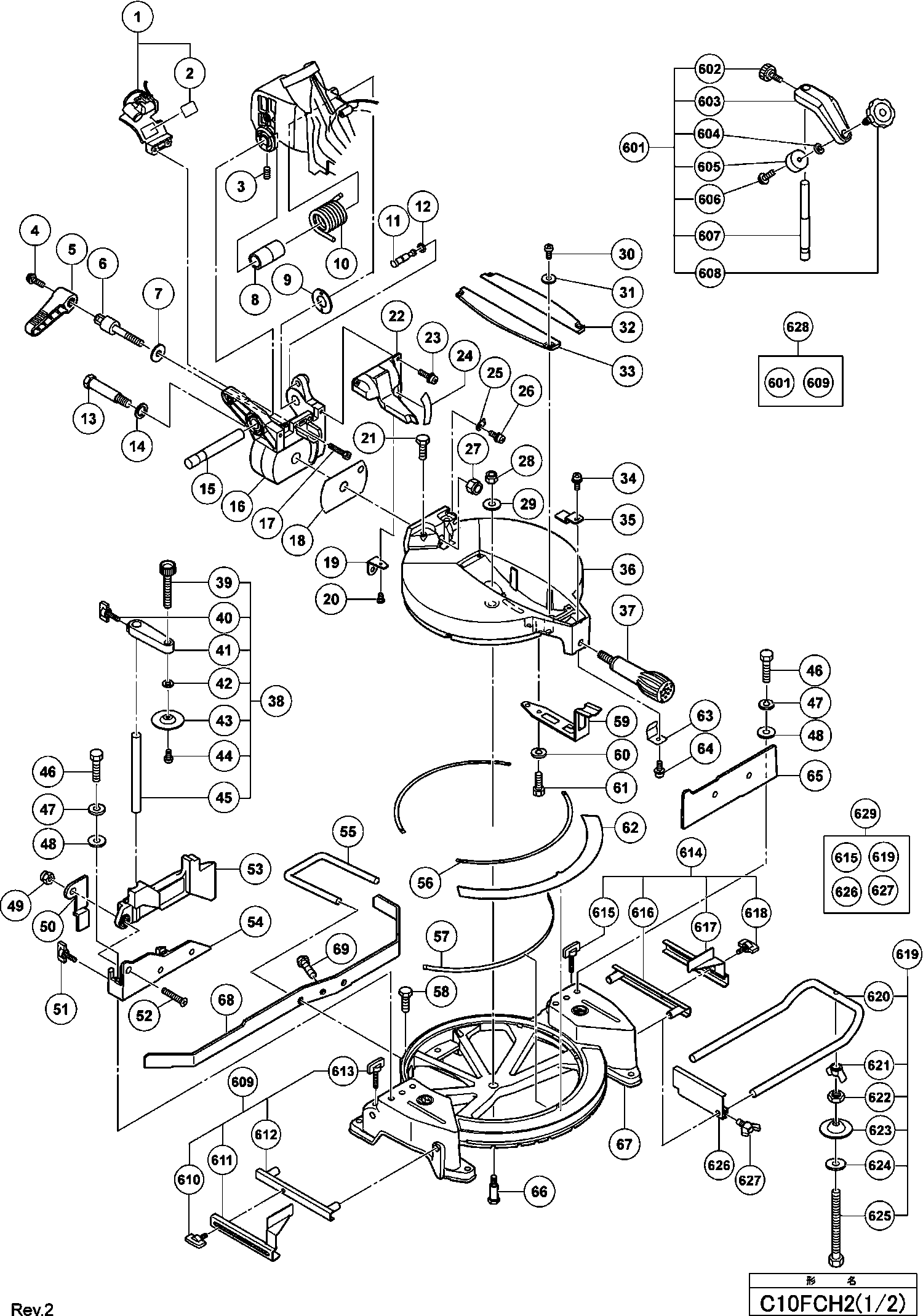

Technical drawing of model Hikoki C10FCH2
Spare parts list of model Hikoki C10FCH2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Laser Holder Includ.2 | ||||
| *1 | 326748 | 36.16 | 43.76 | |
| Washer (a) | ||||
| *101 | 318961 | 3.00 | 3.63 | |
| Washer (b) | ||||
| *101 | 318962 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| *102 | 319107 | |||
| No information available, not orderable | ||||
| *102A | 318963 | |||
| Collar (b) For D25.4 Hole For Sin | ||||
| *103 | 976819 | 4.80 | 5.81 | |
| Gear Cover | ||||
| *123 | 326702 | 45.65 | 55.24 | |
| Guard | ||||
| *141A | 326747 | 22.83 | 27.62 | |
| Guard | ||||
| *141A | 336355 | 20.63 | 24.96 | |
| Link (a) Ass'y Includ.132,133,136,137,143,144,147 | ||||
| *142 | 323980 | 12.45 | 15.06 | |
| Europe | ||||
| *142A | 336357 | 7.20 | 8.71 | |
| Set Of Handles | ||||
| *153 | 326749 | 17.13 | 20.72 | |
| No information available, not orderable | ||||
| *154 | 500456Z | |||
| Switching Power Supply | ||||
| *157A | 371121 | 18.98 | 22.96 | |
| Hinge | ||||
| *16 | 322932 | 13.75 | 16.64 | |
| Switch | ||||
| *166 | 326700 | 10.20 | 12.34 | |
| Armature 220-230 Volt | ||||
| *168 | 360695E | 49.50 | 59.90 | |
| ANKER 110-120 VOLT | ||||
| *168 | 360656U | 46.20 | 55.90 | |
| Stator 220v-230v | ||||
| *176 | 340687E | 45.65 | 55.24 | |
| Carbon Brush (1 Pair) | ||||
| *182 | 999065 | 7.95 | 9.62 | |
| Link Except For Europe | ||||
| *184 | 322949 | 3.15 | 3.81 | |
| No information available, not orderable | ||||
| *505 | 322955M | |||
| Laser Holder Includ.2 | ||||
| 1 | 326748 | 36.16 | 43.76 | |
| Seal Lock Hex. Socket Set Screw M6x10 | ||||
| 3 | 307956 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 4 | 323208 | |||
| No longer available, no replacement | ||||
| 5 | 322935 | |||
| CLAMP HANDLE (OLD 322935) | ||||
| 5A | 371742 | 1.20 | 1.45 | |
| Left-Hand Thread Bolt M10 | ||||
| 6 | 326706 | 4.20 | 5.08 | |
| Bolt (left Hand) M10 | ||||
| 6A | 371743 | 2.40 | 2.90 | |
| Washer | ||||
| 7 | 318934 | 1.50 | 1.82 | |
| Sleeve | ||||
| 8 | 322889 | 1.05 | 1.27 | |
| Guide washer (d) | ||||
| 9 | 322965 | 1.05 | 1.27 | |
| Spring | ||||
| 10 | 322890 | 4.20 | 5.08 | |
| Stopper Pin Ass'y Includ.94 | ||||
| 11 | 302518 | 4.50 | 5.44 | |
| O-ring (p-6) | ||||
| 12 | 984528 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 13 | 322933 | |||
| Shaft (d) | ||||
| 13A | 371740 | 2.10 | 2.54 | |
| Washer M16 | ||||
| 14 | 322934 | 1.05 | 1.27 | |
| Shaft (c) | ||||
| 15 | 322888 | 5.10 | 6.17 | |
| Hinge | ||||
| 16 | 322932 | 13.75 | 16.64 | |
| Hex. Socket Hd. Bolt M6x20 (10 Pcs.) | ||||
| 17 | 949660 | 3.30 | 3.99 | |
| Guide bushing (b) | ||||
| 18 | 322937 | 1.05 | 1.27 | |
| Dust Guide Holder | ||||
| 19 | 322963 | 1.05 | 1.27 | |
| Machine Screw M4x8 (10 Pcs.) | ||||
| 20 | 949215 | 1.05 | 1.27 | |
| NYLOCK BOUT M8X25 | ||||
| 21 | 303409 | 1.00 | 1.21 | |
| Dust Guide Ass'y Includ.19,20,24 | ||||
| 22 | 322891 | 4.20 | 5.08 | |
| Machine Screw (w/washers) M5x16 | ||||
| 23 | 990541 | 1.05 | 1.27 | |
| Scale | ||||
| 24 | 322892 | 1.05 | 1.27 | |
| Indicator (b) | ||||
| 25 | 322893 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M4x10 (black) | ||||
| 26 | 304043 | 1.05 | 1.27 | |
| Nylon Nut M12 | ||||
| 27 | 680418 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 28 | 975348 | |||
| No information available, not orderable | ||||
| 29 | 318929 | |||
| Machine Screw M4x12 (10 Pcs.) | ||||
| 30 | 949217 | 1.05 | 1.27 | |
| Bolt Washer M4 (10 Pcs.) | ||||
| 31 | 949429 | 1.05 | 1.27 | |
| Table Insert (a) | ||||
| 32 | 322929 | 1.05 | 1.27 | |
| Table Insert (b) | ||||
| 33 | 322930 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M4x10 (black) | ||||
| 34 | 304043 | 1.05 | 1.27 | |
| Indicator (a) | ||||
| 35 | 322904 | 1.05 | 1.27 | |
| Rotary Table | ||||
| 36 | 326695 | 45.65 | 55.24 | |
| No information available, not orderable | ||||
| 37 | 322898 | |||
| SIDE HANDLE (OLD 322283/322898) | ||||
| 37A | 376050 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 38 | 322952 | |||
| Knob Bolt M10x66 | ||||
| 39 | 302522 | 9.60 | 11.62 | |
| Wing Bolt M6x15 | ||||
| 40 | 301806 | 1.05 | 1.27 | |
| Bolt Washer M6 (10 Pcs.) | ||||
| 42 | 949432 | 1.05 | 1.27 | |
| Clamping Plate | ||||
| 43 | 302532 | 2.40 | 2.90 | |
| Machine screw M4x10 (10 pieces) (OLD 949216Z) | ||||
| 44 | 949216 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 45 | 322954 | |||
| Bolt M8x35 (10 Pcs.) | ||||
| 46 | 949678 | 2.55 | 3.09 | |
| Spring Washer M8 (10 Pcs.) | ||||
| 47 | 949457 | 1.05 | 1.27 | |
| Bolt Washer M8 (10 Pcs.) | ||||
| 48 | 949433 | 1.05 | 1.27 | |
| Nylon Nut M6 | ||||
| 49 | 963837 | 1.05 | 1.27 | |
| Plate | ||||
| 50 | 326711 | 1.65 | 2.00 | |
| Wing Bolt M6x15 | ||||
| 51 | 301806 | 1.05 | 1.27 | |
| Flat Hd. Screw M6x25 (10 Pcs.) | ||||
| 52 | 949342 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 53 | 326704 | |||
| Fence (b) | ||||
| 54 | 326698 | 7.95 | 9.62 | |
| Edge Guide | ||||
| 55 | 326705 | 3.15 | 3.81 | |
| Liner (a) | ||||
| 56 | 322901 | 1.05 | 1.27 | |
| Liner (c) | ||||
| 57 | 322964 | 1.05 | 1.27 | |
| Bolt M6x12 (10 Pcs.) Since 10.2012 For Europe | ||||
| 58 | 949611 | 1.05 | 1.27 | |
| Spring Plate | ||||
| 59 | 322903 | 2.10 | 2.54 | |
| Spring Washer M8 (10 Pcs.) | ||||
| 60 | 949457 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt M8x16 (10 Pcs.) | ||||
| 61 | 949655 | 3.90 | 4.72 | |
| Scale (a) | ||||
| 62 | 326826 | 3.30 | 3.99 | |
| Spacer | ||||
| 63 | 326696 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M4x8 (black) | ||||
| 64 | 317200 | 1.65 | 2.00 | |
| Fence (a) | ||||
| 65 | 326697 | 11.70 | 14.16 | |
| No information available, not orderable | ||||
| 66 | 322902 | |||
| Shaft (b) | ||||
| 66A | 371738 | 1.35 | 1.63 | |
| Base plate KS 60 | ||||
| 67 | 326694 | 49.50 | 59.90 | |
| Holder (b) Since 10.2012 For Europe | ||||
| 68 | 336353 | 7.20 | 8.71 | |
| Bolt M6x12 (10 Pcs.) Since 10.2012 For Europe | ||||
| 69 | 949611 | 1.05 | 1.27 | |
| Bolt (left Hand) W/washer M7x17.5 | ||||
| 100 | 998335 | 1.05 | 1.27 | |
| Flange (D) | ||||
| 101 | 308789 | 15.84 | 19.16 | |
| Washer (b) | ||||
| 101 | 318962 | 3.00 | 3.63 | |
| Washer (a) | ||||
| 101 | 318961 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 102 | 319107 | |||
| No information available, not orderable | ||||
| 102A | 318963 | |||
| Collar (b) For D25.4 Hole For Sin | ||||
| 103 | 976819 | 4.80 | 5.81 | |
| Spindle Ass'y | ||||
| 104 | 323133 | 22.83 | 27.62 | |
| Seal Lock Flat Hd. Screw M4x10 | ||||
| 105 | 990430 | 1.04 | 1.26 | |
| Cover | ||||
| 106 | 322919 | 1.05 | 1.27 | |
| Ball Bearing 6003vvcmps2l | ||||
| 107 | 6003VV | 7.65 | 9.26 | |
| Bearing Holder | ||||
| 108 | 322918 | 4.65 | 5.63 | |
| Spindle And Gear Set | ||||
| 109 | 322917 | 11.70 | 14.16 | |
| No information available, not orderable | ||||
| 110 | 982027 | |||
| NEEDLE BEARING | ||||
| 110A | 373278 | 1.04 | 1.26 | |
| Machine Screw (w/sp. Washer) M5x16 | ||||
| 111 | 987512 | 1.04 | 1.26 | |
| Nylon Clip | ||||
| 112 | 980523 | 1.05 | 1.27 | |
| Bolt Washer M4 (10 Pcs.) | ||||
| 113 | 949429 | 1.05 | 1.27 | |
| Machine Screw M4x8 (10 Pcs.) | ||||
| 114 | 949215 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt M5x10 (10 Pcs.) | ||||
| 115 | 949819 | 2.55 | 3.09 | |
| Cushion | ||||
| 116 | 961729 | 1.05 | 1.27 | |
| Flat Hd. Screw M6x16 (10 Pcs.) | ||||
| 117 | 949340 | 1.35 | 1.63 | |
| Machine Screw M4x12 (10 Pcs.) | ||||
| 118 | 949217 | 1.05 | 1.27 | |
| Bolt Washer M4 (10 Pcs.) | ||||
| 119 | 949429 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 120 | 322920 | |||
| Handle | ||||
| 121 | 326708 | 5.40 | 6.53 | |
| No information available, not orderable | ||||
| 122 | 323208 | |||
| Gear Cover | ||||
| 123 | 326702 | 45.65 | 55.24 | |
| Gear Cover | ||||
| 123A | 336354 | 51.43 | 62.22 | |
| Spring | ||||
| 124 | 323987 | 1.05 | 1.27 | |
| Lever Shaft | ||||
| 125 | 323990 | 2.10 | 2.54 | |
| Lock Lever (c) For Europe | ||||
| 126 | 323979 | 3.15 | 3.81 | |
| Lever Holder For Europe | ||||
| 127 | 323982 | 2.10 | 2.54 | |
| Nylon Nut M5 | ||||
| 128 | 877371 | 1.05 | 1.27 | |
| Machine Screw M5x10 (10 Pcs.) For Irl | ||||
| 129 | 949236 | 1.05 | 1.27 | |
| Spindle Cover | ||||
| 130 | 322951 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 132 | 322950 | |||
| Washer M7 | ||||
| 133 | 322948 | 1.05 | 1.27 | |
| Wing Bolt M6x15 | ||||
| 134 | 301806 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 135 | 322950 | |||
| Label | ||||
| 136 | 323986 | 4.20 | 5.08 | |
| Stop Plate For Europe, AUS, NZL | ||||
| 137 | 323985 | 2.10 | 2.54 | |
| Spring Washer M5 (10 pieces) | ||||
| 138 | 949454 | 1.04 | 1.26 | |
| Machine Screw M4x8 (10 Pcs.) | ||||
| 139 | 949215 | 1.05 | 1.27 | |
| Bolt Washer M4 (10 Pcs.) | ||||
| 140 | 949429 | 1.05 | 1.27 | |
| Guard | ||||
| 141 | 326747 | 22.83 | 27.62 | |
| Guard | ||||
| 141A | 336355 | 20.63 | 24.96 | |
| Link (a) Ass'y Includ.132,133,136,137,143,144,147 | ||||
| 142 | 323980 | 12.45 | 15.06 | |
| Europe | ||||
| 142A | 336357 | 7.20 | 8.71 | |
| Machine Screw (w/washers) M4x12 (black) Till 8.20 | ||||
| 144 | 935196 | 1.04 | 1.26 | |
| Special Screw (c) M5 | ||||
| 145 | 322947 | 1.05 | 1.27 | |
| Washer | ||||
| 146 | 322938 | 1.05 | 1.27 | |
| Return Spring (a) For Europe,aus,nzl | ||||
| 147 | 323984 | 1.05 | 1.27 | |
| Label | ||||
| 148 | 323989 | 3.15 | 3.81 | |
| Plunger | ||||
| 149 | 323988 | 2.10 | 2.54 | |
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 151 | 307028 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 152 | 301653 | 1.04 | 1.26 | |
| Set Of Handles | ||||
| 153 | 326749 | 17.13 | 20.72 | |
| Cord (cord Armor D8.8) For Uae (240v) | ||||
| 154 | 500461Z | 17.88 | 21.63 | |
| Cord Armor D10.7 | ||||
| 155 | 940778 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 156 | 984750 | |||
| Switching Power Supply | ||||
| 157 | 371121 | 18.98 | 22.96 | |
| Switching Power Supply | ||||
| 157A | 371121 | 18.98 | 22.96 | |
| Connector 50092 (10 Pcs.) | ||||
| 158 | 959141 | 3.75 | 4.54 | |
| No information available, not orderable | ||||
| 159 | 958308Z | |||
| Capacitor | ||||
| 160 | 326709 | 7.05 | 8.53 | |
| CONDENSATOR | ||||
| 160 | 326710 | 5.82 | 7.04 | |
| Cord Bush | ||||
| 161 | 319349 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 162 | 984750 | |||
| Cord Clip | ||||
| 163 | 937631 | 1.04 | 1.26 | |
| connecting terminal | ||||
| 164 | 980063 | 1.04 | 1.26 | |
| Switch | ||||
| 165 | 319503 | 12.60 | 15.25 | |
| Switch | ||||
| 166 | 326700 | 10.20 | 12.34 | |
| Rubber Ring | ||||
| 167 | 303792 | 1.05 | 1.27 | |
| Armature 220-230 Volt | ||||
| 168 | 360695E | 49.50 | 59.90 | |
| ANKER 110-120 VOLT | ||||
| 168 | 360656U | 46.20 | 55.90 | |
| Ball Bearing 6202vvcmps2l | ||||
| 169 | 6202VV | 7.05 | 8.53 | |
| Washer | ||||
| 170 | 980700 | 1.04 | 1.26 | |
| Ring | ||||
| 171 | 302428 | 1.04 | 1.26 | |
| Ball Bearing 6000vvcmps2l | ||||
| 172 | 6000VV | 6.15 | 7.44 | |
| Lock Lever | ||||
| 173 | 322916 | 1.05 | 1.27 | |
| Fan Guide | ||||
| 174 | 322915 | 2.25 | 2.72 | |
| Hex. Hd. Tapping Screw D5x50 | ||||
| 175 | 953121 | 1.04 | 1.26 | |
| Stator 220v-230v | ||||
| 176 | 340687E | 45.65 | 55.24 | |
| Brush Terminal | ||||
| 177 | 937623 | 1.04 | 1.26 | |
| Machine Screw (w/washers) M5x40 (black) | ||||
| 178 | 322123 | 1.65 | 2.00 | |
| Housing | ||||
| 179 | 322914 | 22.83 | 27.62 | |
| Hex Adjustment Screw M5x8 | ||||
| 180 | 938477 | 1.05 | 1.27 | |
| Brush Holder | ||||
| 181 | 938241 | 6.45 | 7.80 | |
| Carbon Brush (1 Pair) | ||||
| 182 | 999038 | 9.30 | 11.25 | |
| Carbon Brush (1 Pair) | ||||
| 182 | 999065 | 7.95 | 9.62 | |
| Brush Cap | ||||
| 183 | 945161 | 1.20 | 1.45 | |
| Link Except For Europe | ||||
| 184 | 322949 | 3.15 | 3.81 | |
| Protective cover (b) | ||||
| 185 | 322940 | 8.85 | 10.71 | |
| Bolt (b) M5 | ||||
| 186 | 322943 | 1.05 | 1.27 | |
| Washer M8 | ||||
| 187 | 322944 | 1.05 | 1.27 | |
| Cover Plate | ||||
| 188 | 322942 | 1.05 | 1.27 | |
| Protective cover (a) | ||||
| 189 | 322939 | 11.85 | 14.34 | |
| Return Spring | ||||
| 190 | 322946 | 1.05 | 1.27 | |
| Cover Plate | ||||
| 191 | 322941 | 1.05 | 1.27 | |
| Washer M5 | ||||
| 192 | 322945 | 1.05 | 1.27 | |
| Nylon Nut M5 | ||||
| 193 | 877371 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M4x10 (black) | ||||
| 194 | 304043 | 1.05 | 1.27 | |
| Guard (1) | ||||
| 195 | 336358 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 501 | 944458 | |||
| No information available, not orderable | ||||
| 502 | 940543 | |||
| Bolt M10x35 (10 Pcs.) | ||||
| 503 | 949695 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 504 | 974663Z | |||
| No information available, not orderable | ||||
| 505 | 322955 | |||
| No information available, not orderable | ||||
| 601 | 322957 | |||
| Knob Bolt M6x11 | ||||
| 602 | 998836 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 604 | 306985 | |||
| Base Rubber | ||||
| 605 | 964851 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M4x10 (black) | ||||
| 606 | 304043 | 1.05 | 1.27 | |
| Vise Shaft | ||||
| 607 | 318967 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 608 | 321551 | |||
| No information available, not orderable | ||||
| 609 | 322713 | |||
| Wing Bolt M6x15 | ||||
| 610 | 301806 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 612 | 321390 | |||
| Wing Bolt M6x52 | ||||
| 613 | 316030 | 14.70 | 17.79 | |
| No information available, not orderable | ||||
| 614 | 322714 | |||
| Wing Bolt M6x52 | ||||
| 615 | 316030 | 14.70 | 17.79 | |
| No information available, not orderable | ||||
| 616 | 321390 | |||
| Wing Bolt M6x15 | ||||
| 618 | 301806 | 1.05 | 1.27 | |
| Holder Assembly Including 620-625 | ||||
| 619 | 322956 | 20.49 | 24.79 | |
| No information available, not orderable | ||||
| 620 | 321549 | |||
| Wing Nut M6 (10 Pcs.) | ||||
| 621 | 949313 | 4.65 | 5.63 | |
| Tpe (sl),kor (sl) | ||||
| 622 | 949556 | 1.05 | 1.27 | |
| KLEMPLAAT | ||||
| 623 | 322047 | 1.38 | 1.67 | |
| Washer M6 (10 Pcs.) | ||||
| 624 | 949425 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 625 | 323134 | |||
| Stopper | ||||
| 626 | 974561 | 7.05 | 8.53 | |
| Wing Bolt M6x20 (10 Pcs.) | ||||
| 627 | 949404 | 7.65 | 9.26 | |
| No information available, not orderable | ||||
| 628 | 322712 | |||
| No information available, not orderable | ||||
| 629 | 322710 | |||
| No information available, not orderable | ||||
| 630 | 976472 | |||
| No information available, not orderable | ||||
| 631 | 319658 | |||
| No information available, not orderable | ||||
| 632 | 339237 | |||
