Here you will find all available parts and drawings of the 'Hikoki C10FCH'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

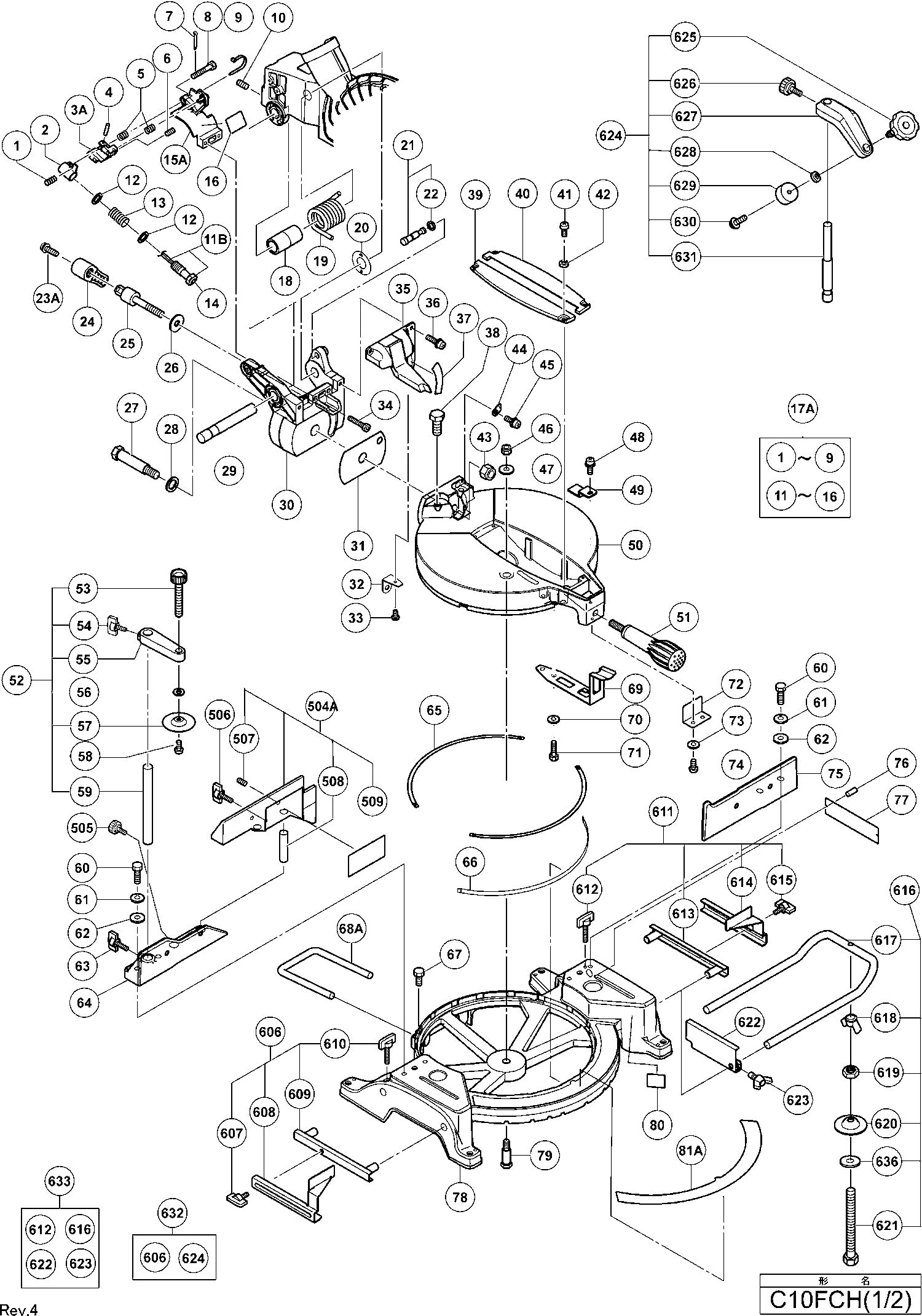

Technical drawing of model Hikoki C10FCH
Spare parts list of model Hikoki C10FCH
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Spring (b) | ||||
| 1 | 323141 | 1.05 | 1.27 | |
| Laser Holder (a) | ||||
| 2 | 323137 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 3A | 328943 | |||
| Roll Pin D3x14 (10 Pcs.) | ||||
| 4 | 949900 | 2.40 | 2.90 | |
| Spring (c) | ||||
| 5 | 323142 | 1.05 | 1.27 | |
| Hex. Socket Set Screw M5x6 Till 2.1986 | ||||
| 6 | 962782 | 1.04 | 1.26 | |
| Split Pin D2x12 (10 Pcs.) | ||||
| 7 | 949531 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 8 | 323144 | |||
| CORD CLAMP | ||||
| 9 | 975144 | 1.04 | 1.26 | |
| Seal Lock Hex. Socket Set Screw M6x10 | ||||
| 10 | 307956 | 1.05 | 1.27 | |
| Laser Module (a) Ass'y | ||||
| 11B | 331878 | 58.03 | 70.21 | |
| Ring | ||||
| 12 | 323143 | 1.05 | 1.27 | |
| Spring (a) | ||||
| 13 | 323140 | 1.05 | 1.27 | |
| Laser Cover | ||||
| 14 | 323136 | 1.65 | 2.00 | |
| Laser Base Ass'y Include.11 | ||||
| 15A | 331876 | 4.65 | 5.63 | |
| Laser Holder Includ.2 | ||||
| 17A | 326748 | 36.16 | 43.76 | |
| Sleeve | ||||
| 18 | 322889 | 1.05 | 1.27 | |
| Spring | ||||
| 19 | 322890 | 4.20 | 5.08 | |
| Guide washer (d) | ||||
| 20 | 322965 | 1.05 | 1.27 | |
| Stopper Pin Ass'y Includ.94 | ||||
| 21 | 302518 | 4.50 | 5.44 | |
| O-ring (p-6) | ||||
| 22 | 984528 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 23A | 323208 | |||
| No longer available, no replacement | ||||
| 24 | 322935 | |||
| Left-Hand Thread Bolt M10 | ||||
| 25 | 322936 | 4.20 | 5.08 | |
| Washer | ||||
| 26 | 318934 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 27 | 322933 | |||
| Washer M16 | ||||
| 28 | 322934 | 1.05 | 1.27 | |
| Shaft (c) | ||||
| 29 | 322888 | 5.10 | 6.17 | |
| Hinge | ||||
| 30 | 322932 | 13.75 | 16.64 | |
| Guide bushing (b) | ||||
| 31 | 322937 | 1.05 | 1.27 | |
| Dust Guide Holder | ||||
| 32 | 322963 | 1.05 | 1.27 | |
| Machine Screw M4x8 (10 Pcs.) | ||||
| 33 | 949215 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt M6x25 (10 Pcs.) | ||||
| 34 | 949652 | 3.30 | 3.99 | |
| Dust Guide Ass'y Includ.19,20,24 | ||||
| 35 | 322891 | 4.20 | 5.08 | |
| Machine Screw (w/washers) M5x16 | ||||
| 36 | 990541 | 1.05 | 1.27 | |
| Scale | ||||
| 37 | 322892 | 1.05 | 1.27 | |
| NYLOCK BOLT M8 X 25 | ||||
| 38 | 303409 | 1.00 | 1.21 | |
| Table Insert (b) | ||||
| 39 | 322930 | 1.05 | 1.27 | |
| Table Insert (a) | ||||
| 40 | 322929 | 1.05 | 1.27 | |
| Machine Screw M4x12 (10 Pcs.) | ||||
| 41 | 949217 | 1.05 | 1.27 | |
| Bolt Washer M4 (10 Pcs.) | ||||
| 42 | 949429 | 1.05 | 1.27 | |
| Nylon Nut M12 | ||||
| 43 | 680418 | 3.30 | 3.99 | |
| Indicator (b) | ||||
| 44 | 322893 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M4x10 (black) | ||||
| 45 | 304043 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 46 | 975348 | |||
| No information available, not orderable | ||||
| 47 | 318929 | |||
| Machine Screw (w/washers) M4x10 (black) | ||||
| 48 | 304043 | 1.05 | 1.27 | |
| Indicator (a) | ||||
| 49 | 322904 | 1.05 | 1.27 | |
| Rotary Table | ||||
| 50 | 322897 | 38.09 | 46.09 | |
| No information available, not orderable | ||||
| 51 | 322898 | |||
| No information available, not orderable | ||||
| 52 | 322952 | |||
| Knob Bolt M10x66 | ||||
| 53 | 302522 | 9.60 | 11.62 | |
| Wing Bolt M6x15 | ||||
| 54 | 301806 | 1.05 | 1.27 | |
| Bolt Washer M6 (10 Pcs.) | ||||
| 56 | 949432 | 1.05 | 1.27 | |
| Clamping Plate | ||||
| 57 | 302532 | 2.40 | 2.90 | |
| Machine screw M4x10 (10 pieces) (OLD 949216Z) | ||||
| 58 | 949216 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 59 | 322954 | |||
| Bolt M8x35 (10 Pcs.) | ||||
| 60 | 949678 | 2.55 | 3.09 | |
| Spring Washer M8 (10 Pcs.) | ||||
| 61 | 949457 | 1.05 | 1.27 | |
| Bolt Washer M8 (10 Pcs.) | ||||
| 62 | 949433 | 1.05 | 1.27 | |
| Wing Bolt M6x15 | ||||
| 63 | 301806 | 1.05 | 1.27 | |
| Vise (b) | ||||
| 64 | 322906 | 14.10 | 17.06 | |
| Liner (a) | ||||
| 65 | 322901 | 1.05 | 1.27 | |
| Liner (c) | ||||
| 66 | 322964 | 1.05 | 1.27 | |
| Bolt M6x10 (10 Pcs.) | ||||
| 67 | 949610 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 68A | 322910 | |||
| Spring Plate | ||||
| 69 | 322903 | 2.10 | 2.54 | |
| Spring Washer M8 (10 Pcs.) | ||||
| 70 | 949457 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt M8x16 (10 Pcs.) | ||||
| 71 | 949655 | 3.90 | 4.72 | |
| Spacer | ||||
| 72 | 322899 | 1.05 | 1.27 | |
| Spring Washer M4 (10 pieces) | ||||
| 73 | 949453 | 1.05 | 1.27 | |
| Machine Screw M4x8 (10 Pcs.) | ||||
| 74 | 949215 | 1.05 | 1.27 | |
| Material Stop (a) | ||||
| 75 | 322905 | 14.10 | 17.06 | |
| Rivet D2.5x4.8 (10 Pcs.) Three-phase | ||||
| 76 | 949510 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 77 | 322896 | |||
| No information available, not orderable | ||||
| 78 | 323976 | |||
| No information available, not orderable | ||||
| 79 | 322902 | |||
| Scale (a) | ||||
| 81A | 326826 | 3.30 | 3.99 | |
| Bolt (left Hand) W/washer M7x17.5 | ||||
| 86 | 998335 | 1.05 | 1.27 | |
| Flange (D) | ||||
| 87 | 308789 | 15.84 | 19.16 | |
| No information available, not orderable | ||||
| 88 | 319107 | |||
| Spindle Ass'y | ||||
| 89 | 323133 | 22.83 | 27.62 | |
| Seal Lock Flat Hd. Screw M4x10 | ||||
| 90 | 990430 | 1.04 | 1.26 | |
| Cover | ||||
| 91 | 322919 | 1.05 | 1.27 | |
| Ball Bearing 6003vvcmps2l | ||||
| 92 | 6003VV | 7.65 | 9.26 | |
| Bearing Holder | ||||
| 93 | 322918 | 4.65 | 5.63 | |
| Spindle And Gear Set | ||||
| 94 | 322917 | 11.70 | 14.16 | |
| No information available, not orderable | ||||
| 95 | 982027 | |||
| Machine Screw (w/sp. Washer) M5x16 | ||||
| 96 | 987512 | 1.04 | 1.26 | |
| Flat Hd. Screw M6x16 (10 Pcs.) | ||||
| 97 | 949340 | 1.35 | 1.63 | |
| Cushion | ||||
| 98 | 961729 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt M5x10 (10 Pcs.) | ||||
| 99 | 949819 | 2.55 | 3.09 | |
| Nylon Clip | ||||
| 100 | 980523 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M4x12 (black) Till 8.20 | ||||
| 101 | 935196 | 1.04 | 1.26 | |
| Machine screw M6x20 | ||||
| 102 | 951893 | 1.05 | 1.27 | |
| Handle | ||||
| 103 | 322924 | 5.55 | 6.72 | |
| Machine Screw M4x8 (10 Pcs.) | ||||
| 104 | 949215 | 1.05 | 1.27 | |
| Gear Housing Clamp | ||||
| 105 | 322931 | 2.10 | 2.54 | |
| Machine Screw (w/washers) M4x16 | ||||
| 106 | 993539 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 107 | 322950 | |||
| Washer M7 | ||||
| 108 | 322948 | 1.05 | 1.27 | |
| Link Except For Europe | ||||
| 109 | 322949 | 3.15 | 3.81 | |
| Special Screw (c) M5 | ||||
| 110 | 322947 | 1.05 | 1.27 | |
| Washer | ||||
| 111 | 322938 | 1.05 | 1.27 | |
| Spring Washer M5 (10 pieces) | ||||
| 112 | 949454 | 1.04 | 1.26 | |
| Protective cover (b) | ||||
| 113 | 322940 | 8.85 | 10.71 | |
| Bolt (b) M5 | ||||
| 114 | 322943 | 1.05 | 1.27 | |
| Washer M8 | ||||
| 115 | 322944 | 1.05 | 1.27 | |
| Cover Plate | ||||
| 116 | 322942 | 1.05 | 1.27 | |
| Protective cover (a) | ||||
| 117 | 322939 | 11.85 | 14.34 | |
| Return Spring | ||||
| 118 | 322946 | 1.05 | 1.27 | |
| Cover Plate | ||||
| 119 | 322941 | 1.05 | 1.27 | |
| Washer M5 | ||||
| 120 | 322945 | 1.05 | 1.27 | |
| Nylon Nut M5 | ||||
| 121 | 877371 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M4x12 (black) Till 8.20 | ||||
| 124 | 935196 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 125 | 322920 | |||
| Machine Screw M4x8 (10 Pcs.) | ||||
| 127 | 949215 | 1.05 | 1.27 | |
| Machine Screw M4x8 (10 Pcs.) | ||||
| 128 | 949215 | 1.05 | 1.27 | |
| Spindle Cover | ||||
| 129 | 322951 | 1.05 | 1.27 | |
| Gear house C10fch | ||||
| 130 | 322928 | 57.06 | 69.05 | |
| Cord (cord Armor D8.8) For Uae (240v) | ||||
| 131 | 500461Z | 17.88 | 21.63 | |
| Cord Armor D10.7 | ||||
| 132 | 940778 | 2.10 | 2.54 | |
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 133 | 307028 | 1.05 | 1.27 | |
| Switch Handle (c).(d) Set Includ.254 | ||||
| 134A | 324954 | 20.90 | 25.29 | |
| No information available, not orderable | ||||
| 135 | 984750 | |||
| Cord Clip | ||||
| 136 | 937631 | 1.04 | 1.26 | |
| Connector 50092 (10 Pcs.) | ||||
| 137 | 959141 | 3.75 | 4.54 | |
| Cord Bush | ||||
| 138 | 319349 | 1.50 | 1.82 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 140 | 301653 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 141 | 984750 | |||
| Switching Power Supply | ||||
| 142 | 371121 | 18.98 | 22.96 | |
| No information available, not orderable | ||||
| 142A | 323978 | |||
| Switch Button | ||||
| 143 | 323645 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 144 | 322925 | |||
| Switch | ||||
| 145 | 322912 | 12.15 | 14.70 | |
| No information available, not orderable | ||||
| 147 | 322913 | |||
| Armature 220-230 Volt | ||||
| 149 | 360695E | 49.50 | 59.90 | |
| ARMATURE 110-120 V | ||||
| 149 | 360656U | 46.20 | 55.90 | |
| Rubber Ring | ||||
| 150 | 303792 | 1.05 | 1.27 | |
| Ball Bearing 6202vvcmps2l | ||||
| 151 | 6202VV | 7.05 | 8.53 | |
| Washer | ||||
| 152 | 980700 | 1.04 | 1.26 | |
| Lock Lever | ||||
| 153 | 322916 | 1.05 | 1.27 | |
| Ring | ||||
| 154 | 302428 | 1.04 | 1.26 | |
| Ball Bearing 6000vvcmps2l | ||||
| 155 | 6000VV | 6.15 | 7.44 | |
| Fan Guide | ||||
| 156 | 322915 | 2.25 | 2.72 | |
| Hex. Hd. Tapping Screw D5x50 | ||||
| 157 | 953121 | 1.04 | 1.26 | |
| Stator 220v-230v | ||||
| 158 | 340615E | 45.65 | 55.24 | |
| Brush Terminal | ||||
| 159 | 937623 | 1.04 | 1.26 | |
| Machine Screw (w/washers) M5x40 (black) | ||||
| 160 | 322123 | 1.65 | 2.00 | |
| Housing | ||||
| 161 | 322914 | 22.83 | 27.62 | |
| Hex Adjustment Screw M5x8 | ||||
| 162 | 938477 | 1.05 | 1.27 | |
| Brush Holder | ||||
| 163 | 938241 | 6.45 | 7.80 | |
| Carbon Brush (1 Pair) | ||||
| 164 | 999038 | 9.30 | 11.25 | |
| Carbon Brush (1 Pair) | ||||
| 164 | 999065 | 7.95 | 9.62 | |
| Brush Cap | ||||
| 165 | 945161 | 1.20 | 1.45 | |
| Collar (b) For D25.4 Hole For Sin | ||||
| 166 | 976819 | 4.80 | 5.81 | |
| Spring | ||||
| 167 | 323987 | 1.05 | 1.27 | |
| Lever Shaft | ||||
| 168 | 323990 | 2.10 | 2.54 | |
| Lock Lever (c) For Europe | ||||
| 169 | 323979 | 3.15 | 3.81 | |
| Nylon Nut M5 | ||||
| 170 | 877371 | 1.05 | 1.27 | |
| Machine Screw M5x10 (10 Pcs.) For Irl | ||||
| 171 | 949236 | 1.05 | 1.27 | |
| Lever Holder For Europe | ||||
| 172 | 323982 | 2.10 | 2.54 | |
| Noise Suppressor | ||||
| 173 | 930039 | 1.95 | 2.36 | |
| No information available, not orderable | ||||
| 174 | 958308Z | |||
| Switch | ||||
| 175 | 320950 | 32.18 | 38.93 | |
| Internal Wire (d) | ||||
| 176 | 323983 | 3.15 | 3.81 | |
| No information available, not orderable | ||||
| 177 | 984750 | |||
| Washer (b) | ||||
| 178 | 318962 | 3.00 | 3.63 | |
| Washer (a) | ||||
| 179 | 318961 | 3.00 | 3.63 | |
| Link (a) Ass'y Includ.132,133,136,137,143,144,147 | ||||
| 201 | 323980 | 12.45 | 15.06 | |
| Wing Bolt M6x15 | ||||
| 202 | 301806 | 1.05 | 1.27 | |
| Label | ||||
| 203 | 323986 | 4.20 | 5.08 | |
| Machine Screw (w/washers) M4x12 (black) Till 8.20 | ||||
| 204 | 935196 | 1.04 | 1.26 | |
| Stop Plate For Europe, AUS, NZL | ||||
| 205 | 323985 | 2.10 | 2.54 | |
| Plunger | ||||
| 206 | 323988 | 2.10 | 2.54 | |
| Label | ||||
| 207 | 323989 | 3.15 | 3.81 | |
| Return Spring (a) For Europe,aus,nzl | ||||
| 208 | 323984 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 501 | 944458 | |||
| No information available, not orderable | ||||
| 502 | 940543 | |||
| No information available, not orderable | ||||
| 503 | 322955 | |||
| No information available, not orderable | ||||
| 504A | 323981 | |||
| Knob Bolt M6x11 | ||||
| 505 | 993609 | 1.65 | 2.00 | |
| Wing Bolt M6x22 | ||||
| 506 | 322959 | 1.05 | 1.27 | |
| Hex. Socket Set Screw M6x6 | ||||
| 507 | 991396 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 508 | 322958 | |||
| No information available, not orderable | ||||
| 606 | 322713 | |||
| Wing Bolt M6x15 | ||||
| 607 | 301806 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 609 | 321390 | |||
| Wing Bolt M6x52 | ||||
| 610 | 316030 | 14.70 | 17.79 | |
| No information available, not orderable | ||||
| 611 | 322714 | |||
| Wing Bolt M6x52 | ||||
| 612 | 316030 | 14.70 | 17.79 | |
| No information available, not orderable | ||||
| 613 | 321390 | |||
| Wing Bolt M6x15 | ||||
| 615 | 301806 | 1.05 | 1.27 | |
| Holder Assembly Including 620-625 | ||||
| 616 | 322956 | 20.49 | 24.79 | |
| No information available, not orderable | ||||
| 617 | 321549 | |||
| Wing Nut M6 (10 Pcs.) | ||||
| 618 | 949313 | 4.65 | 5.63 | |
| Tpe (sl),kor (sl) | ||||
| 619 | 949556 | 1.05 | 1.27 | |
| Clamping plate | ||||
| 620 | 322047 | 1.38 | 1.67 | |
| No information available, not orderable | ||||
| 621 | 323134 | |||
| Stopper | ||||
| 622 | 974561 | 7.05 | 8.53 | |
| Wing Bolt M6x20 (10 Pcs.) | ||||
| 623 | 949404 | 7.65 | 9.26 | |
| No information available, not orderable | ||||
| 624 | 322957 | |||
| No information available, not orderable | ||||
| 625 | 321551 | |||
| Knob Bolt M6x11 | ||||
| 626 | 998836 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 628 | 306985 | |||
| Base Rubber | ||||
| 629 | 964851 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M4x10 (black) | ||||
| 630 | 304043 | 1.05 | 1.27 | |
| Vise Shaft | ||||
| 631 | 318967 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 632 | 322712 | |||
| No information available, not orderable | ||||
| 633 | 322710 | |||
| No information available, not orderable | ||||
| 634 | 976472 | |||
| No information available, not orderable | ||||
| 635 | 319658 | |||
| Washer M6 (10 Pcs.) | ||||
| 636 | 949425 | 1.05 | 1.27 | |
