Here you will find all available parts and drawings of the 'Hikoki C10FCE2'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

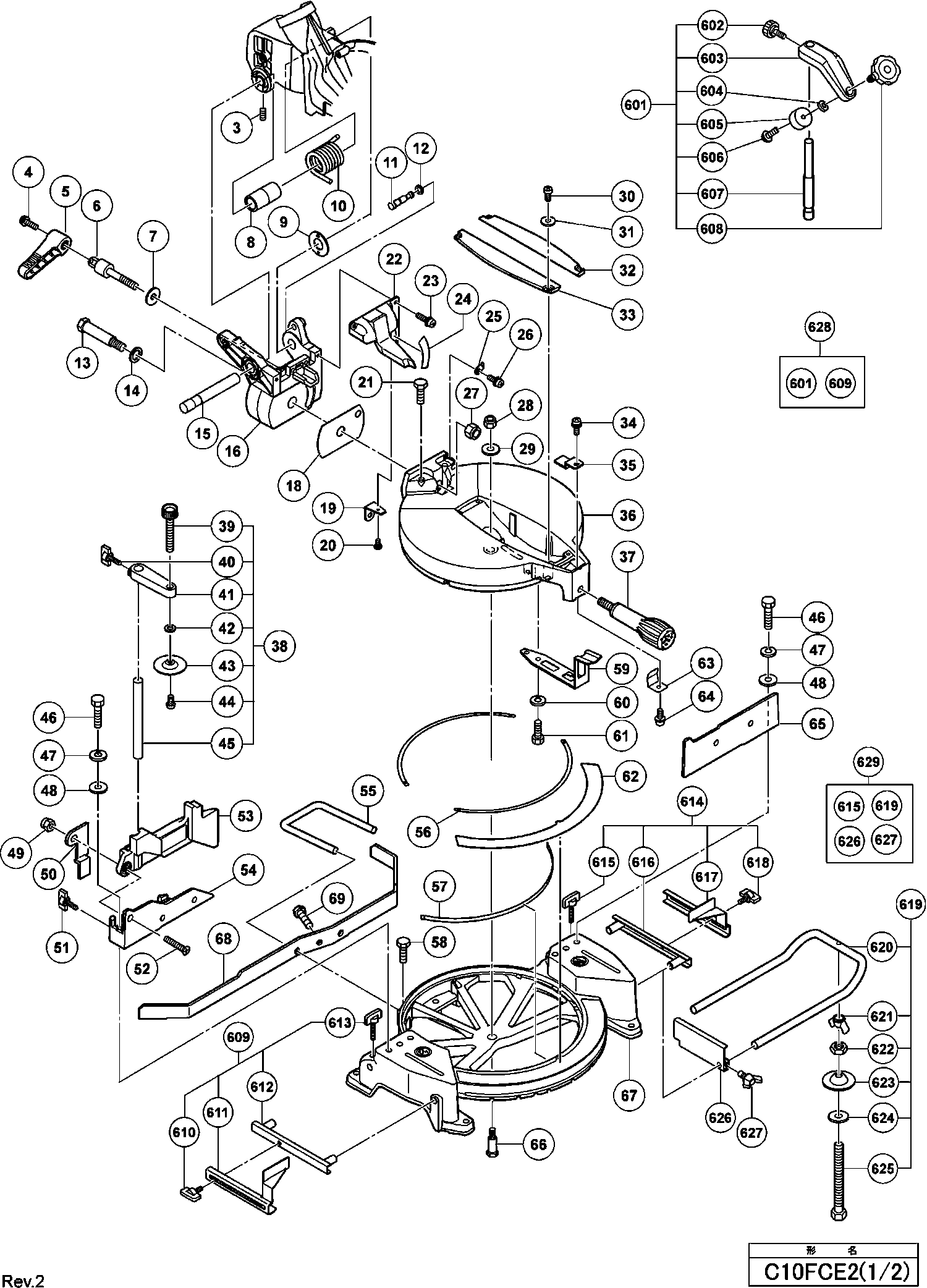

Technical drawing of model Hikoki C10FCE2

Spare parts list of model Hikoki C10FCE2

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Seal Lock Hex. Socket Set Screw M6x10
3 307956 1.05 1.27
No information available, not orderable
4 323208
CLAMP HANDLE (OLD 322935)
5A 371742 1.20 1.45
Bolt (left Hand) M10
6A 371743 2.40 2.90
Washer
7 318934 1.50 1.82
Sleeve
8 322889 1.05 1.27
Guide washer (d)
9 322965 1.05 1.27
Spring
10 322890 4.20 5.08
Stopper Pin Ass'y Includ.94
11 302518 4.50 5.44
O-ring (p-6)
12 984528 1.05 1.27
Shaft (d)
13A 371740 2.10 2.54
Washer M16
14 322934 1.05 1.27
Shaft (c)
15 322888 5.10 6.17
Hinge
16 322932 13.75 16.64
Guide bushing (b)
18 322937 1.05 1.27
Dust Guide Holder
19 322963 1.05 1.27
Machine Screw M4x8 (10 Pcs.)
20 949215 1.05 1.27
No information available, not orderable
21 303409
Dust Guide Ass'y Includ.19,20,24
22 322891 4.20 5.08
Machine Screw (w/sp. Washer) M5x16
23 987512 1.04 1.26
Scale
24 322892 1.05 1.27
Indicator (b)
25 322893 1.05 1.27
Machine Screw (w/washers) M4x10 (black)
26 304043 1.05 1.27
Nylon Nut M12
27 680418 3.30 3.99
No information available, not orderable
28 975348
Washer (f)
29 318929 1.50 1.82
Machine Screw M4x12 (10 Pcs.)
30 949217 1.05 1.27
Bolt Washer M4 (10 Pcs.)
31 949429 1.05 1.27
Table Insert (a)
32 322929 1.05 1.27
Table Insert (b)
33 322930 1.05 1.27
Machine Screw (w/washers) M4x10 (black)
34 304043 1.05 1.27
Indicator (a)
35 322904 1.05 1.27
Rotary Table
36 326695 45.65 55.24
No information available, not orderable
37 322898
No information available, not orderable
38 322952
Knob Bolt M10x66
39 302522 9.60 11.62
Wing Bolt M6x15
40 301806 1.05 1.27
Bolt Washer M6 (10 Pcs.)
42 949432 1.05 1.27
Clamping Plate
43 302532 2.40 2.90
Machine screw M4x10 (10 pieces) (OLD 949216Z)
44 949216 1.05 1.27
Vise Shaft
45 322954 2.10 2.54
Bolt M8x35 (10 Pcs.)
46 949678 2.55 3.09
Spring Washer M8 (10 Pcs.)
47 949457 1.05 1.27
Bolt Washer M8 (10 Pcs.)
48 949433 1.05 1.27
Nylon Nut M6
49 963837 1.05 1.27
Plate
50 326711 1.65 2.00
Wing Bolt M6x15
51 301806 1.05 1.27
Flat Hd. Screw M6x25 (10 Pcs.)
52 949342 1.65 2.00
No information available, not orderable
53 326704
Fence (b)
54 326698 7.95 9.62
Edge Guide
55 326705 3.15 3.81
Liner (a)
56 322901 1.05 1.27
Liner (c)
57 322964 1.05 1.27
Bolt M6x12 (10 Pcs.) Since 10.2012 For Europe
58 949611 1.05 1.27
Spring Plate
59 322903 2.10 2.54
Spring Washer M8 (10 Pcs.)
60 949457 1.05 1.27
Hex. Socket Hd. Bolt M8x16 (10 Pcs.)
61 949655 3.90 4.72
Scale (a)
62 326826 3.30 3.99
Spacer
63 326696 1.05 1.27
Machine Screw (w/washers) M4x8 (black)
64 317200 1.65 2.00
Fence (a)
65 326697 11.70 14.16
Shaft (b)
66A 371738 1.35 1.63
Base plate KS 60
67 326694 49.50 59.90
Holder (b) Since 10.2012 For Europe
68 336353 7.20 8.71
Bolt M6x12 (10 Pcs.) Since 10.2012 For Europe
69 949611 1.05 1.27
Bolt (left Hand) W/washer M7x17.5
100 998335 1.05 1.27
No information available, not orderable
102 319107
No information available, not orderable
102A 318963
Collar (a) For D30 Hole For Europe,aus,model (s)
103 974663Z 4.66 5.64
Spindle Ass'y
104 323133 22.83 27.62
Seal Lock Flat Hd. Screw M4x10
105 990430 1.04 1.26
Cover
106 322919 1.05 1.27
Ball Bearing 6003vvcmps2l
107 6003VV 7.65 9.26
Bearing Holder
108 322918 4.65 5.63
Spindle And Gear Set
109 322917 11.70 14.16
Needle Bearing (hk1010)
110 982027 6.75 8.17
Machine Screw (w/sp. Washer) M5x16
111 987512 1.04 1.26
Hex. Socket Hd. Bolt M5x10 (10 Pcs.)
115 949819 2.55 3.09
Cushion
116 961729 1.05 1.27
Flat Hd. Screw M6x16 (10 Pcs.)
117 949340 1.35 1.63
Machine Screw M4x12 (10 Pcs.)
118 949217 1.05 1.27
Bolt Washer M4 (10 Pcs.)
119 949429 1.05 1.27
No information available, not orderable
120 322920
Handle
121 326708 5.40 6.53
No information available, not orderable
122 323208
Spring
124 323987 1.05 1.27
Lever Shaft
125 323990 2.10 2.54
Lock Lever (c) For Europe
126 323979 3.15 3.81
Lever Holder For Europe
127 323982 2.10 2.54
Nylon Nut M5
128 877371 1.05 1.27
Machine Screw M5x10 (10 Pcs.) For Irl
129 949236 1.05 1.27
Special Screw M6 For Europe,aus,model (s)
132 322950 1.05 1.27
Washer M7
133 322948 1.05 1.27
Wing Bolt M6x15
134 301806 1.05 1.27
Special Screw M6 For Europe,aus,model (s)
135 322950 1.05 1.27
Label
136 323986 4.20 5.08
Stop Plate For Europe, AUS, NZL
137 323985 2.10 2.54
Spring Washer M5 (10 pieces)
138 949454 1.04 1.26
Machine Screw M4x8 (10 Pcs.)
139 949215 1.05 1.27
Bolt Washer M4 (10 Pcs.)
140 949429 1.05 1.27
Guard
141 326707 22.83 27.62
Guard
141A 336356 20.63 24.96
Link (a) Ass'y Includ.132,133,136,137,143,144,147
142 323980 12.45 15.06
Europe
142A 336357 7.20 8.71
Machine Screw (w/washers) M4x12 (black) Till 8.20
144 935196 1.04 1.26
Special Screw (c) M5
145 322947 1.05 1.27
Washer
146 322938 1.05 1.27
Return Spring (a) For Europe,aus,nzl
147 323984 1.05 1.27
Label
148 323989 3.15 3.81
Plunger
149 323988 2.10 2.54
Tapping Screw (w/flange) D4x25 (black)
151 307028 1.05 1.27
Tapping Screw (w/flange) D4x20 (black)
152 301653 1.04 1.26
Set Of Handles
153 326703 17.19 20.80
Cord (cord Armor D8.8) For Pan
154 500447Z 6.60 7.99
Cord Armor D10.7
155 940778 2.10 2.54
No information available, not orderable
162 984750
Cord Clip
163 937631 1.04 1.26
Switch
166 326700 10.20 12.34
Rubber Ring
167 303792 1.05 1.27
Armature 220-230 Volt
168 360695E 49.50 59.90
Ball Bearing 6202vvcmps2l
169 6202VV 7.05 8.53
Washer
170 980700 1.04 1.26
Ring
171 302428 1.04 1.26
Ball Bearing 6000vvcmps2l
172 6000VV 6.15 7.44
Lock Lever
173 322916 1.05 1.27
Fan Guide
174 322915 2.25 2.72
Hex. Hd. Tapping Screw D5x50
175 953121 1.04 1.26
Stator 220v-230v
176 340687E 45.65 55.24
Brush Terminal
177 937623 1.04 1.26
Machine Screw (w/washers) M5x40 (black)
178 322123 1.65 2.00
Housing
179 322914 22.83 27.62
Hex Adjustment Screw M5x8
180 938477 1.05 1.27
Brush Holder
181 938241 6.45 7.80
Carbon Brush (1 Pair)
182 999065 7.95 9.62
Brush Cap
183 945161 1.20 1.45
Link Except For Europe
184 322949 3.15 3.81
Machine Screw (w/washers) M4x10 (black)
194 304043 1.05 1.27
Guard (1)
195 336358 1.05 1.27
No information available, not orderable
501 940543
Bolt M10x35 (10 Pcs.)
502 949695 3.30 3.99
Collar (a) For D30 Hole For Europe,aus,model (s)
503 974663Z 4.66 5.64
No information available, not orderable
504 322955
No information available, not orderable
601 322957
Knob Bolt M6x11
602 998836 1.65 2.00
Washer (h)
604 306985 1.05 1.27
Base Rubber
605 964851 1.05 1.27
Machine Screw (w/washers) M4x10 (black)
606 304043 1.05 1.27
Vise Shaft
607 318967 3.00 3.63
No information available, not orderable
608 321551
No information available, not orderable
609 322713
Wing Bolt M6x15
610 301806 1.05 1.27
No information available, not orderable
612 321390
Wing Bolt M6x52
613 316030 14.70 17.79
No information available, not orderable
614 322714
Wing Bolt M6x52
615 316030 14.70 17.79
No information available, not orderable
616 321390
Wing Bolt M6x15
618 301806 1.05 1.27
Holder Assembly Including 620-625
619 322956 20.49 24.79
No information available, not orderable
620 321549
Wing Nut M6 (10 Pcs.)
621 949313 4.65 5.63
Tpe (sl),kor (sl)
622 949556 1.05 1.27
No information available, not orderable
623 322047
Washer M6 (10 Pcs.)
624 949425 1.05 1.27
No information available, not orderable
625 323134
Stopper
626 974561 7.05 8.53
Wing Bolt M6x20 (10 Pcs.)
627 949404 7.65 9.26
No information available, not orderable
628 322712
No information available, not orderable
629 322710
