Here you will find all available parts and drawings of the 'Hikoki BM60Y'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

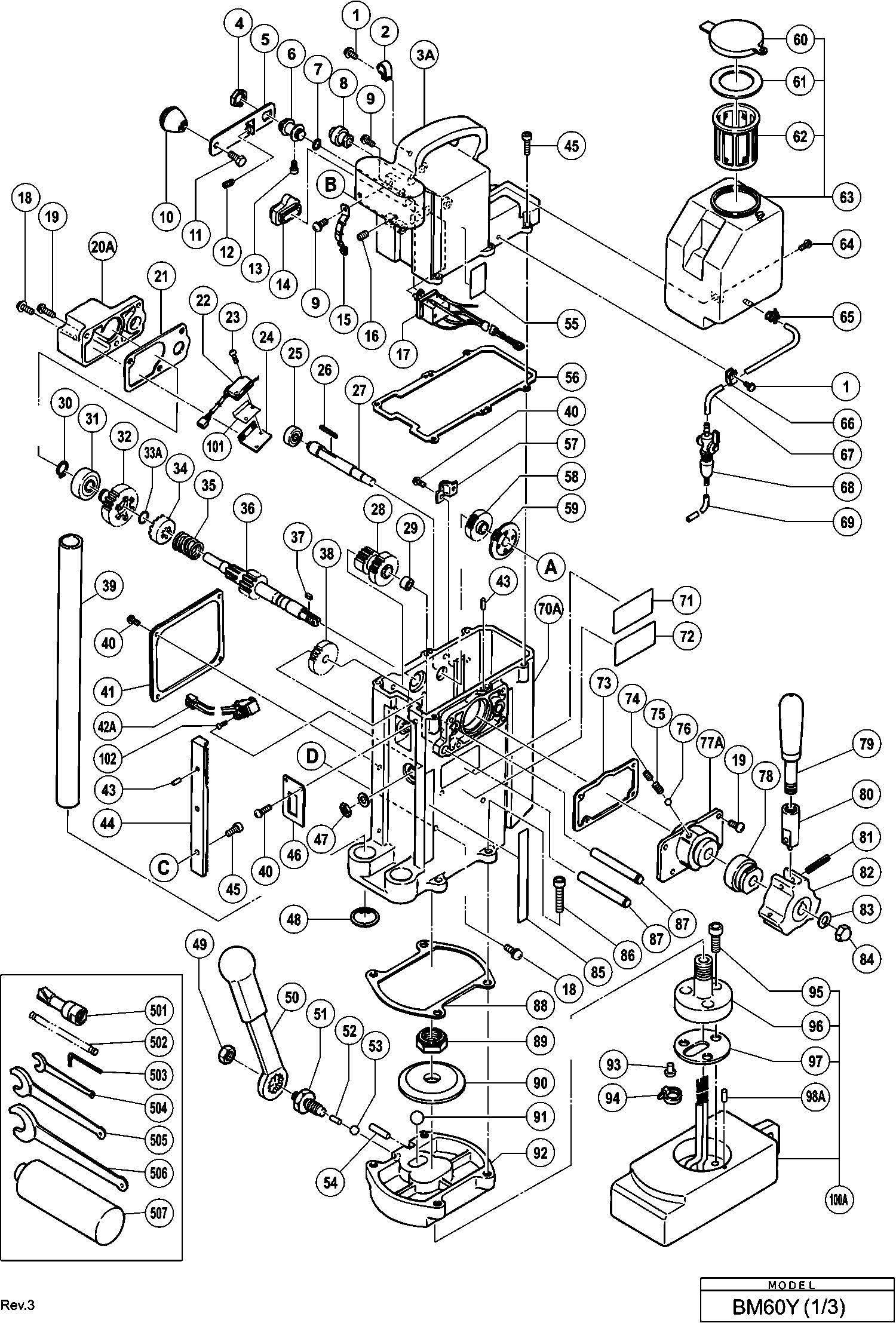

Technical drawing of model Hikoki BM60Y
Spare parts list of model Hikoki BM60Y
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Seal Lock Screw (w/washers) M4x10 (black) | ||||
| 1 | 303851 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 2 | 303270 | |||
| No information available, not orderable | ||||
| 3 | 310517 | |||
| No information available, not orderable | ||||
| 3A | 339306 | |||
| No information available, not orderable | ||||
| 4 | 303294 | |||
| No information available, not orderable | ||||
| 5 | 307070 | |||
| No information available, not orderable | ||||
| 6 | 307069 | |||
| O-ring (p-9) | ||||
| 7 | 872645 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 8 | 307073 | |||
| SEAL LOCK SCREW M4X10 | ||||
| 9 | 303255 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 10 | 303296 | |||
| SEAL LOCK HIGH TENSION BOLT M8X16 | ||||
| 11 | 956854 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 12 | 303298 | |||
| HEX.SOCKET HD.BOLT MX6 (10 PCS) | ||||
| 13 | 949817 | 1.26 | 1.52 | |
| No information available, not orderable | ||||
| 14 | 307072 | |||
| No information available, not orderable | ||||
| 15 | 307071 | |||
| Seal Lock Hex. Socket Set Screw M6x6 | ||||
| 16 | 987860 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 17 | 307067 | |||
| Seal Lock Screw (w/washers) M4x16 (black) | ||||
| 18 | 307109 | 1.05 | 1.27 | |
| Seal Lock Screw (w/sp. Washer) M5x16 | ||||
| 19 | 307046 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 20 | 310515 | |||
| No information available, not orderable | ||||
| 20A | 337924 | |||
| No information available, not orderable | ||||
| 21 | 310514 | |||
| No information available, not orderable | ||||
| 22 | 310542 | |||
| No information available, not orderable | ||||
| 23 | 997402 | |||
| No information available, not orderable | ||||
| 24 | 995867 | |||
| Ball Bearing 608vvc2ps2l | ||||
| 25 | 608VVM | 5.70 | 6.90 | |
| No information available, not orderable | ||||
| 26 | 307051 | |||
| TANDWIELAS | ||||
| 27 | 307048 | 27.22 | 32.94 | |
| No information available, not orderable | ||||
| 28 | 310512 | |||
| No information available, not orderable | ||||
| 29 | 307050 | |||
| Retaining Ring For D15 Shaft (10 Pcs.) | ||||
| 30 | 939544 | 2.13 | 2.57 | |
| Ball Bearing 6002vvcmps2l | ||||
| 31 | 6002VV | 7.35 | 8.89 | |
| No information available, not orderable | ||||
| 32 | 307055 | |||
| No information available, not orderable | ||||
| 33A | 339970 | |||
| No information available, not orderable | ||||
| 34 | 303217 | |||
| No information available, not orderable | ||||
| 35 | 307057 | |||
| No information available, not orderable | ||||
| 36 | 310513 | |||
| Feather Key 4x4x10 | ||||
| 37 | 930511 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 38 | 307054 | |||
| No information available, not orderable | ||||
| 39 | 303565 | |||
| SEAL LOCK SCREW M4X10 | ||||
| 40 | 303255 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 41 | 310523 | |||
| No information available, not orderable | ||||
| 42A | 309474 | |||
| Pin D4x12 (10 Pcs.) | ||||
| 43 | 949756 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 44 | 310516 | |||
| Seal Lock Hex. Socket Hd. Bolt M5x16 | ||||
| 45 | 990079 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 46 | 307062 | |||
| No information available, not orderable | ||||
| 47 | 308033 | |||
| Washer Spring | ||||
| 48 | 939554 | 3.75 | 4.54 | |
| Nut M10 (10 Pcs.) | ||||
| 49 | 949560 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 50 | 993493 | |||
| No information available, not orderable | ||||
| 51 | 310505 | |||
| No information available, not orderable | ||||
| 52 | 997231 | |||
| Steel Ball D9.53 (10 pieces) | ||||
| 53 | 959152 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 54 | 949505 | |||
| No information available, not orderable | ||||
| 55 | 303308 | |||
| No information available, not orderable | ||||
| 56 | 310519 | |||
| No information available, not orderable | ||||
| 57 | 944788 | |||
| No information available, not orderable | ||||
| 58 | 307049 | |||
| Gear | ||||
| 59 | 301940 | 20.49 | 24.79 | |
| No information available, not orderable | ||||
| 60 | 307077 | |||
| No information available, not orderable | ||||
| 61 | 307076 | |||
| No information available, not orderable | ||||
| 62 | 307080 | |||
| No information available, not orderable | ||||
| 63 | 310520 | |||
| Machine Screw (w/washers) M4x12 (black) | ||||
| 64 | 307081 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 65 | 303852 | |||
| WIRE CLIP BM25Y | ||||
| 66 | 944232 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 67 | 310522 | |||
| Locking Device | ||||
| 68 | 303257 | 55.41 | 67.05 | |
| No information available, not orderable | ||||
| 69 | 310521 | |||
| No information available, not orderable | ||||
| 70 | 310501 | |||
| No information available, not orderable | ||||
| 72 | 310782 | |||
| No information available, not orderable | ||||
| 73 | 307087 | |||
| CAP SCREW | ||||
| 74 | 984516 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 75 | 980262 | |||
| Steel Ball D6.35 (10 pieces) | ||||
| 76 | 959150 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 77 | 307060 | |||
| No information available, not orderable | ||||
| 78 | 307059 | |||
| No information available, not orderable | ||||
| 79 | 303312 | |||
| No information available, not orderable | ||||
| 80 | 303241 | |||
| ROLL PIN D6X25 (10 PIECES) | ||||
| 81 | 949747 | 4.50 | 5.44 | |
| No information available, not orderable | ||||
| 82 | 307061 | |||
| Spring Washer M10 (10 Pcs.) | ||||
| 83 | 949458 | 1.05 | 1.27 | |
| Cap Nut M10 | ||||
| 84 | 981708 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 85 | 995894 | |||
| No information available, not orderable | ||||
| 86 | 303209 | |||
| No information available, not orderable | ||||
| 87 | 307052 | |||
| No information available, not orderable | ||||
| 88 | 310506 | |||
| No information available, not orderable | ||||
| 89 | 310504 | |||
| No information available, not orderable | ||||
| 90 | 310503 | |||
| Steel Ball D12.7 (10 pieces) | ||||
| 91 | 959153 | 5.40 | 6.53 | |
| No information available, not orderable | ||||
| 92 | 310502 | |||
| Connector 50091 (10 Pcs.) | ||||
| 93 | 959140 | 3.30 | 3.99 | |
| BAND | ||||
| 94 | 983684 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 95 | 310779 | |||
| No information available, not orderable | ||||
| 96 | 310538 | |||
| No information available, not orderable | ||||
| 97 | 982139 | |||
| No information available, not orderable | ||||
| 98A | 303366 | |||
| No information available, not orderable | ||||
| 100A | 321963 | |||
| Insulator (s) | ||||
| 101 | 314236 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 102 | 321425 | |||
| SEAL LOCK SCREW M4X10 | ||||
| 111 | 303255 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 112 | 307084 | |||
| Triac Ct 200v-230v For Tpe (220v) | ||||
| 113 | 309582 | 99.14 | 119.96 | |
| No information available, not orderable | ||||
| 114 | 307063 | |||
| No information available, not orderable | ||||
| 115 | 303300 | |||
| No information available, not orderable | ||||
| 116 | 309577 | |||
| No information available, not orderable | ||||
| 116A | 337928 | |||
| Seal Lock Screw (w/washers) M4x10 (black) | ||||
| 117 | 303851 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 118 | 303270 | |||
| No information available, not orderable | ||||
| 119 | 310518 | |||
| BAND | ||||
| 120 | 983684 | 1.00 | 1.21 | |
| Machine Screw (w/washers) M4x10 (black) | ||||
| 121 | 304043 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 122 | 310541 | |||
| No information available, not orderable | ||||
| 123 | 310547 | |||
| No information available, not orderable | ||||
| 124 | 310780 | |||
| No information available, not orderable | ||||
| 125 | 310539 | |||
| No information available, not orderable | ||||
| 126 | 944784 | |||
| No information available, not orderable | ||||
| 127 | 949292 | |||
| Connector 50092 (10 Pcs.) | ||||
| 128 | 959141 | 3.75 | 4.54 | |
| No information available, not orderable | ||||
| 129 | 500202Z | |||
| No information available, not orderable | ||||
| 141 | 301939 | |||
| Seal Lock Screw (w/sp. Washer) M5x16 | ||||
| 142 | 307046 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 143 | 310507 | |||
| Pin D4x12 (10 Pcs.) | ||||
| 144 | 949756 | 2.40 | 2.90 | |
| Ball Bearing 6001vv | ||||
| 145 | 6001VV | 6.60 | 7.99 | |
| LAGERDEKSEL | ||||
| 146 | 984236 | 2.94 | 3.56 | |
| No information available, not orderable | ||||
| 147 | 301936 | |||
| Slotted Hd. Screw (Seal Lock) M4x10 | ||||
| 147A | 314430 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 148 | 310510 | |||
| Socket | ||||
| 149 | 985169 | 1.05 | 1.27 | |
| Ball Bearing 626vvc2ps2l | ||||
| 150 | 626VVM | 5.70 | 6.90 | |
| Idle Gear Set (2 Pcs.) | ||||
| 151A | 318447 | 75.90 | 91.84 | |
| No information available, not orderable | ||||
| 152 | 310509 | |||
| RING | ||||
| 153 | 985980 | 33.55 | 40.60 | |
| No information available, not orderable | ||||
| 154 | 310508 | |||
| No information available, not orderable | ||||
| 155 | 310511 | |||
| No information available, not orderable | ||||
| 156 | 310545 | |||
| No information available, not orderable | ||||
| 157 | 310544 | |||
| No information available, not orderable | ||||
| 158 | 310543 | |||
| Seal Lock Screw (w/sp. Washer) M4x12 | ||||
| 159 | 987203 | 1.05 | 1.27 | |
| Center Pin Guide | ||||
| 171 | 993522 | 64.21 | 77.70 | |
| Thrust Washer | ||||
| 172 | 995885 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 173 | 303309 | |||
| Spring (standard) | ||||
| 174 | 303310 | 4.35 | 5.26 | |
| No information available, not orderable | ||||
| 175 | 310525 | |||
| Feather Key 3x3x10 | ||||
| 176 | 940533 | 1.20 | 1.45 | |
| Seal Lock Screw (w/sp. Washer) M5x16 | ||||
| 177 | 307046 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 178 | 303668 | |||
| No information available, not orderable | ||||
| 178A | 337929 | |||
| RING | ||||
| 179 | 998954 | 1.26 | 1.52 | |
| No information available, not orderable | ||||
| 180 | 307094 | |||
| No information available, not orderable | ||||
| 181A | 319536 | |||
| No information available, not orderable | ||||
| 182 | 993535 | |||
| BALL SLEEVE (A) | ||||
| 183 | 307095 | 50.27 | 60.83 | |
| TRUSTLAGER (51106) | ||||
| 184 | 995854 | 11.58 | 14.01 | |
| No information available, not orderable | ||||
| 185 | 995855 | |||
| SLUITRING | ||||
| 186 | 983620 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 187A | 339314 | |||
| No information available, not orderable | ||||
| 188 | 303260 | |||
| Seal Lock Hex. Socket Hd. Bolt M4x8 | ||||
| 189 | 877838 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 190 | 306665 | |||
| Ball Bearing 608vvc2ps2l | ||||
| 191 | 608VVM | 5.70 | 6.90 | |
| No information available, not orderable | ||||
| 192 | 310528 | |||
| INLEGSPIE 3X10 *TD5-1-2* | ||||
| 193 | 932819 | 1.26 | 1.52 | |
| No information available, not orderable | ||||
| 194 | 310529 | |||
| No information available, not orderable | ||||
| 195A | 339311 | |||
| NIPPEL M5 | ||||
| 196 | 993512 | 4.32 | 5.23 | |
| No information available, not orderable | ||||
| 197 | 303281 | |||
| No information available, not orderable | ||||
| 198 | 310526 | |||
| O-ring (s-22) | ||||
| 199 | 306353 | 1.04 | 1.26 | |
| Nylock Hex. Socket Set Screw M8x8 | ||||
| 200 | 303252 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 201 | 303251 | |||
| No information available, not orderable | ||||
| 202 | 310534 | |||
| No information available, not orderable | ||||
| 203 | 874364 | |||
| No information available, not orderable | ||||
| 204 | 310533 | |||
| Retaining Ring D20 (10 Pcs.) | ||||
| 205 | 939547 | 3.90 | 4.72 | |
| No information available, not orderable | ||||
| 206 | 310535 | |||
| No information available, not orderable | ||||
| 207 | 310531 | |||
| No information available, not orderable | ||||
| 208 | 310532 | |||
| No information available, not orderable | ||||
| 209 | 310530 | |||
| No longer available, no replacement | ||||
| 210 | 872654 | |||
| No longer available, no replacement | ||||
| 211 | 937089 | |||
| Ball Bearing 6201vv | ||||
| 212 | 6201VV | 6.45 | 7.80 | |
| No information available, not orderable | ||||
| 213 | 360367 | |||
| Fan Guide | ||||
| 214 | 990851 | 2.25 | 2.72 | |
| Hex. Hd. Tapping Screw D5x70 | ||||
| 215 | 961400 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 216 | 340325 | |||
| Brush Terminal | ||||
| 217 | 937623 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 218 | 310546 | |||
| Ball Bearing 6000vvcmps2l | ||||
| 219 | 6000VV | 6.15 | 7.44 | |
| RUBBER PEN | ||||
| 220 | 931701 | 1.05 | 1.27 | |
| Magnet | ||||
| 221 | 301797 | 6.75 | 8.17 | |
| No information available, not orderable | ||||
| 222A | 339312 | |||
| No information available, not orderable | ||||
| 223 | 303270 | |||
| Tapping Screw (w/washer) D4x12 | ||||
| 224 | 982034 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 225 | 303271 | |||
| Tapping Screw (w/washer) D4x20 | ||||
| 226 | 982095 | 1.04 | 1.26 | |
| Magnet Pick Up Case | ||||
| 227 | 995887 | 18.70 | 22.63 | |
| No information available, not orderable | ||||
| 228 | 303314 | |||
| Connector 50091 (10 Pcs.) | ||||
| 229 | 959140 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 230 | 303272 | |||
| No information available, not orderable | ||||
| 231 | 303273 | |||
| No information available, not orderable | ||||
| 232 | 303269 | |||
| No information available, not orderable | ||||
| 233 | 303268 | |||
| Brush Cap | ||||
| 235 | 945161 | 1.20 | 1.45 | |
| Carbon Brush (1 Pair) | ||||
| 236 | 999038 | 9.30 | 11.25 | |
| Brush Holder | ||||
| 237 | 938241 | 6.45 | 7.80 | |
| No information available, not orderable | ||||
| 238 | 310781 | |||
| Hex. Socket Set Screw M4x5 | ||||
| 239 | 961681 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 501 | 316060 | |||
| No information available, not orderable | ||||
| 502 | 303311 | |||
| No information available, not orderable | ||||
| 503 | 944458 | |||
| No information available, not orderable | ||||
| 504 | 672873 | |||
| No information available, not orderable | ||||
| 505 | 993507 | |||
| No information available, not orderable | ||||
| 506 | 963164 | |||
| No information available, not orderable | ||||
| 601 | 316055 | |||
| No information available, not orderable | ||||
| 602 | 316056 | |||
| No information available, not orderable | ||||
| 603 | 316057 | |||
| No information available, not orderable | ||||
| 604 | 316058 | |||
| No information available, not orderable | ||||
| 605 | 316059 | |||
| No information available, not orderable | ||||
| 606 | 316061 | |||
| No information available, not orderable | ||||
| 607 | 316062 | |||
| No information available, not orderable | ||||
| 608 | 316063 | |||
| No information available, not orderable | ||||
| 609 | 316064 | |||
| No information available, not orderable | ||||
| 610 | 316065 | |||
| No information available, not orderable | ||||
| 611 | 316066 | |||
| No information available, not orderable | ||||
| 612 | 316067 | |||
| No information available, not orderable | ||||
| 613 | 316068 | |||
| No information available, not orderable | ||||
| 614 | 316069 | |||
| No information available, not orderable | ||||
| 615 | 316070 | |||
| No information available, not orderable | ||||
| 616 | 316071 | |||
| No information available, not orderable | ||||
| 617 | 316073 | |||
| No information available, not orderable | ||||
| 618 | 316075 | |||
| No information available, not orderable | ||||
| 619 | 316078 | |||
| No information available, not orderable | ||||
| 620 | 316080 | |||
| No information available, not orderable | ||||
| 621 | 316081 | |||
| No information available, not orderable | ||||
| 622 | 316082 | |||
| No information available, not orderable | ||||
| 623 | 316083 | |||
| No information available, not orderable | ||||
| 624 | 316084 | |||
| No information available, not orderable | ||||
| 625 | 316085 | |||
| No information available, not orderable | ||||
| 626 | 316086 | |||
| No information available, not orderable | ||||
| 627 | 316087 | |||
| No information available, not orderable | ||||
| 628 | 316088 | |||
| No information available, not orderable | ||||
| 629 | 316089 | |||
| CHAIN | ||||
| 636 | 944786 | 17.76 | 21.49 | |
| No information available, not orderable | ||||
| 637 | 310500 | |||
| No information available, not orderable | ||||
| 638 | 993579 | |||
| No information available, not orderable | ||||
| 639 | 995898 | |||
| No information available, not orderable | ||||
| 640 | 302528 | |||
| RING | ||||
| 641 | 943759 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 642 | 998951 | |||
| No information available, not orderable | ||||
| 643 | 305875 | |||
| No information available, not orderable | ||||
| 644A | 992765 | |||
| No information available, not orderable | ||||
| 645 | 306204 | |||
| Cosmo Molybdenum Grease (2.5 Kg) | ||||
| 646A | 317261 | 157.85 | 191.00 | |
| No information available, not orderable | ||||
| 647 | 316072 | |||
| No information available, not orderable | ||||
| 648 | 316074 | |||
| No information available, not orderable | ||||
| 649 | 316076 | |||
| No information available, not orderable | ||||
| 650 | 316077 | |||
| No information available, not orderable | ||||
| 651 | 316079 | |||
