Here you will find all available parts and drawings of the 'Hikoki B13R'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

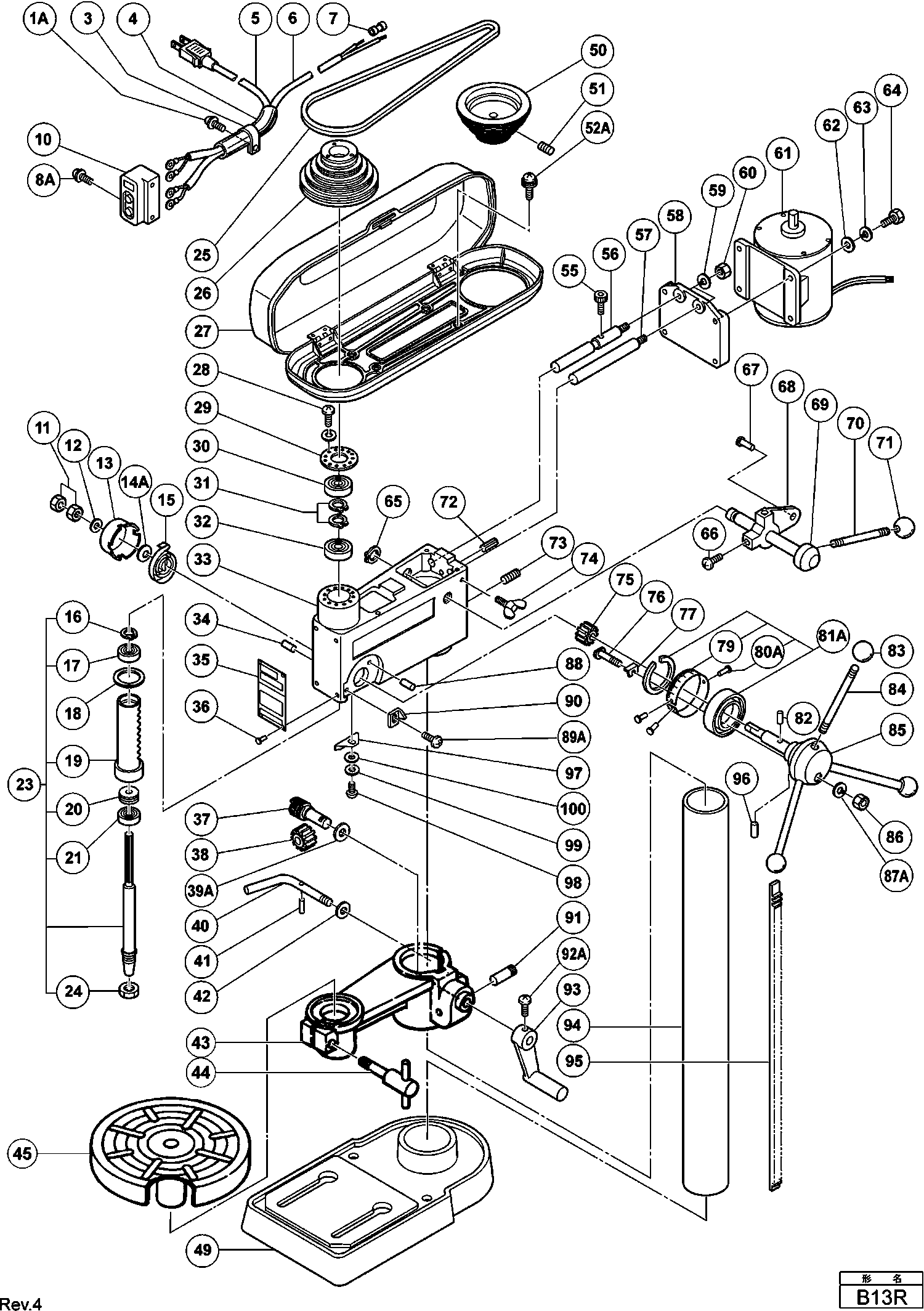

Technical drawing of model Hikoki B13R
Spare parts list of model Hikoki B13R
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Nylon Clip | ||||
| *3 | 968300 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| *5 | 951164 | |||
| No information available, not orderable | ||||
| *6 | 951117 | |||
| Connector 50091 (10 Pcs.) | ||||
| *7 | 959140 | 3.30 | 3.99 | |
| Machine Screw (w/washers) M4x10 (black) | ||||
| 1A | 304043 | 1.05 | 1.27 | |
| Nylon Clip | ||||
| 3 | 968300 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 5 | 951164 | |||
| No information available, not orderable | ||||
| 6 | 951117 | |||
| Connector 50091 (10 Pcs.) | ||||
| 7 | 959140 | 3.30 | 3.99 | |
| Machine Screw (w/washers) M6x12 (black) | ||||
| 8A | 307232 | 1.05 | 1.27 | |
| Switch | ||||
| 10 | 951111 | 29.29 | 35.44 | |
| SCHAKELAAR | ||||
| 10 | 951112 | 26.46 | 32.02 | |
| Lock Nut M12 (10 Pcs.) | ||||
| 11 | 949574 | 3.00 | 3.63 | |
| Bolt Washer M12 (10 Pcs.) | ||||
| 12 | 949437 | 1.95 | 2.36 | |
| VEERKAP | ||||
| 13 | 932350 | 1.00 | 1.21 | |
| RING (D) | ||||
| 14A | 932364 | 1.00 | 1.21 | |
| Spring | ||||
| 15 | 932351 | 7.05 | 8.53 | |
| Retaining Ring For D15 Shaft (10 Pcs.) | ||||
| 16 | 939544 | 2.13 | 2.57 | |
| Ball Bearing 6002vvcmps2l | ||||
| 17 | 6002VV | 7.35 | 8.89 | |
| RUBBER RING | ||||
| 18 | 951102 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 20 | 939286 | |||
| Ball Bearing 6203vvcmps2l | ||||
| 21 | 6203VV | 7.80 | 9.44 | |
| AS KOMPLEET (ZIE 951535) | ||||
| 23 | 951121 | 148.61 | 179.82 | |
| NUT (D) | ||||
| 24 | 950067 | 1.26 | 1.52 | |
| V-SNAAR | ||||
| 25 | 973230 | 22.82 | 27.61 | |
| Pulley (b) | ||||
| 26 | 951104 | 69.99 | 84.68 | |
| SNAARDEKSEL | ||||
| 27 | 950138 | 37.07 | 44.85 | |
| Machine Screw (w/sp. Washer) M4x14 | ||||
| 28 | 951122 | 1.05 | 1.27 | |
| Bearing Cover | ||||
| 29 | 951103 | 1.95 | 2.36 | |
| Ball Bearing 6005vvps2l | ||||
| 30 | 6005VV | 9.75 | 11.80 | |
| Washer Spring | ||||
| 31 | 965469 | 1.05 | 1.27 | |
| Ball Bearing 6005vvps2l | ||||
| 32 | 6005VV | 9.75 | 11.80 | |
| Head | ||||
| 33 | 951160 | 260.29 | 314.95 | |
| No information available, not orderable | ||||
| 34 | 975984 | |||
| Rivet D2.5x4.8 (10 Pcs.) Three-phase | ||||
| 36 | 949510 | 1.04 | 1.26 | |
| Gear | ||||
| 37 | 932313 | 7.05 | 8.53 | |
| TANDWIEL | ||||
| 38 | 932112 | 3.18 | 3.85 | |
| No information available, not orderable | ||||
| 39A | 975081 | |||
| SCHROEF | ||||
| 40 | 950124 | 5.28 | 6.39 | |
| Roll Pin D5x25 (10 Pcs.) | ||||
| 41 | 949681 | 3.60 | 4.36 | |
| Bolt Washer M12 (10 Pcs.) | ||||
| 42 | 949437 | 1.95 | 2.36 | |
| No information available, not orderable | ||||
| 43 | 305662 | |||
| No information available, not orderable | ||||
| 44 | 932382 | |||
| No information available, not orderable | ||||
| 45 | 932301 | |||
| Base | ||||
| 49 | 951120 | 179.44 | 217.12 | |
| Pulley (a) | ||||
| 50 | 951530 | 38.36 | 46.42 | |
| Hex socket set screw M6x10 | ||||
| 51 | 968247 | 1.04 | 1.26 | |
| Machine Screw (w/washers) M6x16 | ||||
| 52A | 300197 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt M6x12 (10 Pcs.) | ||||
| 55 | 949657 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 56 | 951161 | |||
| ROD | ||||
| 57 | 951107 | 5.40 | 6.53 | |
| PLAAT | ||||
| 58 | 951106 | 8.04 | 9.73 | |
| Spring Washer M12 (10 Pcs.) | ||||
| 59 | 949463 | 1.65 | 2.00 | |
| Lock Nut M12 (10 Pcs.) | ||||
| 60 | 949574 | 3.00 | 3.63 | |
| Washer M6 (10 Pcs.) | ||||
| 62 | 949425 | 1.05 | 1.27 | |
| Bolt M6x12 (10 Pcs.) Since 10.2012 For Europe | ||||
| 64 | 949611 | 1.05 | 1.27 | |
| Spring Washer D10 (10 pieces) | ||||
| 65 | 939540 | 1.95 | 2.36 | |
| Machine Screw M6x20 (10 Pcs.) | ||||
| 66 | 949258 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 67 | 932147 | |||
| No information available, not orderable | ||||
| 68 | 932158 | |||
| No information available, not orderable | ||||
| 69 | 951162 | |||
| No information available, not orderable | ||||
| 70 | 932461 | |||
| No information available, not orderable | ||||
| 71 | 932462 | |||
| No information available, not orderable | ||||
| 72 | 949879 | |||
| INBUSSTELSCHROEF M10X10 | ||||
| 73 | 950141 | 1.00 | 1.21 | |
| VLEUGELSCHROEF M8X25 (10 STUKS) | ||||
| 74 | 949413 | 6.54 | 7.91 | |
| TANDWIEL | ||||
| 75 | 932112 | 3.18 | 3.85 | |
| BLOKKINGBOUT | ||||
| 76 | 932348 | 2.34 | 2.83 | |
| No information available, not orderable | ||||
| 77 | 950087 | |||
| No information available, not orderable | ||||
| 79 | 950086 | |||
| Rivet D2.5x4.8 (10 Pcs.) Three-phase | ||||
| 80A | 949510 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 81A | 333924 | |||
| Pin D4x8 (10 Pcs.) | ||||
| 82 | 949483 | 2.40 | 2.90 | |
| Grip (a) Since 11.1999 | ||||
| 83 | 932344 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 83A | 944772 | |||
| Handle | ||||
| 84 | 950135 | 5.85 | 7.08 | |
| HANDGREEPHOUDER | ||||
| 85 | 951105 | 64.79 | 78.40 | |
| Special Nut M8 | ||||
| 86 | 932593 | 1.35 | 1.63 | |
| Bolt Washer M8 (10 Pcs.) | ||||
| 87A | 949433 | 1.05 | 1.27 | |
| ROL PIN D6X16 (10 STUKS) | ||||
| 88 | 949785 | 1.74 | 2.11 | |
| PIN (OLD 305581) | ||||
| 88 | 951534 | 1.00 | 1.21 | |
| Machine Screw M5X16 (10 pieces) | ||||
| 89A | 949239 | 1.05 | 1.27 | |
| INDICATOR (B) | ||||
| 90 | 950088 | 1.00 | 1.21 | |
| TANDWIELAS | ||||
| 91 | 950125 | 1.98 | 2.40 | |
| Machine Screw M6x16 (10 Pcs.) | ||||
| 92A | 949256 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 93 | 305661 | |||
| TANDHEUGEL | ||||
| 95 | 950121 | 19.91 | 24.09 | |
| Roll Pin D6x40 (10 Pcs.) | ||||
| 96 | 949686 | 6.75 | 8.17 | |
| Plate | ||||
| 97 | 323094 | 3.30 | 3.99 | |
| Machine Screw M5x12 (10 Pcs.) | ||||
| 98 | 949237 | 1.05 | 1.27 | |
| Spring Washer M5 (10 pieces) | ||||
| 99 | 949454 | 1.04 | 1.26 | |
| Washer M5 (10 Pcs.) | ||||
| 100 | 949424 | 1.05 | 1.27 | |
