Here you will find all available parts and drawings of the 'Hikoki AL18DA'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

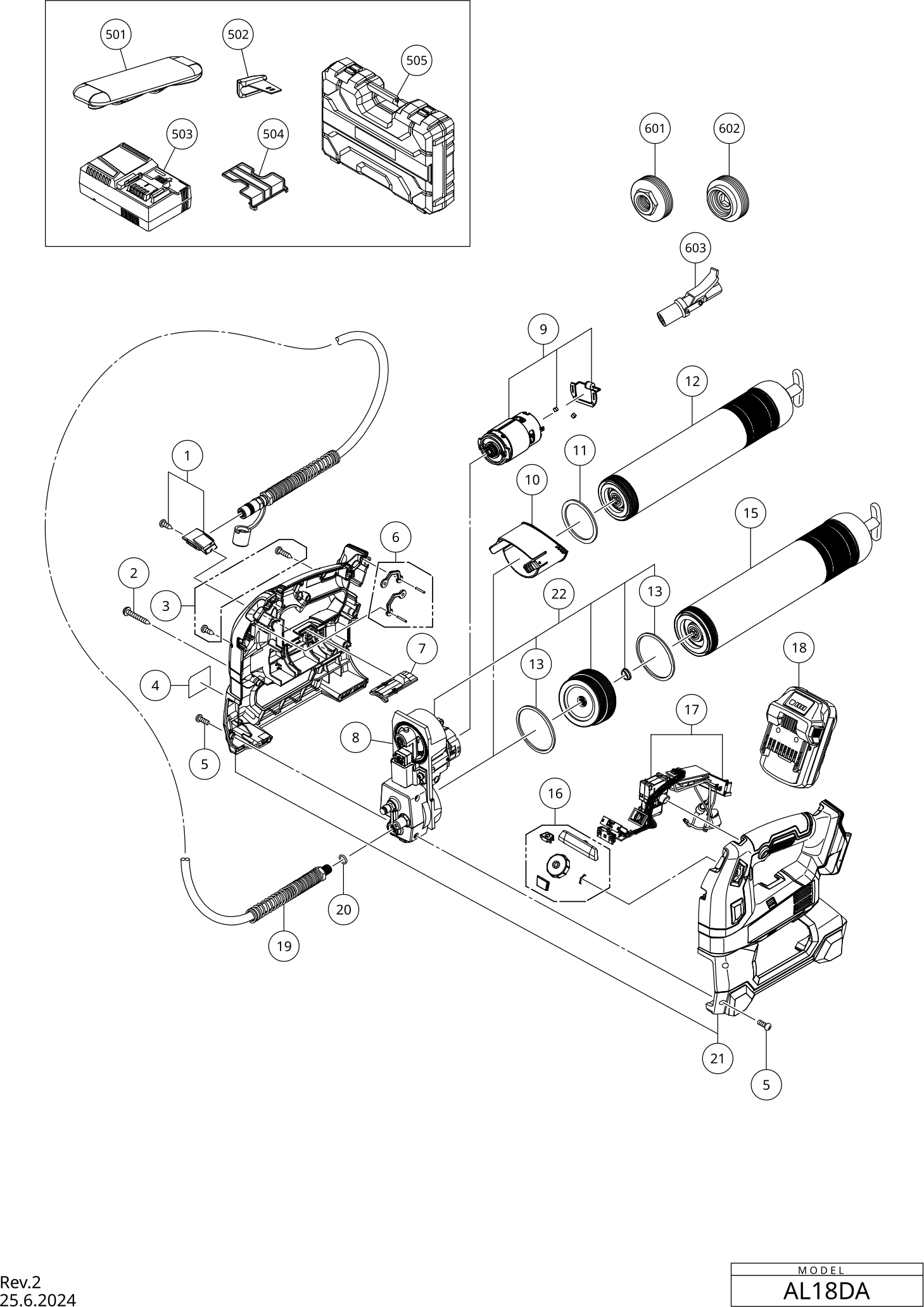

Technical drawing of model Hikoki AL18DA
Spare parts list of model Hikoki AL18DA
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *13 | 381769 | |||
| No information available, not orderable | ||||
| *15 | 381771 | |||
| No information available, not orderable | ||||
| *22 | 382276 | |||
| GEAR BOX 400G NEW | ||||
| *8 | 381773 | 138.93 | 168.11 | |
| HOSE HOLDER SET NEW | ||||
| 1 | 381782 | 2.46 | 2.98 | |
| TAPPING SCREW D3.5X45 (2 PCS.) NEW | ||||
| 2 | 381780 | 1.26 | 1.52 | |
| TAPPING SCREW D3.5X15 (11 PCS.) NEW | ||||
| 3 | 381779 | 1.62 | 1.96 | |
| SCREW M4X12 (4 PCS.) NEW | ||||
| 5 | 381781 | 1.50 | 1.82 | |
| HOOK SET NEW | ||||
| 6 | 381777 | 5.94 | 7.19 | |
| SHIFT KNOB NEW | ||||
| 7 | 381765 | 1.98 | 2.40 | |
| MOTOR SET NEW | ||||
| 9 | 381778 | 39.10 | 47.31 | |
| SPACER RING NEW | ||||
| 10 | 381772 | 4.68 | 5.66 | |
| RUBBER WASHER 400G NEW | ||||
| 11 | 381768 | 1.26 | 1.52 | |
| BARREL 400G NEW | ||||
| 12 | 381770 | 41.25 | 49.91 | |
| CONTROL SET NEW | ||||
| 16 | 381776 | 8.64 | 10.45 | |
| PCB NEW | ||||
| 17 | 381775 | 109.06 | 131.96 | |
| No information available, not orderable | ||||
| 18 | 377796 | |||
| HOSE NEW | ||||
| 19 | 381766 | 49.39 | 59.76 | |
| O-RING NEW | ||||
| 20 | 381767 | 1.00 | 1.21 | |
| HOUSING SET NEW | ||||
| 21 | 381784 | 34.16 | 41.33 | |
| No information available, not orderable | ||||
| 501 | 381541 | |||
| HOSE LED LIGHT NEW | ||||
| 502 | 381540 | 23.48 | 28.41 | |
| Battery Cover | ||||
| 504 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 505 | 381545 | |||
| No information available, not orderable | ||||
| 601 | 381542 | |||
| No information available, not orderable | ||||
| 602 | 381543 | |||
| No information available, not orderable | ||||
| 603 | 381544 | |||
