Here you will find all available parts and drawings of the 'Festool 485758 ( ZIJAANSLAGSA-LR32 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

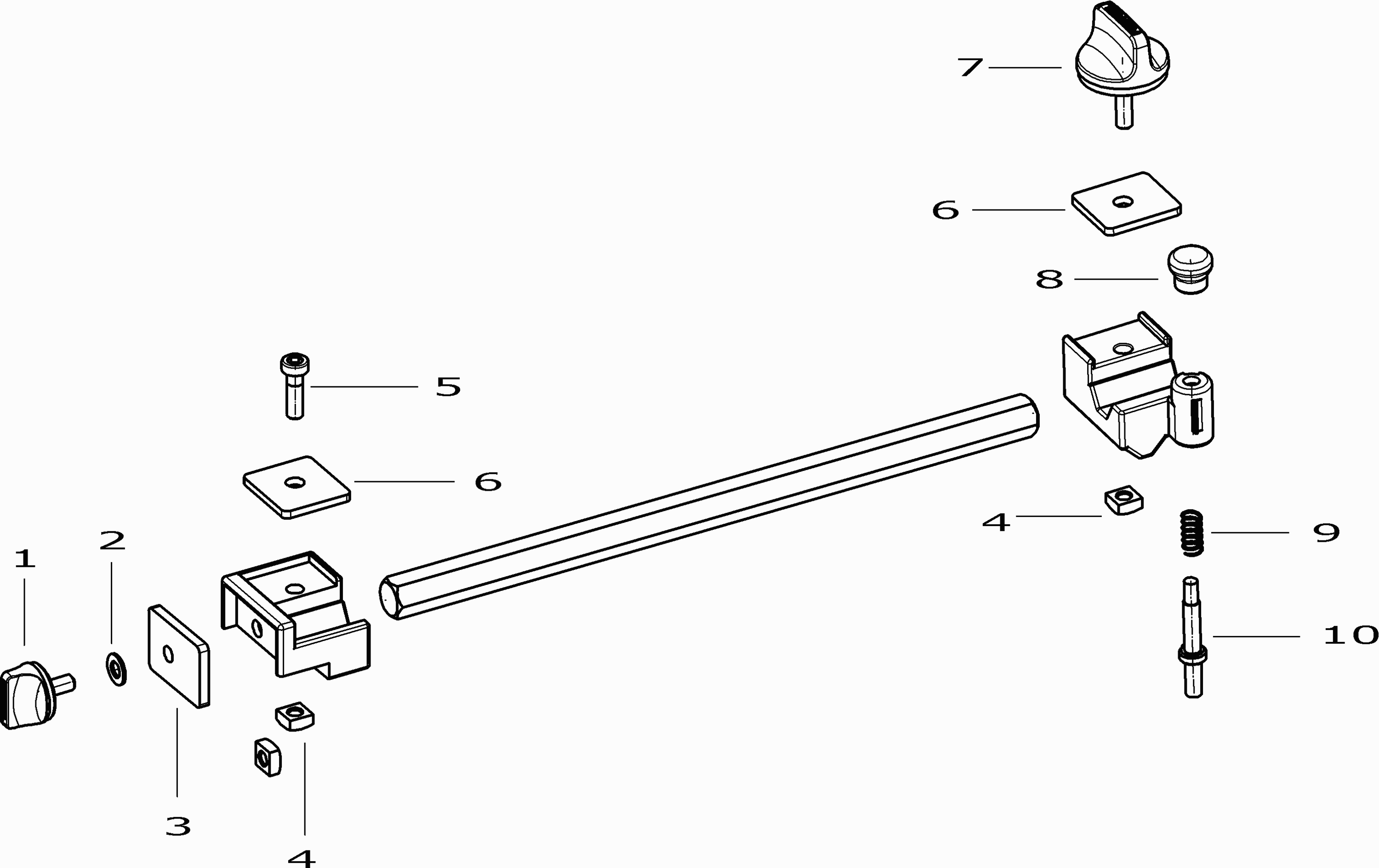

Technical drawing of model Festool 485758 ( ZIJAANSLAGSA-LR32 )
Spare parts list of model Festool 485758 ( ZIJAANSLAGSA-LR32 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Rotary knob SFS-RS 1 D 23 M6x12 blau | ||||
| 1 | 438320 | 8.90 | 10.77 | |
| Disc DIN 125-B-6,4-140 HV | ||||
| 2 | 200578 | 1.39 | 1.68 | |
| PLATE SA-LR32 | ||||
| 3 | 442405 | 1.92 | 2.32 | |
| Square nut DIN 557-M6-05 | ||||
| 4 | 228566 | 1.39 | 1.68 | |
| Cylinder head screw M6 x 20 | ||||
| 5 | 228612 | 1.39 | 1.68 | |
| Plate SA-LR32 | ||||
| 6 | 442404 | 4.15 | 5.02 | |
| Rotation knob CS 70 | ||||
| 7 | 10734068 | 2.18 | 2.64 | |
| Button Basis | ||||
| 8 | 436056 | 3.77 | 4.56 | |
| Compr. spring LR 32 VLL-3-M5 | ||||
| 9 | 205341 | 4.62 | 5.59 | |
| BOLT SA-LR32 VOLLST. | ||||
| 10 | 486020 | 11.55 | 13.98 | |
