Here you will find all available parts and drawings of the 'Festool 452798 ( VE-CT/FRC-3/8-D-MINI-A )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

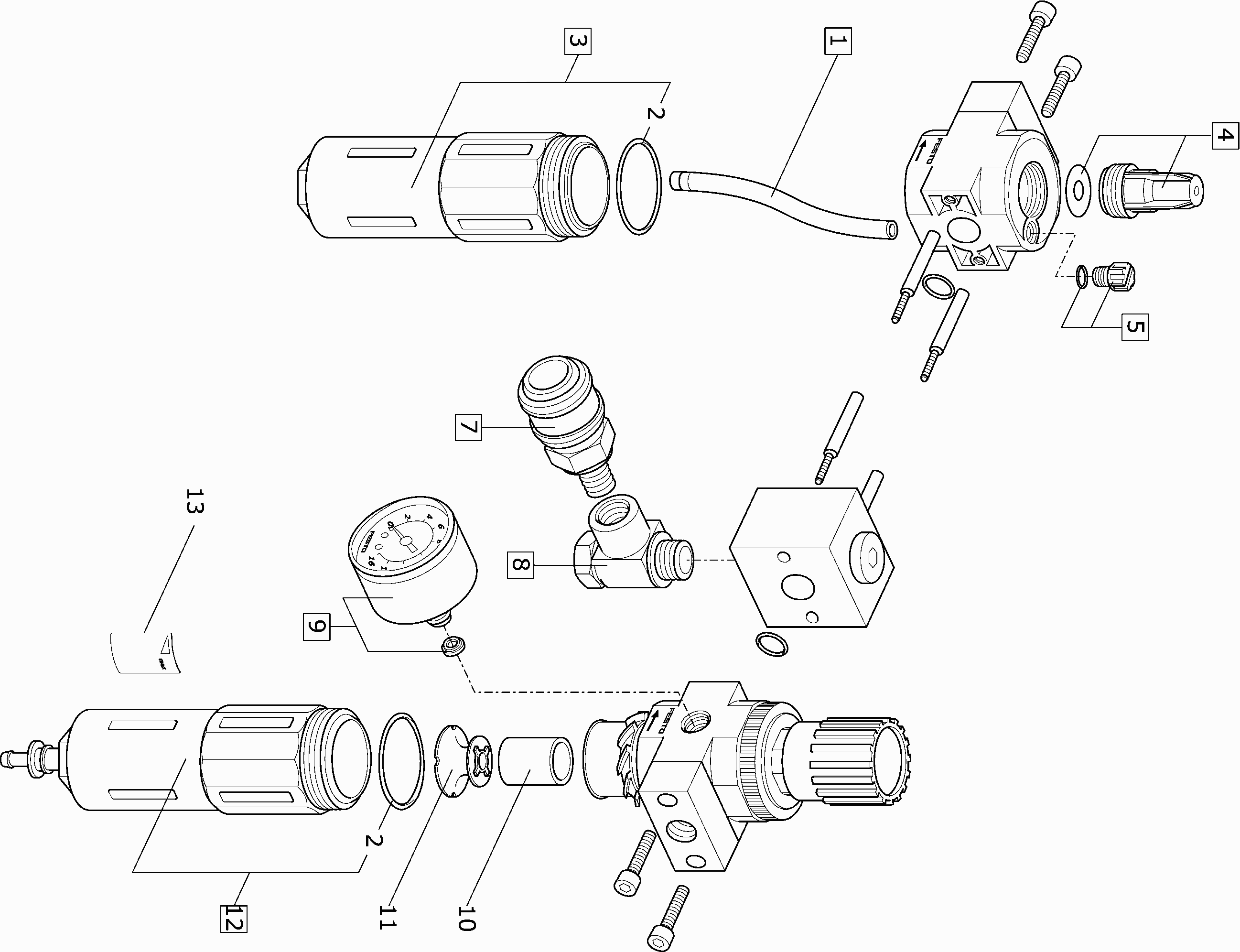

Technical drawing of model Festool 452798 ( VE-CT/FRC-3/8-D-MINI-A )
Spare parts list of model Festool 452798 ( VE-CT/FRC-3/8-D-MINI-A )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| TUBE LOE-D-MINI | ||||
| 1 | 123584 | 26.86 | 32.50 | |
| O-ring 33x2-NBR-75SHORE | ||||
| 2 | 215324 | 1.39 | 1.68 | |
| SEAL COVER LOE-D-MINI | ||||
| 3 | 454805 | 59.90 | 72.48 | |
| CAP LOE-D-MINI/MIDI | ||||
| 4 | 125712 | 32.67 | 39.53 | |
| CAP SCREW LOE-D-MINI/MIDI | ||||
| 5 | 454807 | 22.02 | 26.64 | |
| Quick-coupl. so KD-1/4 ET-BG | ||||
| 7 | 200473 | 30.61 | 37.04 | |
| L-piece LJK-1/4 ET-BG | ||||
| 8 | 200375 | 28.68 | 34.70 | |
| PRESSURE GAUGE MA-40-16-1/8 | ||||
| 9 | 345395 | 20.81 | 25.18 | |
| FILTER CARTRIDG LFP-D-MINI-40M | ||||
| 10 | 363665 | 19.24 | 23.28 | |
| CAP LF/LFR-D-MINI | ||||
| 11 | 352809 | 6.34 | 7.67 | |
| Cover LF/LFR-D-MINI | ||||
| 12 | 496083 | 76.96 | 93.12 | |
| No information available, not orderable | ||||
| 13 | 200880 | |||
