Here you will find all available parts and drawings of the 'Festool 10567418 ( VE-CT )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

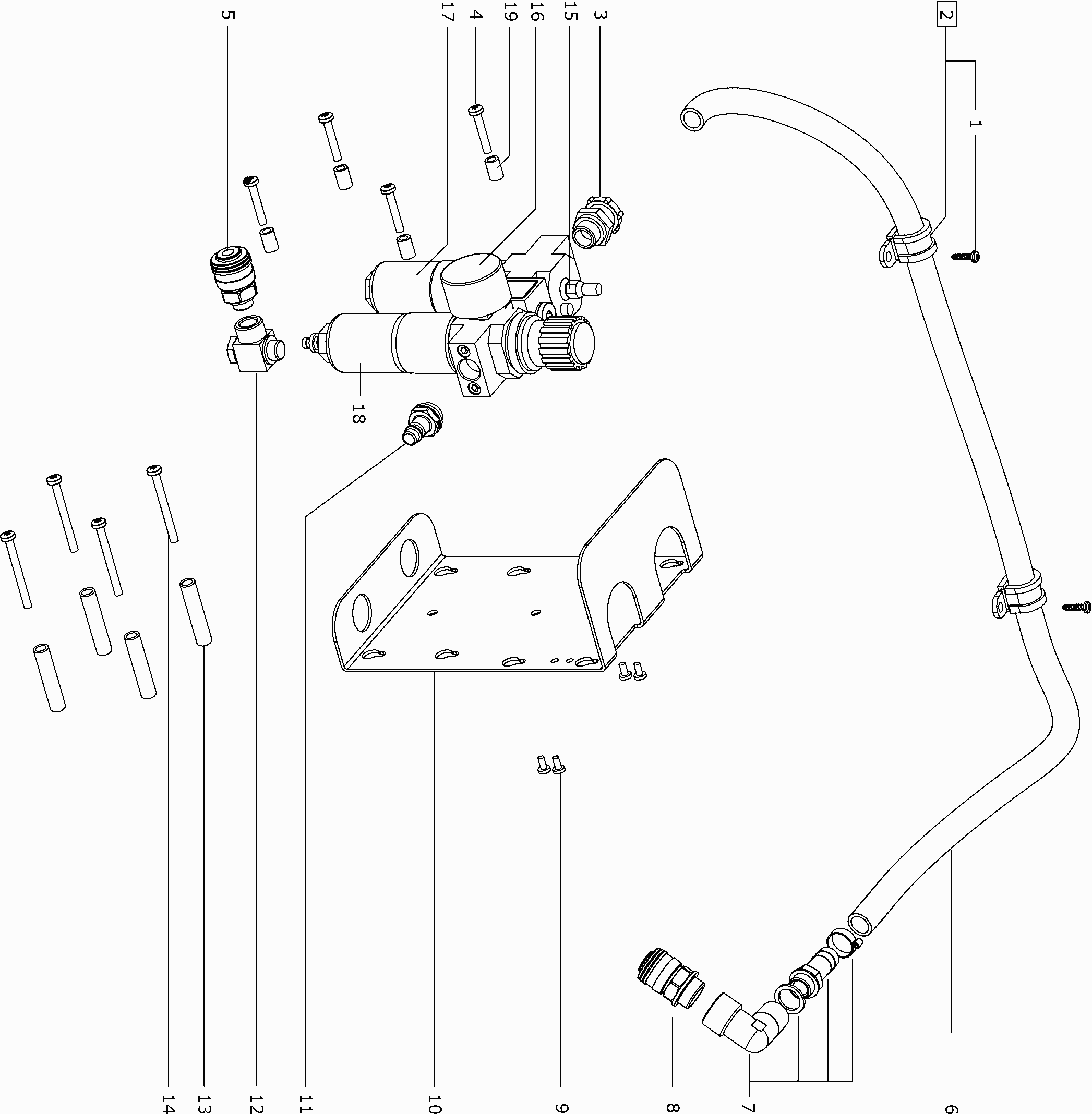

Technical drawing of model Festool 10567418 ( VE-CT )
Spare parts list of model Festool 10567418 ( VE-CT )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Hose band clip VE-CT 26/36 ET-BG | ||||
| 2 | 496416 | 24.93 | 30.17 | |
| Male connector CK-3/8-PK-13 ET-BG | ||||
| 3 | 200481 | 45.98 | 55.64 | |
| Oval head screw PT-5,0x30-T25 | ||||
| 4 | 452447 | 1.39 | 1.68 | |
| Quick-coupl. so KD-1/4 ET-BG | ||||
| 5 | 200473 | 30.61 | 37.04 | |
| Air hose VE-CT 26/36 ET-BG | ||||
| 6 | 496418 | 25.05 | 30.31 | |
| Hose connection VE-CT 26/36 ET-BG | ||||
| 7 | 497820 | 20.69 | 25.03 | |
| Quick-coupl. so KD-1/2 ET-BG | ||||
| 8 | 200476 | 50.94 | 61.64 | |
| Oval head screw DIN 7985-M4x8-4.8 | ||||
| 9 | 203806 | 1.39 | 1.68 | |
| Mounting Plate VE-CT 26/36 VP | ||||
| 10 | 10650038 | 84.22 | 101.91 | |
| Coupling piece KS-3/8 ET-BG | ||||
| 11 | 200844 | 23.23 | 28.11 | |
| L-piece LJK-1/4 ET-BG | ||||
| 12 | 200375 | 28.68 | 34.70 | |
| Distance bush MS DH VE-CTASA ET-BG | ||||
| 13 | 200812 | 31.94 | 38.65 | |
| Oval head screw PT-5,0x70-KT15 | ||||
| 14 | 228709 | 1.39 | 1.68 | |
| CAP LOE-D-MINI/MIDI | ||||
| 15 | 125712 | 32.67 | 39.53 | |
| PRESSURE GAUGE MA-40-16-1/8 | ||||
| 16 | 345395 | 20.81 | 25.18 | |
| SEAL COVER LOE-D-MINI | ||||
| 17 | 454805 | 59.90 | 72.48 | |
| Cover LF/LFR-D-MINI | ||||
| 18 | 496083 | 76.96 | 93.12 | |
| Spacer VE-CT | ||||
| 19 | 10567419 | 1.39 | 1.68 | |
