Here you will find all available parts and drawings of the 'Festool 493587 (VACSYSSE2)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

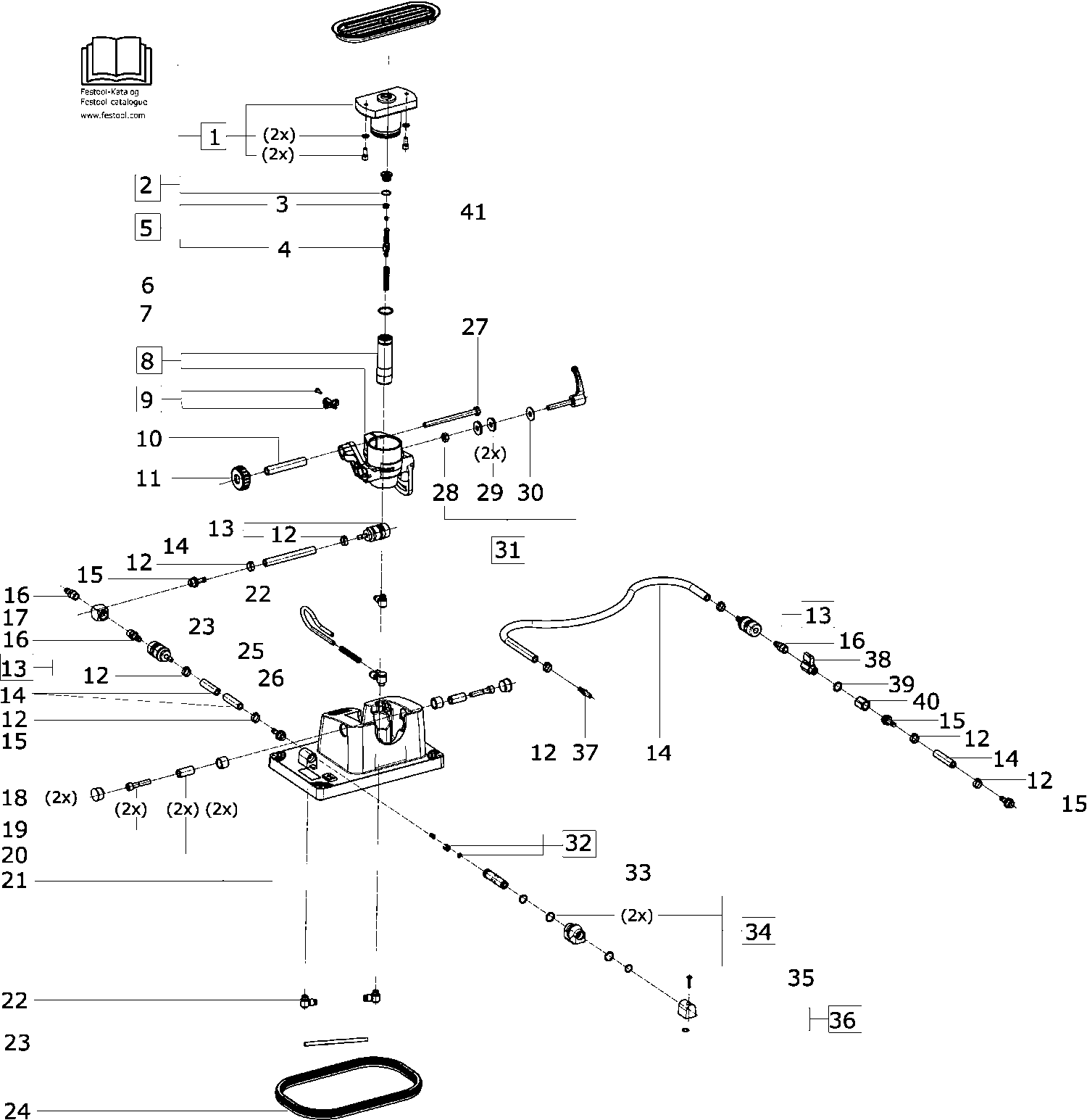

Technical drawing of model Festool 493587 (VACSYSSE2)
Spare parts list of model Festool 493587 (VACSYSSE2)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Adapter VAC SYS VT 275x100 ET-BG | ||||
| 1 | 494586 | 27.71 | 33.53 | |
| Plug VAC SE 1 M18x1,5 ETBG | ||||
| 2 | 494583 | 11.29 | 13.66 | |
| No information available, not orderable | ||||
| 3 | 473873 | |||
| Tappet VAC SE 1 ET-BG | ||||
| 4 | 494582 | 23.47 | 28.40 | |
| Tappet VAC SE 1 ET-BG | ||||
| 5 | 494582 | 23.47 | 28.40 | |
| SPRING SYSVAC UNIT 1 | ||||
| 6 | 469730 | 4.32 | 5.23 | |
| O-ring 26x4 NBR 70 | ||||
| 7 | 401027 | 4.32 | 5.23 | |
| HOUSING RIGHT VAC SE 1 | ||||
| 8 | 494581 | 175.45 | 212.29 | |
| Stop VAC SE 1 | ||||
| 9 | 494579 | 18.76 | 22.70 | |
| SLEEVE VAC SE 1 | ||||
| 10 | 469741 | 37.39 | 45.24 | |
| HANDLE SYSVAC UNIT 1 | ||||
| 11 | 469743 | 33.40 | 40.41 | |
| Clip WD9 10-16 C7 W2 | ||||
| 12 | 479816 | 5.69 | 6.88 | |
| Hose coupling ERG 071 808 | ||||
| 13 | 494574 | 52.03 | 62.96 | |
| No information available, not orderable | ||||
| 14 | 469694 | |||
| CONTAINER SYSVAC UNIT 1 | ||||
| 15 | 469756 | 18.39 | 22.25 | |
| Connector ERP 076152 | ||||
| 16 | 474202 | 17.55 | 21.24 | |
| Y-CONNECTOR SYSVAC UNIT 2 | ||||
| 17 | 469755 | 39.93 | 48.32 | |
| TAP SYSVAC UNIT 1 | ||||
| 18 | 469726 | 4.18 | 5.06 | |
| Allen screw M10x50 | ||||
| 19 | 400895 | 2.95 | 3.57 | |
| SLEEVE VAC SE 1 | ||||
| 20 | 469724 | 14.52 | 17.57 | |
| BASIC PLATE VAC SE 1 | ||||
| 21 | 494580 | 164.32 | 198.83 | |
| SCREWING SYSVAC UNIT 1 P 186151 | ||||
| 22 | 469705 | 33.40 | 40.41 | |
| No information available, not orderable | ||||
| 23 | 473100 | |||
| Seal SYSVAC UNIT 1 | ||||
| 24 | 469702 | 32.55 | 39.39 | |
| SCHUTZSPIRALE AC SE 1 | ||||
| 25 | 470693 | 10.01 | 12.11 | |
| SCREWING SYSVAC UNIT 1 P 186210 | ||||
| 26 | 469706 | 42.83 | 51.82 | |
| Countersunk scr M10x140 DIN 933 8.8 | ||||
| 27 | 400896 | 4.97 | 6.01 | |
| Hexagon nut DIN 934-M10-08 | ||||
| 28 | 772975 | 1.51 | 1.83 | |
| Disc VAC SE 1 | ||||
| 29 | 493585 | 22.39 | 27.09 | |
| No information available, not orderable | ||||
| 30 | xxx | |||
| FINGER LEVER VAC SE 1 | ||||
| 31 | 494578 | 45.25 | 54.75 | |
| SLIDE VAC SE 1 | ||||
| 32 | 494576 | 6.98 | 8.45 | |
| Valve capsule VAC SYS SE 1 | ||||
| 33 | 473500 | 53.60 | 64.86 | |
| SLIDE VAC SE 1 | ||||
| 34 | 494575 | 43.32 | 52.42 | |
| Oval head screw M5x25-TAPTITE-T15 | ||||
| 35 | 228516 | 1.51 | 1.83 | |
| BEARING SUPPORT VAC SE 1 | ||||
| 36 | 494577 | 10.94 | 13.24 | |
| Snap-in nozzle SYSVAC UNIT 1 | ||||
| 37 | 471568 | 23.72 | 28.70 | |
| Shutoff valve 06-6312.13-A | ||||
| 38 | 474203 | 41.74 | 50.51 | |
| Dichting | ||||
| 39 | 002225 | 2.45 | 2.96 | |
| SEAL O -3/8 | ||||
| 39 | 2225 | 2.24 | 2.71 | |
| HOSE CONNECTOR 02-2500.13 | ||||
| 40 | 474204 | 15.97 | 19.32 | |
| Joint piece SE | ||||
| 41 | 476085 | 5.40 | 6.53 | |
