Here you will find all available parts and drawings of the 'Festool 10437167 ( UGCSCSYS )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

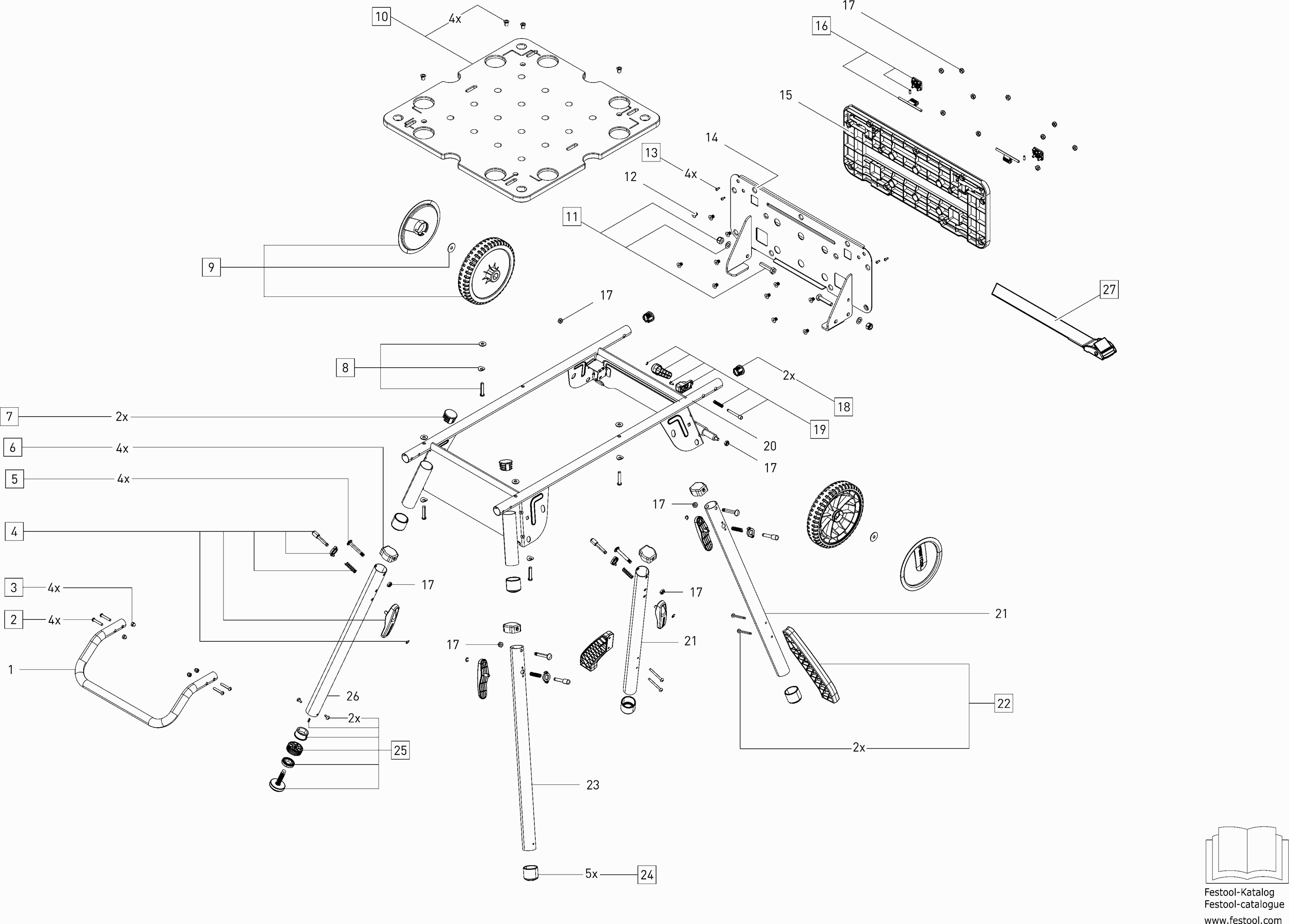

Technical drawing of model Festool 10437167 ( UGCSCSYS )
Spare parts list of model Festool 10437167 ( UGCSCSYS )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Handle UG-CSC-SYS ET-BG | ||||
| 1 | 10727062 | 26.86 | 32.50 | |
| Screw UG-CSC-SYS ET-BG Handle | ||||
| 2 | 10727047 | 1.32 | 1.60 | |
| Cap Nut UG-CSC-SYS ET-BG Griff | ||||
| 3 | 10727043 | 1.32 | 1.60 | |
| Locking lever UG-CSC-SYS ET-BG | ||||
| 4 | 10715796 | 11.76 | 14.23 | |
| Screw UG-CSC-SYS ET-BG Bein | ||||
| 5 | 10727044 | 5.21 | 6.30 | |
| Cover UG-CSC-SYS ET-BG Bein | ||||
| 6 | 10727045 | 2.30 | 2.78 | |
| Sealing plug UG-CSC-SYS ET-BG Leg | ||||
| 7 | 10727046 | 3.62 | 4.38 | |
| Baseplate Befestigung ET-BG | ||||
| 8 | 10715797 | 5.62 | 6.80 | |
| Wheel UG-CSC-SYS ET-BG volls. | ||||
| 9 | 10715798 | 33.03 | 39.97 | |
| Base Plate UG-CSC-SYS ET-BG | ||||
| 10 | 10715799 | 118.82 | 143.77 | |
| Attachment UG-CSC-SYS ET-BG Schaufe | ||||
| 11 | 10715800 | 6.00 | 7.26 | |
| Countersunk screw M8x12 | ||||
| 12 | 10606496 | 1.32 | 1.60 | |
| Screw UG-CSC-SYS ET-BG Shovel | ||||
| 13 | 10727048 | 1.32 | 1.60 | |
| Plate UG-CSC-SYS ET-BG | ||||
| 14 | 10727055 | 74.90 | 90.63 | |
| Insert UG-CSC-SYS ET-BG | ||||
| 15 | 10727042 | 49.13 | 59.45 | |
| Lock nut M8 | ||||
| 17 | 10606447 | 1.32 | 1.60 | |
| Closing plug UG-CSC-SYS ET-BG Frame | ||||
| 18 | 10727056 | 1.32 | 1.60 | |
| Handle UG-CSC-SYS ET-BG | ||||
| 19 | 10715802 | 11.13 | 13.47 | |
| Base UG-CSC-SYS ET-BG | ||||
| 20 | 10727063 | 170.85 | 206.73 | |
| Tube UG-CSC-SYS ET Leg Rear | ||||
| 21 | 10727057 | 41.50 | 50.22 | |
| Support foot UG-CSC-SYS ET-BG | ||||
| 22 | 10715804 | 15.85 | 19.18 | |
| Tube UG-CSC-SYS ET Leg Front | ||||
| 23 | 10727058 | 41.50 | 50.22 | |
| Rubber foot UG-CSC-SYS ET-BG | ||||
| 24 | 10727064 | 14.64 | 17.71 | |
| Adjustment foot UG-CSC-SYS ET-BG | ||||
| 25 | 10715805 | 21.30 | 25.77 | |
| Tube UG-CSC-SYS ET Leg adjustable | ||||
| 26 | 10727061 | 28.31 | 34.26 | |
| Tension strap | ||||
| 27 | 10727060 | 21.78 | 26.35 | |
