Here you will find all available parts and drawings of the 'Festool 10020236 ( UG-AD-KS60 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

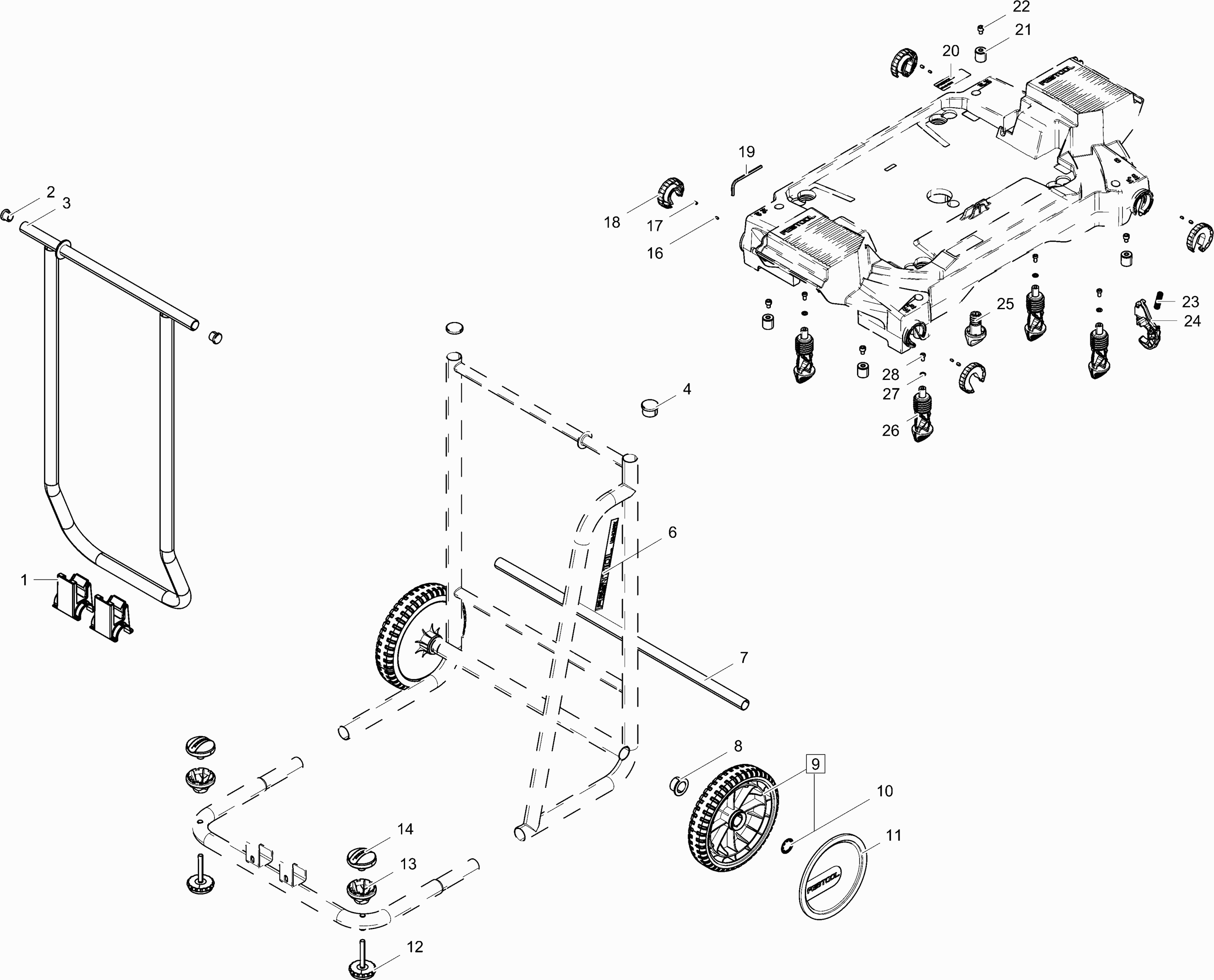

Technical drawing of model Festool 10020236 ( UG-AD-KS60 )
Spare parts list of model Festool 10020236 ( UG-AD-KS60 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Clamp KA-UG 1800 | ||||
| 1 | 479736 | 8.90 | 10.77 | |
| Plug UG-KAPEx GPN 320GL20 1-2 | ||||
| 2 | 700562 | 4.03 | 4.88 | |
| Support UG-KAPEX | ||||
| 3 | 479415 | 118.10 | 142.90 | |
| Plug UG-KAPEx GPN 320 GL30 | ||||
| 4 | 700110 | 5.94 | 7.19 | |
| Type plate UG-KAPEX | ||||
| 6 | 700171 | 7.26 | 8.78 | |
| Axis UG-KAPEX | ||||
| 7 | 479666 | 50.46 | 61.06 | |
| Flange bushing UG-KAPEx | ||||
| 8 | 700114 | 6.35 | 7.68 | |
| Wheel ET-BG CT26/36 | ||||
| 9 | 496230 | 32.91 | 39.82 | |
| Tooth ring CT 17 ET-BG | ||||
| 10 | 202484 | 3.18 | 3.85 | |
| Wheel cover D200 CT 26/36 ET-BG | ||||
| 11 | 200570 | 10.34 | 12.51 | |
| Foot UG-KAPEx vollst. | ||||
| 12 | 497452 | 37.27 | 45.10 | |
| HANDLE DOWN CS 70 EB | ||||
| 13 | 488523 | 2.64 | 3.19 | |
| Upper sec. pist RS 1 C | ||||
| 14 | 447349 | 2.11 | 2.55 | |
| Compression spr DIN 2098-0,45x2,90x10,0 | ||||
| 16 | 444127 | 1.39 | 1.68 | |
| Joint piece PS 2 E | ||||
| 17 | 444126 | 1.39 | 1.68 | |
| Closure KA-UG | ||||
| 18 | 479735 | 8.26 | 9.99 | |
| Allen key 4 DIN 911 | ||||
| 19 | 767505 | 2.45 | 2.96 | |
| Type plate UG-AD-KS 60 | ||||
| 20 | 10023115 | 9.96 | 12.05 | |
| Buffer KS 120 EB | ||||
| 21 | 494189 | 4.09 | 4.95 | |
| Ch. head screw DIN 912-M6x8-8.8-PR80 | ||||
| 22 | 400935 | 1.39 | 1.68 | |
| Compr. spring DIN 2098-0,90x8,60x43 | ||||
| 23 | 10023630 | 6.60 | 7.99 | |
| Detent pawl UG-AD-KS 60 | ||||
| 24 | 10023590 | 23.35 | 28.25 | |
| Threaded spindle UG-AD-KS 60 | ||||
| 25 | 10023918 | 16.21 | 19.61 | |
| Spindle UG-AD-KS 60 | ||||
| 26 | 10023112 | 32.67 | 39.53 | |
| Disc DIN 126-5,5-100 HV | ||||
| 27 | 10025021 | 3.30 | 3.99 | |
| Ch. head screw M5x10 DIN 6912 | ||||
| 28 | 10027790 | 3.43 | 4.15 | |
