Here you will find all available parts and drawings of the 'Festool 204215 ( TSC55REB )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

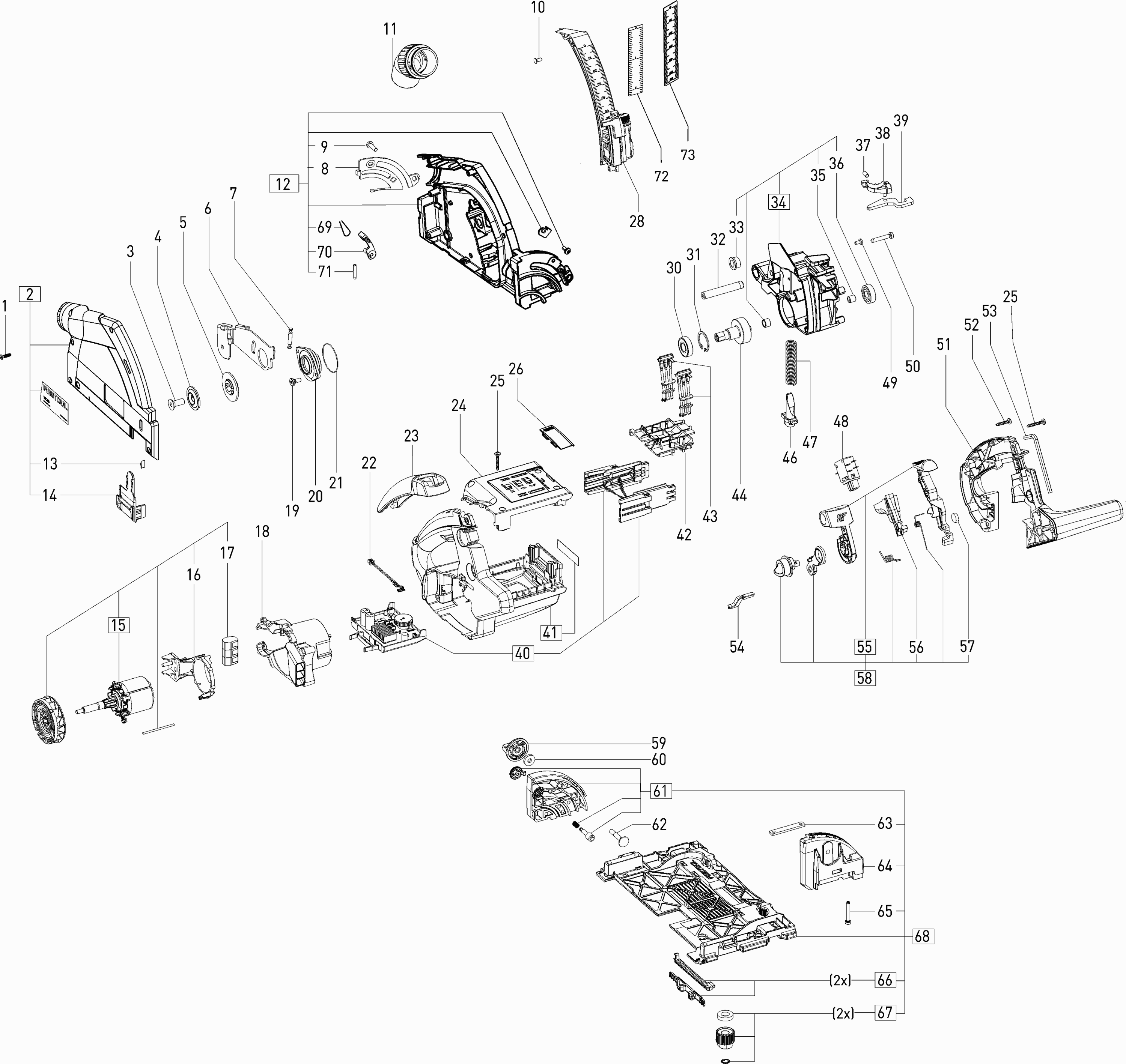

Technical drawing of model Festool 204215 ( TSC55REB )

Spare parts list of model Festool 204215 ( TSC55REB )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Screw TS 55 DG 40x15
1 400710 1.39 1.68
Cover TS 55 RQ ET-BG
2 10488427 51.67 62.52
Countersink DIN 7991-M8x18-12.9
3 459186 1.39 1.68
Counter flange HKC 55
4 10014832 5.09 6.16
Clamping flange HKC 55
5 10014834 12.10 14.64
Wedge TSF 55
6 10000418 7.46 9.03
Draw spring TSF 55
7 10000568 1.39 1.68
Metal sheet segment TSF 55
8 10000164 6.41 7.76
Oval head screw M5x16-TAPTITE-T25
9 10016393 1.39 1.68
Countersink PT-4,0-10-PZV
10 400014 1.39 1.68
Angle piece TS 55 R/Cleantec
11 202096 22.63 27.38
Protective cove TS 55 R
12 10017862 76.35 92.38
Spring C 12
13 466084 1.75 2.12
Flag window, vi TSF 55
14 10001648 2.26 2.73
Motor TSC 55 REB
15 500183 178.11 215.51
Cable holder TSC 55
16 10005711 2.83 3.42
Binding post Wago 222-412
17 10005712 2.51 3.04
Motor support TSC 55
18 10005688 7.99 9.67
Flange bolt TS 55 EBQ
19 453547 1.39 1.68
Bearing flange TS 55 EBQ
20 459185 14.40 17.42
O-ring 40x1,5-NBR-70SHORE
21 459253 1.39 1.68
Flexible lead HKC 55
22 204131 5.09 6.16
Soft handle TS 55
23 459226 6.79 8.22
Cover TSC 55
24 10005685 11.55 13.98
Oval head screw PT-4,0x25-T15
25 400695 1.39 1.68
Restrictor TS/TSC 55 Facelift
26 10371828 7.32 8.86
Restrictor TSC 55
26 10008530 7.00 8.47
Depth stop TSF 55 EBQ
28 10001569 18.27 22.11
Ball bearing 6001 DDU CM D8SSM
30 401576 7.52 9.10
Circlip DIN 472-28x1,2
31 401244 1.39 1.68
Bolt TSF 55
32 10002634 2.64 3.19
Flange bushing TS 55 EBQ
33 459181 1.39 1.68
Gear box TS 55 F
34 205817 80.22 97.07
Needle sleeve HK 0509 INA
35 410223 3.83 4.63
Ball bearing 6000 Z1D1 DIN 625
36 228798 5.68 6.87
Compression spr TS 55 EBQ
37 459225 1.39 1.68
Locking lever TS 55 EBQ
38 459224 1.39 1.68
Lever TS 55 EBQ
39 459229 2.98 3.61
Electronics TSC 55 REB ET-BG
40 204217 128.02 154.90
Motor frame TSC 55
41 500473 43.08 52.13
Blanking plate TSC 55
42 10004730 2.90 3.51
Light conductor TSC 55
43 10004733 1.85 2.24
Gear shaft TS 55 EBQ
44 495798 47.07 56.95
Tappet TS 55
46 10018287 2.45 2.96
Compression spr TS 55 EBQ
47 459187 1.92 2.32
SWITCH TS 55 EBQ
48 491703 18.15 21.96
Tallow-dr. screw M4x8-Taptite-T20
49 10044110 1.39 1.68
Oval head screw M4x8-TAPTITE-T15
49 228570 1.39 1.68
Screw M5x30-DUO-TAPTITE-TORX
50 10002348 1.39 1.68
Handle TSC 55
51 10005684 14.88 18.00
Oval head screw PT-4.0x20-KT15
52 228567 1.39 1.68
Screw driver SW 5 DIN911
53 202752 1.39 1.68
Lock bolt TS 55 EBQ
54 459222 1.85 2.24
Lever TS 55/TS 75
55 500431 24.44 29.57
Push Button TS 55 EBQ
56 459195 2.45 2.96
Silicone washer TS 55 EBQ
57 459220 1.39 1.68
Spindle stop TS 55/TS 75
58 500430 39.81 48.17
Rotary knob D34 M6/8T blue
59 10001354 2.77 3.35
Disc DIN 7349-6,4
60 402935 1.39 1.68
Swivelling segm TSF 55
61 10009124 11.84 14.33
Clamping screw TSF 55
62 10000160 1.58 1.91
Rail TSF 55 EBQ
63 10000916 2.77 3.35
Swivel Segment TS 55 R printed
64 10435074 7.79 9.43
Ch. head screw HK 85 M 5
65 10014865 1.39 1.68
Glide pads TS 55/TSC 55
66 200173 21.18 25.63
Adjusting wheel TS 55/TSC 55
67 200174 24.56 29.72
Guide plate TS55F ET-BG
68 10515819 75.75 91.66
Spring TSC 55
69 10015946 1.39 1.68
Lever TSC 55 REB
70 10016897 1.39 1.68
Threaded bolt M4 x 20 DIN 915
71 10013063 1.39 1.68
