Here you will find all available parts and drawings of the 'Festool 499431 (TSC55REBLi230V)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

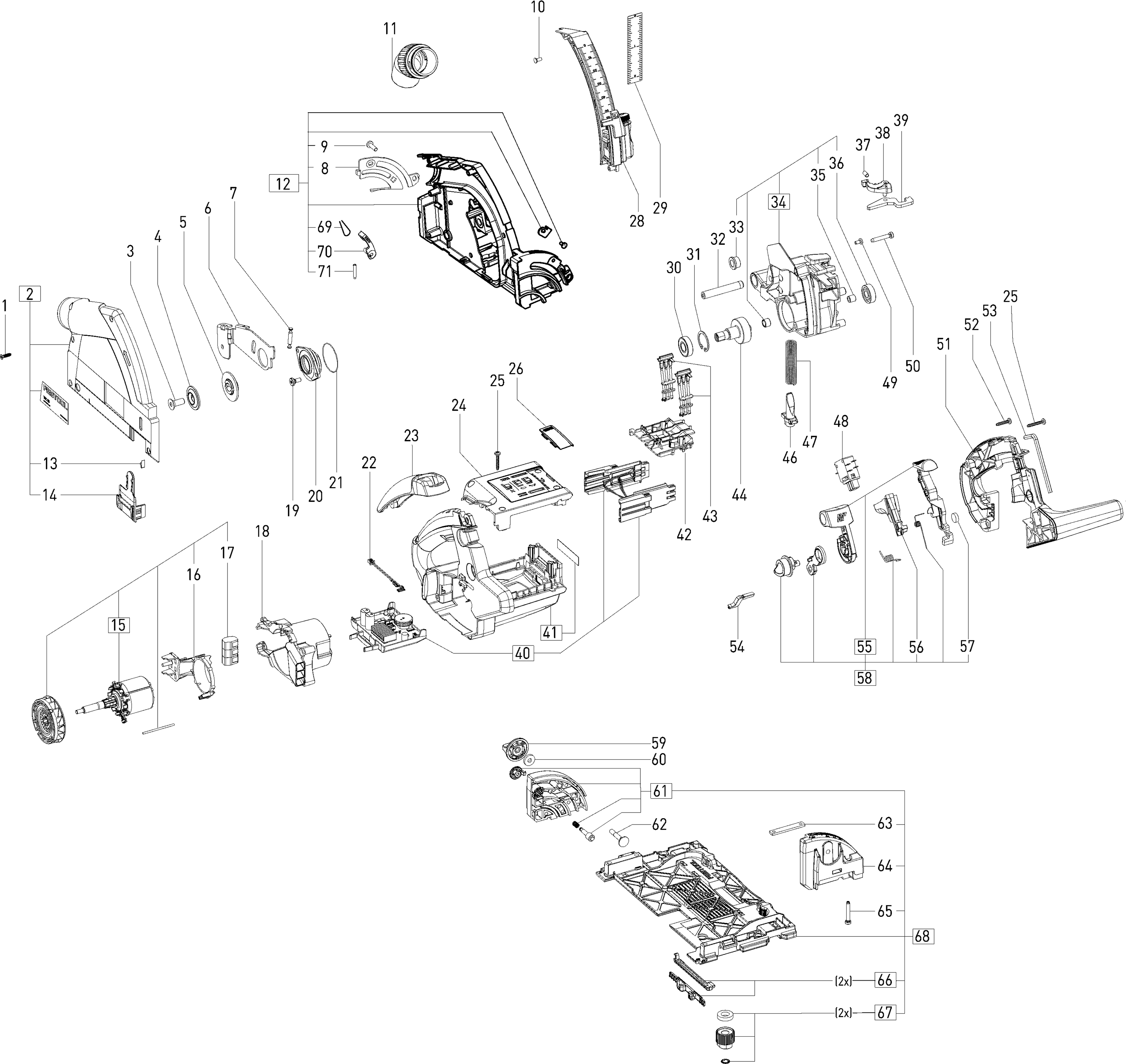

Technical drawing of model Festool 499431 (TSC55REBLi230V)
Spare parts list of model Festool 499431 (TSC55REBLi230V)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Screw TS 55 DG 40x15 | ||||
| 1 | 400710 | 1.51 | 1.83 | |
| Cover TS 55 RQ ET-BG | ||||
| 2 | 10488427 | 55.06 | 66.62 | |
| Countersink DIN 7991-M8x18-12.9 | ||||
| 3 | 459186 | 1.51 | 1.83 | |
| Counter flange HKC 55 | ||||
| 4 | 10014832 | 5.76 | 6.97 | |
| Clamping flange HKC 55 | ||||
| 5 | 10014834 | 13.07 | 15.81 | |
| Wedge TSF 55 | ||||
| 6 | 10000418 | 8.14 | 9.85 | |
| Draw spring TSF 55 | ||||
| 7 | 10000568 | 1.51 | 1.83 | |
| Metal sheet segment TSF 55 | ||||
| 8 | 10000164 | 7.27 | 8.80 | |
| Oval head screw M5x16-TAPTITE-T25 | ||||
| 9 | 10016393 | 6.94 | 8.40 | |
| Countersink PT-4,0-10-PZV | ||||
| 10 | 400014 | 1.51 | 1.83 | |
| Angle piece TS 55 R/Cleantec | ||||
| 11 | 202096 | 22.99 | 27.82 | |
| Afzuigaansluiting | ||||
| 11 | 11094817 | 22.63 | 27.38 | |
| Protective cove TS 55 R | ||||
| 12 | 10017862 | 76.35 | 92.38 | |
| Spring C 12 | ||||
| 13 | 466084 | 1.94 | 2.35 | |
| Flag window, vi TSF 55 | ||||
| 14 | 10001648 | 2.66 | 3.22 | |
| Motor TSC 55 REB | ||||
| 15 | 500183 | 178.11 | 215.51 | |
| Cable holder TSC 55 | ||||
| 16 | 10005711 | 3.17 | 3.84 | |
| Binding post Wago 222-412 | ||||
| 17 | 10005712 | 2.74 | 3.32 | |
| Motor support TSC 55 | ||||
| 18 | 10005688 | 8.71 | 10.54 | |
| Flange bolt TS 55 EBQ | ||||
| 19 | 453547 | 1.51 | 1.83 | |
| Bearing flange TS 55 EBQ | ||||
| 20 | 459185 | 14.40 | 17.42 | |
| O-ring 40x1,5-NBR-70SHORE | ||||
| 21 | 459253 | 1.51 | 1.83 | |
| Flexible lead TS 55 RCEB | ||||
| 22 | 705768 | 5.76 | 6.97 | |
| Soft handle TS 55 | ||||
| 23 | 459226 | 7.34 | 8.88 | |
| Cover TSC 55 | ||||
| 24 | 10005685 | 12.61 | 15.26 | |
| Oval head screw PT-4,0x25-T15 | ||||
| 25 | 400695 | 1.51 | 1.83 | |
| Restrictor TS/TSC 55 Facelift | ||||
| 26 | 10371828 | 7.99 | 9.67 | |
| Restrictor TSC 55 | ||||
| 26 | 10008530 | 7.00 | 8.47 | |
| Depresser TSC 55 | ||||
| 27 | 500472 | 29.77 | 36.02 | |
| Depth stop TSF 55 EBQ | ||||
| 28 | 10001569 | 19.00 | 22.99 | |
| Ball bearing 6001 DDU CM D8SSM | ||||
| 30 | 401576 | 8.21 | 9.93 | |
| Circlip DIN 472-28x1,2 | ||||
| 31 | 401244 | 1.51 | 1.83 | |
| Bolt TSF 55 | ||||
| 32 | 10002634 | 2.95 | 3.57 | |
| Flange bushing TS 55 EBQ | ||||
| 33 | 459181 | 1.51 | 1.83 | |
| Gear box TS 55 F | ||||
| 34 | 205817 | 83.37 | 100.88 | |
| Needle sleeve HK 0509 INA | ||||
| 35 | 410223 | 4.25 | 5.14 | |
| NAALDHULS DF 700 HK0509 | ||||
| 35 | 10498113 | 3.60 | 4.36 | |
| Ball bearing 6000 Z1D1 DIN 625 | ||||
| 36 | 228798 | 6.19 | 7.49 | |
| Compression spr TS 55 EBQ | ||||
| 37 | 459225 | 1.51 | 1.83 | |
| Locking lever TS 55 EBQ | ||||
| 38 | 459224 | 1.51 | 1.83 | |
| Lever TS 55 EBQ | ||||
| 39 | 459229 | 3.60 | 4.36 | |
| Electronics TSC 55 REB ET-BG | ||||
| 40 | 204217 | 128.02 | 154.90 | |
| Motor frame TSC 55 | ||||
| 41 | 500473 | 43.08 | 52.13 | |
| Blanking plate TSC 55 | ||||
| 42 | 10004730 | 3.17 | 3.84 | |
| Light conductor TSC 55 | ||||
| 43 | 10004733 | 2.02 | 2.44 | |
| Gear shaft TS 55 EBQ | ||||
| 44 | 495798 | 48.88 | 59.14 | |
| Cylinder bearin TS 55 EBQ | ||||
| 45 | 459254 | 2.81 | 3.40 | |
| Tappet TS 55 | ||||
| 46 | 10018287 | 2.66 | 3.22 | |
| Compression spr TS 55 EBQ | ||||
| 47 | 459187 | 2.09 | 2.53 | |
| SWITCH TS 55 EBQ | ||||
| 48 | 491703 | 18.15 | 21.96 | |
| Oval head screw M4x8-TAPTITE-T15 | ||||
| 49 | 228570 | 9.17 | 11.10 | |
| Tallow-dr. screw M4x8-Taptite-T20 | ||||
| 49 | 10044110 | 1.51 | 1.83 | |
| Screw M5x30-DUO-TAPTITE-TORX | ||||
| 50 | 10002348 | 1.51 | 1.83 | |
| Handle TSC 55 | ||||
| 51 | 10005684 | 14.88 | 18.00 | |
| Oval head screw PT-4.0x20-KT15 | ||||
| 52 | 228567 | 1.51 | 1.83 | |
| Screw driver SW 5 DIN911 | ||||
| 53 | 202752 | 1.51 | 1.83 | |
| Lock bolt TS 55 EBQ | ||||
| 54 | 459222 | 2.16 | 2.61 | |
| Lever TS 55/TS 75 | ||||
| 55 | 500431 | 25.41 | 30.75 | |
| Push Button TS 55 | ||||
| 56 | 10568559 | 2.88 | 3.48 | |
| Push Button TS 55 EBQ | ||||
| 56 | 459195 | 2.45 | 2.96 | |
| Silicone washer TS 55 EBQ | ||||
| 57 | 459220 | 1.51 | 1.83 | |
| Spindle stop TS 55/TS 75 | ||||
| 58 | 500430 | 41.38 | 50.07 | |
| Rotary knob D34 M6/8T blue | ||||
| 59 | 10001354 | 3.17 | 3.84 | |
| Disc DIN 7349-6,4 | ||||
| 60 | 402935 | 1.51 | 1.83 | |
| Swivelling segm TSF 55 | ||||
| 61 | 10009124 | 12.08 | 14.62 | |
| Clamping screw TSF 55 | ||||
| 62 | 10000160 | 1.80 | 2.18 | |
| Rail TSF 55 EBQ | ||||
| 63 | 10000916 | 3.02 | 3.65 | |
| Swivel Segment TS 55 R printed | ||||
| 64 | 10435074 | 8.86 | 10.72 | |
| Ch. head screw HK 85 M 5 | ||||
| 65 | 10014865 | 1.51 | 1.83 | |
| Crosshd. guide TS 55 | ||||
| 66 | 494588 | 23.96 | 28.99 | |
| Adjusting wheel TS 55 EBQ | ||||
| 67 | 495035 | 33.28 | 40.27 | |
| Guide plate TS55F ET-BG | ||||
| 68 | 10515819 | 78.77 | 95.31 | |
