Here you will find all available parts and drawings of the 'Festool 205694 (TS55FQ)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

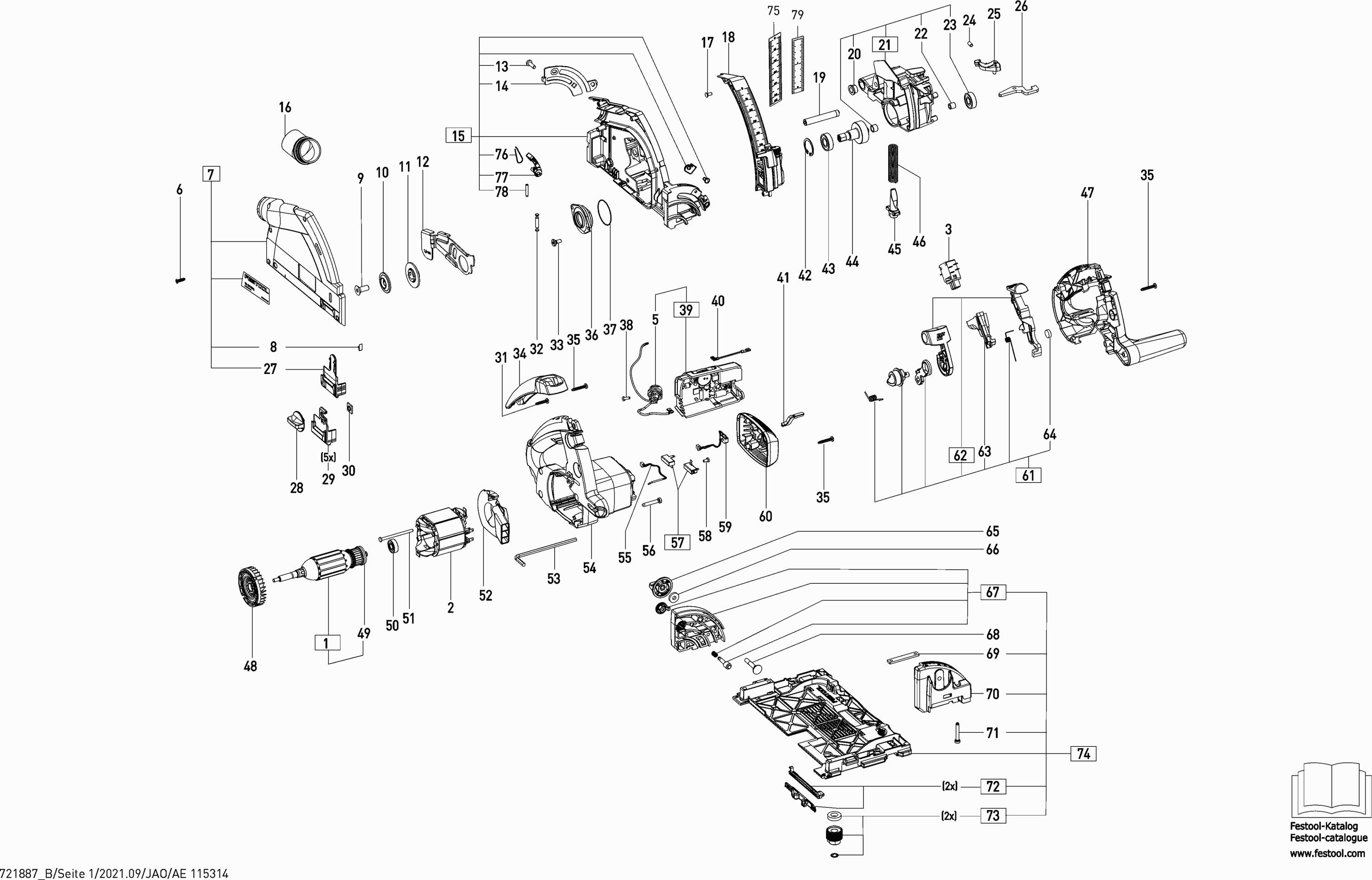

Technical drawing of model Festool 205694 (TS55FQ)
Spare parts list of model Festool 205694 (TS55FQ)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| ARMATURE 230V TS 55 Q | ||||
| 1 | 491729 | 127.05 | 153.73 | |
| Stator TS 55 Q | ||||
| 2 | 491744 | 64.13 | 77.60 | |
| SWITCH TS 55 EBQ | ||||
| 3 | 491703 | 18.15 | 21.96 | |
| Socket housing TS 55 EBQ ET-BAUGRUPPE | ||||
| 5 | 491716 | 20.09 | 24.31 | |
| Screw TS 55 DG 40x15 | ||||
| 6 | 400710 | 1.51 | 1.83 | |
| Cover TS 55 F | ||||
| 7 | 205827 | 59.53 | 72.03 | |
| Spring C 12 | ||||
| 8 | 466084 | 1.94 | 2.35 | |
| Countersink DIN 7991-M8x18-12.9 | ||||
| 9 | 459186 | 1.51 | 1.83 | |
| Counter flange HKC 55 | ||||
| 10 | 10014832 | 5.76 | 6.97 | |
| Clamping flange HKC 55 | ||||
| 11 | 10014834 | 13.07 | 15.81 | |
| Wedge TS 55 F | ||||
| 12 | 10037341 | 19.12 | 23.14 | |
| Oval head screw M5x16-TAPTITE-T25 | ||||
| 13 | 10016393 | 6.94 | 8.40 | |
| Metal sheet segment TSF 55 | ||||
| 14 | 10000164 | 7.27 | 8.80 | |
| Prot. cover TSC 55 KEB/TS 55 F | ||||
| 15 | 205811 | 84.70 | 102.49 | |
| Angle piece TS 55 R/Cleantec | ||||
| 16 | 202096 | 22.99 | 27.82 | |
| Countersink PT-4,0-10-PZV | ||||
| 17 | 400014 | 1.51 | 1.83 | |
| Depth stop TSF 55 EBQ | ||||
| 18 | 10001569 | 19.00 | 22.99 | |
| Bolt TSF 55 | ||||
| 19 | 10002634 | 2.95 | 3.57 | |
| Flange bushing TS 55 EBQ | ||||
| 20 | 459181 | 1.51 | 1.83 | |
| Gear box TS 55 F | ||||
| 21 | 205817 | 83.37 | 100.88 | |
| Needle sleeve HK 0509 INA | ||||
| 22 | 410223 | 4.25 | 5.14 | |
| NAALDHULS DF 700 HK0509 | ||||
| 22 | 10498113 | 3.60 | 4.36 | |
| Ball bearing 6000 Z1D1 DIN 625 | ||||
| 23 | 228798 | 6.19 | 7.49 | |
| Compression spr TS 55 EBQ | ||||
| 24 | 459225 | 1.51 | 1.83 | |
| Locking lever TS 55 EBQ | ||||
| 25 | 459224 | 1.51 | 1.83 | |
| Lever TS 55 EBQ | ||||
| 26 | 459229 | 3.60 | 4.36 | |
| Flag window, vi SF-TS 55 R | ||||
| 27 | 499012 | 6.19 | 7.49 | |
| Rotary knob D34 M6x8 blue | ||||
| 28 | 481984 | 2.30 | 2.78 | |
| NUT SP-TS 55 | ||||
| 30 | 462760 | 2.74 | 3.32 | |
| Oval head screw PT-4.0x20-KT15 | ||||
| 31 | 228567 | 1.51 | 1.83 | |
| Draw spring TSF 55 | ||||
| 32 | 10000568 | 1.51 | 1.83 | |
| Flange bolt TSC 55 K | ||||
| 33 | 10038732 | 1.51 | 1.83 | |
| Soft handle TS 55 | ||||
| 34 | 459226 | 7.34 | 8.88 | |
| Oval head screw PT-4,0x25-T15 | ||||
| 35 | 400695 | 1.51 | 1.83 | |
| Bearing flange TS 55 EBQ | ||||
| 36 | 459185 | 14.40 | 17.42 | |
| O-ring 40x1,5-NBR-70SHORE | ||||
| 37 | 459253 | 1.51 | 1.83 | |
| Oval head screw PT-3,5x10-KT15 | ||||
| 38 | 219031 | 7.32 | 8.86 | |
| SUPRESSOR TS 55 Q | ||||
| 39 | 491726 | 55.18 | 66.77 | |
| Lock bolt TS 55 EBQ | ||||
| 41 | 459222 | 2.16 | 2.61 | |
| Circlip DIN 472-28x1,2 | ||||
| 42 | 401244 | 1.51 | 1.83 | |
| Ball bearing 6001 DDU CM D8SSM | ||||
| 43 | 401576 | 8.21 | 9.93 | |
| Gear shaft TS 55 EBQ | ||||
| 44 | 495798 | 48.88 | 59.14 | |
| Tappet TS 55 | ||||
| 45 | 10018287 | 2.66 | 3.22 | |
| Compression spr TS 55 EBQ | ||||
| 46 | 459187 | 2.09 | 2.53 | |
| Handle TS 55 R | ||||
| 47 | 10007029 | 12.83 | 15.52 | |
| Fan TS 55 EBQ | ||||
| 48 | 459199 | 3.38 | 4.09 | |
| Solenoid ring AT 55 E D28 K2 VOLLST. | ||||
| 49 | 488965 | 3.89 | 4.71 | |
| Ball bearing 608 DD1 MC3 DIN625 NSK | ||||
| 50 | 401525 | 5.18 | 6.27 | |
| Oval head screw PT-4,0x60-KT15 | ||||
| 51 | 228708 | 1.51 | 1.83 | |
| Air guide washe TS 55 EBQ | ||||
| 52 | 459179 | 2.66 | 3.22 | |
| Pin key TS 55 EBQ SW 5 | ||||
| 53 | 459255 | 2.74 | 3.32 | |
| Motor frame TS 55 R | ||||
| 54 | 10017629 | 19.24 | 23.28 | |
| Screw M5x30-DUO-TAPTITE-TORX | ||||
| 56 | 10002348 | 1.51 | 1.83 | |
| BRUSH TS 55 EBQ | ||||
| 57 | 491704 | 17.30 | 20.93 | |
| Oval head screw PT-3,5x8-T15 | ||||
| 58 | 219047 | 1.51 | 1.83 | |
| COVER TS 55 EBQ | ||||
| 60 | 491718 | 23.60 | 28.56 | |
| Spindle stop TS 55/TS 75 | ||||
| 61 | 500430 | 41.38 | 50.07 | |
| Lever TS 55/TS 75 | ||||
| 62 | 500431 | 25.41 | 30.75 | |
| Push Button TS 55 | ||||
| 63 | 10568559 | 2.88 | 3.48 | |
| Push Button TS 55 EBQ | ||||
| 63 | 459195 | 2.45 | 2.96 | |
| Silicone washer TS 55 EBQ | ||||
| 64 | 459220 | 1.51 | 1.83 | |
| Rotary knob D34 M6/8T blue | ||||
| 65 | 10001354 | 3.17 | 3.84 | |
| Disc DIN 7349-6,4 | ||||
| 66 | 402935 | 1.51 | 1.83 | |
| Swivelling segm TSF 55 | ||||
| 67 | 10009124 | 12.08 | 14.62 | |
| Clamping screw TSF 55 | ||||
| 68 | 10000160 | 1.80 | 2.18 | |
| Rail TSF 55 EBQ | ||||
| 69 | 10000916 | 3.02 | 3.65 | |
| Swivel Segment TS 55 R printed | ||||
| 70 | 10435074 | 8.86 | 10.72 | |
| Ch. head screw HK 85 M 5 | ||||
| 71 | 10014865 | 1.51 | 1.83 | |
| Glide pads TS 55/TSC 55 | ||||
| 72 | 200173 | 21.18 | 25.63 | |
| Adjusting wheel TS 55/TSC 55 | ||||
| 73 | 200174 | 25.17 | 30.46 | |
| Guide plate TS55F ET-BG | ||||
| 74 | 10515819 | 78.77 | 95.31 | |
| Spring TSC 55 | ||||
| 76 | 10015946 | 1.51 | 1.83 | |
| Lever TSC 55 REB | ||||
| 77 | 10016897 | 1.51 | 1.83 | |
| Threaded bolt M4 x 20 DIN 915 | ||||
| 78 | 10013063 | 1.51 | 1.83 | |
