Here you will find all available parts and drawings of the 'Festool 488064 ( TRANSPORTROLLEN )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

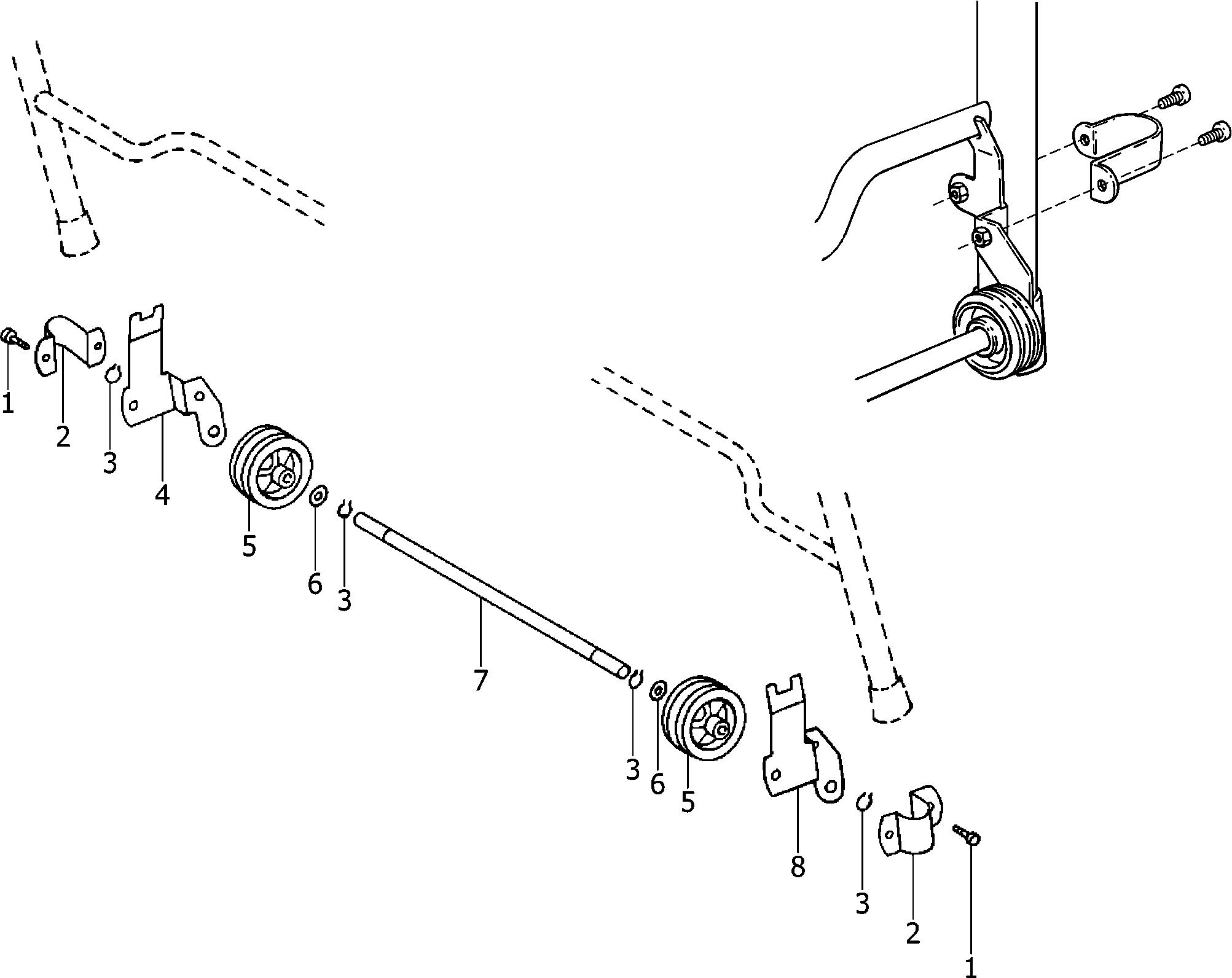

Technical drawing of model Festool 488064 ( TRANSPORTROLLEN )
Spare parts list of model Festool 488064 ( TRANSPORTROLLEN )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Ch. head screw DIN 912-M8x16-8.8 | ||||
| 1 | 400146 | 1.51 | 1.83 | |
| No information available, not orderable | ||||
| 2 | 450049 | |||
| Circlip DIN 471-12x1 | ||||
| 3 | 200619 | 1.39 | 1.68 | |
| ANGLE CS 70 TR LEFT | ||||
| 4 | 450050 | 29.77 | 36.02 | |
| ROLLER CS 70 TR | ||||
| 5 | 450221 | 21.78 | 26.35 | |
| Disc DIN 125-A-13-140 HV | ||||
| 6 | 400453 | 6.41 | 7.76 | |
| AXLE CS 70 TR | ||||
| 7 | 450052 | 38.12 | 46.13 | |
| ANGLE CS 70 TR RIGHT | ||||
| 8 | 450051 | 41.02 | 49.63 | |
