Here you will find all available parts and drawings of the 'Festool 487277 ( TPE-RS1 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

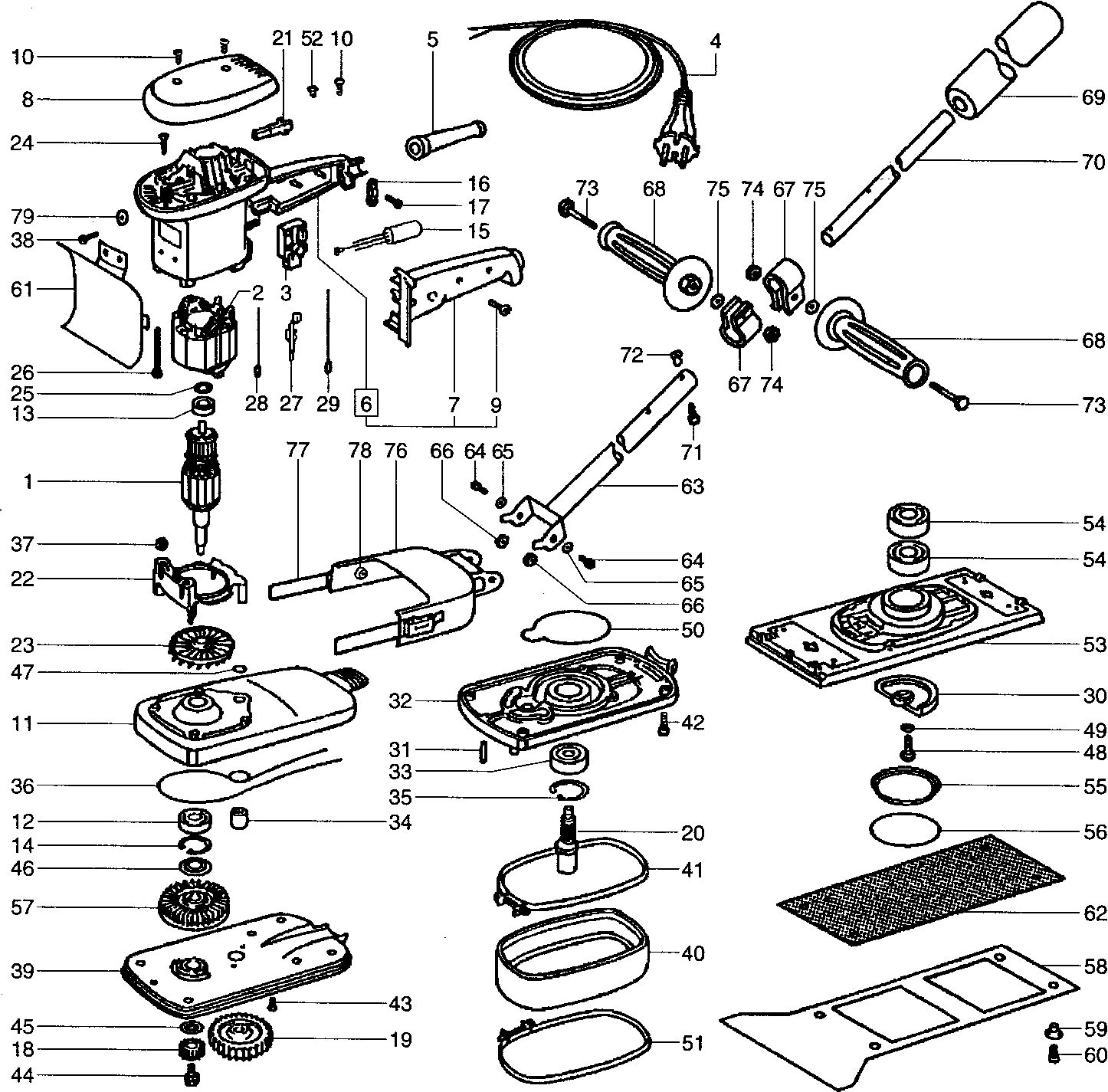

Technical drawing of model Festool 487277 ( TPE-RS1 )
Spare parts list of model Festool 487277 ( TPE-RS1 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| ARMATURE 230V RS 1 230V ET-BG | ||||
| 1 | 492439 | 84.46 | 102.20 | |
| FIELD COIL RS 1 ET-BG | ||||
| 2 | 492442 | 62.68 | 75.84 | |
| Switch attachme ET 2 E | ||||
| 3 | 486317 | 15.00 | 18.15 | |
| CABLE WITH PLUG AP 85 E DIN-H05RN-F | ||||
| 4 | 457600 | 24.32 | 29.43 | |
| Cable conduit RTR 1409 | ||||
| 5 | 432436 | 1.39 | 1.68 | |
| HOUSING RS 2 E | ||||
| 6 | 487834 | 37.51 | 45.39 | |
| HANDLE SEGMENT RS 2 E | ||||
| 7 | 451402 | 6.26 | 7.57 | |
| No longer available, no replacement | ||||
| 8 | 451430 | |||
| Oval head screw PT-4.0x20-KT15 | ||||
| 9 | 228567 | 1.39 | 1.68 | |
| Oval head screw PT-3,5x10-KT15 | ||||
| 10 | 219031 | 1.39 | 1.68 | |
| Bearing cover RS 1 | ||||
| 11 | 439839 | 67.16 | 81.26 | |
| Ball bearing 6201 DDUCM D8 AS2SM | ||||
| 12 | 228659 | 8.11 | 9.81 | |
| ROLLER BEARING 608 RS DIN 625 | ||||
| 13 | 401524 | 5.09 | 6.16 | |
| Circlip DIN 472-32x1,2 | ||||
| 14 | 401246 | 1.39 | 1.68 | |
| SUPRESSOR RTM | ||||
| 15 | 436753 | 11.55 | 13.98 | |
| Cable clamp RS 3 | ||||
| 16 | 439288 | 1.39 | 1.68 | |
| Oval head screw PT-3,5x16-KT15 | ||||
| 17 | 228663 | 1.39 | 1.68 | |
| Pinion RS 100 | ||||
| 18 | 442267 | 30.49 | 36.89 | |
| GEAR RSB VOLLST. | ||||
| 19 | 485618 | 24.32 | 29.43 | |
| Eccentric shaft RS 1 | ||||
| 20 | 441381 | 69.21 | 83.74 | |
| BRUSH HOLDER AP 65 E | ||||
| 21 | 488915 | 17.54 | 21.22 | |
| FAN HOUSING RS 1 | ||||
| 22 | 443109 | 2.57 | 3.11 | |
| FAN RS 1 | ||||
| 23 | 436451 | 2.04 | 2.47 | |
| Oval head screw M4x20-TAPTITE-T15 | ||||
| 24 | 228569 | 1.39 | 1.68 | |
| WASHER 14x21,8x0,3 L+MN 1100 | ||||
| 25 | 203777 | 1.39 | 1.68 | |
| Oval head screw PT-4,0x40-KT15 | ||||
| 26 | 219080 | 1.39 | 1.68 | |
| Plug-in bracket AP 65 E | ||||
| 27 | 443331 | 1.51 | 1.83 | |
| WIRE RTM-EA VOLLST. | ||||
| 28 | 434527 | 2.90 | 3.51 | |
| WIRE RTM-EA VOLLST. | ||||
| 29 | 434865 | 2.45 | 2.96 | |
| WEIGHT RS 1 | ||||
| 30 | 441059 | 29.28 | 35.43 | |
| PIN 6 M6x36 DIN 6325 ST | ||||
| 31 | 773881 | 1.39 | 1.68 | |
| Gear box RS 1 | ||||
| 32 | 435509 | 72.00 | 87.12 | |
| BALL BEARING 6301 DDU DIN 625 | ||||
| 33 | 228524 | 11.55 | 13.98 | |
| BUSH NK 10/12 | ||||
| 34 | 410226 | 15.37 | 18.60 | |
| Circlip DIN 472-37x1,5 | ||||
| 35 | 401251 | 1.39 | 1.68 | |
| SEAL RS 1 | ||||
| 36 | 437499 | 3.24 | 3.92 | |
| Hexagon nut DIN 934-M4-08 | ||||
| 37 | 200715 | 1.39 | 1.68 | |
| Oval head screw M4x14-TAPTITE-KT15 | ||||
| 38 | 445566 | 1.39 | 1.68 | |
| Plate RS 1 | ||||
| 39 | 482524 | 48.52 | 58.71 | |
| SLEEVE RS 1 | ||||
| 40 | 435475 | 13.43 | 16.25 | |
| CLIP RTR-S2 | ||||
| 41 | 410423 | 7.26 | 8.78 | |
| Oval head screw M5x25-TAPTITE-T15 | ||||
| 42 | 228516 | 1.39 | 1.68 | |
| Oval head screw M4x10-TAPTITE-T15 | ||||
| 43 | 228582 | 1.39 | 1.68 | |
| SCREW M6x15 VERBUS-RIPP | ||||
| 44 | 228517 | 1.39 | 1.68 | |
| Centri. washer RS 1 | ||||
| 45 | 437064 | 1.92 | 2.32 | |
| RETAINING RING RS 1 OBEN | ||||
| 46 | 437086 | 1.78 | 2.15 | |
| Disc RS 1 | ||||
| 47 | 437102 | 2.04 | 2.47 | |
| Ch. head screw DIN 6912-M6x18-8.8 | ||||
| 48 | 223541 | 1.39 | 1.68 | |
| Serrated washer DIN 6797-A-6,4 | ||||
| 49 | 200765 | 1.39 | 1.68 | |
| SEAL - BASE PLA RS 1 | ||||
| 50 | 437292 | 2.38 | 2.88 | |
| CLIP RS 1 | ||||
| 51 | 437884 | 7.20 | 8.71 | |
| Oval head screw PT-3,5x10-KT15 | ||||
| 52 | 219031 | 1.39 | 1.68 | |
| Plate RS 1 | ||||
| 53 | 440469 | 76.59 | 92.67 | |
| Ball bearing 6203 ZDU C3E MA7S | ||||
| 54 | 228523 | 9.77 | 11.82 | |
| COVER RS 1 | ||||
| 55 | 435510 | 10.90 | 13.19 | |
| O-ring 74x2-NBR-70SHORE | ||||
| 56 | 228551 | 1.58 | 1.91 | |
| FAN RS 1 | ||||
| 57 | 435496 | 21.30 | 25.77 | |
| Blade plate TM 195 | ||||
| 58 | 442661 | 38.48 | 46.56 | |
| INSERT TM 195 | ||||
| 59 | 442664 | 3.50 | 4.24 | |
| Countersink DIN 965-M4x12-8.8 | ||||
| 60 | 445148 | 1.39 | 1.68 | |
| DERIVER TM 195 | ||||
| 61 | 442662 | 25.41 | 30.75 | |
| FILTER TPE-RS 1 | ||||
| 62 | 444486 | 34.24 | 41.43 | |
| FORK PIECE SG-TPE/RS 1 | ||||
| 63 | 442676 | 39.45 | 47.73 | |
| Ch. head screw DIN 6912-M8x16-8.8 | ||||
| 64 | 774346 | 1.39 | 1.68 | |
| Disc DIN 9021-8,4-100 HV | ||||
| 65 | 219049 | 1.39 | 1.68 | |
| Hexagon nut DIN 934-M8-08 | ||||
| 66 | 200719 | 1.39 | 1.68 | |
| CLAMPING PIECE SG-TPE/RS 1 | ||||
| 67 | 442961 | 17.54 | 21.22 | |
| HANDLE TPE-RS 1 | ||||
| 68 | 444511 | 7.20 | 8.71 | |
| PILLOW SG-TPE/RS 1 | ||||
| 69 | 443621 | 33.15 | 40.11 | |
| HANDLE TPE-RS 1 | ||||
| 70 | 444453 | 49.00 | 59.29 | |
| Ch. head screw DIN 6912-M6x20-8.8 | ||||
| 71 | 402875 | 1.39 | 1.68 | |
| NUT TPE-RS 1 | ||||
| 72 | 444452 | 3.70 | 4.48 | |
| Hex head cap sc DIN 931-M10x60-5.6 | ||||
| 73 | 772638 | 1.58 | 1.91 | |
| Hexagon nut DIN 934-M10-08 | ||||
| 74 | 772975 | 1.39 | 1.68 | |
| Disc DIN 433-10,5-140 HV | ||||
| 75 | 207804 | 1.39 | 1.68 | |
| Clamping elemen SG-TPE/RS 1 | ||||
| 76 | 487090 | 78.65 | 95.17 | |
| SEALING SG-TPE/RS 1 | ||||
| 77 | 443228 | 16.58 | 20.06 | |
| Tubular rivet DIN 7340-A-4x0,4x7 | ||||
| 78 | 400016 | 1.39 | 1.68 | |
| Disc DIN 7349-4,3-100 HV | ||||
| 79 | 228542 | 1.39 | 1.68 | |
