Here you will find all available parts and drawings of the 'Festool 495892 (Toevoereenheid)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

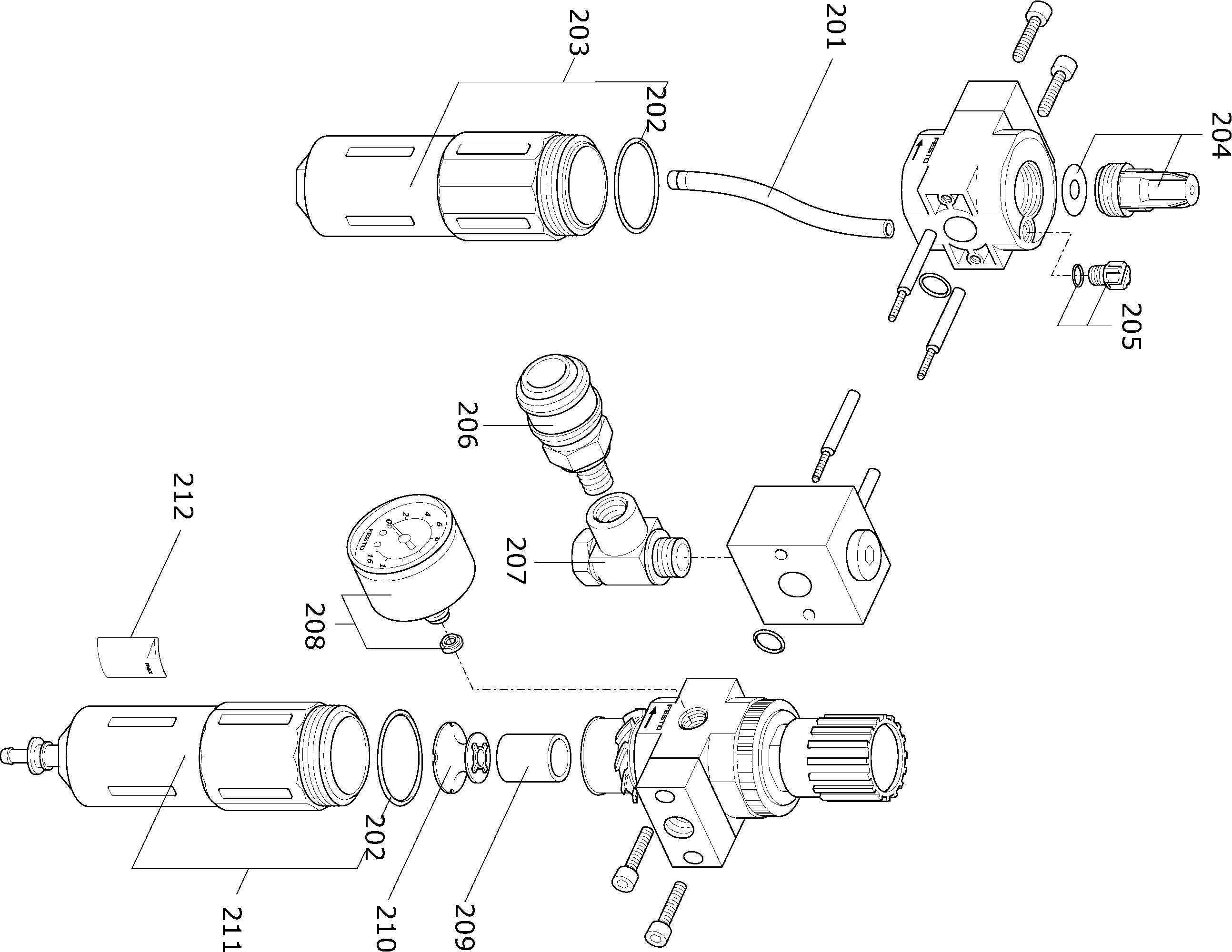

Technical drawing of model Festool 495892 (Toevoereenheid)
Spare parts list of model Festool 495892 (Toevoereenheid)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Oval head screw PT-4,0x16-KT15 | ||||
| 1 | 228713 | 5.94 | 7.19 | |
| Module Druckluft_ET-BG EAA | ||||
| 31 | 496713 | 132.13 | 159.88 | |
| Module DL_ET-BG EAA | ||||
| 31 | 496784 | 119.31 | 144.37 | |
| No information available, not orderable | ||||
| 100 | xxx | |||
| Conn. piece EAA links ET-BG | ||||
| 101 | 203380 | 8.93 | 10.81 | |
| Angle piece R1/axG1/2i ET-BG | ||||
| 102 | 200647 | 30.25 | 36.60 | |
| Cheese head scr M5x12 DIN 912 | ||||
| 103 | 401037 | 3.10 | 3.75 | |
| Maintenance uni ET-BG EAA | ||||
| 104 | 496712 | 141.81 | 171.59 | |
| No information available, not orderable | ||||
| 105 | 477312 | |||
| Sticker EAA EW/DW | ||||
| 106 | 477136 | 15.13 | 18.31 | |
| L-piece LJK-1/4 ET-BG | ||||
| 107 | 200375 | 28.68 | 34.70 | |
| Pressure gauge MA-50-16-1/4 Festo ET-BG | ||||
| 109 | 200652 | 67.64 | 81.84 | |
| Manifold FRZ-D-MIDI ET-BG | ||||
| 110 | 200842 | 71.87 | 86.96 | |
| Blanking plug | ||||
| 111 | 003571 | 6.91 | 8.36 | |
| Welsh plug B 1/2 Festo 3571 | ||||
| 111 | 3571 | 6.07 | 7.34 | |
| Adhesive label VE | ||||
| 112 | 476802 | 15.00 | 18.15 | |
| Lubricator LOE-D-MIDI Festo ET-BG | ||||
| 113 | 200631 | 109.63 | 132.65 | |
| Viewing glass EAA Festo 120539 | ||||
| 114 | 477313 | 41.38 | 50.07 | |
| Swivel elbow QSLG 1/2-16 Festo ET-BG | ||||
| 115 | 200607 | 75.87 | 91.80 | |
| Conn. piece EAA rechts ET-BG | ||||
| 116 | 203381 | 9.65 | 11.68 | |
| No information available, not orderable | ||||
| 200 | xxx | |||
| Male connector EAA EW/DW TURBO/A | ||||
| 201 | 475163 | 27.10 | 32.79 | |
| No information available, not orderable | ||||
| 202 | xxx | |||
| Piston CT Air pressure sch. ET-BG | ||||
| 203 | 201547 | 21.90 | 26.50 | |
| Manifold EAA EW/DW TURBO/A | ||||
| 204 | 475167 | 81.31 | 98.39 | |
| Male connector EAA EW/DW TURBO/A | ||||
| 205 | 475162 | 19.60 | 23.72 | |
| Blanking plug, manual DL module | ||||
| 205 | 003568 | 1.58 | 1.91 | |
| Welsh plug B -1/8 | ||||
| 205 | 3568 | 1.45 | 1.75 | |
| Cover EAA EW/DW TURBO/A | ||||
| 206 | 475516 | 13.79 | 16.69 | |
| Seal OK-1/4 Festo ET-BG | ||||
| 207 | 200613 | 18.63 | 22.54 | |
