Here you will find all available parts and drawings of the 'Festool 488508 (Toevoereenheid)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

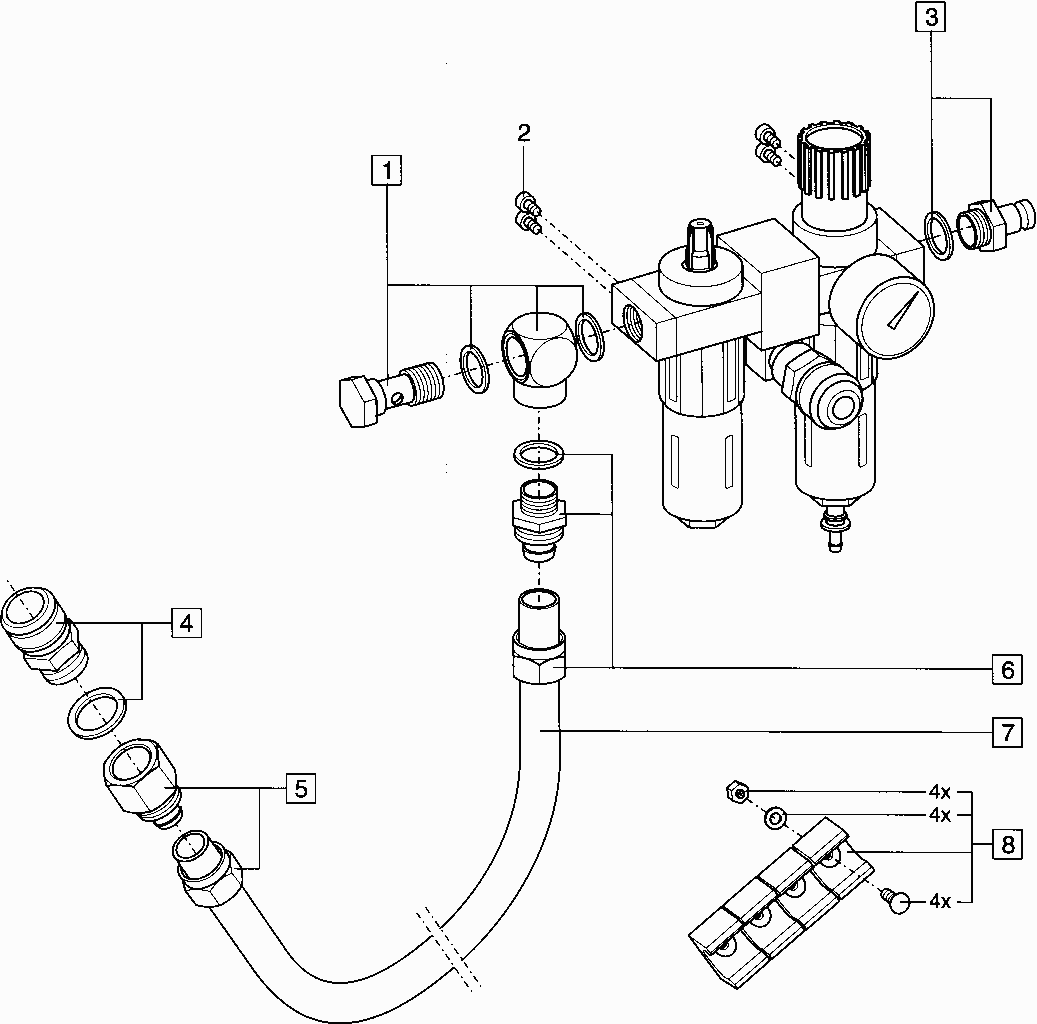

Technical drawing of model Festool 488508 (Toevoereenheid)
Spare parts list of model Festool 488508 (Toevoereenheid)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Regulator Valve LFR-3/8-D-MIDI | ||||
| 1 | 159582 | 210.30 | 254.46 | |
| Manifold FRZ-D-MIDI ET-BG | ||||
| 2 | 200842 | 71.87 | 86.96 | |
| Oiler LOE-3/8-D-MIDI | ||||
| 3 | 159586 | 151.49 | 183.30 | |
| PRESSURE GAUGE MA-50-16-1/4-EN | ||||
| 4 | 162839 | 51.30 | 62.07 | |
| Blinde afdichtstop | ||||
| 5 | 003571 | 6.91 | 8.36 | |
| Welsh plug B 1/2 Festo 3571 | ||||
| 5 | 3571 | 6.07 | 7.34 | |
| L-piece LJK-3/8 ET-BG | ||||
| 6 | 201545 | 32.91 | 39.82 | |
| L-piece LJK-1/4 ET-BG | ||||
| 7 | 200375 | 28.68 | 34.70 | |
| Socket N-3/8-P-9 ET-BG | ||||
| 8 | 200480 | 20.81 | 25.18 | |
| HOSE CLIP SK-10...16 | ||||
| 9 | 9274 | 3.77 | 4.56 | |
| Swivel elbow LCK-3/8-PK-9 ET-BG | ||||
| 10 | 200374 | 37.75 | 45.68 | |
| No information available, not orderable | ||||
| 11 | 200383 | |||
| No information available, not orderable | ||||
| 12 | xxx | |||
| No information available, not orderable | ||||
| 13 | xxx | |||
| Male connector SCM-3/8 ET-BG | ||||
| 14 | 200381 | 31.10 | 37.63 | |
| No information available, not orderable | ||||
| 15 | xxx | |||
| Countersink DIN 965-M5x10-4.8 | ||||
| 16 | 228771 | 1.51 | 1.83 | |
| Quick-coupl. so KD-1/4 ET-BG | ||||
| 17 | 200473 | 33.52 | 40.56 | |
| Quick-coupl. so KD-3/8 ET-BG | ||||
| 18 | 200475 | 36.18 | 43.78 | |
| Distr. piece FCK-3-PK-9-KU ET-BG | ||||
| 19 | 200376 | 23.84 | 28.85 | |
| No information available, not orderable | ||||
| 20 | 9586 | |||
| No information available, not orderable | ||||
| 21 | 2238 | |||
| Koppelingsstuk 201 → xxx Niet meer leverbaar 0 ? | ||||
| 22 | 006204 | 7.78 | 9.41 | |
| HOSE PU-4 | ||||
| 22 | 6204 | 7.13 | 8.63 | |
| TUBE LOE-D-MIDI | ||||
| 201 | 120538 | 9.84 | 11.91 | |
| O-RING 49x2 NBR 75 SHORE | ||||
| 202 | 345071 | 12.58 | 15.22 | |
| SEAL COVER LOE-D-MIDI | ||||
| 203 | 454706 | 90.99 | 110.10 | |
| CAP LOE-D-MINI/MIDI | ||||
| 204 | 125712 | 35.70 | 43.20 | |
| CAP SCREW LOE-D-MINI/MIDI | ||||
| 205 | 454807 | 22.02 | 26.64 | |
| Quick-coupl. so KD-1/4 ET-BG | ||||
| 206 | 200473 | 33.52 | 40.56 | |
| L-piece LJK-1/4 ET-BG | ||||
| 207 | 200375 | 28.68 | 34.70 | |
| PRESSURE GAUGE MA-50-16-1/4-EN | ||||
| 208 | 162839 | 51.30 | 62.07 | |
| No information available, not orderable | ||||
| 209 | 363667 | |||
| CAP LF/LFR-D-MIDI | ||||
| 210 | 349610 | 3.56 | 4.31 | |
| Cover LF/LFR-D-MIDI-M | ||||
| 211 | 496082 | 105.75 | 127.96 | |
| No information available, not orderable | ||||
| 212 | 200880 | |||
| O-ring 26x2-NBR-75SHORE | ||||
| 213 | 200950 | 1.39 | 1.68 | |
