Here you will find all available parts and drawings of the 'Festool 491922 (Systainer-PortSYS-PORT1000/2)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

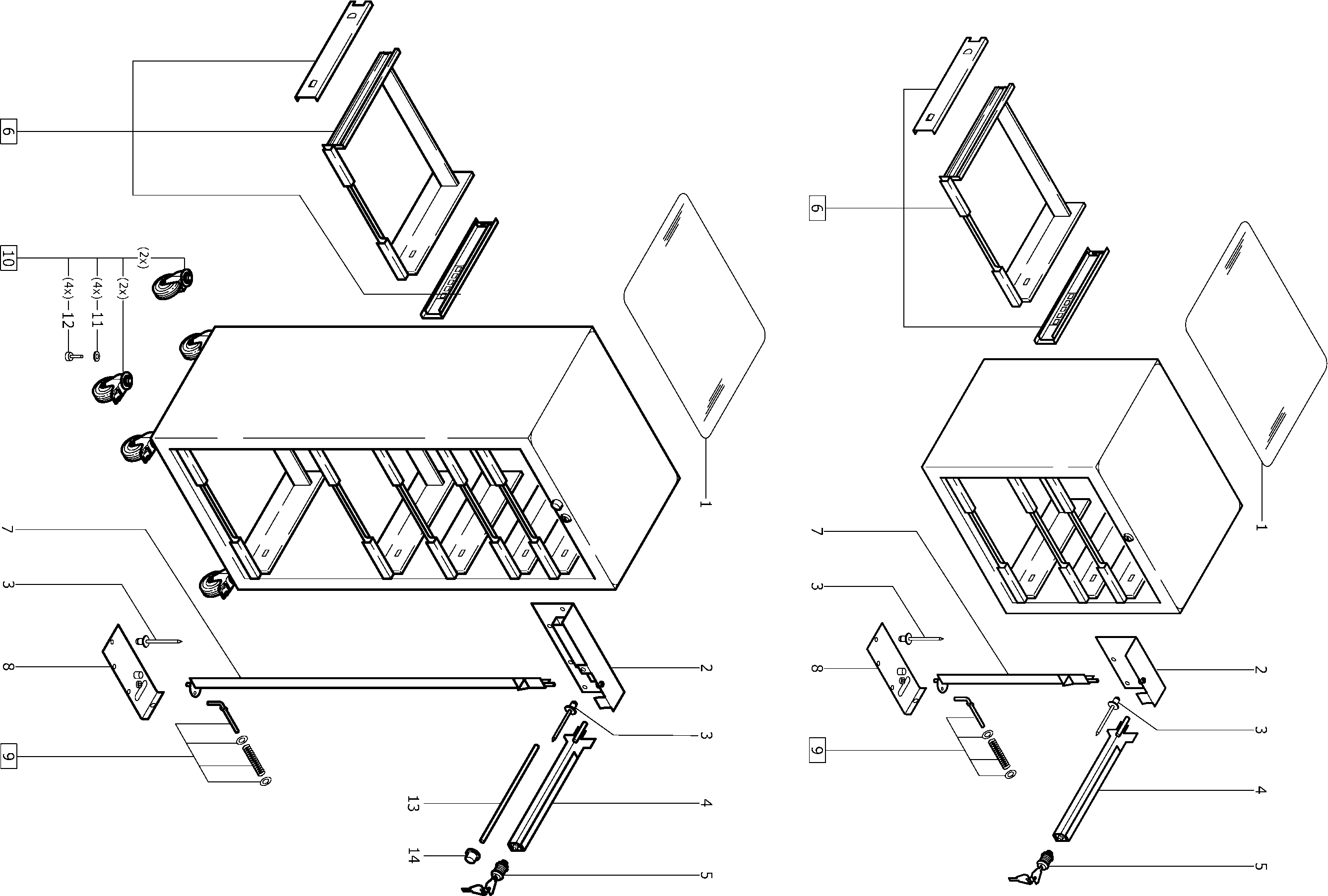

Technical drawing of model Festool 491922 (Systainer-PortSYS-PORT1000/2)
Spare parts list of model Festool 491922 (Systainer-PortSYS-PORT1000/2)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| GUMMIABLAGE YS-PORT | ||||
| 1 | 464351 | 37.39 | 45.24 | |
| Lock-out mechan SYS PORT 1000 | ||||
| 2 | 493268 | 40.90 | 49.49 | |
| Blind rivet DIN 7337-4x10 | ||||
| 3 | 400196 | 1.51 | 1.83 | |
| SWITCH ROD SYS PORT 500/1000 VOLLST | ||||
| 4 | 492588 | 33.88 | 40.99 | |
| Lock SYS-PORT | ||||
| 5 | 464350 | 31.10 | 37.63 | |
| Lock SYS-PORT | ||||
| 5 | 499222 | 26.02 | 31.48 | |
| SWITCH ROD SYS PORT 1000 VOLLST | ||||
| 7 | 493446 | 59.29 | 71.74 | |
| Angle piece SYS PORT 500/1000 BELOW | ||||
| 8 | 466314 | 33.28 | 40.27 | |
| Detent lever SYS PORT 500/1000 ET-BG | ||||
| 9 | 495797 | 18.03 | 21.82 | |
| Disc DIN 125-B-10,5-140 HV | ||||
| 11 | 228642 | 1.51 | 1.83 | |
| Hex head cap sc DIN 933-M10x20 | ||||
| 12 | 772844 | 1.51 | 1.83 | |
| STAFF SYS PORT 1000 | ||||
| 13 | 466382 | 18.39 | 22.25 | |
| PUSHER SYS PORT 1000 | ||||
| 14 | 465507 | 2.66 | 3.22 | |
