Here you will find all available parts and drawings of the 'Festool 768178 (SYSLITEUNI)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

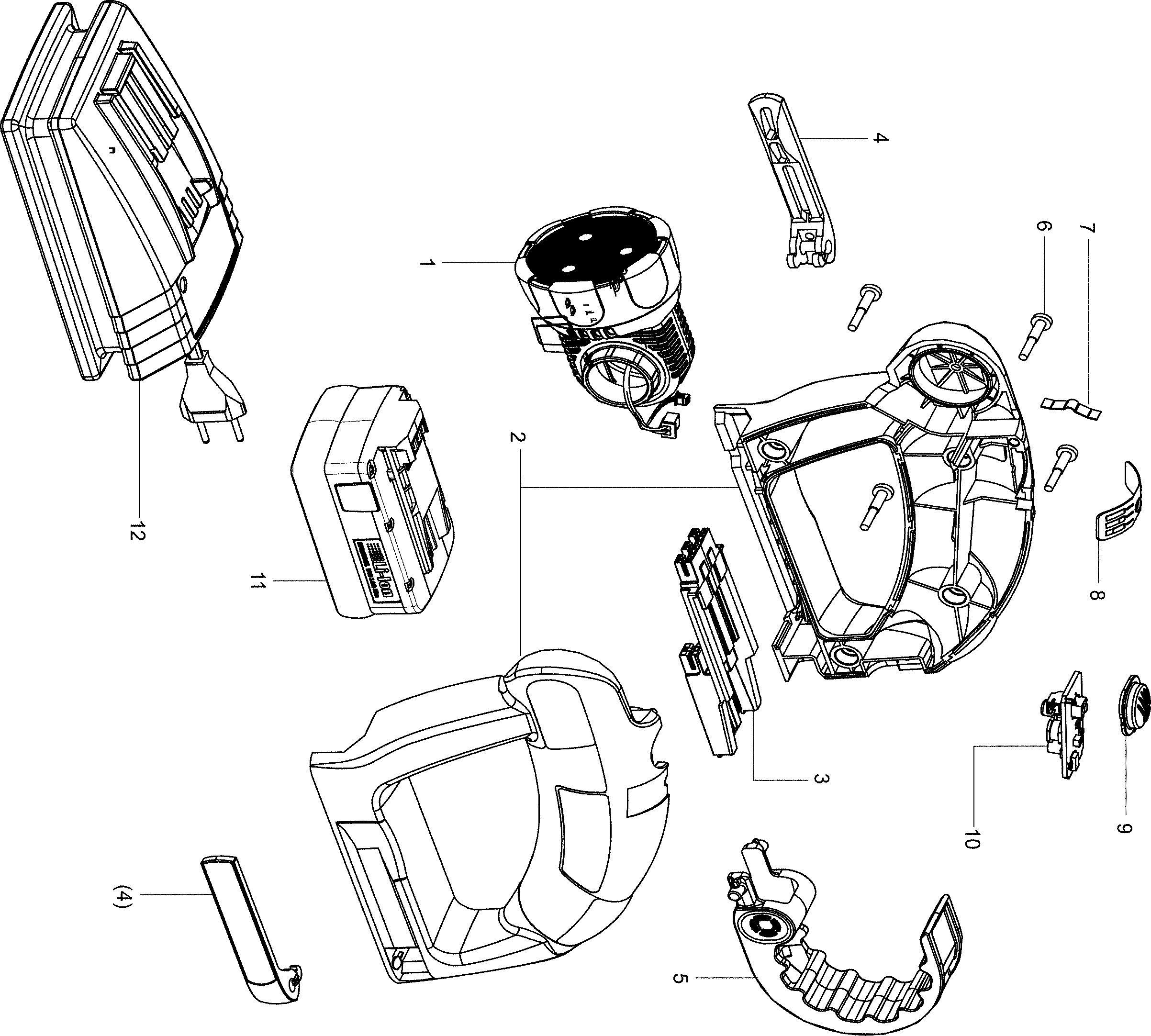

Technical drawing of model Festool 768178 (SYSLITEUNI)
Spare parts list of model Festool 768178 (SYSLITEUNI)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Module FLC | ||||
| 1 | 769530 | 68.37 | 82.73 | |
| Housing Syslite Uni | ||||
| 2 | 768177 | 15.37 | 18.60 | |
| Rest D/18 V | ||||
| 3 | 479156 | 2.09 | 2.53 | |
| Clip BHC 18 | ||||
| 4 | 768120 | 2.16 | 2.61 | |
| Hook SYSLITE UNI | ||||
| 5 | 768150 | 4.97 | 6.01 | |
| Oval head screw PT-3,5x22-KT15 | ||||
| 6 | 473901 | 1.51 | 1.83 | |
| Spring DRP 18 | ||||
| 7 | 477094 | 1.51 | 1.83 | |
| Adhesive label SYSLITE UNI | ||||
| 8 | 768497 | 2.74 | 3.32 | |
| Cover Syslite Uni | ||||
| 9 | 768494 | 1.51 | 1.83 | |
| Electronics Syslite Uni | ||||
| 10 | 500854 | 63.89 | 77.31 | |
| No information available, not orderable | ||||
| 11 | 200181 | |||
| No information available, not orderable | ||||
| 12 | 499335 | |||
