Here you will find all available parts and drawings of the 'Festool 10000130 (SYS-ROLL)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

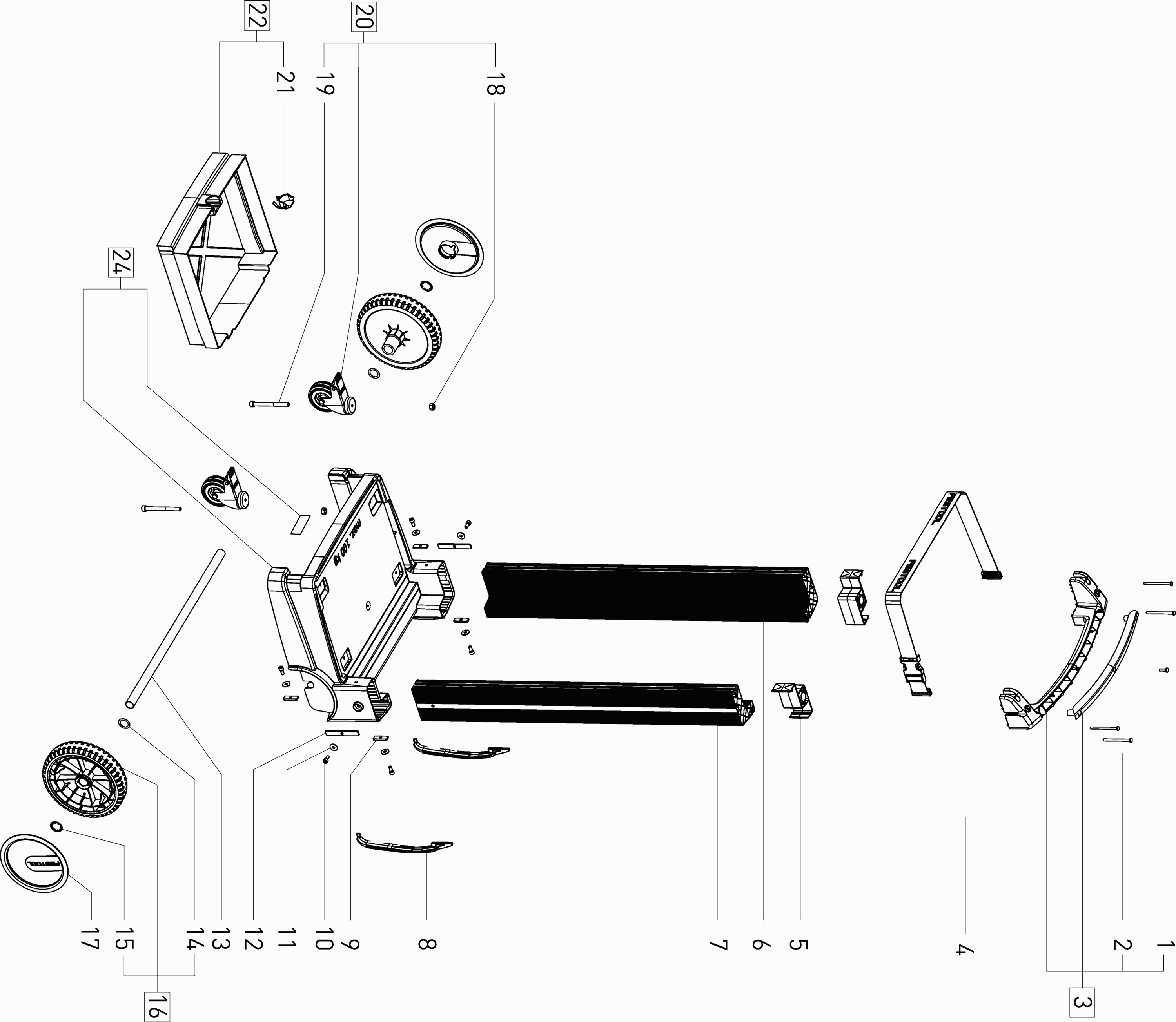

Technical drawing of model Festool 10000130 (SYS-ROLL)
Spare parts list of model Festool 10000130 (SYS-ROLL)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Oval head screw PT-5,0x18-KT15 | ||||
| 1 | 228694 | 1.51 | 1.83 | |
| Oval head screw PT-5,0x70-KT15 | ||||
| 2 | 228709 | 1.51 | 1.83 | |
| Handle RS SYS 1-5 | ||||
| 3 | 499357 | 35.33 | 42.75 | |
| Clamping element | ||||
| 4 | 10004047 | 29.04 | 35.14 | |
| Distance piece RS-SYS 1-5 | ||||
| 5 | 10003090 | 10.58 | 12.80 | |
| Profile RS SYS 1-5 right | ||||
| 6 | 10003355 | 80.22 | 97.07 | |
| Profile RS SYS 1-5 left | ||||
| 7 | 10000495 | 80.22 | 97.07 | |
| Stripper RS SYS 1-5 | ||||
| 8 | 499364 | 7.85 | 9.50 | |
| Feather key 34,8x11,5x4 | ||||
| 9 | 10003678 | 3.53 | 4.27 | |
| Ch. head screw DIN 912-M6x14-8.8 | ||||
| 10 | 228577 | 1.51 | 1.83 | |
| Disc DIN 9021-6,4-100 HV | ||||
| 11 | 228546 | 1.51 | 1.83 | |
| Feather key 83,6 x 11,5 x 4 | ||||
| 12 | 10004174 | 7.20 | 8.71 | |
| Axis RS SYS 1-5 | ||||
| 13 | 10000140 | 15.61 | 18.89 | |
| Shim DIN 988-20x28x0.5 | ||||
| 14 | 228545 | 1.51 | 1.83 | |
| Tooth ring CT 17 ET-BG | ||||
| 15 | 202484 | 3.67 | 4.44 | |
| Wheel RS-SYS 1-5 | ||||
| 16 | 499365 | 36.54 | 44.21 | |
| Wheel cover D200 CT 26/36 ET-BG | ||||
| 17 | 200570 | 11.02 | 13.33 | |
| Hexagon nut DIN 985-M8-04 | ||||
| 18 | 200735 | 1.51 | 1.83 | |
| Cheese head scr M 8 X 90 DIN 912 | ||||
| 19 | 10004054 | 4.10 | 4.96 | |
| Guide roll RS-SYS 1-5 | ||||
| 20 | 499359 | 25.53 | 30.89 | |
| No information available, not orderable | ||||
| 21 | xxx | |||
| Drawer RS SYS 1-5 | ||||
| 22 | 499360 | 33.76 | 40.85 | |
| Body RS SYS 1-5 | ||||
| 24 | 499358 | 108.05 | 130.74 | |
