Here you will find all available parts and drawings of the 'Festool 10425556 ( SYS-PST1500 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

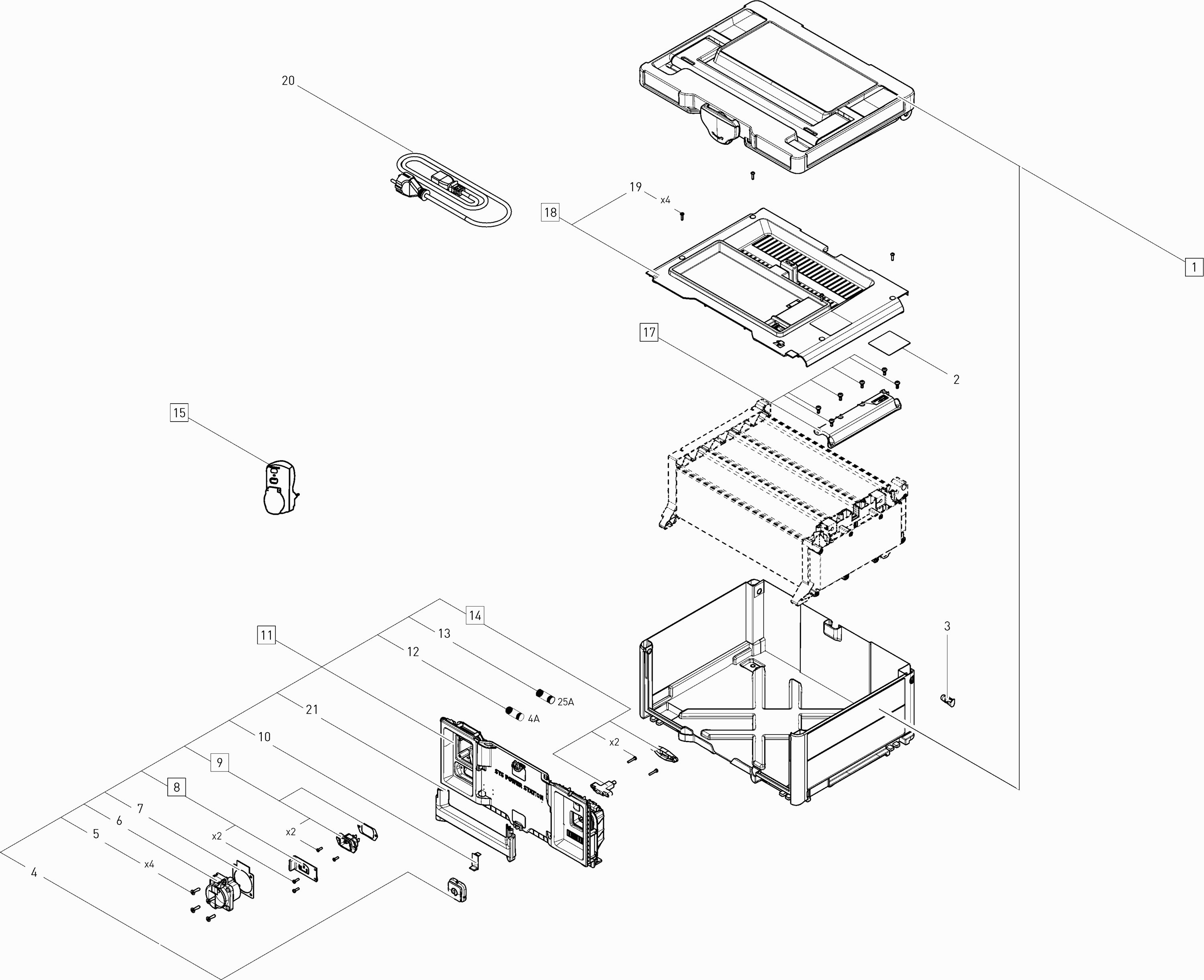

Technical drawing of model Festool 10425556 ( SYS-PST1500 )
Spare parts list of model Festool 10425556 ( SYS-PST1500 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Systainer SYS-PST 1500 ET-BG | ||||
| 1 | 10607021 | 272.01 | 329.13 | |
| Security Sticke SYS_Tamper protection | ||||
| 2 | 10516589 | 8.05 | 9.74 | |
| Bolt G3 taubenbl. Beis | ||||
| 3 | 83000419 | 1.66 | 2.01 | |
| Button SYS-PST | ||||
| 4 | 10469886 | 8.45 | 10.22 | |
| Screw 4x16 Torx | ||||
| 5 | 10516613 | 1.66 | 2.01 | |
| No information available, not orderable | ||||
| 6 | 10516616 | |||
| Gasket SYS-PST Power socket | ||||
| 7 | 10516605 | 7.00 | 8.47 | |
| Cover SYS ET-BG | ||||
| 8 | 10516639 | 10.82 | 13.09 | |
| Seal SYS ET-BG | ||||
| 9 | 10516638 | 15.73 | 19.03 | |
| Cover SYS-PST USB-C | ||||
| 10 | 10469890 | 4.75 | 5.75 | |
| Front assembly SYS-PST 1500 Type F | ||||
| 11 | 10516601 | 766.54 | 927.51 | |
| Protection 4A | ||||
| 12 | 10521949 | 12.46 | 15.08 | |
| Protection 25A/500VAC | ||||
| 13 | 10521950 | 14.88 | 18.00 | |
| USB-C Assembly SYS ET-BG | ||||
| 14 | 10516637 | 48.16 | 58.27 | |
| Safety device PRCD SYS-PST verpackt | ||||
| 15 | 10425568 | 100.79 | 121.96 | |
| Cover SYS ET-BG | ||||
| 17 | 10516640 | 33.40 | 40.41 | |
| COSMETIC COVER SYS-PST ASSEMBLY | ||||
| 18 | 10516597 | 180.65 | 218.59 | |
| Screw SYS-PST 4x20 Type G | ||||
| 19 | 10521954 | 4.03 | 4.88 | |
| Mains cable SYS-PST 1500 | ||||
| 20 | 10425564 | 50.46 | 61.06 | |
| Handle SYS GEN 3 VP | ||||
| 21 | 10526184 | 11.74 | 14.21 | |
| No information available, not orderable | ||||
| 902 | 10425582 | |||
