Here you will find all available parts and drawings of the 'Festool 201677 ( SYS-PHTYPFSHUTTEREU )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

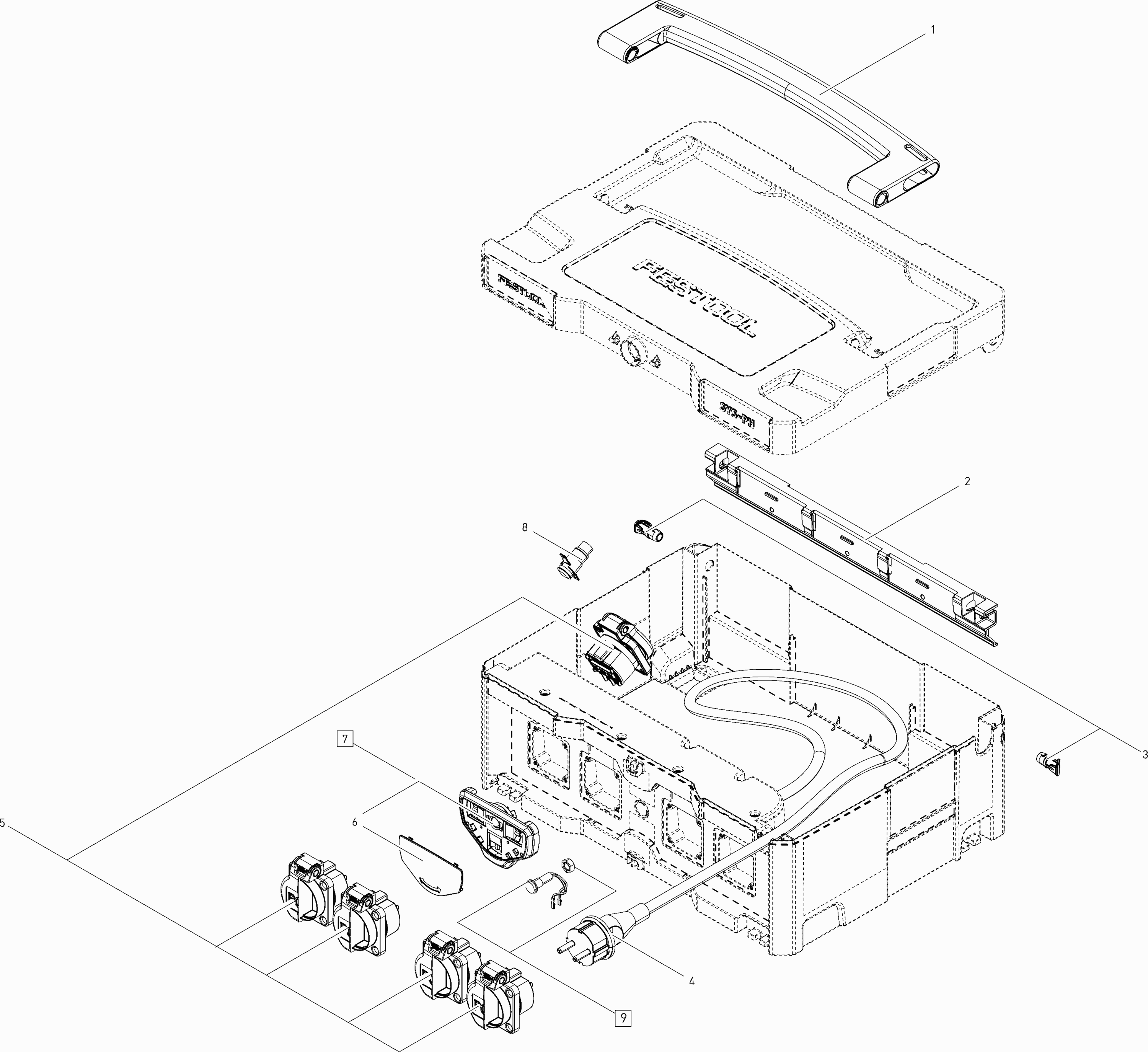

Technical drawing of model Festool 201677 ( SYS-PHTYPFSHUTTEREU )
Spare parts list of model Festool 201677 ( SYS-PHTYPFSHUTTEREU )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Handle SYS TL SG2-G11-005 | ||||
| 1 | 700573 | 23.47 | 28.40 | |
| Cross arm SYS-TL ET-BG | ||||
| 2 | 201893 | 7.99 | 9.67 | |
| Bolt SYS T-LOC | ||||
| 3 | 700574 | 1.58 | 1.91 | |
| CABLE WITH CONNECT SYS-PH EU ET-BG | ||||
| 4 | 201705 | 70.42 | 85.21 | |
| Plug socket Typ F Shutter ET-BG | ||||
| 5 | 201700 | 26.86 | 32.50 | |
| Cover SYS TL SG2-A11-006 | ||||
| 6 | 700576 | 1.39 | 1.68 | |
| Closure SYS TL kpl- SG2-T01-002 | ||||
| 7 | 497819 | 14.11 | 17.07 | |
| Thermal switch SYS-PH ET-BG | ||||
| 8 | 201709 | 55.18 | 66.77 | |
| Control lamp SYS-PH ET-BG | ||||
| 9 | 10418561 | 18.27 | 22.11 | |
