Here you will find all available parts and drawings of the 'Festool 10671863 ( SYS-AIRM )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

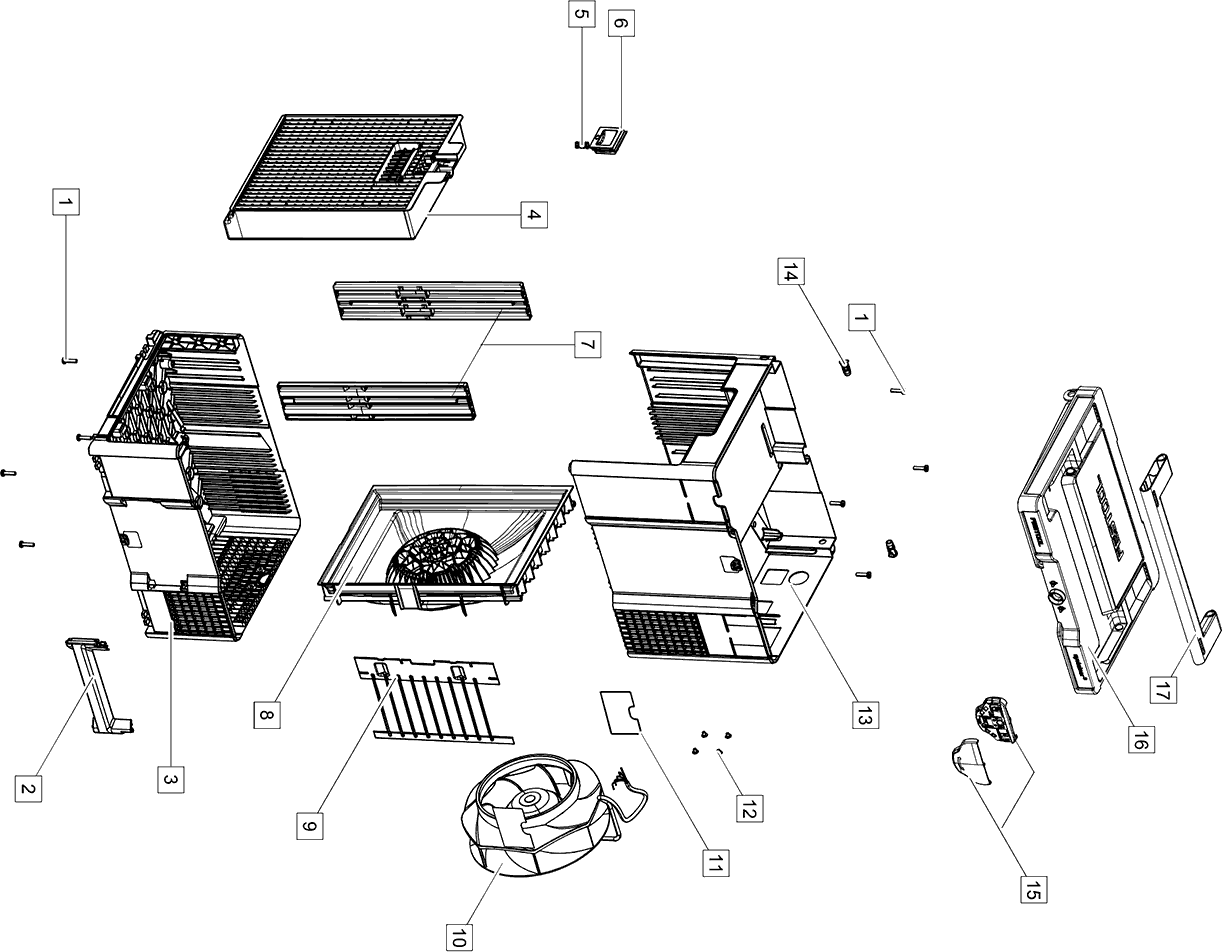

Technical drawing of model Festool 10671863 ( SYS-AIRM )
Spare parts list of model Festool 10671863 ( SYS-AIRM )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| LENSKOPSCHROEF PT-5,0X20-T25 ET-BG | ||||
| 1 | 10865839 | 3.74 | 4.53 | |
| move-out SYS GEN 3 VP | ||||
| 2 | 205526 | 22.39 | 27.09 | |
| HALFSCHAAL SYS-AIR ET-BG | ||||
| 3 | 10865837 | 66.55 | 80.53 | |
| KLEP SYS-AIR ET-BG | ||||
| 4 | 10865834 | 42.35 | 51.24 | |
| DRUKVEER SYS-AIR ET-BG | ||||
| 5 | 10865836 | 5.33 | 6.45 | |
| GRENDEL SYS-AIR ET-BG | ||||
| 6 | 10865835 | 12.34 | 14.93 | |
| VERBINDINGSELEM SYS-AIR ET-BG | ||||
| 7 | 10865838 | 24.20 | 29.28 | |
| AANZUIGSCHACHT SYS-AIR ET-BG | ||||
| 8 | 10865804 | 62.68 | 75.84 | |
| SLANGBESCHERMIN SYS-AIR ET-BG | ||||
| 9 | 10865805 | 29.77 | 36.02 | |
| VENTILATOR 220-240V SYS-AIR ET-BG | ||||
| 10 | 10865899 | 242.00 | 292.82 | |
| ZELFKLEVENDE ET SYS-AIR M ET-BG | ||||
| 11 | 10897478 | 12.10 | 14.64 | |
| SCHROEF M4X6 10.90 TX20 ET-BG | ||||
| 12 | 10865841 | 5.98 | 7.24 | |
| HALFSCHAAL SYS-AIR ET-BG | ||||
| 13 | 10865803 | 84.70 | 102.49 | |
| Bolt SYS GEN 3 M VP | ||||
| 14 | 205524 | 2.66 | 3.22 | |
| Closure SYS GEN 3 VP | ||||
| 15 | 205525 | 15.00 | 18.15 | |
| DEKSEL SYS-AIR ET-BG | ||||
| 16 | 10865831 | 48.40 | 58.56 | |
| HANDGREEP SYS-AIR ET-BG | ||||
| 17 | 10865832 | 15.61 | 18.89 | |
| KABELBOOM EU SYS-AIR ET-BG | ||||
| 18 | 10865936 | 102.12 | 123.57 | |
| CONDENSATOR 14?F SYS-AIR ET-BG | ||||
| 19 | 10865945 | 24.20 | 29.28 | |
| SCHROEF 2.5X6 SYS-AIR ET-BG | ||||
| 20 | 10865818 | 8.42 | 10.19 | |
| WEERSTAND 220-240V SYS-AIR ET-BG | ||||
| 21 | 10865946 | 36.30 | 43.92 | |
| CONDENSATOR 4,5 ?F SYS-AIR ET-BG | ||||
| 22 | 10865942 | 36.30 | 43.92 | |
| SIGNAALLAMP 220-240V SYS-AIR ET-BG | ||||
| 23 | 10865929 | 48.40 | 58.56 | |
| HOUDER SCHA/SICHER SYSAIR ET-BG | ||||
| 24 | 10992581 | 169.40 | 204.97 | |
| SLANG SYS-AIR ET-BG | ||||
| 29 | 10865812 | 14.88 | 18.00 | |
| Oval head screw PT-3,5x14-T15 | ||||
| 30 | 452450 | 1.66 | 2.01 | |
| Cable clamp RTK-S | ||||
| 31 | 431899 | 1.51 | 1.83 | |
| Plug socket Typ F ET-BG | ||||
| 33 | 201699 | 27.10 | 32.79 | |
| KANTELSCHAKELAA SYS-AIR ET-BG | ||||
| 34 | 10865820 | 47.43 | 57.39 | |
| ZESKANTE DOPMOE SYS-AIR ET-BG | ||||
| 35 | 10865811 | 2.30 | 2.78 | |
| DRUKSCHAKELAAR M SYS-AIR ET-BG | ||||
| 36 | 10865925 | 78.65 | 95.17 | |
| AFDICHTRING SYS-AIR ET-BG | ||||
| 37 | 10865810 | 7.20 | 8.71 | |
| KLEM 2.5 SYS-AIR ET-BG | ||||
| 38 | 10865807 | 14.52 | 17.57 | |
| KLEM SYS-AIR ET-BG | ||||
| 39 | 10865809 | 14.52 | 17.57 | |
| SCHROEF SYS-AIR ET-BG | ||||
| 40 | 10865813 | 5.33 | 6.45 | |
| DICHTING SYS-AIR ET-BG | ||||
| 41 | 10865830 | 18.15 | 21.96 | |
| DEKSEL SYS-AIR ET-BG | ||||
| 42 | 10865828 | 47.92 | 57.98 | |
| Oval head screw PT-5,0x80-T25 | ||||
| 43 | 452448 | 1.51 | 1.83 | |
| KABELDOORVOER SYS-AIR ET-BG | ||||
| 44 | 10865827 | 9.36 | 11.33 | |
| VOEDINGSKABEL EU SYS-AIR ET-BG | ||||
| 45 | 10869485 | 91.60 | 110.84 | |
