Festool Sym 70 E spare parts and technical drawings

Here you will find all available parts and drawings of the 'Festool 10040595 (SYM70E)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

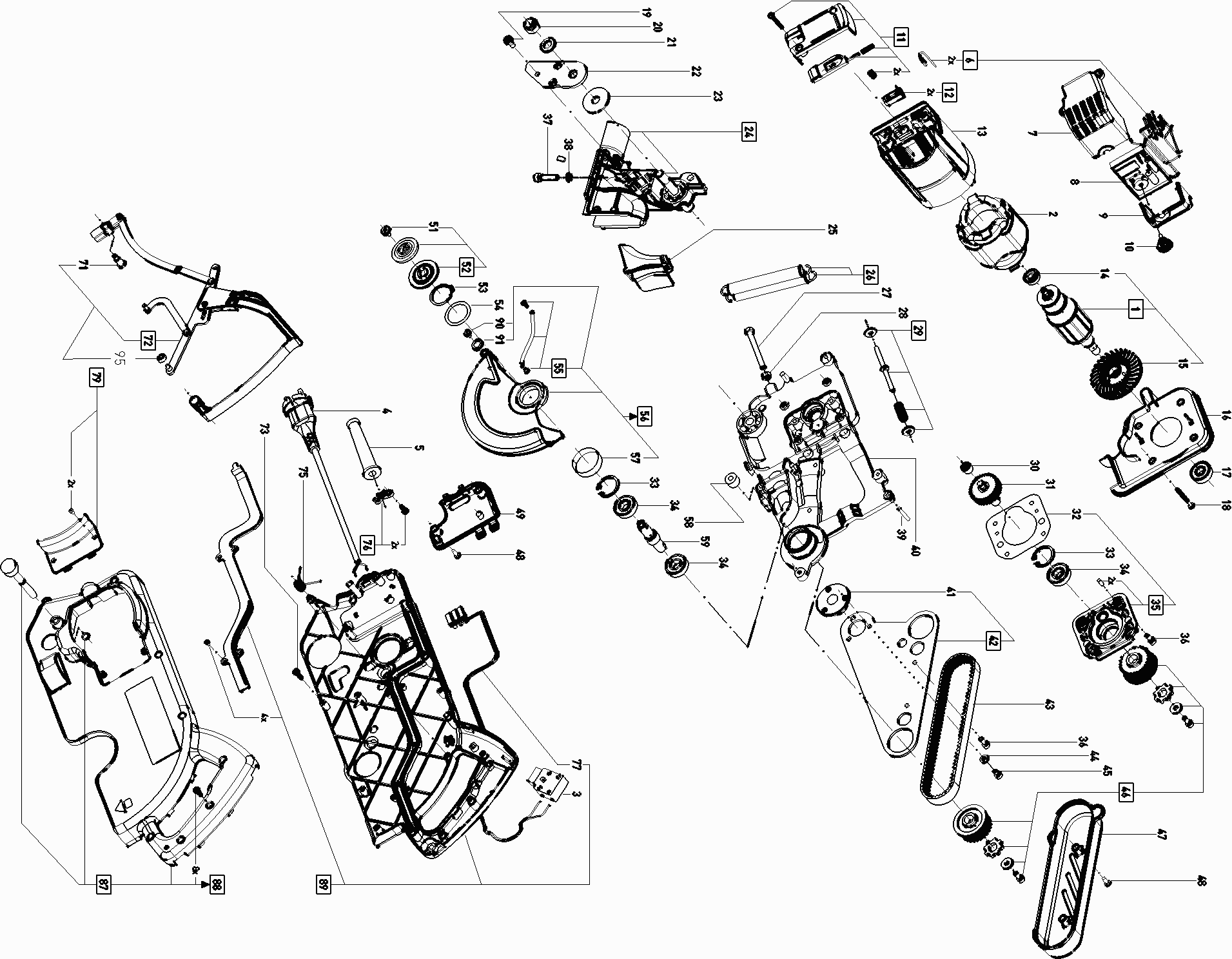

Technical drawing of model Festool 10040595 (SYM70E)

Spare parts list of model Festool 10040595 (SYM70E)

Pos.	Description	Price excl. VAT	Price incl. VAT
Prices shown include VAT

Armature SYM 70 RE
1	203141	130.92	158.41

Stator SYMMETRIC 70 E ET-BG
2	491209	89.42	108.20

SWITCH ATF 55 E
3	490651	18.15	21.96

CABLE WITH PLUG AP 55 E DIN-H05RN-F
4	457410	24.32	29.43

Cable conduit RTR 1409
5	432436	1.51	1.83

WIRE SYM 70 E ET-BG
6	490922	50.09	60.61

Casing box Geh use SYM 70 RE
7	10201030	3.82	4.62

ELECTRONIC SYMMETRIC 70 E 230V
8	490878	138.42	167.49

Housing cover SYMMETRIC 70
9	461242	3.82	4.62

Set wheel SYMMETRIC 70 E
10	461949	4.46	5.40

COVER SYMMETRIC 70 E
11	491440	30.98	37.49

CARBON HOLDER SYMMETRIC 70 E
12	491441	44.29	53.59

Motor support SYMMETRIC 70
13	461397	16.58	20.06

Ball bearing 607T1XDD12MC5E D8SL5
14	400680	5.69	6.88

Fan SYMMETRIC
15	644927	3.53	4.27

Air conduction SYMMETRIC 70
16	461236	5.98	7.24

BALL BEARING 6000 DDU-C3 D8S L (NSK)
17	789575	6.91	8.36

Oval head screw PT-4,0x40-KT15
18	219080	1.51	1.83

Ch. head screw DIN 6912-M6x18-8.8
19	223541	1.51	1.83

Hexagon nut DIN 985-M10x1-08
20	434135	1.51	1.83

Disc DIN 125-B-10,5-140 HV
21	228642	1.51	1.83

Retainer spring SYMMETRIC
22	733292	11.38	13.77

Shim ring DIN 988-10x35x2,0
23	732835	6.55	7.93

Bearing support SYM 70 RE
24	203146	79.86	96.63

Apron SYMMETRIC 70
25	461234	2.95	3.57

SPRING SYMMETRIC 70 E
26	491445	22.75	27.53

Hex head cap sc DIN 933-M6x60-8.8
27	434180	1.51	1.83

Hexagon nut DIN 934-M6-10
28	228689	1.51	1.83

Stop pin SYMMETRIC 70 E
29	491446	36.18	43.78

Needle sleeve HK 0808 SM01 special
30	415839	5.26	6.36

Gear wheel,angu SYMMETRIC 70 32 teeth
31	461879	49.85	60.32

Flat gasket SYMMETRIC 70
32	732826	3.10	3.75

Circlip DIN 472-28x1,2
33	401244	1.51	1.83

Ball bearing 6001 DDU CM D8SSM
34	401576	8.21	9.93

Gearbox cover SYMMETRIC 70 E
35	491447	65.10	78.77

Ch. head screw DIN 912-M5x12-12.9
36	400095	1.51	1.83

Ch. head screw DIN 912-M6x25-10.9
37	200128	1.51	1.83

Disc DIN 433-6,4-140 HV
38	217149	1.51	1.83

PIN 4 M6x28 DIN 6325 ST
39	228519	1.51	1.83

Mounting plate Symmetrik 70
40	732770	80.22	97.07

Flange bushing SYM 70 RE
41	10026837	35.33	42.75

Bearing bridge SYM 70 RE
42	203138	68.85	83.31

Flat tooth belt SYMMETRIC 450 RPP 5M 15
43	733287	21.66	26.21

Disc DIN 125-A-5,3-140 HV
44	761515	1.51	1.83

Ch. head screw DIN 912-M5x8-12.9
45	400576	1.51	1.83

Toothed belt pu SYMMETRIC 70 E
46	491449	67.64	81.84

Belt cover SYM 70
47	461239	4.82	5.83

Oval head screw PT-4,0x12-KT15
48	219071	1.51	1.83

Cover SYMMETRIC 70
49	461244	3.60	4.36

PRECISIE-AANSLA SM-SYM 70
50	491053	47.41	57.37

Ch. head screw DIN 912-M6x12LH-8.8
51	400714	3.02	3.65

Support flange SYM 70 RE
52	203147	53.36	64.57

Circlip DIN 471-35x1,5
53	771392	1.66	2.01

Shim ring DIN 988-35x45x0,5
54	400685	1.51	1.83

Tension spring SYMMETRIC 70 E
55	491451	23.47	28.40

Pendulum guard SYM 70 RE
56	203143	83.37	100.88

BAND SYM 70 RE
57	10027390	2.23	2.70

Bumper Symmetric
58	559075	2.74	3.32

Tool shaft SYM 70 RE
59	10029300	23.35	28.25

Axis Ersatzteil
60	459742	41.75	50.52

Compression spr 1,0x11,5x21 DIN 2098
61	459741	1.58	1.91

Button KF 4 E D 23 M6x10 blau
62	436195	1.80	2.18

Square nut DIN 557-M6-05
63	228566	1.51	1.83

STOP SYMMETRIC 70
64	491938	72.96	88.28

Limit stop SYM 70
65	707992	34.36	41.58

Eccentric lever SYMMETRIC 70 E
66	491453	28.80	34.85

Buffer SYMMETRIC 70 E
67	202058	23.47	28.40

Angle scale SYMMETRIC 70 E
69	491456	44.41	53.74

SPLINTERSTRIP TE-SYM 70
70	491054	25.00	30.25

Flat head screw DIN 923-M5x12-5.8
71	434131	2.09	2.53

Trigger SYM 70 RE
72	203144	72.48	87.70

Oval head screw PT-4,0x16-KT15
73	228713	5.94	7.19

Torsional sprin SYMMETRIC 70
75	727814	2.09	2.53

Cable clamp SYMMETRIC 70 E
76	491458	22.75	27.53

Cable harness SYM 70
77	461381	5.11	6.18

Rocker SYMMETRIC 70 E
78	202059	76.11	92.09

Cover SYM 70 RE
79	203140	28.80	34.85

STOP SYMMETRIC 70
80	491939	72.60	87.85

PLATE SPRING SYMMETRIC 70 E
81	491461	17.30	20.93

Clip SYMMETRIC 70 E
82	202061	23.47	28.40

Oval head screw M5x14-TAPTITE-T15
83	228686	1.51	1.83

Guide SYM 70
84	10006183	26.86	32.50

Slip piece SYMMETRIC 70 E
85	202060	49.25	59.59

Limit stop SYM 70
86	707993	33.64	40.70

Transport locki SYMMETRIC 70 E
87	491463	37.27	45.10

Cover SYM 70 RE
88	203145	64.49	78.03

Cover SYM 70 RE
89	203139	48.64	58.85

Cheese head screw M5x2,5 DIN923 5.8
90	258598	1.51	1.83

Roller SYMMETRIC 70
91	639095	2.16	2.61

Base SYM 70
92	10006197	165.04	199.70

Ball bearing DIN625-624-2RS-P63
95	401166	14.88	18.00
