Here you will find all available parts and drawings of the 'Festool 493549 (SRM45LE-EC230V)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

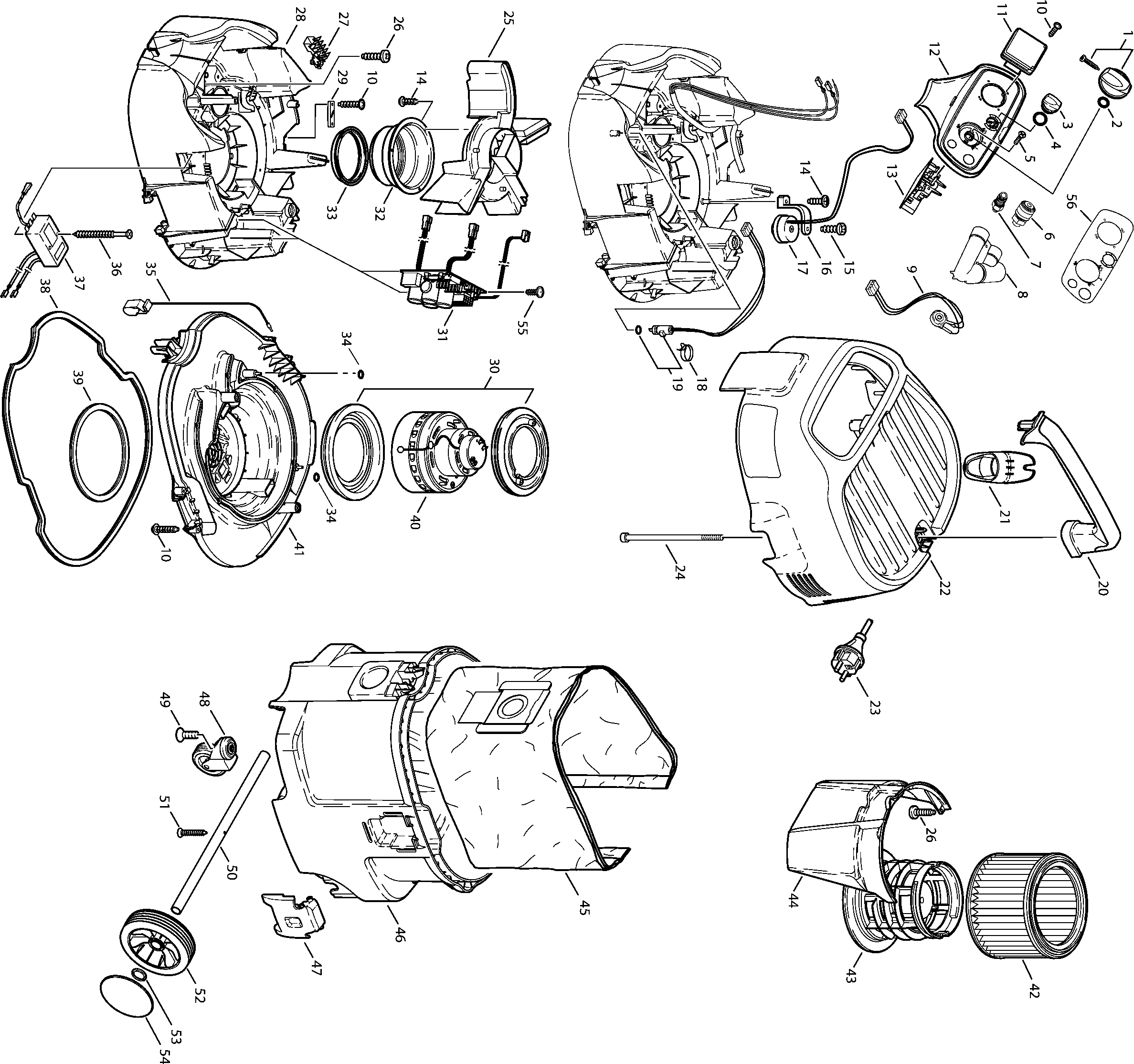

Technical drawing of model Festool 493549 (SRM45LE-EC230V)
Spare parts list of model Festool 493549 (SRM45LE-EC230V)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Rotary knob SRM 45 LE-EC 909100232 | ||||
| 1 | 470254 | 24.56 | 29.72 | |
| O-ring 10x2,5 DIN 3770 | ||||
| 2 | 625308 | 10.73 | 12.98 | |
| Rotary knob VCP 260 E-H | ||||
| 3 | 626213 | 8.93 | 10.81 | |
| No information available, not orderable | ||||
| 4 | 222037 | |||
| Countersink DIN 965-M4x12-4.8 | ||||
| 5 | 228555 | 1.51 | 1.83 | |
| Quick-coupl. so KD-1/4 ET-BG | ||||
| 6 | 200473 | 33.52 | 40.56 | |
| Coupling piece KS4-1/4 ET-BG | ||||
| 7 | 200846 | 19.12 | 23.14 | |
| No information available, not orderable | ||||
| 8 | 470255 | |||
| Potentiometer VCP 260 E-H | ||||
| 9 | 626215 | 51.79 | 62.67 | |
| No information available, not orderable | ||||
| 10 | 412094 | |||
| Socket Schuko VCP 260 E | ||||
| 11 | 627519 | 47.55 | 57.54 | |
| Control box SRH 45 E 302000375 | ||||
| 12 | 470273 | 39.81 | 48.17 | |
| No longer available, no replacement | ||||
| 13 | 470252 | |||
| Oval head screw KA 35x10 WN1411 11254 | ||||
| 14 | 412063 | 6.77 | 8.19 | |
| No information available, not orderable | ||||
| 15 | xxx | |||
| Holder VCP 260 E-H | ||||
| 16 | 626221 | 13.79 | 16.69 | |
| Piezo beeper VCP 300 E-M | ||||
| 17 | 763572 | 41.26 | 49.92 | |
| Wire hose clamp VCP 260 E-H | ||||
| 18 | 626219 | 4.09 | 4.95 | |
| FLOW SENSOR VCP 260E-H | ||||
| 19 | 626217 | 132.25 | 160.02 | |
| Handle VCP 450 E-L | ||||
| 20 | 626530 | 51.67 | 62.52 | |
| Cable hook VCP 450 E-L | ||||
| 21 | 626531 | 25.41 | 30.75 | |
| Hood SRM 45 LE-EC 107402652 | ||||
| 22 | 470240 | 155.97 | 188.72 | |
| Mains cable H05 RR-F 3G1.5x8M | ||||
| 23 | 625311 | 55.90 | 67.64 | |
| Screw M6x140 DIN 912 A2 | ||||
| 24 | 625303 | 17.55 | 21.24 | |
| Deflector plate VCP 450 E-L | ||||
| 25 | 626543 | 30.25 | 36.60 | |
| Screw 5,0x20 | ||||
| 26 | 626554 | 4.46 | 5.40 | |
| Verdeellijst | ||||
| 27 | 626540 | 6.70 | 8.11 | |
| Clamping plate SRM 45 LE-EC 302001286 | ||||
| 28 | 470241 | 131.77 | 159.44 | |
| No information available, not orderable | ||||
| 29 | xxx | |||
| No information available, not orderable | ||||
| 30 | 490668 | |||
| No information available, not orderable | ||||
| 31 | xxx | |||
| No information available, not orderable | ||||
| 32 | xxx | |||
| No information available, not orderable | ||||
| 33 | xxx | |||
| Dichting | ||||
| 34 | 626546 | 6.91 | 8.36 | |
| Contact spring VCP 260 E-L | ||||
| 35 | 625330 | 33.88 | 40.99 | |
| No information available, not orderable | ||||
| 36 | xxx | |||
| Ontstoringsfilter | ||||
| 37 | 445942 | 150.04 | 181.55 | |
| Gasket for con. VCP 450 E-L | ||||
| 38 | 626537 | 39.45 | 47.73 | |
| Dichting | ||||
| 39 | 625314 | 24.20 | 29.28 | |
| MOTOR SR 212 LE ECII 302002767 | ||||
| 40 | 489085 | 1042.17 | 1261.03 | |
| Mounting plate SRM 45 LE-EC 302000372 | ||||
| 41 | 470242 | 153.79 | 186.09 | |
| No information available, not orderable | ||||
| 42 | 493826 | |||
| Filterhouder | ||||
| 43 | 625325 | 56.14 | 67.93 | |
| Deflector SRM 45 LE-EC 302000379 | ||||
| 44 | 470245 | 38.96 | 47.14 | |
| No information available, not orderable | ||||
| 45 | 493775 | |||
| No longer available, no replacement | ||||
| 46 | 470237 | |||
| Clamp VCP 260 | ||||
| 47 | 625332 | 23.11 | 27.96 | |
| No information available, not orderable | ||||
| 48 | 626563 | |||
| SCREW M8X25 M8x25 DIN 7991 | ||||
| 49 | 219054 | 7.92 | 9.58 | |
| No information available, not orderable | ||||
| 50 | 626565 | |||
| No information available, not orderable | ||||
| 51 | 625335 | |||
| No information available, not orderable | ||||
| 52 | 626566 | |||
| LOCKING RING SR 301 E D28,6/D20 47302 | ||||
| 53 | 448717 | 5.11 | 6.18 | |
| No information available, not orderable | ||||
| 54 | 626568 | |||
| Bolverzonken schroef | ||||
| 55 | 411962 | 3.96 | 4.79 | |
| SCHILD-BEDIENF. RM 45/70LE-EC 302001825 | ||||
| 56 | 470251 | 89.06 | 107.76 | |
