Here you will find all available parts and drawings of the 'Festool 489790 ( SNELSPANNER )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

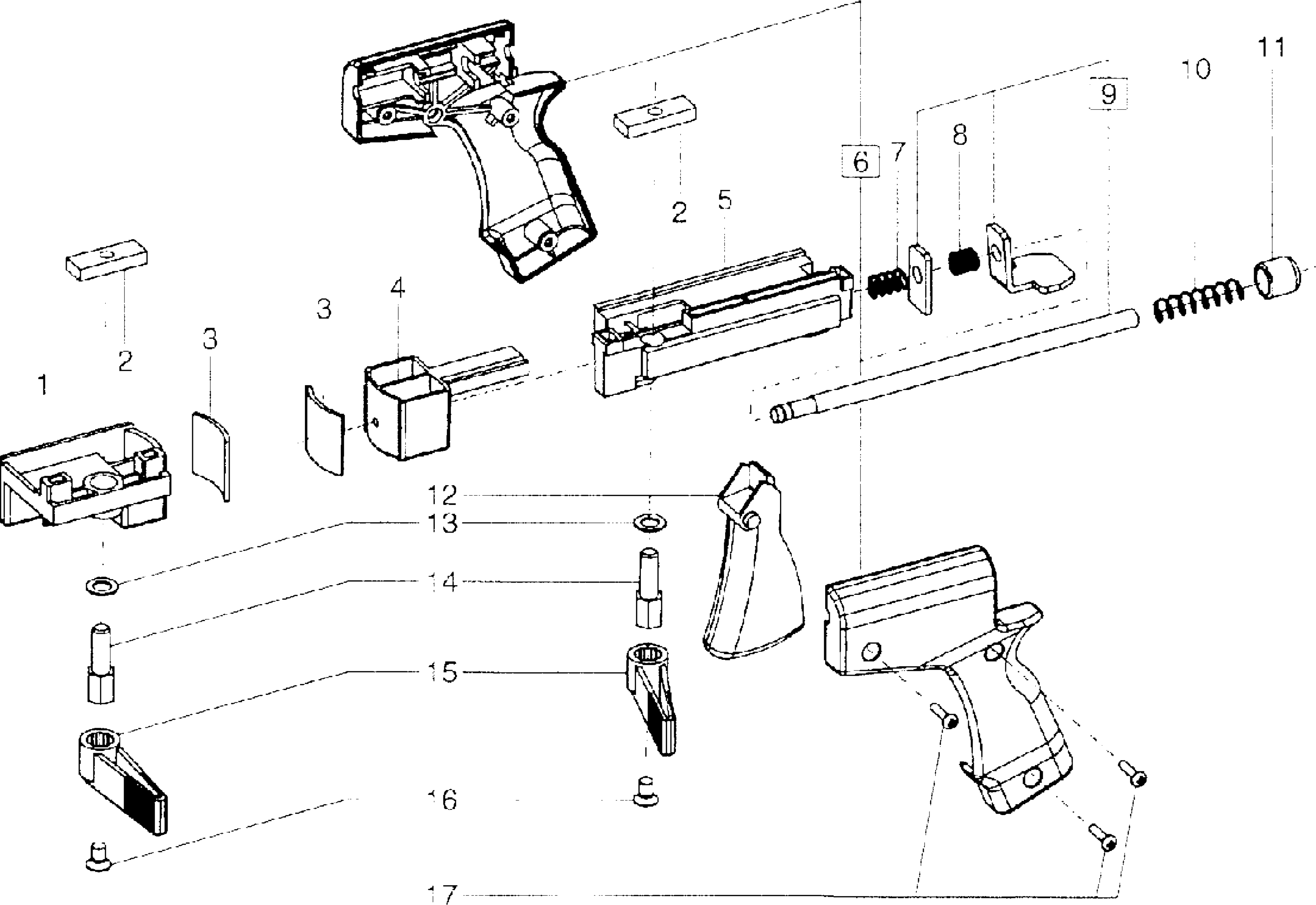

Technical drawing of model Festool 489790 ( SNELSPANNER )
Spare parts list of model Festool 489790 ( SNELSPANNER )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Limit stop FS-RAPID/L | ||||
| 1 | 769263 | 8.98 | 10.87 | |
| STOP FS-RAPID | ||||
| 1 | 455492 | 8.84 | 10.70 | |
| SPRING FS-RAPID | ||||
| 2 | 455488 | 6.86 | 8.30 | |
| RUBBER PLATE FS-RAPID | ||||
| 3 | 455671 | 7.00 | 8.47 | |
| CLAMPING CHUCK FS-RAPID | ||||
| 4 | 455491 | 5.21 | 6.30 | |
| Spannbacke FS-RAPID/L | ||||
| 4 | 769287 | 5.21 | 6.30 | |
| Bearing bridge FS-RAPID/L | ||||
| 5 | 769280 | 14.52 | 17.57 | |
| BEARING SUPPORT FS-RAPID | ||||
| 5 | 455495 | 9.77 | 11.82 | |
| HANDLE FS-RAPID | ||||
| 6 | 490149 | 13.55 | 16.40 | |
| SPRING FS-RAPID | ||||
| 7 | 458622 | 3.36 | 4.07 | |
| Compr. spring DIN 2098-0,80x11,55x26,0 | ||||
| 8 | 447807 | 1.92 | 2.32 | |
| BOLT FS-RAPID | ||||
| 9 | 490262 | 19.12 | 23.14 | |
| SPRING FS-RAPID | ||||
| 10 | 457200 | 4.88 | 5.90 | |
| SLEEVE FS-RAPID | ||||
| 11 | 457197 | 6.86 | 8.30 | |
| Depresser FS-RAPID | ||||
| 12 | 455489 | 7.32 | 8.86 | |
| No information available, not orderable | ||||
| 13 | xxx | |||
| SCREW FS-RAPID | ||||
| 14 | 457196 | 9.11 | 11.02 | |
| Lever AP 55 E | ||||
| 15 | 438944 | 1.51 | 1.83 | |
| Countersink DIN 965-M6x10-4.8-PR30 | ||||
| 16 | 402365 | 1.39 | 1.68 | |
| Oval head screw PT-4,0x12-KT15 | ||||
| 17 | 219071 | 1.39 | 1.68 | |
