Here you will find all available parts and drawings of the 'Festool 488176 ( SLANG5000AS )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

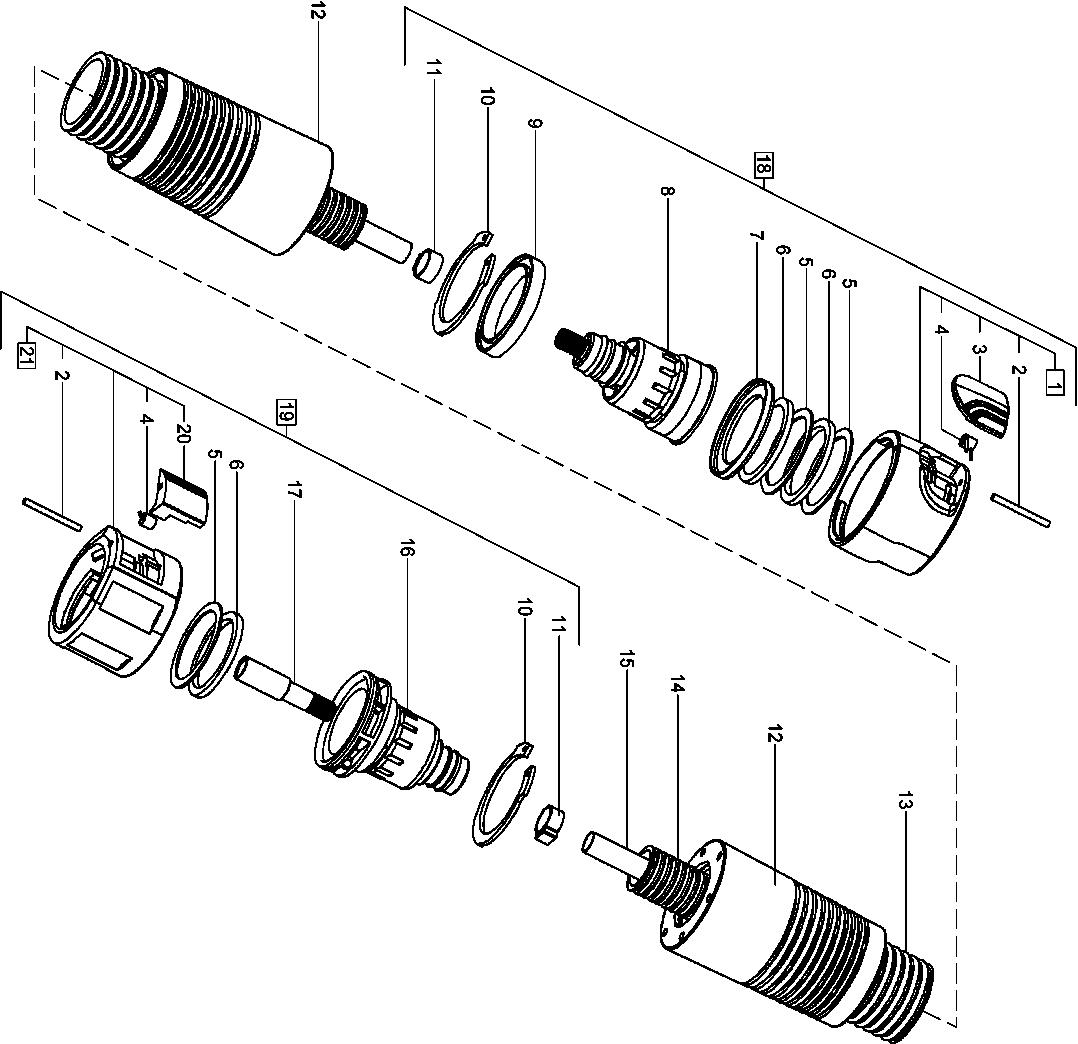

Technical drawing of model Festool 488176 ( SLANG5000AS )

Spare parts list of model Festool 488176 ( SLANG5000AS )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Casing box IAS 3
1 499267 23.11 27.96
CYL.PIN 3 M6x32 DIN 7
2 227479 1.39 1.68
No information available, not orderable
3 463294
SPRING IAS 2
4 448809 2.11 2.55
WASHER IAS 2
5 448949 1.58 1.91
WASHER 37x45x0,5 L+MN 1100
6 400384 1.85 2.24
RING IAS 2
7 448811 17.54 21.22
Rotary body IAS 3
8 499017 54.93 66.47
Ball bearing 61808 2RS DIN 625
9 401132 26.14 31.63
CIRCLIP J 52 (SEEGERRING)
10 400385 2.38 2.88
Hose clamp IAS 3
11 10003260 4.49 5.43
Antikink IAS 3
12 700618 14.40 17.42
ABS HOSE IAS 2-5000 AS
13 449925 214.65 259.73
Air exhaust hos IAS 2 5200mm
14 460278 34.12 41.29
Hose 8.7x12,4 IAS3 light 5000
15 701957 150.16 181.69
No information available, not orderable
16 449079
PNEUM.SLEEVE IAS 2
17 448948 11.07 13.39
No information available, not orderable
18 488542
CONNECTOR SS IAS 2
19 488541 76.71 92.82
No information available, not orderable
20 448808
No information available, not orderable
21 488278
