Here you will find all available parts and drawings of the 'Festool 488175 (Slang5000)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

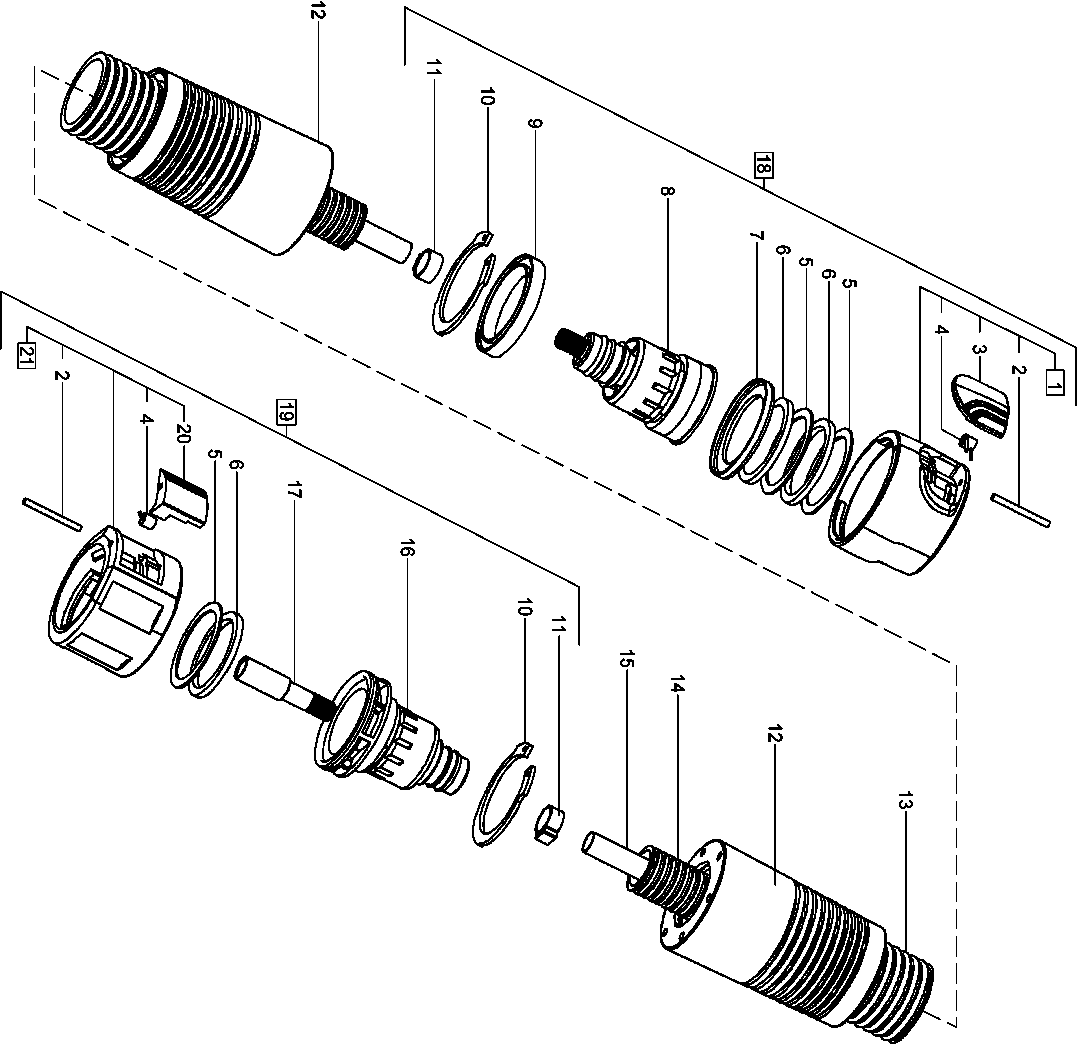

Technical drawing of model Festool 488175 (Slang5000)
Spare parts list of model Festool 488175 (Slang5000)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Casing box IAS 3 | ||||
| 1 | 499267 | 24.08 | 29.14 | |
| CYL.PIN 3 M6x32 DIN 7 | ||||
| 2 | 227479 | 1.51 | 1.83 | |
| No information available, not orderable | ||||
| 3 | 463294 | |||
| SPRING IAS 2 | ||||
| 4 | 448809 | 2.30 | 2.78 | |
| WASHER IAS 2 | ||||
| 5 | 448949 | 1.73 | 2.09 | |
| WASHER 37x45x0,5 L+MN 1100 | ||||
| 6 | 400384 | 2.02 | 2.44 | |
| RING IAS 2 | ||||
| 7 | 448811 | 17.55 | 21.24 | |
| Rotary body IAS 3 | ||||
| 8 | 499017 | 57.11 | 69.10 | |
| Ball bearing 61808 2RS DIN 625 | ||||
| 9 | 401132 | 26.14 | 31.63 | |
| CIRCLIP J 52 (SEEGERRING) | ||||
| 10 | 400385 | 2.59 | 3.13 | |
| Hose clamp IAS 3 | ||||
| 11 | 10003260 | 5.40 | 6.53 | |
| Antikink IAS 3 | ||||
| 12 | 700618 | 15.00 | 18.15 | |
| ABS HOSE IAS 2-5000 | ||||
| 13 | 449924 | 78.41 | 94.88 | |
| Air exhaust hos IAS 2 5200mm | ||||
| 14 | 460278 | 34.12 | 41.29 | |
| Hose 8.7x12,4 IAS3 light 5000 | ||||
| 15 | 701957 | 150.16 | 181.69 | |
| No information available, not orderable | ||||
| 16 | 449079 | |||
| PNEUM.SLEEVE IAS 2 | ||||
| 17 | 448948 | 13.07 | 15.81 | |
| Rotary body IAS 3 | ||||
| 18 | 499017 | 57.11 | 69.10 | |
| CONNECTOR SS IAS 2 | ||||
| 19 | 488541 | 76.71 | 92.82 | |
| No information available, not orderable | ||||
| 20 | 448808 | |||
| No information available, not orderable | ||||
| 21 | 488278 | |||
