Here you will find all available parts and drawings of the 'Festool 769540 (Schaafkopmetbeschermkap)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

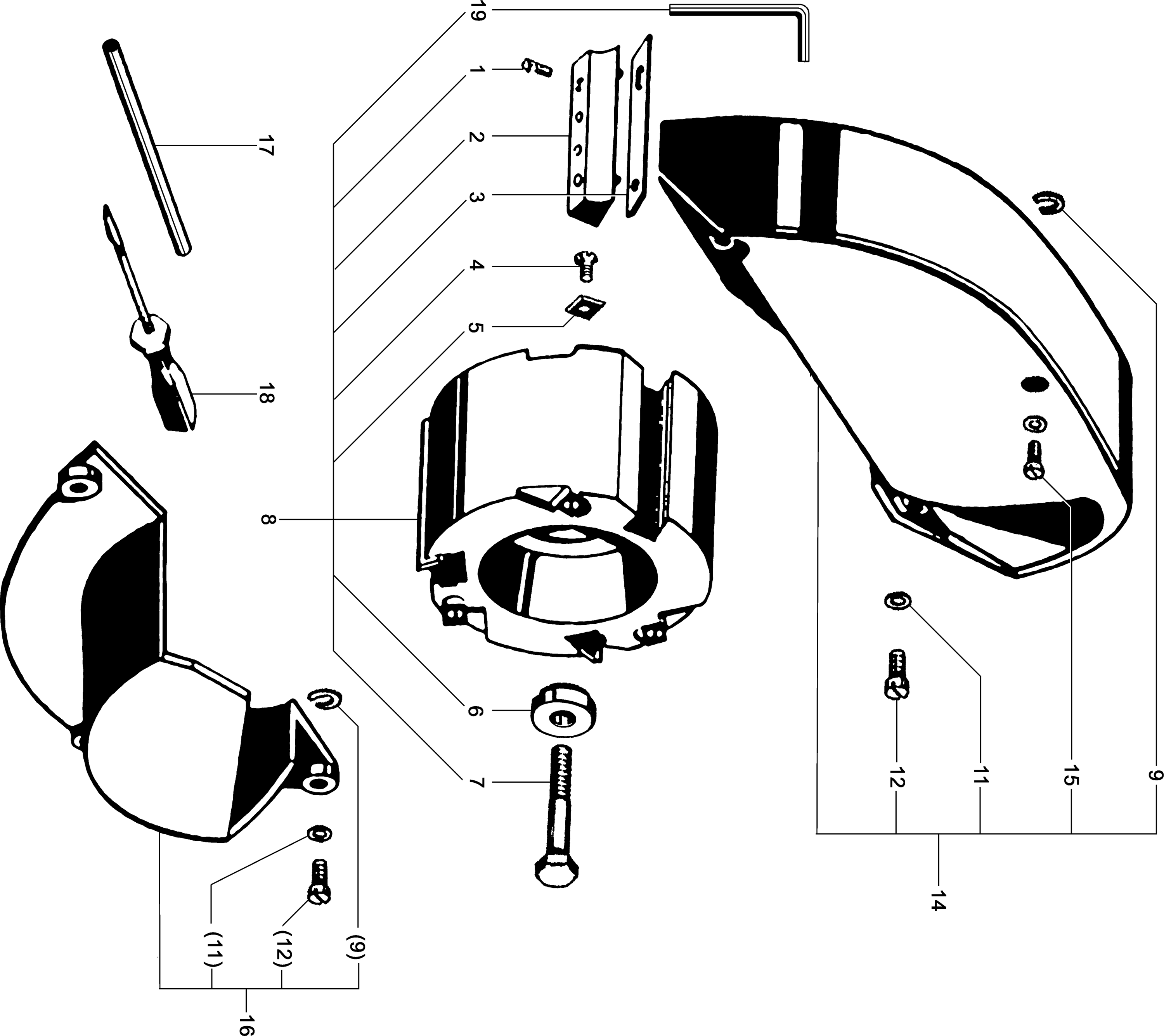

Technical drawing of model Festool 769540 (Schaafkopmetbeschermkap)
Spare parts list of model Festool 769540 (Schaafkopmetbeschermkap)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| THREADED PIN M6x25 DIN 915 | ||||
| 1 | 400509 | 1.58 | 1.91 | |
| PRESSURE PART KE-AXP Nr.1310202 | ||||
| 2 | 451425 | 73.69 | 89.16 | |
| SCREW M5x12 F90HC | ||||
| 4 | 451768 | 3.24 | 3.92 | |
| BRIDE BD 902 | ||||
| 6 | 700450 | 144.60 | 174.97 | |
| No information available, not orderable | ||||
| 7 | 616015 | |||
| Rafter-eat cutt 160x80x30 | ||||
| 8 | 624479 | 1369.60 | 1657.22 | |
| No information available, not orderable | ||||
| 9 | xxx | |||
| Spring washer DIN 137-A-6 | ||||
| 11 | 200588 | 1.51 | 1.83 | |
| Screw M6x16 | ||||
| 12 | 618073 | 1.51 | 1.83 | |
| Protective lid RS-HK 160 | ||||
| 14 | 769796 | 148.83 | 180.08 | |
| Protective lid RS-CS 160x80 | ||||
| 14 | 769790 | 104.91 | 126.94 | |
| No longer available, no replacement | ||||
| 15 | 200569 | |||
| Protective lid RS-HK 160 | ||||
| 16 | 769796 | 148.83 | 180.08 | |
| Protective lid RS-CS 160x80 | ||||
| 16 | 769790 | 104.91 | 126.94 | |
| No information available, not orderable | ||||
| 17 | xxx | |||
| SCREWDRIVER NR.844 A 5x150 | ||||
| 18 | 464502 | 17.06 | 20.64 | |
| Wrench 3 | ||||
| 19 | 616046 | 2.02 | 2.44 | |
