Here you will find all available parts and drawings of the 'Festool 10728005 ( S700 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

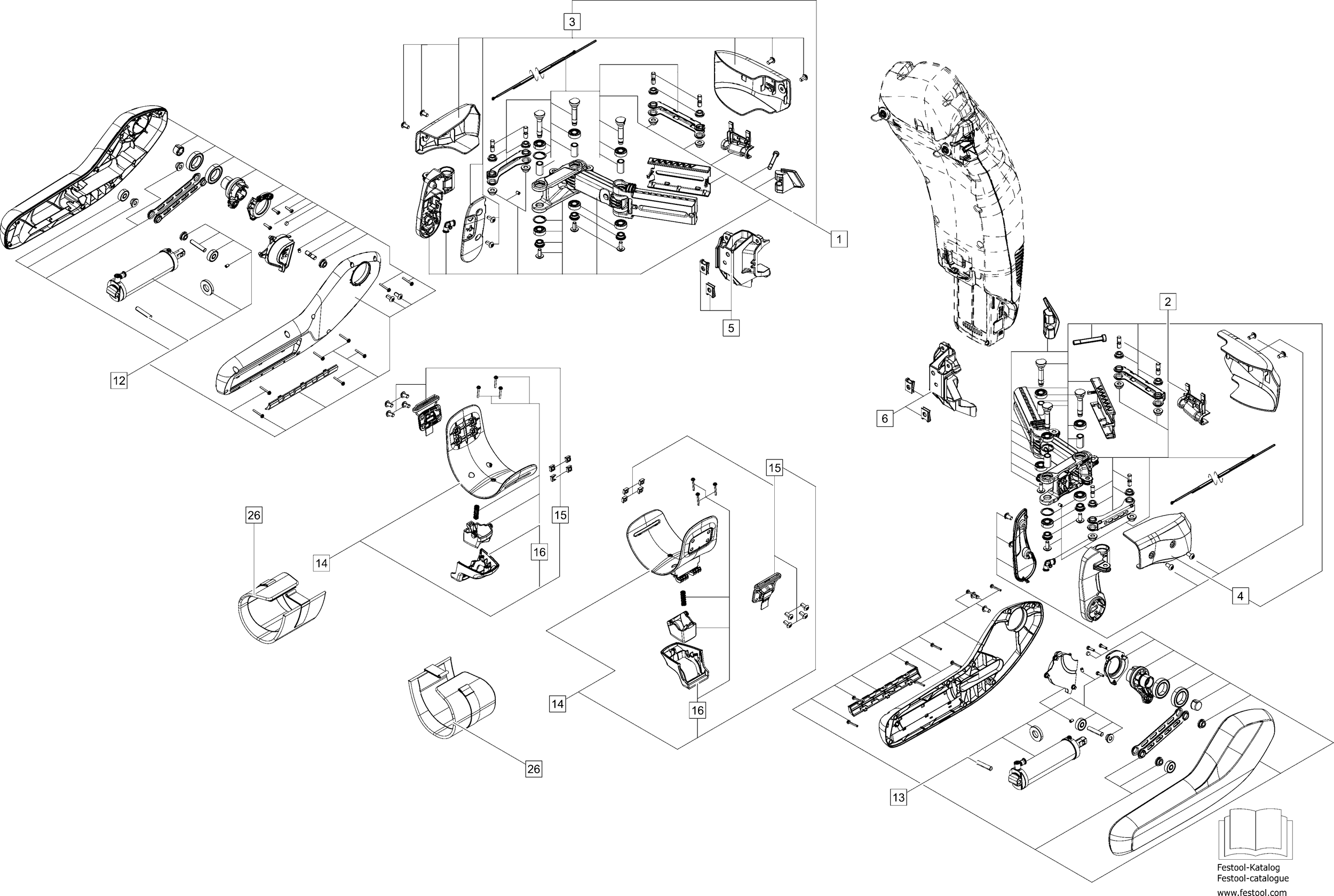

Technical drawing of model Festool 10728005 ( S700 )
Spare parts list of model Festool 10728005 ( S700 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| GEWRICHTSKETTIN S 700 ET-BG RECHTS | ||||
| 1 | 10809300 | 286.89 | 347.14 | |
| GEWRICHTSKETTIN S 700 ET-BG LINKS | ||||
| 2 | 10809298 | 286.89 | 347.14 | |
| Cover S 700 ET-BG right | ||||
| 3 | 10809306 | 17.42 | 21.08 | |
| Cover S 700 ET-BG left | ||||
| 4 | 10809308 | 17.42 | 21.08 | |
| INSTELEENHEID EXO 18 ET-BG RECHTS | ||||
| 5 | 10809312 | 50.58 | 61.20 | |
| INSTELEENHEID EXO 18 ET-BG LINKS | ||||
| 6 | 10809315 | 50.58 | 61.20 | |
| Housing S 700 ET-BG Sword Lever | ||||
| 7 | 10809473 | 37.15 | 44.95 | |
| Compressor ET-BG | ||||
| 8 | 10809474 | 197.84 | 239.39 | |
| Hose unit ET-BG | ||||
| 9 | 10809475 | 174.24 | 210.83 | |
| Filter ET-BG | ||||
| 10 | 10809489 | 66.91 | 80.96 | |
| Pressure vessel ET-BG | ||||
| 11 | 10809490 | 47.80 | 57.84 | |
| Arm S700 ET-BG Actor re | ||||
| 12 | 10809505 | 290.16 | 351.09 | |
| Arm S700 ET-BG Actor li | ||||
| 13 | 10809506 | 338.92 | 410.09 | |
| Armrest S 700 ET-BG | ||||
| 14 | 10809547 | 69.58 | 84.19 | |
| Closure S700 ET-BG Fidlock | ||||
| 15 | 10809552 | 39.45 | 47.73 | |
| Button S 700 ET-BG | ||||
| 16 | 10809554 | 24.20 | 29.28 | |
| Textile S 700 ET-BG | ||||
| 17 | 10809557 | 216.59 | 262.07 | |
| Clutch S 700 ET-BG | ||||
| 18 | 10809560 | 40.66 | 49.20 | |
| Support plate S 700 ET-BG | ||||
| 19 | 10809563 | 42.23 | 51.10 | |
| Valve block ET-BG | ||||
| 20 | 10809675 | 501.18 | 606.43 | |
| Electronic ET-BG | ||||
| 21 | 10809677 | 128.26 | 155.19 | |
| Control Unit S 700 ET-BG | ||||
| 22 | 10809678 | 185.49 | 224.44 | |
| Holder ET-BG Battery Interface | ||||
| 23 | 10809679 | 18.51 | 22.40 | |
| Fan ET-BG | ||||
| 24 | 10809680 | 13.31 | 16.11 | |
| Lever S 700 ET-BG Twistlock | ||||
| 25 | 10809571 | 4.25 | 5.14 | |
| Armrest S 700 ET-BG Upholstery | ||||
| 26 | 10810500 | 30.73 | 37.18 | |
| Body S 700 ET-BG | ||||
| 27 | 10810416 | 109.02 | 131.91 | |
