Here you will find all available parts and drawings of the 'Festool 10674085 ( RSC18 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

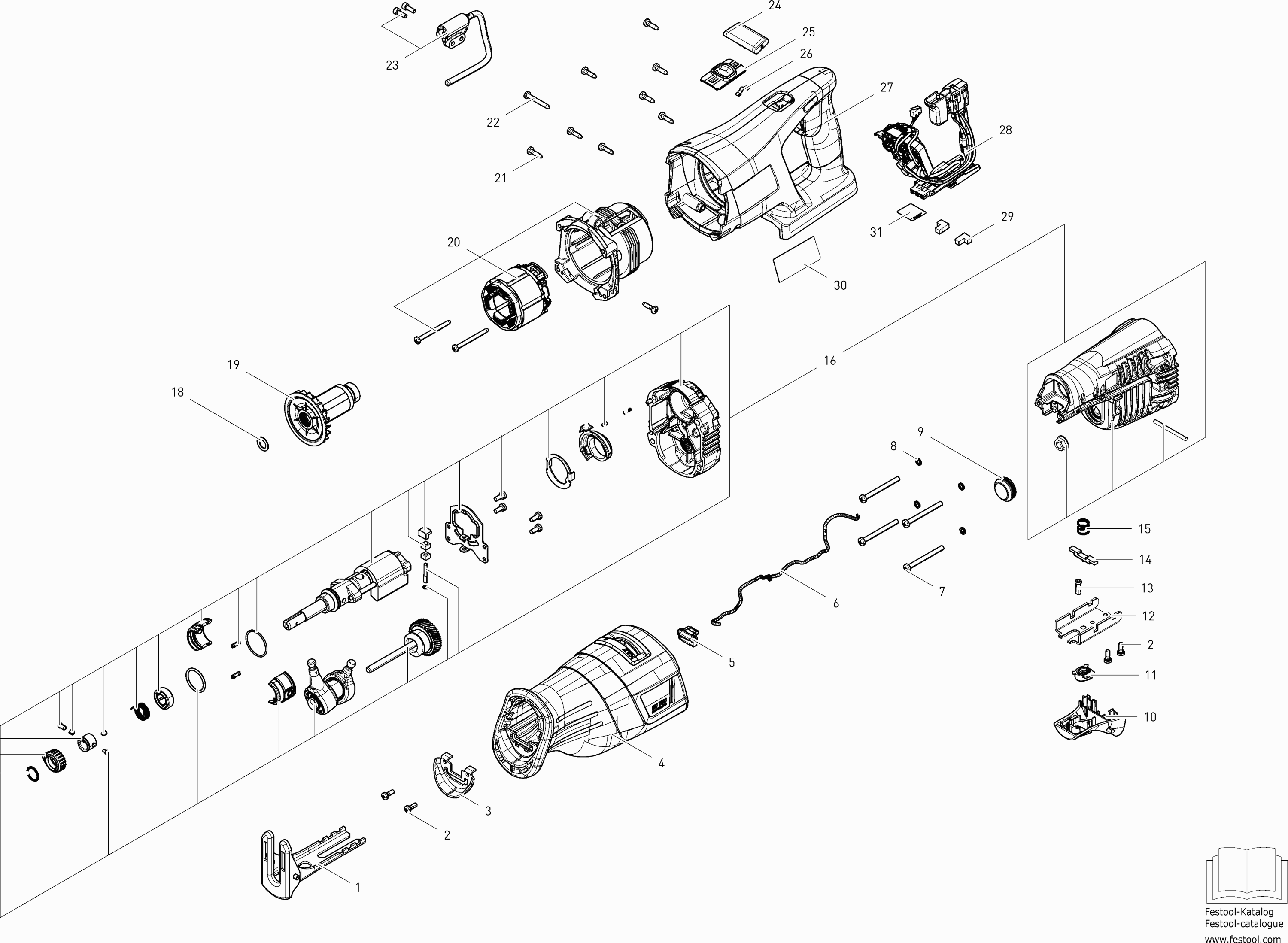

Technical drawing of model Festool 10674085 ( RSC18 )
Spare parts list of model Festool 10674085 ( RSC18 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Table for hand- DCC-AG FH | ||||
| 1 | 10751061 | 21.54 | 26.06 | |
| Holder | ||||
| 3 | 10751063 | 8.84 | 10.70 | |
| Socket sleeve | ||||
| 4 | 10751064 | 31.70 | 38.36 | |
| Assembly | ||||
| 5 | 10751065 | 4.88 | 5.90 | |
| Wire strand set | ||||
| 6 | 10751066 | 15.37 | 18.60 | |
| Tallow-drop scr M4x12 ALtracs Plus TX15 | ||||
| 7 | 10751067 | 5.21 | 6.30 | |
| Spring washer | ||||
| 8 | 10751068 | 4.62 | 5.59 | |
| Cover TURBO II | ||||
| 9 | 10751069 | 5.47 | 6.62 | |
| Cover TURBO II | ||||
| 10 | 10751070 | 7.85 | 9.50 | |
| Button AGC 18 | ||||
| 11 | 10751071 | 5.28 | 6.39 | |
| SUPPORT PLATE | ||||
| 12 | 10751072 | 10.75 | 13.01 | |
| Bolt | ||||
| 13 | 10751073 | 5.62 | 6.80 | |
| Clamping plate CS 50 EB | ||||
| 14 | 10751074 | 6.86 | 8.30 | |
| Compression Spring | ||||
| 15 | 10751075 | 4.42 | 5.35 | |
| Drive | ||||
| 16 | 10751076 | 187.91 | 227.37 | |
| Disc | ||||
| 18 | 10751078 | 4.68 | 5.66 | |
| ROTOR | ||||
| 19 | 10751079 | 83.85 | 101.46 | |
| Motor frame AG 125-14 DE | ||||
| 20 | 10751080 | 68.12 | 82.43 | |
| SCREW | ||||
| 21 | 10751081 | 5.15 | 6.23 | |
| Metal plate with flat head | ||||
| 22 | 10751082 | 4.42 | 5.35 | |
| HOOK | ||||
| 23 | 10751083 | 25.65 | 31.04 | |
| Ch-over switch TXS Li | ||||
| 24 | 10751084 | 6.26 | 7.57 | |
| Speed control device | ||||
| 25 | 10751085 | 8.58 | 10.38 | |
| Spring | ||||
| 26 | 10751086 | 5.74 | 6.95 | |
| Housing set BHC 18 | ||||
| 27 | 10751087 | 39.32 | 47.58 | |
| Electronics HK 85 | ||||
| 28 | 10751088 | 145.32 | 175.84 | |
| Buffer AGC 18 | ||||
| 29 | 10113272 | 3.96 | 4.79 | |
| No information available, not orderable | ||||
| 30 | 10751090 | |||
