Here you will find all available parts and drawings of the 'Festool 486864 (RS4E)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

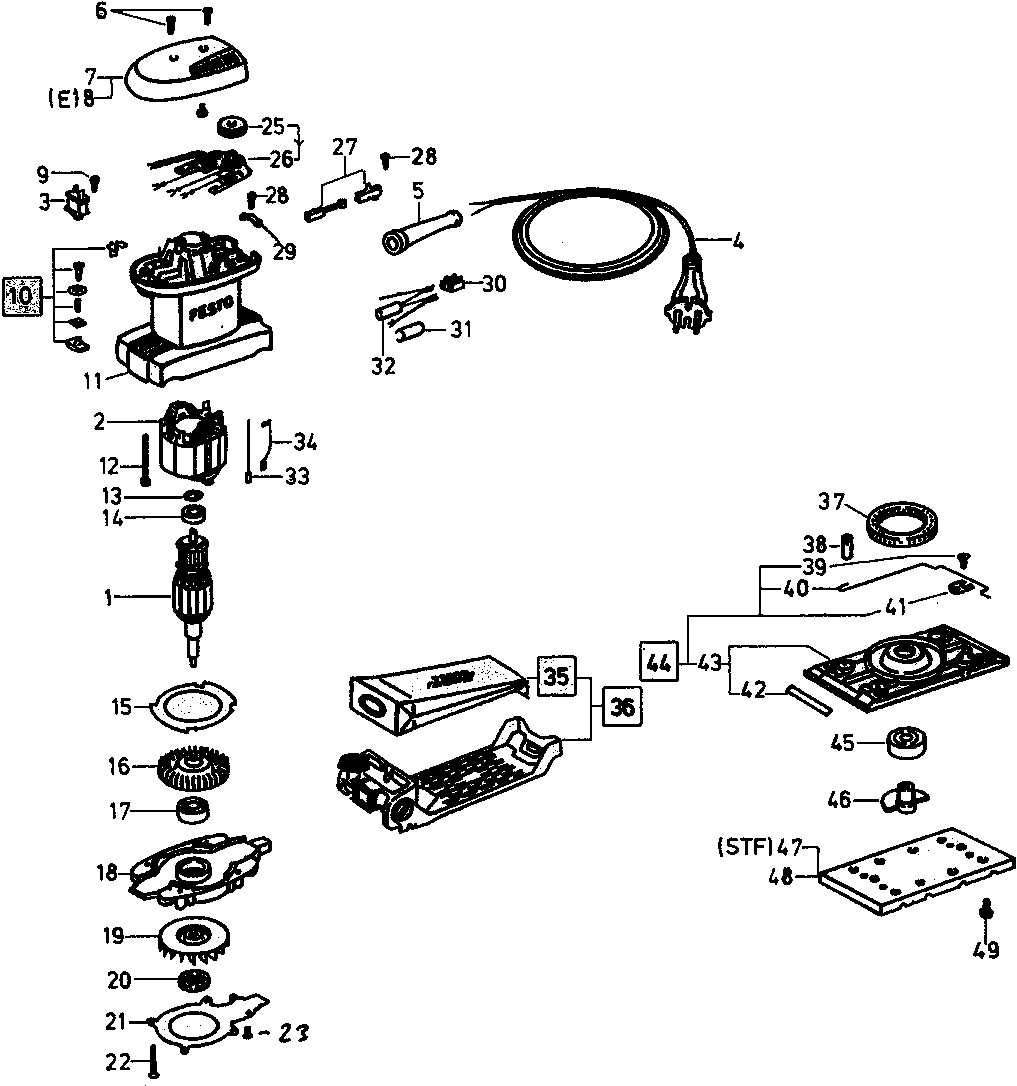

Technical drawing of model Festool 486864 (RS4E)
Spare parts list of model Festool 486864 (RS4E)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | xxx | |||
| Field assembly RS 4 230V | ||||
| 2 | 485478 | 74.90 | 90.63 | |
| No information available, not orderable | ||||
| 3 | xxx | |||
| CABLE WITH PLUG RS 4 DIN-H05RN-F | ||||
| 4 | 457598 | 24.32 | 29.43 | |
| CABLE SLEEVE RSM-EA SCHWARZ | ||||
| 5 | 434802 | 1.94 | 2.35 | |
| Oval head screw PT-3,5x10-KT15 | ||||
| 6 | 219031 | 7.32 | 8.86 | |
| No information available, not orderable | ||||
| 8 | 448964 | |||
| Oval head screw M4x8-TAPTITE-T15 | ||||
| 9 | 228570 | 9.17 | 11.10 | |
| No information available, not orderable | ||||
| 10 | xxx | |||
| No information available, not orderable | ||||
| 11 | xxx | |||
| Oval head screw PT-4,0x40-KT15 | ||||
| 12 | 219080 | 1.51 | 1.83 | |
| WASHER 14x21,8x0,3 L+MN 1100 | ||||
| 13 | 203777 | 1.51 | 1.83 | |
| Groove Ball Bearing 608 D1 MC3 E U152 J2 HA1 | ||||
| 14 | 10775821 | 5.54 | 6.70 | |
| No information available, not orderable | ||||
| 15 | xxx | |||
| No information available, not orderable | ||||
| 16 | xxx | |||
| Ball bearing 609 2Z C3 | ||||
| 17 | 400218 | 11.88 | 14.37 | |
| No information available, not orderable | ||||
| 18 | 434561 | |||
| No information available, not orderable | ||||
| 19 | xxx | |||
| No information available, not orderable | ||||
| 20 | xxx | |||
| No information available, not orderable | ||||
| 21 | xxx | |||
| No information available, not orderable | ||||
| 22 | xxx | |||
| Oval head screw M4x8-TAPTITE-T15 | ||||
| 23 | 228570 | 9.17 | 11.10 | |
| No information available, not orderable | ||||
| 25 | xxx | |||
| ELECTRONIC RS 4 E | ||||
| 26 | 490571 | 69.94 | 84.63 | |
| BRUSH ET2E / RS2/3/4 1PAIR | ||||
| 27 | 489018 | 11.74 | 14.21 | |
| Oval head screw PT-3,5x10-KT15 | ||||
| 28 | 219031 | 7.32 | 8.86 | |
| CABLE CLAMP LHS 225 EQ | ||||
| 29 | 430361 | 1.51 | 1.83 | |
| No information available, not orderable | ||||
| 30 | xxx | |||
| No information available, not orderable | ||||
| 31 | xxx | |||
| No information available, not orderable | ||||
| 32 | xxx | |||
| No information available, not orderable | ||||
| 33 | xxx | |||
| No information available, not orderable | ||||
| 34 | xxx | |||
| No information available, not orderable | ||||
| 35 | 487704 | |||
| No information available, not orderable | ||||
| 36 | xxx | |||
| No information available, not orderable | ||||
| 37 | xxx | |||
| ROCKER RSM-EA | ||||
| 38 | 435935 | 3.31 | 4.01 | |
| Oval head screw M4x8-TAPTITE-T15 | ||||
| 39 | 228570 | 9.17 | 11.10 | |
| CLIP RSM-EA | ||||
| 40 | 434577 | 6.91 | 8.36 | |
| No information available, not orderable | ||||
| 41 | xxx | |||
| SUPPORT RSM-EA | ||||
| 42 | 436021 | 1.51 | 1.83 | |
| No information available, not orderable | ||||
| 43 | xxx | |||
| BASE PLATE COMP RSM-EA VOLLST. | ||||
| 44 | 482083 | 88.09 | 106.59 | |
| BALL BEARING 6002 DDU C3 FA.NSK | ||||
| 45 | 228758 | 10.44 | 12.63 | |
| Cam EBV 130 E | ||||
| 46 | 630851 | 38.60 | 46.71 | |
| Sanding pad | ||||
| 47 | 483906 | 20.00 | 24.20 | |
| No information available, not orderable | ||||
| 48 | 491366 | |||
| Oval head screw M4x10 PR30 | ||||
| 49 | 400750 | 1.51 | 1.83 | |
