Here you will find all available parts and drawings of the 'Festool 491172 ( RS300EQ )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

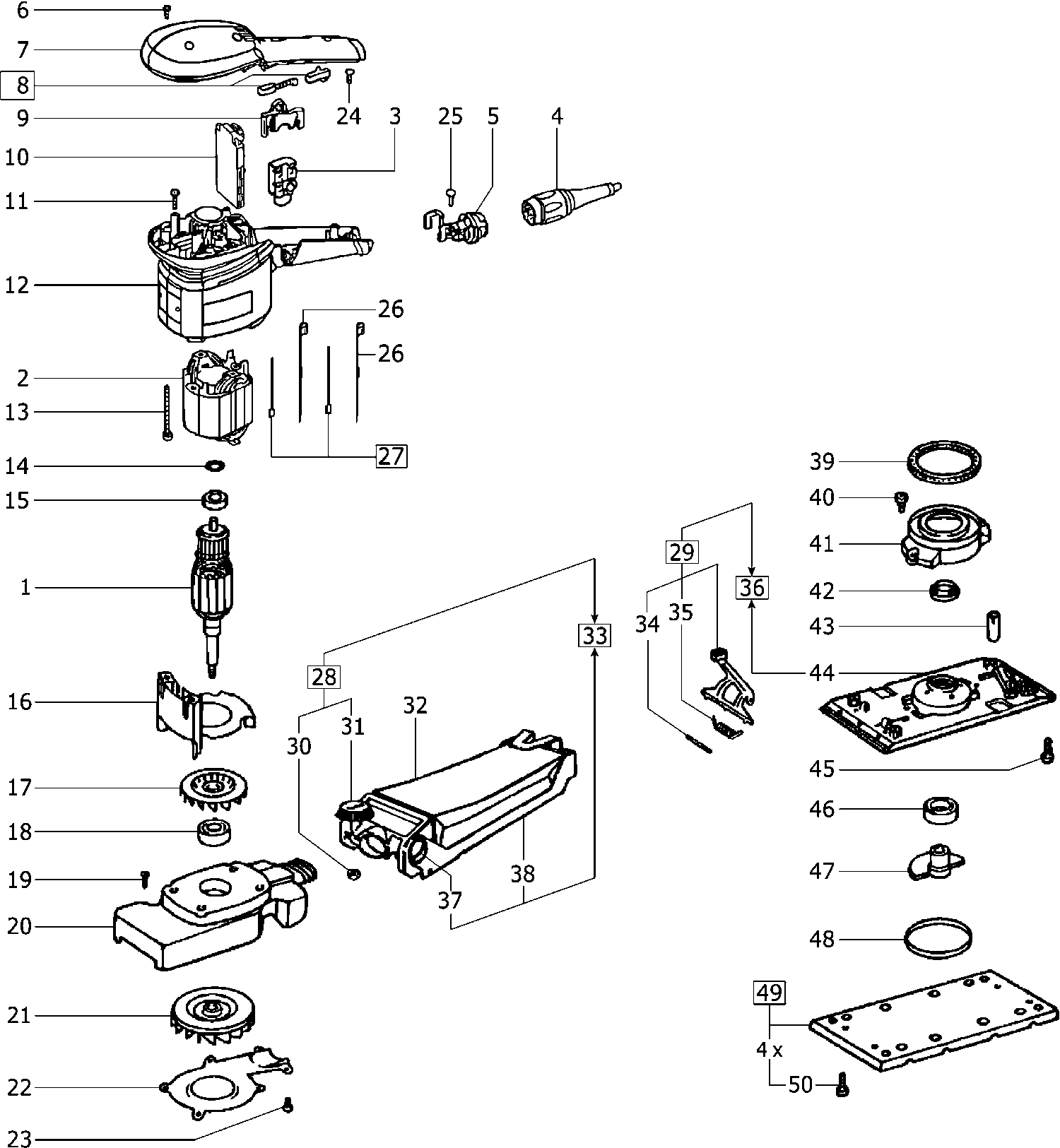

Technical drawing of model Festool 491172 ( RS300EQ )
Spare parts list of model Festool 491172 ( RS300EQ )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| ARMATURE 230V RS 3 ET-BG 230V | ||||
| 1 | 493160 | 124.75 | 150.95 | |
| FIELD COIL RS 3 ET-BG 230V | ||||
| 2 | 493161 | 46.22 | 55.93 | |
| Switch attachme ET 2 E | ||||
| 3 | 486317 | 15.00 | 18.15 | |
| plug it-kabel H05 RN-F-4 | ||||
| 4 | 203914 | 25.62 | 31.00 | |
| Socket housing LS 130 EQ VOLLST. | ||||
| 5 | 489925 | 8.90 | 10.77 | |
| Oval head screw PT-3,5x16-KT15 | ||||
| 6 | 400584 | 1.39 | 1.68 | |
| HOUSING COVER RS E | ||||
| 7 | 463093 | 7.26 | 8.78 | |
| BRUSH ET2E / RS2/3/4 1PAIR | ||||
| 8 | 489018 | 10.75 | 13.01 | |
| Bridge RTM | ||||
| 9 | 463095 | 1.39 | 1.68 | |
| ELECTRONIC RS 200 EQ | ||||
| 10 | 489886 | 73.08 | 88.43 | |
| Countersink M4x40-TAPTITE-TORX | ||||
| 11 | 400866 | 1.39 | 1.68 | |
| HOUSING RS | ||||
| 12 | 463088 | 17.91 | 21.67 | |
| Oval head screw PT-4,0x50-KT15 | ||||
| 13 | 228707 | 1.39 | 1.68 | |
| SPACER 15,8x21,8x0,2 L+MN 1100 | ||||
| 14 | 228759 | 1.39 | 1.68 | |
| ROLLER BEARING 608 RS DIN 625 | ||||
| 15 | 401524 | 5.09 | 6.16 | |
| Air guide washe RTM-EA | ||||
| 16 | 434430 | 2.11 | 2.55 | |
| FAN RS 2 | ||||
| 17 | 447949 | 2.30 | 2.78 | |
| BALL BEARING 6200 DDU DIN 625 NSK | ||||
| 18 | 401601 | 8.05 | 9.74 | |
| C-h count. scre DIN 966-M4x10-4.8 | ||||
| 19 | 228572 | 1.39 | 1.68 | |
| Bearing cover RS 3 | ||||
| 20 | 442217 | 49.00 | 59.29 | |
| FAN RS 300 COMPL. | ||||
| 21 | 491184 | 11.20 | 13.55 | |
| FAN COVER RS 3 | ||||
| 22 | 438717 | 4.03 | 4.88 | |
| Oval head screw M4x8-TAPTITE-T15 | ||||
| 23 | 228570 | 1.39 | 1.68 | |
| Oval head screw PT-3,5x10-KT15 | ||||
| 24 | 219031 | 1.39 | 1.68 | |
| Oval head screw PT-3,5x10-KT15 | ||||
| 25 | 219031 | 1.39 | 1.68 | |
| ELECTRIC CONNEC RTM 2000 | ||||
| 26 | 459271 | 1.72 | 2.08 | |
| Set of flexible RS 200 EQ ET-BAUGRUPPE | ||||
| 27 | 490205 | 18.39 | 22.25 | |
| FILTER ADAPTOR RS 3 KOMPL. | ||||
| 28 | 486759 | 15.97 | 19.32 | |
| CLIP RTM-EA VOLLST. | ||||
| 29 | 482039 | 29.64 | 35.86 | |
| Hexagon nut DIN 934-M4-08 | ||||
| 30 | 200715 | 1.39 | 1.68 | |
| Rotary knob RS 3 M4x23 D.28 | ||||
| 31 | 486767 | 1.39 | 1.68 | |
| Turbo filter bag | ||||
| 32 | 487779 | 10.19 | 12.33 | |
| Turbo filter bag set | ||||
| 33 | 487780 | 30.89 | 37.38 | |
| Pin RTM-EA | ||||
| 34 | 434528 | 1.92 | 2.32 | |
| SPRING RTM-EA | ||||
| 35 | 434588 | 2.18 | 2.64 | |
| BASE PLATE COMP RS 300 Q | ||||
| 36 | 491289 | 68.61 | 83.02 | |
| FLANGE SCREW RS 3 | ||||
| 37 | 444327 | 1.39 | 1.68 | |
| FELT SEAL RTM-EA | ||||
| 39 | 434525 | 6.54 | 7.91 | |
| Oval head screw DIN 7985-M4x10-8.8-TUF+ | ||||
| 40 | 228586 | 1.39 | 1.68 | |
| DUST COVER RS 3 | ||||
| 41 | 438293 | 2.51 | 3.04 | |
| Centrifugal was SCHLEUDERSCHEIB | ||||
| 42 | 462135 | 10.30 | 12.46 | |
| RUBBER FOOT RS 3 VOLLST. | ||||
| 43 | 483723 | 6.79 | 8.22 | |
| Plate RS 300 Q | ||||
| 44 | 462119 | 51.42 | 62.22 | |
| Oval head screw DIN 7985-M4x8-8.8-T15 | ||||
| 45 | 228735 | 1.39 | 1.68 | |
| BEARING 6003 DDU C3 FA.NSK | ||||
| 46 | 228756 | 9.50 | 11.50 | |
| ECCENTRIC BALAN RS 300 Q | ||||
| 47 | 462136 | 24.68 | 29.86 | |
| CAP RTM-EA | ||||
| 48 | 435290 | 1.75 | 2.12 | |
| Sanding pad STICKFIX | ||||
| 49 | 483905 | 26.85 | 32.49 | |
| Oval head screw M4x10 PR30 | ||||
| 50 | 400750 | 1.39 | 1.68 | |
| O-ring 22x3-RS3-70SHORE | ||||
| 51 | 455227 | 1.39 | 1.68 | |
