Here you will find all available parts and drawings of the 'Festool 485844 (RS3)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

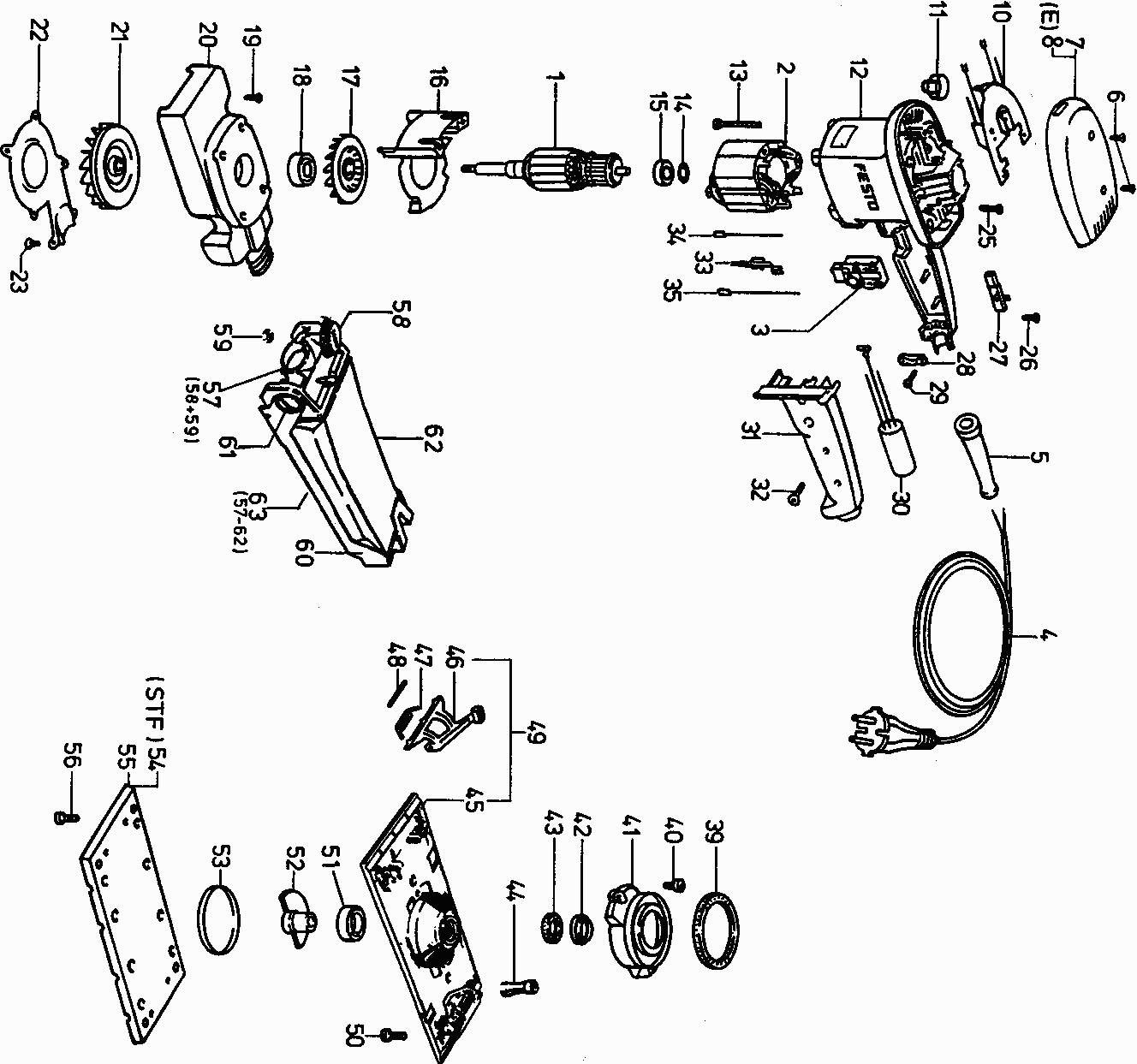

Technical drawing of model Festool 485844 (RS3)
Spare parts list of model Festool 485844 (RS3)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| ARMATURE 230V RS 3 ET-BG 230V | ||||
| 1 | 493160 | 124.75 | 150.95 | |
| FIELD COIL RS 3 ET-BG 230V | ||||
| 2 | 493161 | 46.22 | 55.93 | |
| Switch attachme ET 2 E | ||||
| 3 | 486317 | 15.00 | 18.15 | |
| CABLE WITH PLUG AP 85 E DIN-H05RN-F | ||||
| 4 | 457600 | 24.32 | 29.43 | |
| Cable conduit RTR 1409 | ||||
| 5 | 432436 | 1.51 | 1.83 | |
| Oval head screw PT-3,5x10-KT15 | ||||
| 6 | 219031 | 7.32 | 8.86 | |
| No longer available, no replacement | ||||
| 7 | 451430 | |||
| No information available, not orderable | ||||
| 11 | xxx | |||
| HOUSING RS 2 E | ||||
| 12 | 487834 | 38.96 | 47.14 | |
| Oval head screw PT-4,0x50-KT15 | ||||
| 13 | 228707 | 1.51 | 1.83 | |
| WASHER 14x21,8x0,3 L+MN 1100 | ||||
| 14 | 203777 | 1.51 | 1.83 | |
| Groove Ball Bearing 608 D1 MC3 E U152 J2 HA1 | ||||
| 15 | 10775821 | 5.54 | 6.70 | |
| Air guide washe RTM-EA | ||||
| 16 | 434430 | 2.30 | 2.78 | |
| FAN RW 900 E | ||||
| 17 | 441731 | 4.10 | 4.96 | |
| BALL BEARING 6200 DDU DIN 625 NSK | ||||
| 18 | 401601 | 8.78 | 10.62 | |
| C-h count. scre DIN 966-M4x10-4.8 | ||||
| 19 | 228572 | 1.51 | 1.83 | |
| Bearing cover RS 3 | ||||
| 20 | 442217 | 49.01 | 59.30 | |
| No information available, not orderable | ||||
| 21 | xxx | |||
| FAN COVER RS 3 | ||||
| 22 | 438717 | 4.39 | 5.31 | |
| Oval head screw M4x8-TAPTITE-T15 | ||||
| 23 | 228570 | 9.17 | 11.10 | |
| Oval head screw M4x20-TAPTITE-T15 | ||||
| 25 | 228569 | 1.51 | 1.83 | |
| Oval head screw PT-3,5x10-KT15 | ||||
| 26 | 219031 | 7.32 | 8.86 | |
| BRUSH ET2E / RS2/3/4 1PAIR | ||||
| 27 | 489018 | 11.74 | 14.21 | |
| Cable clamp RS 3 | ||||
| 28 | 439288 | 1.51 | 1.83 | |
| Oval head screw PT-3,5x16-KT15 | ||||
| 29 | 228663 | 1.51 | 1.83 | |
| SUPRESSOR RTM | ||||
| 30 | 436753 | 12.61 | 15.26 | |
| HANDLE SEGMENT RS 2 E | ||||
| 31 | 451402 | 6.84 | 8.28 | |
| Oval head screw PT-4.0x20-KT15 | ||||
| 32 | 228567 | 1.51 | 1.83 | |
| Plug-in bracket AP 65 E | ||||
| 33 | 443331 | 1.73 | 2.09 | |
| WIRE RTM-EA VOLLST. | ||||
| 34 | 434865 | 2.81 | 3.40 | |
| Draadstreng | ||||
| 34 | 440585 | 2.02 | 2.44 | |
| WIRE RTM-EA VOLLST. | ||||
| 35 | 434527 | 2.90 | 3.51 | |
| FELT SEAL RTM-EA | ||||
| 39 | 434525 | 7.56 | 9.15 | |
| Oval head screw DIN 7985-M4x10-8.8-TUF+ | ||||
| 40 | 228586 | 1.51 | 1.83 | |
| DUST COVER RS 3 | ||||
| 41 | 438293 | 3.02 | 3.65 | |
| No longer available, no replacement | ||||
| 42 | 438173 | |||
| No information available, not orderable | ||||
| 43 | xxx | |||
| RUBBER FOOT RS 3 VOLLST. | ||||
| 44 | 483723 | 8.21 | 9.93 | |
| BASE PLATE COMP RS 3 VOLLST. | ||||
| 45 | 486259 | 121.97 | 147.58 | |
| Plate RS 300 Q | ||||
| 45 | 462119 | 52.03 | 62.96 | |
| CLIP RTM-EA VOLLST. | ||||
| 46 | 482039 | 32.43 | 39.24 | |
| SPRING RTM-EA | ||||
| 47 | 434588 | 2.66 | 3.22 | |
| Pin RTM-EA | ||||
| 48 | 434528 | 2.09 | 2.53 | |
| BASE PLATE COMP RS 3 VOLLST. | ||||
| 49 | 486259 | 121.97 | 147.58 | |
| Oval head screw DIN 7985-M4x8-8.8-T15 | ||||
| 50 | 228735 | 1.51 | 1.83 | |
| BEARING 6003 DDU C3 FA.NSK | ||||
| 51 | 228756 | 10.37 | 12.55 | |
| ECCENTRIC BALAN RS 3 | ||||
| 52 | 451089 | 26.50 | 32.06 | |
| CAP RTM-EA | ||||
| 53 | 435290 | 2.09 | 2.53 | |
| Sanding pad STICKFIX | ||||
| 54 | 483905 | 24.00 | 29.04 | |
| Sanding pad | ||||
| 55 | 489630 | 21.00 | 25.41 | |
| Oval head screw DIN 7985-M4x10-8.8-PR30+ | ||||
| 56 | 228733 | 1.51 | 1.83 | |
| FILTER ADAPTOR RS 3 KOMPL. | ||||
| 57 | 486759 | 15.97 | 19.32 | |
| Rotary knob RS 3 M4x23 D.28 | ||||
| 58 | 486767 | 1.51 | 1.83 | |
| Hexagon nut DIN 934-M4-08 | ||||
| 59 | 200715 | 1.51 | 1.83 | |
| Turbo filter bag set | ||||
| 60 | 487780 | 29.00 | 35.09 | |
| FLANGE SCREW RS 3 | ||||
| 61 | 444327 | 1.51 | 1.83 | |
| Turbo filter bag | ||||
| 62 | 487779 | 10.00 | 12.10 | |
| Turbo filter bag set | ||||
| 63 | 487780 | 29.00 | 35.09 | |
