Here you will find all available parts and drawings of the 'Festool 486855 ( RS2STF220V )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

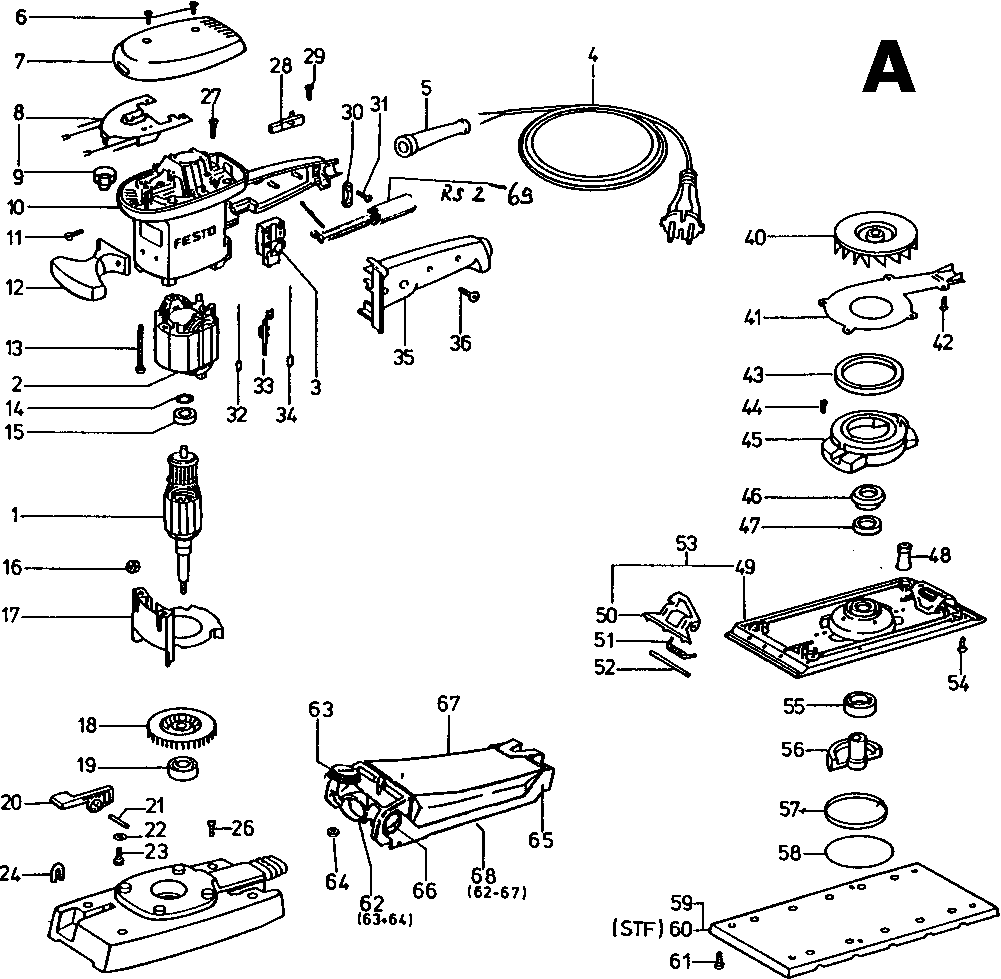

Technical drawing of model Festool 486855 ( RS2STF220V )

Spare parts list of model Festool 486855 ( RS2STF220V )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
ARMATURE 230V RS 2 230V ET-BG
1 493136 105.63 127.81
FIELD COIL RS 2 ET-BG 230V
2 493158 61.71 74.67
Switch attachme ET 2 E
3 486317 15.00 18.15
CABLE WITH PLUG AP 85 E DIN-H05RN-F
4 457600 24.32 29.43
Cable conduit RTR 1409
5 432436 1.39 1.68
Oval head screw PT-3,5x10-KT15
6 219031 1.39 1.68
No longer available, no replacement
7 451430
HOUSING RS 2 E
10 487834 37.51 45.39
Oval head screw M4x12-TAPTITE-KT15
11 400050 1.39 1.68
HANDLE RS 1 VOLLST.
12 483783 9.58 11.59
Oval head screw PT-4,0x50-KT15
13 228707 1.39 1.68
WASHER 14x21,8x0,3 L+MN 1100
14 203777 1.39 1.68
ROLLER BEARING 608 RS DIN 625
15 401524 5.09 6.16
Hexagon nut DIN 934-M4-08
16 200715 1.39 1.68
Air guide washe RTM-EA
17 434430 2.11 2.55
FAN RW 900 E
18 441731 3.36 4.07
BALL BEARING 6300 DDU DIN 625
19 219021 11.42 13.82
CLAMPING LEVER RS 2 E
20 487808 20.69 25.03
No information available, not orderable
21 770114
Disc DIN 7349-4,3-100 HV
22 228542 1.39 1.68
Oval head screw M4x10-TAPTITE-T15
23 228582 1.39 1.68
CLIP RTB-EA
24 435055 1.66 2.01
C-h count. scre DIN 966-M4x10-4.8
26 228572 1.39 1.68
Oval head screw M4x20-TAPTITE-T15
27 228569 1.39 1.68
BRUSH ET2E / RS2/3/4 1PAIR
28 489018 10.75 13.01
Oval head screw PT-3,5x10-KT15
29 219031 1.39 1.68
Cable clamp RS 3
30 439288 1.39 1.68
Oval head screw PT-3,5x16-KT15
31 228663 1.39 1.68
WIRE RTM-EA VOLLST.
32 434527 2.90 3.51
Plug-in bracket AP 65 E
33 443331 1.51 1.83
WIRE RTM-EA VOLLST.
34 434865 2.45 2.96
HANDLE SEGMENT KF 4 E
35 451403 6.67 8.07
Oval head screw PT-4.0x20-KT15
36 228567 1.39 1.68
No information available, not orderable
40 xxx
No information available, not orderable
41 xxx
Oval head screw M4x8-TAPTITE-T15
42 228570 1.39 1.68
No information available, not orderable
43 434633
Oval head screw DIN 7985-M4x10-8.8-TUF+
44 228586 1.39 1.68
No information available, not orderable
45 438118
BUSH RS 2
46 438091 12.58 15.22
SPACER RS 2
47 438090 5.88 7.11
RUBBER FOOT RS 2 VOLLST.
48 483435 7.79 9.43
No information available, not orderable
49 xxx
CLAMPING LEVER RTB-EA
50 434584 10.82 13.09
SPRING RTM-EA
51 434588 2.18 2.64
No information available, not orderable
52 xxx
No information available, not orderable
53 xxx
Oval head screw DIN 7985-M4x10-8.8-PR30+
54 228733 1.39 1.68
Ball bearing 6203 ZDU C3E MA7S
55 228523 9.77 11.82
No information available, not orderable
56 xxx
DUST CAP RTB-EA
57 435291 1.66 2.01
O-ring 64x2-NBR-70SHORE
58 228540 1.39 1.68
Sanding pad
59 489629 27.87 33.72
Sanding pad
60 483679 31.70 38.36
Oval head screw DIN 7985-M4x10-8.8-PR30+
61 228733 1.39 1.68
FILTER ADAPTOR RS 3 KOMPL.
62 486759 15.97 19.32
Rotary knob RS 3 M4x23 D.28
63 486767 1.39 1.68
Hexagon nut DIN 934-M4-08
64 200715 1.39 1.68
Turbo filter bag set
65 487780 30.89 37.38
FLANGE SCREW RS 3
66 444327 1.39 1.68
Turbo filter bag
67 487779 10.19 12.33
Turbo filter bag set
68 487780 30.89 37.38
SUPRESSOR RTM
69 436753 11.55 13.98
