Here you will find all available parts and drawings of the 'Festool 486906 (RS2STF)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

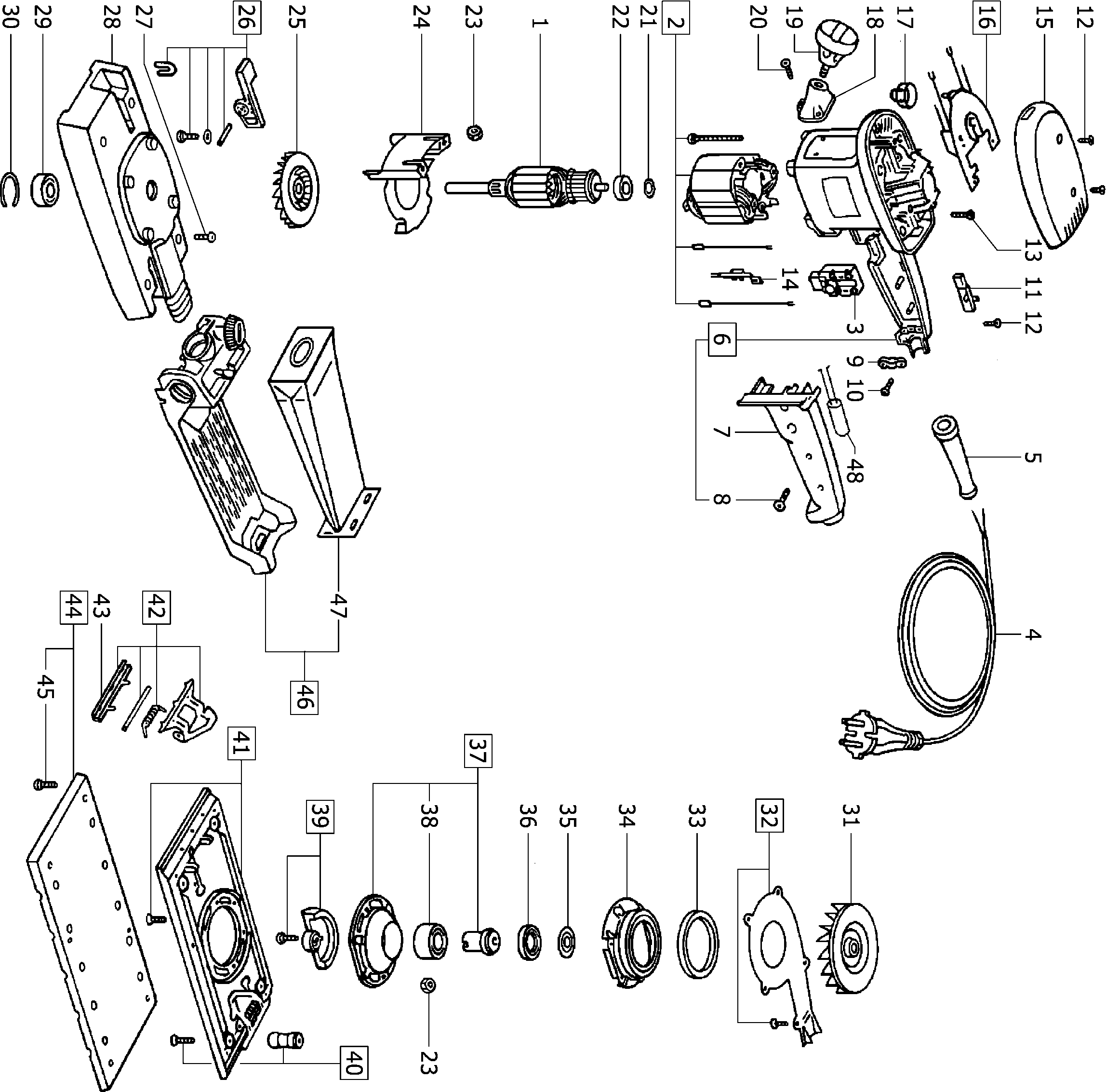

Technical drawing of model Festool 486906 (RS2STF)
Spare parts list of model Festool 486906 (RS2STF)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| ARMATURE 230V RS 2 ET-BG 230V | ||||
| 1 | 493157 | 87.00 | 105.27 | |
| No information available, not orderable | ||||
| 2 | 487807 | |||
| Switch attachme ET 2 E | ||||
| 3 | 486317 | 15.00 | 18.15 | |
| CABLE WITH PLUG AP 85 E DIN-H05RN-F | ||||
| 4 | 457600 | 24.32 | 29.43 | |
| Cable conduit RTR 1409 | ||||
| 5 | 432436 | 1.51 | 1.83 | |
| HOUSING RS 2 E | ||||
| 6 | 487834 | 38.96 | 47.14 | |
| HANDLE SEGMENT RS 2 E | ||||
| 7 | 451402 | 6.84 | 8.28 | |
| Oval head screw PT-4.0x20-KT15 | ||||
| 8 | 228567 | 1.51 | 1.83 | |
| Cable clamp RS 3 | ||||
| 9 | 439288 | 1.51 | 1.83 | |
| Oval head screw PT-3,5x16-KT15 | ||||
| 10 | 228663 | 1.51 | 1.83 | |
| BRUSH ET2E / RS2/3/4 1PAIR | ||||
| 11 | 489018 | 11.74 | 14.21 | |
| Oval head screw PT-3,5x10-KT15 | ||||
| 12 | 219031 | 7.32 | 8.86 | |
| Oval head screw M4x20-TAPTITE-T15 | ||||
| 13 | 228569 | 1.51 | 1.83 | |
| Plug-in bracket AP 65 E | ||||
| 14 | 443331 | 1.73 | 2.09 | |
| No longer available, no replacement | ||||
| 15 | 451430 | |||
| SOCKET RS 2 E | ||||
| 18 | 487756 | 5.26 | 6.36 | |
| Handle RS 1 C | ||||
| 19 | 487554 | 5.62 | 6.80 | |
| Oval head screw DIN 7985-M4x12-8.8-PR80+ | ||||
| 20 | 400290 | 1.51 | 1.83 | |
| WASHER 14x21,8x0,3 L+MN 1100 | ||||
| 21 | 203777 | 1.51 | 1.83 | |
| Groove Ball Bearing 608 D1 MC3 E U152 J2 HA1 | ||||
| 22 | 10775821 | 5.54 | 6.70 | |
| Hexagon nut DIN 934-M4-08 | ||||
| 23 | 200715 | 1.51 | 1.83 | |
| Air guide washe RTM-EA | ||||
| 24 | 434430 | 2.30 | 2.78 | |
| FAN RS 2 | ||||
| 25 | 447949 | 2.66 | 3.22 | |
| CLAMPING LEVER RS 2 E | ||||
| 26 | 487808 | 22.63 | 27.38 | |
| C-h count. scre DIN 966-M4x10-4.8 | ||||
| 27 | 228572 | 1.51 | 1.83 | |
| Bearing cover RS 200 | ||||
| 28 | 459319 | 55.66 | 67.35 | |
| BALL BEARING 6300 DDU DIN 625 | ||||
| 29 | 219021 | 11.42 | 13.82 | |
| Circlip DIN 472-35x1,5 | ||||
| 30 | 771483 | 1.51 | 1.83 | |
| Fan RS 2 N | ||||
| 31 | 487507 | 11.16 | 13.50 | |
| COVER PLATE RS 2 E | ||||
| 32 | 487809 | 20.45 | 24.74 | |
| SEAL RS 2 N | ||||
| 33 | 447353 | 1.58 | 1.91 | |
| Extraction hood RS 2 N | ||||
| 34 | 487506 | 7.92 | 9.58 | |
| EXTRACTION RS 2 N | ||||
| 35 | 447357 | 1.58 | 1.91 | |
| Conical nipple RS 2N ET-BG | ||||
| 36 | 499707 | 33.88 | 40.99 | |
| Table top inser RS 2 N | ||||
| 37 | 487822 | 88.09 | 106.59 | |
| Ball bearing 3203B2RSRTNGC3N8MA7N4 | ||||
| 38 | 447239 | 35.09 | 42.46 | |
| WEIGHT RS 200 ET-BG | ||||
| 39 | 491559 | 38.72 | 46.85 | |
| RUBBER FOOT RS 2 VOLLST. | ||||
| 40 | 487824 | 30.01 | 36.31 | |
| BASE TABLE RS 2 E | ||||
| 41 | 487825 | 65.46 | 79.21 | |
| FINGER LEVER RS 2 E | ||||
| 42 | 487826 | 29.04 | 35.14 | |
| SPACER RS 2 E 10 ST. | ||||
| 43 | 487828 | 15.85 | 19.18 | |
| Sanding pad | ||||
| 44 | 483679 | 28.00 | 33.88 | |
| Sanding pad | ||||
| 44 | 489629 | 25.00 | 30.25 | |
| Oval head screw M4x10 PR30 | ||||
| 45 | 400750 | 1.51 | 1.83 | |
| Turbo filter bag set | ||||
| 46 | 487780 | 29.00 | 35.09 | |
| Turbo filter bag | ||||
| 47 | 487779 | 10.00 | 12.10 | |
| SUPRESSOR RTM | ||||
| 48 | 436753 | 12.61 | 15.26 | |
