Here you will find all available parts and drawings of the 'Festool 486851 (RS1)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

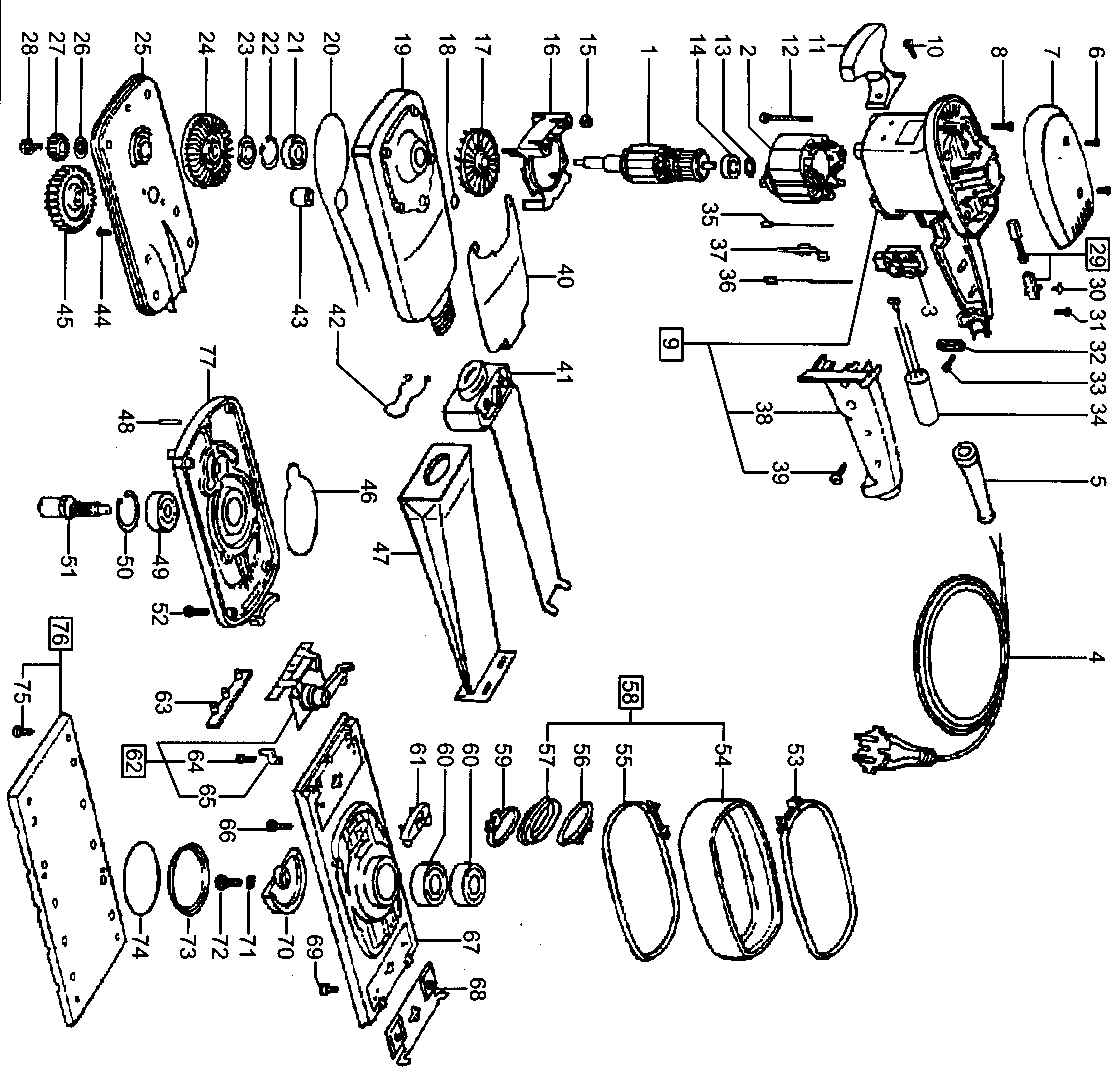

Technical drawing of model Festool 486851 (RS1)
Spare parts list of model Festool 486851 (RS1)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| ARMATURE 230V RS 1 230V ET-BG | ||||
| 1 | 492439 | 84.46 | 102.20 | |
| FIELD COIL RS 1 ET-BG | ||||
| 2 | 492442 | 62.68 | 75.84 | |
| Switch attachme ET 2 E | ||||
| 3 | 486317 | 15.00 | 18.15 | |
| CABLE WITH PLUG AP 85 E DIN-H05RN-F | ||||
| 4 | 457600 | 24.32 | 29.43 | |
| Cable conduit RTR 1409 | ||||
| 5 | 432436 | 1.51 | 1.83 | |
| Oval head screw PT-3,5x10-KT15 | ||||
| 6 | 219031 | 7.32 | 8.86 | |
| No longer available, no replacement | ||||
| 7 | 451430 | |||
| Oval head screw M4x20-TAPTITE-T15 | ||||
| 8 | 228569 | 1.51 | 1.83 | |
| HOUSING RS 2 E | ||||
| 9 | 487834 | 38.96 | 47.14 | |
| Oval head screw M4x12-TAPTITE-KT15 | ||||
| 10 | 400050 | 1.51 | 1.83 | |
| HANDLE RS 1 VOLLST. | ||||
| 11 | 483783 | 10.44 | 12.63 | |
| Oval head screw PT-4,0x40-KT15 | ||||
| 12 | 219080 | 1.51 | 1.83 | |
| WASHER 14x21,8x0,3 L+MN 1100 | ||||
| 13 | 203777 | 1.51 | 1.83 | |
| Groove Ball Bearing 608 D1 MC3 E U152 J2 HA1 | ||||
| 14 | 10775821 | 5.54 | 6.70 | |
| Hexagon nut DIN 934-M4-08 | ||||
| 15 | 200715 | 1.51 | 1.83 | |
| FAN HOUSING RS 1 | ||||
| 16 | 443109 | 2.81 | 3.40 | |
| FAN RS 1 | ||||
| 17 | 436451 | 2.52 | 3.05 | |
| Disc RS 1 | ||||
| 18 | 437102 | 2.23 | 2.70 | |
| Bearing cover RS 1 | ||||
| 19 | 439839 | 67.16 | 81.26 | |
| SEAL RS 1 | ||||
| 20 | 437499 | 3.53 | 4.27 | |
| Ball bearing 6201 DDUCM D8 AS2SM | ||||
| 21 | 228659 | 8.86 | 10.72 | |
| Circlip DIN 472-32x1,2 | ||||
| 22 | 401246 | 1.51 | 1.83 | |
| RETAINING RING RS 1 OBEN | ||||
| 23 | 437086 | 1.94 | 2.35 | |
| FAN RS 1 | ||||
| 24 | 435496 | 21.30 | 25.77 | |
| Plate RS 1 | ||||
| 25 | 482524 | 49.97 | 60.46 | |
| Centri. washer RS 1 | ||||
| 26 | 437064 | 2.09 | 2.53 | |
| Pinion RS 100 | ||||
| 27 | 442267 | 30.49 | 36.89 | |
| SCREW M6x15 VERBUS-RIPP | ||||
| 28 | 228517 | 1.51 | 1.83 | |
| BRUSH HOLDER AP 65 E | ||||
| 29 | 488915 | 17.55 | 21.24 | |
| Oval head screw PT-3,5x10-KT15 | ||||
| 30 | 219031 | 7.32 | 8.86 | |
| Cable clamp RS 3 | ||||
| 31 | 439288 | 1.51 | 1.83 | |
| No information available, not orderable | ||||
| 32 | xxx | |||
| Oval head screw PT-3,5x16-KT15 | ||||
| 33 | 228663 | 1.51 | 1.83 | |
| SUPRESSOR RTM | ||||
| 34 | 436753 | 12.61 | 15.26 | |
| WIRE RTM-EA VOLLST. | ||||
| 35 | 434527 | 2.90 | 3.51 | |
| WIRE RTM-EA VOLLST. | ||||
| 36 | 434865 | 2.81 | 3.40 | |
| Plug-in bracket AP 65 E | ||||
| 37 | 443331 | 1.73 | 2.09 | |
| HANDLE SEGMENT RS 2 E | ||||
| 38 | 451402 | 6.84 | 8.28 | |
| Oval head screw PT-4.0x20-KT15 | ||||
| 39 | 228567 | 1.51 | 1.83 | |
| HEAT SHIELD RS HS-RS 1 | ||||
| 40 | 442232 | 6.41 | 7.76 | |
| Filter adapter RS 1 KOMPL. | ||||
| 41 | 484542 | 45.01 | 54.46 | |
| BAG CLIP F R TURBOFILTER | ||||
| 42 | 434696 | 10.58 | 12.80 | |
| BUSH NK 10/12 | ||||
| 43 | 410226 | 15.37 | 18.60 | |
| Oval head screw M4x10-TAPTITE-T15 | ||||
| 44 | 228582 | 1.51 | 1.83 | |
| GEAR RSB VOLLST. | ||||
| 45 | 485618 | 24.32 | 29.43 | |
| SEAL - BASE PLA RS 1 | ||||
| 46 | 437292 | 2.59 | 3.13 | |
| No information available, not orderable | ||||
| 47 | 483674 | |||
| PIN 6 M6x36 DIN 6325 ST | ||||
| 48 | 773881 | 1.51 | 1.83 | |
| BALL BEARING 6301 DDU DIN 625 | ||||
| 49 | 228524 | 12.61 | 15.26 | |
| Circlip DIN 472-37x1,5 | ||||
| 50 | 401251 | 1.51 | 1.83 | |
| Eccentric shaft RS 1 | ||||
| 51 | 441381 | 69.21 | 83.74 | |
| Oval head screw M5x25-TAPTITE-T15 | ||||
| 52 | 228516 | 1.51 | 1.83 | |
| CLIP RTR-S2 | ||||
| 53 | 410423 | 7.92 | 9.58 | |
| SLEEVE RS 1 | ||||
| 54 | 435475 | 14.04 | 16.99 | |
| CLIP RS 1 | ||||
| 55 | 437884 | 7.85 | 9.50 | |
| CLIP RS 1 OBEN | ||||
| 56 | 436965 | 10.37 | 12.55 | |
| RUBBER BELLOWS RS 1 | ||||
| 57 | 435490 | 7.78 | 9.41 | |
| BELLOW & SLEEVE FALTENB.,MANSCHETTE | ||||
| 58 | 483787 | 31.82 | 38.50 | |
| CLIP RS 1 UNTEN | ||||
| 59 | 436966 | 6.91 | 8.36 | |
| Ball bearing 6203 ZDU C3E MA7S | ||||
| 60 | 228523 | 10.66 | 12.90 | |
| CLIP RS 1 VOLLST. | ||||
| 61 | 483446 | 6.05 | 7.32 | |
| CLAMPING DEVICE SPANNEINRICHTG.2ST. | ||||
| 62 | 483786 | 53.60 | 64.86 | |
| RUBBER CLAMP IN KUNSTSTOFFAUFL.6ST. | ||||
| 63 | 483785 | 9.14 | 11.06 | |
| Flat head screw DIN 920-M4x20-4.8 | ||||
| 64 | 228514 | 1.51 | 1.83 | |
| BRACKET RS 1 | ||||
| 65 | 437278 | 1.51 | 1.83 | |
| Oval head screw DIN 7985-M5x20-4.8 | ||||
| 66 | 774568 | 1.51 | 1.83 | |
| Plate RS 1 | ||||
| 67 | 440469 | 76.59 | 92.67 | |
| CLAMPING PLATE RS 1 VOLLST. | ||||
| 68 | 486333 | 7.49 | 9.06 | |
| Oval head screw DIN 7985-M4x8-8.8-T15 | ||||
| 69 | 228735 | 1.51 | 1.83 | |
| WEIGHT RS 1 | ||||
| 70 | 441059 | 29.28 | 35.43 | |
| Serrated washer DIN 6797-A-6,4 | ||||
| 71 | 200765 | 1.51 | 1.83 | |
| Ch. head screw DIN 6912-M6x18-8.8 | ||||
| 72 | 223541 | 1.51 | 1.83 | |
| COVER RS 1 | ||||
| 73 | 435510 | 11.88 | 14.37 | |
| O-ring 74x2-NBR-70SHORE | ||||
| 74 | 228551 | 1.73 | 2.09 | |
| Oval head screw DIN 7985-M4x10-8.8-PR30+ | ||||
| 75 | 400606 | 1.51 | 1.83 | |
| Sanding pad | ||||
| 76 | 483679 | 28.00 | 33.88 | |
| Sanding pad | ||||
| 76 | 489629 | 25.00 | 30.25 | |
| Gear box RS 1 | ||||
| 77 | 435509 | 72.00 | 87.12 | |
