Here you will find all available parts and drawings of the 'Festool 487730 ( RS1C )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

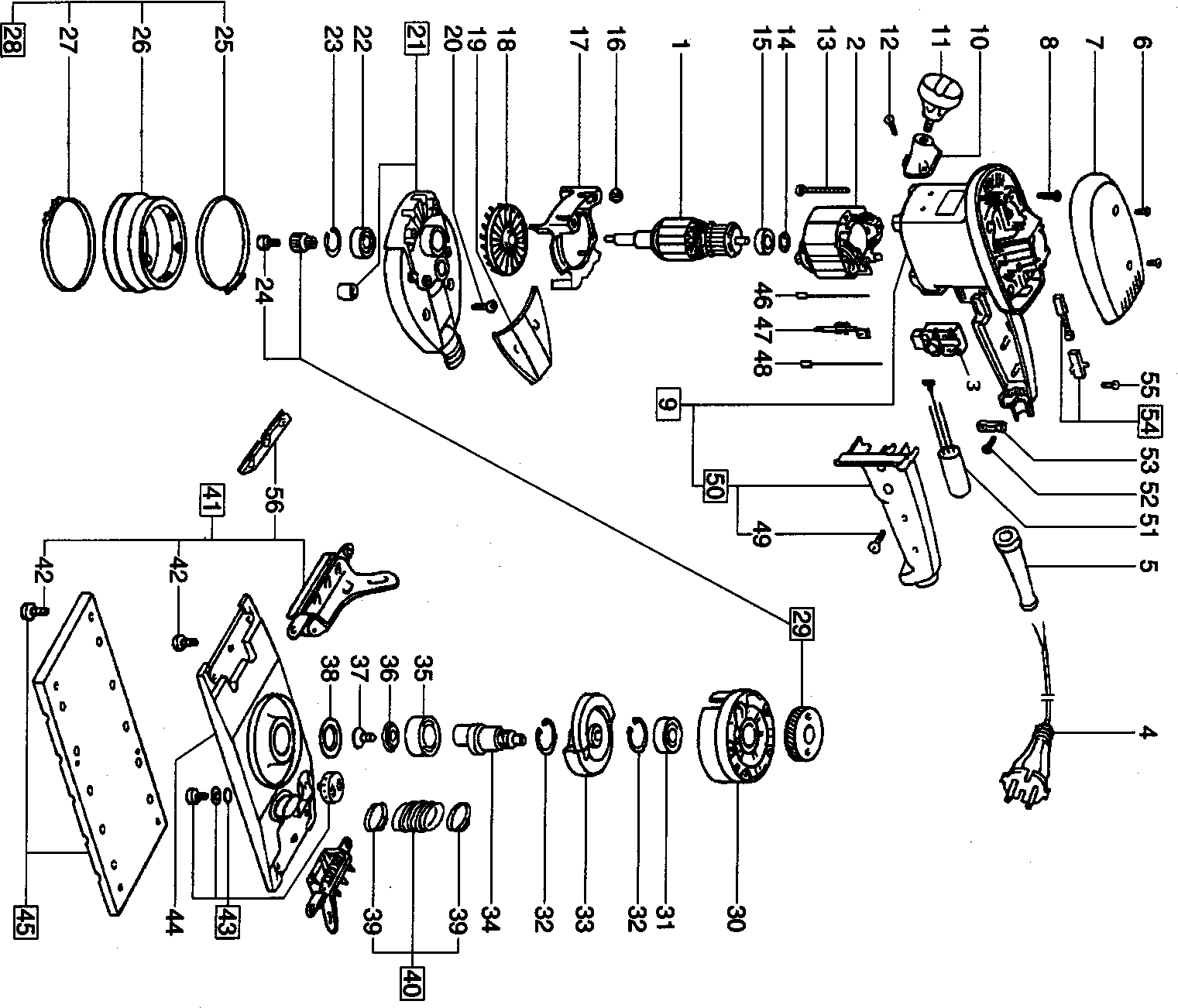

Technical drawing of model Festool 487730 ( RS1C )

Spare parts list of model Festool 487730 ( RS1C )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
ARMATURE 230V RS 1 C 230V ET-BG
1 492443 87.00 105.27
FIELD COIL RS 1 ET-BG
2 492442 62.68 75.84
Switch attachme ET 2 E
3 486317 15.00 18.15
CABLE WITH PLUG AP 85 E DIN-H05RN-F
4 457600 24.32 29.43
Cable conduit RTR 1409
5 432436 1.39 1.68
Oval head screw PT-3,5x10-KT15
6 219031 1.39 1.68
No longer available, no replacement
7 451430
Oval head screw M4x20-TAPTITE-T15
8 228569 1.39 1.68
HOUSING RS 2 E
9 487834 37.51 45.39
HANDLE SOCKET RS 1 C
10 487553 2.98 3.61
Handle RS 1 C
11 487554 5.15 6.23
Oval head screw M4x12-TAPTITE-KT15
12 400050 1.39 1.68
Oval head screw PT-4,0x40-KT15
13 219080 1.39 1.68
WASHER 14x21,8x0,3 L+MN 1100
14 203777 1.39 1.68
ROLLER BEARING 608 RS DIN 625
15 401524 5.09 6.16
Hexagon nut DIN 934-M4-08
16 200715 1.39 1.68
FAN HOUSING RS 1
17 443109 2.57 3.11
FAN RS 1
18 436451 2.04 2.47
Cover RS 1 C
19 447425 1.51 1.83
Ch. head screw DIN 6912-M5x12-8.8
20 400432 1.39 1.68
GEAR HOUSING RS 1 C KPL.
21 488313 82.76 100.14
BALL BEARING 6000 DDU-C3 D8S L (NSK)
22 789575 6.34 7.67
Circlip DIN 472-26x1,2
23 201028 1.39 1.68
Ch. head screw DIN 7984-M6x10LH
24 400304 2.30 2.78
HOSE CLIP RS 1 C
25 448148 10.69 12.93
SLEEVE RS 1 C
26 447365 10.30 12.46
HOSE CLIP RS 1 C
27 448149 10.69 12.93
SLEEVE RS 1 C CPL.
28 483317 43.20 52.27
GEAR ENSSEMBLY RS 1 C ET-BAUGR.
29 488314 73.45 88.87
Bearing cover RS 100
30 447958 49.25 59.59
BALL BEARING 6003 ZZ-C3 D8S S
31 400434 9.24 11.18
Circlip DIN 472-35x1,5
32 771483 1.39 1.68
WEIGHT RS 1 C
33 447416 21.54 26.06
Eccentric shaft RS 1 C
34 447647 66.07 79.94
Ball bearing 3202 B2RSRTNGC3 N8 MA7N4
35 400273 35.45 42.89
Disc RS 1 C
36 446493 8.98 10.87
Countersink DIN 7991-M6x10-8.8
37 400306 1.39 1.68
COVER RS 1 C
38 447418 1.92 2.32
Terminal RS 1 C
39 477046 8.58 10.38
ABS-HOSE RS 1 C CPL.
40 488319 32.31 39.10
CLAMP 2 QTY. RS 1 C CPL. ET-GR.
41 488312 73.69 89.16
Oval head screw DIN 7985-M4x8-8.8-PR30+
42 400663 1.39 1.68
ADJUSTING WHEEL RS 1 C CPL.
43 488315 20.57 24.89
Plate RS 1 C
44 447426 95.23 115.23
Sanding pad
45 488226 31.70 38.36
WIRE RTM-EA VOLLST.
46 434527 2.90 3.51
Plug-in bracket AP 65 E
47 443331 1.51 1.83
WIRE RTM-EA VOLLST.
48 434865 2.45 2.96
Oval head screw PT-4.0x20-KT15
49 228567 1.39 1.68
No information available, not orderable
50 xxx
SUPRESSOR RTM
51 436753 11.55 13.98
Oval head screw PT-3,5x16-KT15
52 228663 1.39 1.68
Cable clamp RS 3
53 439288 1.39 1.68
BRUSH HOLDER AP 65 E
54 488915 17.54 21.22
Oval head screw PT-3,5x10-KT15
55 219031 1.39 1.68
SUPPORT RS 1 C
56 487974 14.52 17.57
