Here you will find all available parts and drawings of the 'Festool 487344 (RO2E)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

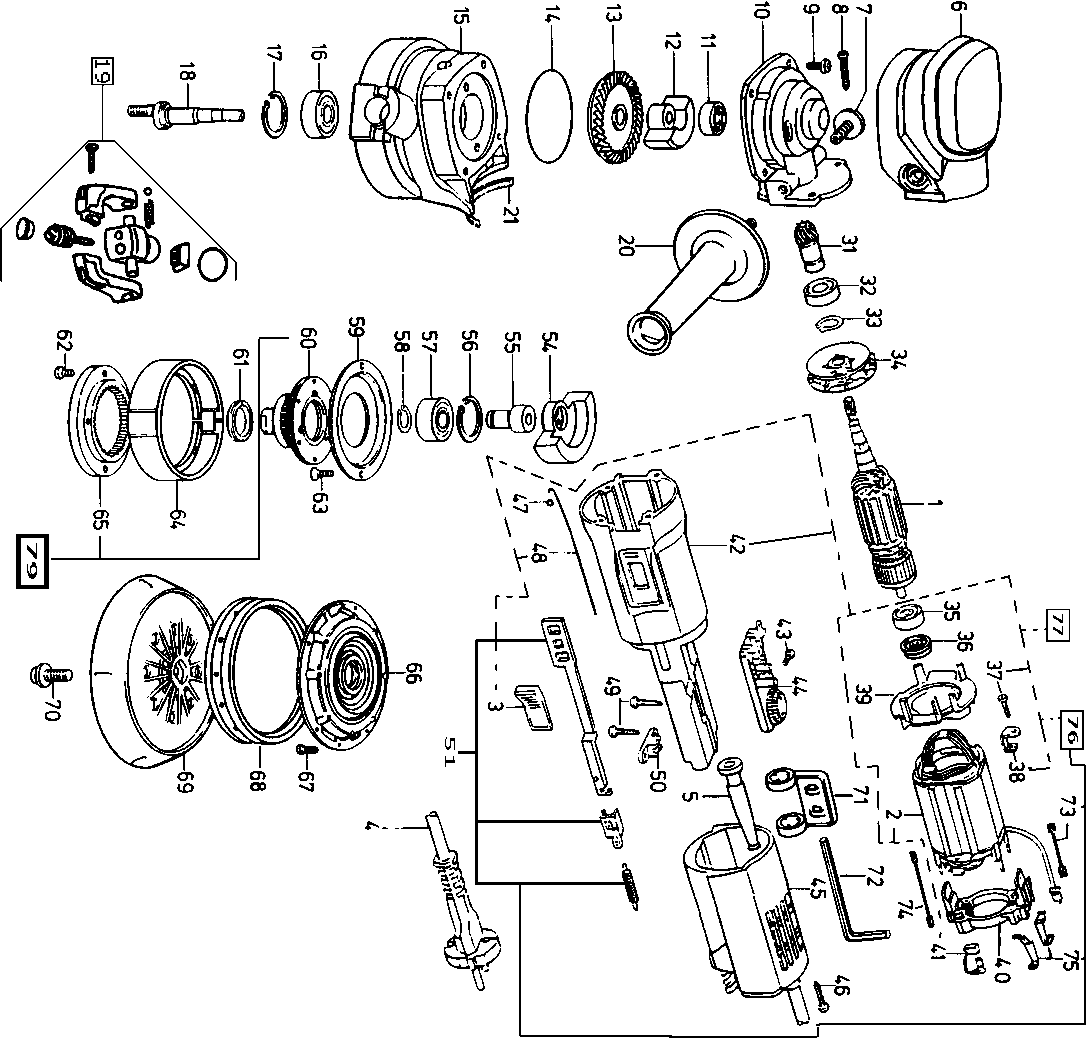

Technical drawing of model Festool 487344 (RO2E)
Spare parts list of model Festool 487344 (RO2E)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 485715 | |||
| No information available, not orderable | ||||
| 2 | xxx | |||
| SLIDE SWITCH RO 2 E | ||||
| 3 | 446002 | 4.88 | 5.90 | |
| CABLE WITH PLUG AP 55 E DIN-H05RN-F | ||||
| 4 | 457410 | 24.32 | 29.43 | |
| Cable sleeve PS 2 | ||||
| 5 | 445738 | 2.02 | 2.44 | |
| HOOD RO 150 E | ||||
| 6 | 487424 | 12.58 | 15.22 | |
| SCREW PLASTIC WET-A | ||||
| 7 | 435103 | 2.66 | 3.22 | |
| Oval head screw PT-3,5x25-PZV | ||||
| 8 | 400233 | 1.51 | 1.83 | |
| Oval head screw M4x10-TAPTITE-PZV | ||||
| 9 | 400234 | 1.51 | 1.83 | |
| Gear box RO 150 E | ||||
| 10 | 446277 | 26.74 | 32.36 | |
| BALL BEARING 608 DIN 625 | ||||
| 11 | 228715 | 4.82 | 5.83 | |
| COUNTERWEIGHT RO 150 E | ||||
| 12 | 457184 | 17.18 | 20.79 | |
| GEAR RO 2 E | ||||
| 13 | 443529 | 29.89 | 36.17 | |
| O-ring 60x1,5-NBR-70SHORE | ||||
| 14 | 233066 | 3.67 | 4.44 | |
| HOUSING RO 2 E | ||||
| 15 | 444914 | 44.53 | 53.88 | |
| Ball bearing 6201 DDU C3 E D8 MA7S-M | ||||
| 16 | 400065 | 9.14 | 11.06 | |
| Circlip DIN 472-32x1,2 | ||||
| 17 | 401246 | 1.51 | 1.83 | |
| SHAFT RO 2 E | ||||
| 18 | 445171 | 51.18 | 61.93 | |
| SWITCH RO 150 E | ||||
| 19 | 487800 | 40.90 | 49.49 | |
| Auxiliary handle | ||||
| 20 | 487865 | 9.00 | 10.89 | |
| No information available, not orderable | ||||
| 21 | xxx | |||
| SWITCH RO 150 E | ||||
| 22 | 487800 | 40.90 | 49.49 | |
| Ball DIN 5401-5-X40CR13 | ||||
| 23 | 200863 | 1.51 | 1.83 | |
| Oval head screw PT-3,0x25-T10 | ||||
| 24 | 459853 | 1.51 | 1.83 | |
| SWITCH RO 150 E | ||||
| 25 | 487800 | 40.90 | 49.49 | |
| O-ring 17x1,5-NBR-75SHORE | ||||
| 26 | 200131 | 1.51 | 1.83 | |
| SWITCH RO 150 E | ||||
| 27 | 487800 | 40.90 | 49.49 | |
| SWITCH RO 150 E | ||||
| 28 | 487800 | 40.90 | 49.49 | |
| SWITCH RO 150 E | ||||
| 29 | 487800 | 40.90 | 49.49 | |
| SWITCH RO 150 E | ||||
| 30 | 487800 | 40.90 | 49.49 | |
| No information available, not orderable | ||||
| 31 | 443530 | |||
| BALL BEARING 627 Z/D MC5E NSK | ||||
| 32 | 228746 | 8.21 | 9.93 | |
| Circlip DIN 472-22x1 | ||||
| 33 | 204471 | 1.51 | 1.83 | |
| Fan RO 2 E | ||||
| 34 | 485108 | 7.52 | 9.10 | |
| Ball bearing 626 DD M5MTLY 121 | ||||
| 35 | 228672 | 6.79 | 8.22 | |
| Solenoid ring RO 2 E | ||||
| 36 | 444018 | 2.45 | 2.96 | |
| Oval head screw PT-3,0x12-PZV | ||||
| 37 | 228717 | 1.51 | 1.83 | |
| CLIP RO 2 E | ||||
| 38 | 439918 | 1.51 | 1.83 | |
| HOUSING INSERT RO 2 E | ||||
| 39 | 442901 | 5.33 | 6.45 | |
| BRUSH HOLDER RO 2 E | ||||
| 40 | 487436 | 13.00 | 15.73 | |
| BRUSH PS 2 E | ||||
| 41 | 487530 | 33.40 | 40.41 | |
| MOTOR HOUSING RO 2 E | ||||
| 42 | 487146 | 17.79 | 21.53 | |
| Oval head screw PS 2 E M3x 6,5 | ||||
| 43 | 228718 | 1.51 | 1.83 | |
| ELECTRONIC 230V RO 2 E BASIC UNIT ASSE | ||||
| 44 | 490286 | 61.47 | 74.38 | |
| CAP RO 2 E | ||||
| 45 | 487648 | 12.14 | 14.69 | |
| Oval head screw PT-3,5x20-PZV | ||||
| 46 | 445743 | 1.51 | 1.83 | |
| O-RING WS 115 | ||||
| 47 | 441324 | 1.51 | 1.83 | |
| Contact bracket WS 115.05.E | ||||
| 48 | 440732 | 1.51 | 1.83 | |
| Oval head screw PT-3,5x16-KT15 | ||||
| 49 | 228663 | 1.51 | 1.83 | |
| CABLE CLAMP RO 2 E | ||||
| 50 | 439662 | 1.51 | 1.83 | |
| SWITCH ROD RAS 115.04 E BASIC UNIT | ||||
| 51 | 487794 | 15.61 | 18.89 | |
| SWITCH ROD RAS 115.04 E BASIC UNIT | ||||
| 52 | 487794 | 15.61 | 18.89 | |
| SWITCH ROD RAS 115.04 E BASIC UNIT | ||||
| 53 | 487794 | 15.61 | 18.89 | |
| No information available, not orderable | ||||
| 54 | xxx | |||
| No information available, not orderable | ||||
| 55 | xxx | |||
| Circlip DIN 472-28x1,2 | ||||
| 56 | 401244 | 1.51 | 1.83 | |
| bearing 3001BRSRRSDTNGCA52NN8MMA | ||||
| 57 | 401125 | 30.86 | 37.34 | |
| Circlip DIN 471-12x1 | ||||
| 58 | 200619 | 1.51 | 1.83 | |
| No information available, not orderable | ||||
| 59 | xxx | |||
| GEAR SET RO 150 E ET-GRUPPE | ||||
| 60 | 489161 | 139.63 | 168.95 | |
| SEALING RING RO 2 E | ||||
| 61 | 443785 | 13.55 | 16.40 | |
| Cylinder screw M4 x 6 | ||||
| 62 | 453584 | 1.51 | 1.83 | |
| Countersink M3,5x8-TAPTITE-T15 | ||||
| 63 | 228673 | 1.51 | 1.83 | |
| SWITCHING RING RO 150 E | ||||
| 64 | 492208 | 80.59 | 97.51 | |
| GEAR SET RO 150 E ET-GRUPPE | ||||
| 65 | 489161 | 139.63 | 168.95 | |
| No longer available, no replacement | ||||
| 66 | 484561 | |||
| Oval head screw M3x8-TAPTITE-KREUZ | ||||
| 67 | 400235 | 1.51 | 1.83 | |
| No information available, not orderable | ||||
| 68 | 444257 | |||
| Sanding pad | ||||
| 69 | 202458 | 58.73 | 71.06 | |
| Ch. head screw ZUBEH R | ||||
| 70 | 401165 | 1.51 | 1.83 | |
| ALLEN KEY HOLDE RO 150 E | ||||
| 71 | 446275 | 2.16 | 2.61 | |
| Screw driver SW 5 DIN911 | ||||
| 72 | 202752 | 1.51 | 1.83 | |
| WIRE RO 2 E VOLLST. | ||||
| 73 | 446668 | 1.58 | 1.91 | |
| No longer available, no replacement | ||||
| 74 | 446674 | |||
| No information available, not orderable | ||||
| 75 | xxx | |||
| GEAR SET RO 150 E ET-GRUPPE | ||||
| 79 | 489161 | 139.63 | 168.95 | |
