Here you will find all available parts and drawings of the 'Festool 768916 (RG150E)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

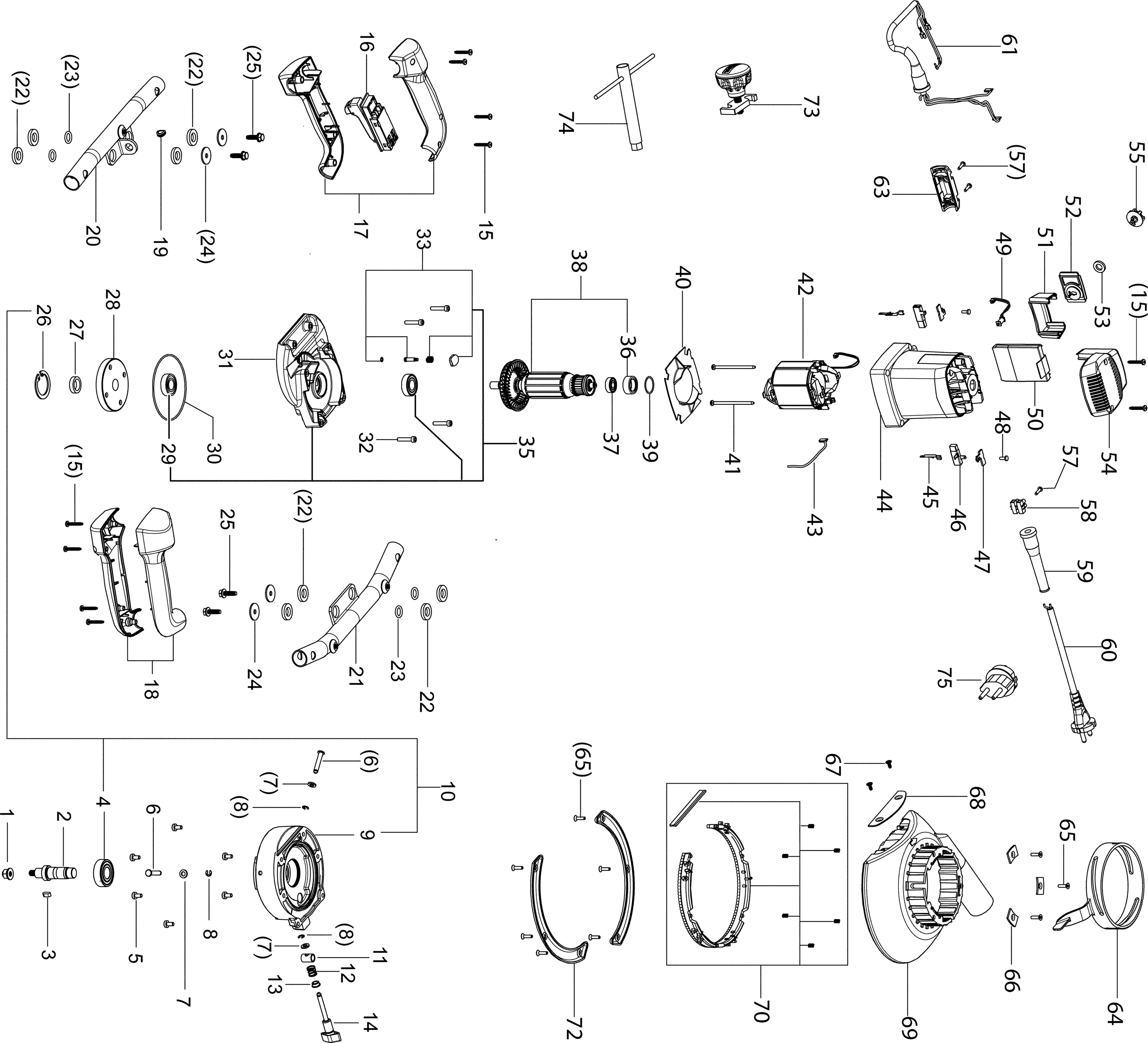

Technical drawing of model Festool 768916 (RG150E)
Spare parts list of model Festool 768916 (RG150E)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Nut M8 DIN 6926 | ||||
| 1 | 60403817 | 1.51 | 1.83 | |
| Spindle RGP 150-16 E | ||||
| 2 | 60403813 | 26.38 | 31.92 | |
| Feather key A 5x5x12 | ||||
| 3 | 434011 | 1.51 | 1.83 | |
| Bearing 6203 LLU V C3 V2 L39-4 | ||||
| 4 | 632815 | 7.06 | 8.54 | |
| Screw M5x10 K-TORX | ||||
| 5 | 614858 | 1.51 | 1.83 | |
| Tappet RGP 150-16 E | ||||
| 6 | 60403844 | 8.42 | 10.19 | |
| Washer D6.4, CSN 02 1702.15 | ||||
| 7 | 615014 | 1.51 | 1.83 | |
| Securing ring 4 | ||||
| 8 | 633635 | 1.51 | 1.83 | |
| Gear housing RG 150 E | ||||
| 9 | 768900 | 103.82 | 125.62 | |
| Gear housing RG 150 E-Plus ET-BG | ||||
| 10 | 769450 | 78.65 | 95.17 | |
| Catch RGP 150-16 E | ||||
| 11 | 60403633 | 10.66 | 12.90 | |
| Compression spr RGP 150-16 E | ||||
| 12 | 779360 | 3.31 | 4.01 | |
| Disc RGP 150-16 E | ||||
| 13 | 60403634 | 5.47 | 6.62 | |
| Screw RG 150 E komplett | ||||
| 14 | 768910 | 17.91 | 21.67 | |
| Screw PT 40x25 K-TORX | ||||
| 15 | 614772 | 1.51 | 1.83 | |
| Switch Marquardt 2200.0107-00 | ||||
| 16 | 768755 | 28.44 | 34.41 | |
| Grip RG 150 E rechts | ||||
| 17 | 768906 | 20.45 | 24.74 | |
| Grip RG 150 E links | ||||
| 18 | 768903 | 20.45 | 24.74 | |
| Socket RGP 150-16 E | ||||
| 19 | 60403836 | 1.87 | 2.26 | |
| Side panel RG 150 E vorne | ||||
| 20 | 768603 | 107.33 | 129.87 | |
| Side panel RG 150 E hinten | ||||
| 21 | 768604 | 104.30 | 126.20 | |
| Rubber disc RGP 150-16 E | ||||
| 22 | 60403837 | 1.51 | 1.83 | |
| O-ring 12x3 | ||||
| 23 | 60403839 | 1.51 | 1.83 | |
| Disc 10,5x25x1,2 | ||||
| 24 | 779149 | 1.51 | 1.83 | |
| Screw M6x20 DIN 7500 | ||||
| 25 | 60403941 | 1.51 | 1.83 | |
| Circlip DIN 472-40x1,75 | ||||
| 26 | 623941 | 11.35 | 13.73 | |
| DISTANCE TUBE RGP 150-16 E | ||||
| 27 | 60403816 | 10.37 | 12.55 | |
| Spindle wheel RGP 150-16 E | ||||
| 28 | 778518 | 63.16 | 76.42 | |
| Bearing 6002 ZZ AS2 S2 | ||||
| 29 | 615918 | 10.58 | 12.80 | |
| O-ring 92x2 | ||||
| 30 | 60403843 | 2.52 | 3.05 | |
| Bearing cover RG 150 E | ||||
| 31 | 768911 | 70.91 | 85.80 | |
| Screw M5x25 K SF WN 1352 | ||||
| 32 | 614860 | 1.51 | 1.83 | |
| blocking pin RG 150 E-Plus ET-BG | ||||
| 33 | 769452 | 7.34 | 8.88 | |
| Bearing cover RG 150 E-Plus ET-BG | ||||
| 35 | 769453 | 77.08 | 93.27 | |
| Bearing ring AT 55 E | ||||
| 36 | 438613 | 1.51 | 1.83 | |
| Ball bearing 608 LLU V C13/20 V2 L19 | ||||
| 37 | 779129 | 3.60 | 4.36 | |
| Rotor RG 150 E ET-BG | ||||
| 38 | 10553613 | 237.16 | 286.96 | |
| Ring 22x2 | ||||
| 39 | 614992 | 1.51 | 1.83 | |
| Air guide washe MXP 1602 E | ||||
| 40 | 620693 | 2.38 | 2.88 | |
| Screw PT 40x70/23 K-TORX | ||||
| 41 | 614777 | 1.51 | 1.83 | |
| Field package RG 150 E ET-BG | ||||
| 42 | 10553614 | 69.70 | 84.34 | |
| Conductor CSP 68 E | ||||
| 43 | 620376 | 4.82 | 5.83 | |
| Motor frame MX 1600/2 E EF | ||||
| 44 | 10164929 | 14.88 | 18.00 | |
| Plug-in bracket AP 65 E | ||||
| 45 | 443331 | 1.73 | 2.09 | |
| Brush Set CSP 68 E | ||||
| 46 | 627014 | 17.30 | 20.93 | |
| Cover LKM 061.00 | ||||
| 47 | 636134 | 7.34 | 8.88 | |
| Oval head screw PT-3,5x10-KT15 | ||||
| 48 | 219031 | 7.32 | 8.86 | |
| ELECTRIC WIRE AT 65 EB VOLLST. | ||||
| 49 | 486744 | 14.88 | 18.00 | |
| Speed Control C CSP 68 E 230V | ||||
| 50 | 489426 | 64.25 | 77.74 | |
| Enclosure MX 1200/2 E EF | ||||
| 51 | 768223 | 4.46 | 5.40 | |
| Lens MX 1600/2 E EF | ||||
| 52 | 768873 | 3.89 | 4.71 | |
| Spacer AP 88 E | ||||
| 53 | 438509 | 1.58 | 1.91 | |
| Cap MX 1200/2 E EF | ||||
| 54 | 768224 | 7.63 | 9.23 | |
| ADJUSTING WHEEL AP 55 E | ||||
| 55 | 440991 | 5.54 | 6.70 | |
| Oval head screw PT-3,5x14-KT15 | ||||
| 57 | 400468 | 1.51 | 1.83 | |
| Biscuit connect ML 060.10 | ||||
| 58 | 621139 | 7.63 | 9.23 | |
| nozzle ag. bend EBU 23 F-A | ||||
| 59 | 630328 | 6.48 | 7.84 | |
| Power cord Netzkabel | ||||
| 60 | 10720005 | 24.32 | 29.43 | |
| Coupler ML 061.02 | ||||
| 61 | 764540 | 31.94 | 38.65 | |
| Clip RG 150 E | ||||
| 63 | 768227 | 3.96 | 4.79 | |
| Adjusting ring RGP 150-16 E | ||||
| 64 | 60403824 | 86.03 | 104.10 | |
| Screw PT 40x16 K-TORX | ||||
| 65 | 614778 | 1.51 | 1.83 | |
| Supporting ring RGP 150-16 E | ||||
| 66 | 60403825 | 4.46 | 5.40 | |
| Countersink PT-4,0x10-KT15 | ||||
| 67 | 219102 | 1.51 | 1.83 | |
| Guard plate RG 150 E | ||||
| 68 | 768612 | 14.52 | 17.57 | |
| Dust-extraction RGP 150-16 E | ||||
| 69 | 779135 | 42.83 | 51.82 | |
| BORSTELKRANS BC-RG 150 | ||||
| 70 | 769123 | 24.00 | 29.04 | |
| Glide plate RG 150 E | ||||
| 72 | 768846 | 22.39 | 27.09 | |
| Extractor RT-RGP 150 | ||||
| 73 | 626376 | 46.71 | 56.52 | |
| Socket wrench FK-SW 13 RGP 150 | ||||
| 74 | 779366 | 30.37 | 36.75 | |
| No information available, not orderable | ||||
| 75 | 767469 | |||
