Here you will find all available parts and drawings of the 'Festool 490042 ( RAP80.02E )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

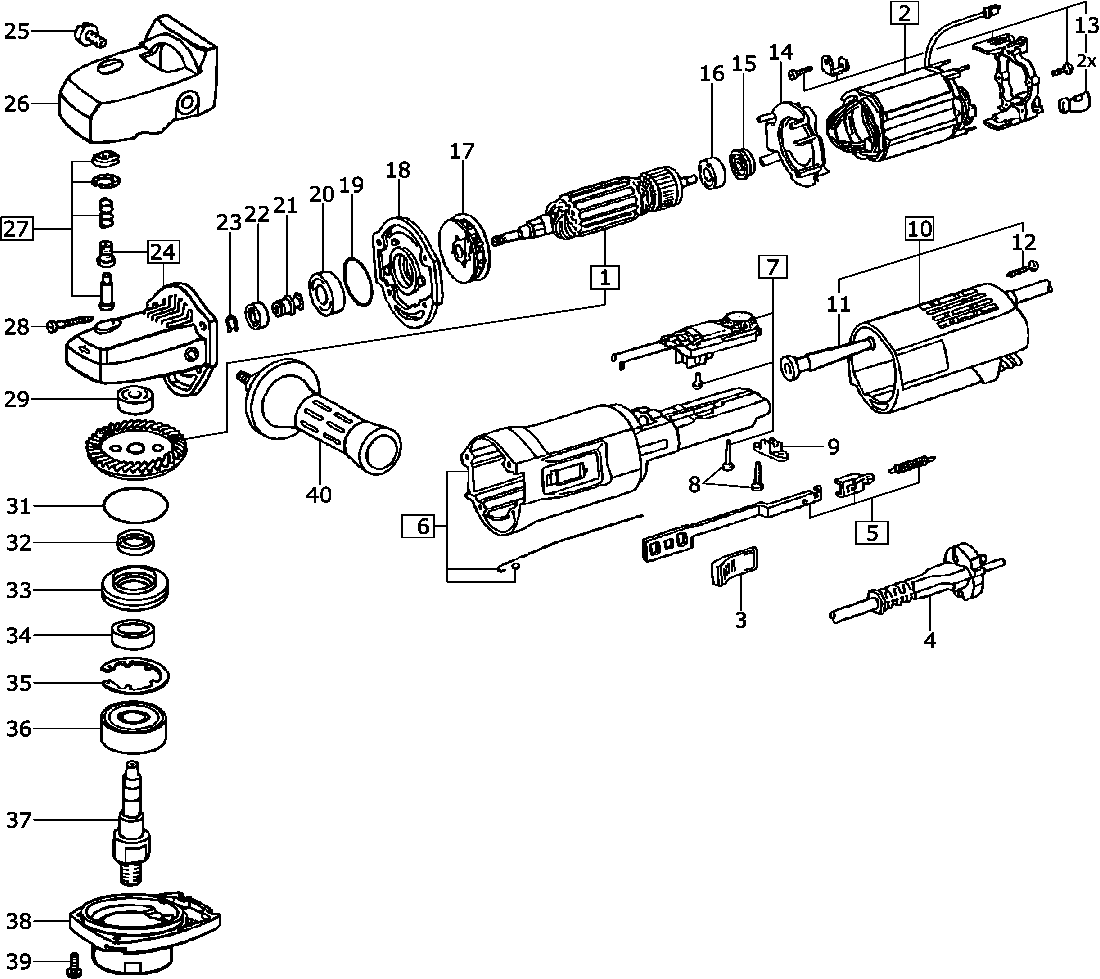

Technical drawing of model Festool 490042 ( RAP80.02E )
Spare parts list of model Festool 490042 ( RAP80.02E )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| ARMATURE RAP 80.02 E 230V ET-BG | ||||
| 1 | 491605 | 82.40 | 99.70 | |
| FIELD COIL RAS 115.04 E | ||||
| 2 | 487791 | 43.44 | 52.56 | |
| SLIDE SWITCH RO 2 E | ||||
| 3 | 446002 | 1.51 | 1.83 | |
| CABLE WITH PLUG AP 55 E DIN-H05RN-F | ||||
| 4 | 457410 | 24.32 | 29.43 | |
| SWITCH ROD RAS 115.04 E BASIC UNIT | ||||
| 5 | 487794 | 14.70 | 17.79 | |
| MOTOR HOUSING RAS 115.04 E | ||||
| 6 | 487792 | 31.89 | 38.59 | |
| ELECTRONIC 230V RO 150 E BASIC UNIT ASSE | ||||
| 7 | 487751 | 115.68 | 139.97 | |
| Oval head screw PT-3,5x16-KT15 | ||||
| 8 | 228663 | 1.39 | 1.68 | |
| CABLE CLAMP RO 2 E | ||||
| 9 | 439662 | 1.39 | 1.68 | |
| CAP RO 2 E | ||||
| 10 | 487674 | 22.99 | 27.82 | |
| Cable sleeve PS 2 | ||||
| 11 | 445738 | 1.85 | 2.24 | |
| Oval head screw PT-3,5x20-PZV | ||||
| 12 | 445743 | 1.39 | 1.68 | |
| Carbon brush RO 150 E ET-BG | ||||
| 13 | 492629 | 10.56 | 12.78 | |
| HOUSING INSERT RO 2 E | ||||
| 14 | 442901 | 4.42 | 5.35 | |
| Solenoid ring RO 2 E | ||||
| 15 | 444018 | 2.11 | 2.55 | |
| Ball bearing 626 DD M5MTLY 121 | ||||
| 16 | 228672 | 4.49 | 5.43 | |
| Fan TX 93 E | ||||
| 17 | 487498 | 4.82 | 5.83 | |
| Conn. flange WS 115.05.E | ||||
| 18 | 440271 | 21.78 | 26.35 | |
| O-ring 29x1,5-NBR-75SHORE | ||||
| 19 | 225368 | 1.39 | 1.68 | |
| BALL BEARING WS 115.05.E | ||||
| 20 | 441155 | 23.35 | 28.25 | |
| SLEEVE RAP 80.02 E | ||||
| 21 | 450046 | 9.37 | 11.34 | |
| BALL BEARING 6901 VVCM NS7 DIN 625 | ||||
| 22 | 400291 | 13.19 | 15.96 | |
| Circlip DIN 471-12x1 | ||||
| 23 | 200619 | 1.39 | 1.68 | |
| GEAR HOUSING RAP 80.02 E | ||||
| 24 | 488624 | 66.31 | 80.24 | |
| SCREW PLASTIC WET-A | ||||
| 25 | 435103 | 2.18 | 2.64 | |
| HOOD RAP 80.02 E | ||||
| 26 | 451047 | 2.51 | 3.04 | |
| GEAR STOP RAS 115.04 E | ||||
| 27 | 487795 | 22.87 | 27.67 | |
| Oval head screw PT-3,5x25-PZV | ||||
| 28 | 400233 | 1.39 | 1.68 | |
| BALL BEARING 608 DIN 625 | ||||
| 29 | 228715 | 4.42 | 5.35 | |
| O-ring 58x1-NBR-70SHORE | ||||
| 31 | 228705 | 1.39 | 1.68 | |
| No information available, not orderable | ||||
| 32 | 439671 | |||
| No information available, not orderable | ||||
| 33 | 485613 | |||
| SPACER RAS 115.08 E | ||||
| 34 | 446643 | 2.83 | 3.42 | |
| Circlip DIN 984-42x1,75 | ||||
| 35 | 228721 | 2.57 | 3.11 | |
| BALL BEARING 6302 2RS DIN 625 | ||||
| 36 | 400059 | 16.94 | 20.50 | |
| GEAR SHAFT RAS 115.08E | ||||
| 37 | 444349 | 21.90 | 26.50 | |
| Flange RAS 115 | ||||
| 38 | 442226 | 26.74 | 32.36 | |
| Oval head screw M4x10-TAPTITE-T15 | ||||
| 39 | 228582 | 1.39 | 1.68 | |
| Auxiliary handle | ||||
| 40 | 487865 | 10.01 | 12.11 | |
