Here you will find all available parts and drawings of the 'Festool 490041 ( RAP150.03E )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

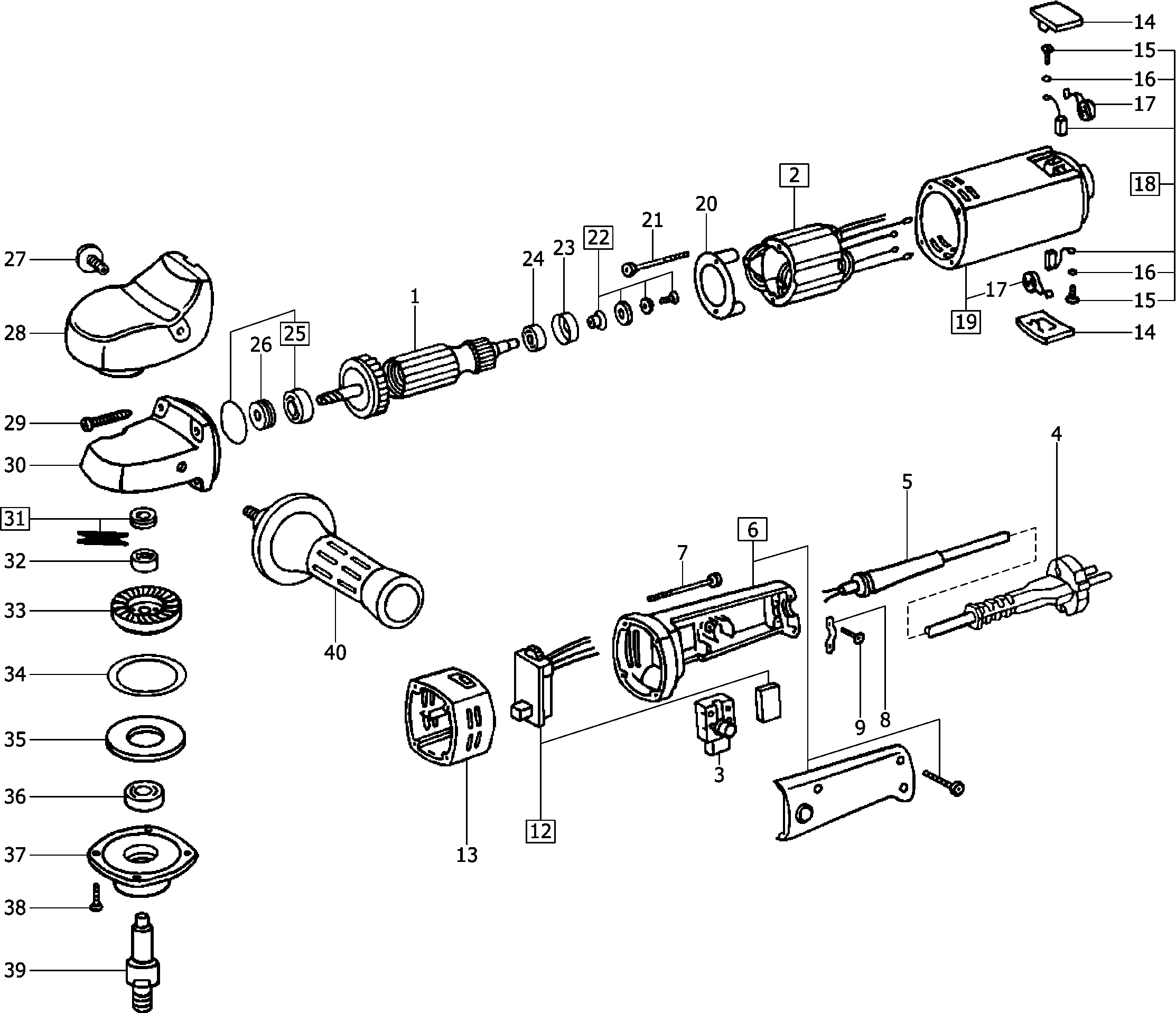

Technical drawing of model Festool 490041 ( RAP150.03E )
Spare parts list of model Festool 490041 ( RAP150.03E )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 488518 | |||
| FIELD COIL CPL. RAP 150.03 E | ||||
| 2 | 488528 | 109.26 | 132.20 | |
| Switch attachme ET 2 E | ||||
| 3 | 486317 | 15.00 | 18.15 | |
| CABLE WITH PLUG ZKS-22 DIN-H07RN-F | ||||
| 4 | 457603 | 24.80 | 30.01 | |
| Cable sleeve RAP 150.03 E 28 029 01 | ||||
| 5 | 450999 | 22.75 | 27.53 | |
| Handle RAP 150.03 E ET-BG | ||||
| 6 | 492244 | 79.13 | 95.75 | |
| No information available, not orderable | ||||
| 7 | xxx | |||
| Cable clamp RAP 150.03 E 35 183 01 | ||||
| 8 | 451000 | 3.36 | 4.07 | |
| No information available, not orderable | ||||
| 9 | xxx | |||
| ELECTRONIC CPL. RAP 150.03 E | ||||
| 12 | 488529 | 143.38 | 173.49 | |
| Flange RAP 150.03 E 78 868 01 | ||||
| 13 | 450996 | 35.57 | 43.04 | |
| Cover RAP 150.03 E 78 802 05 | ||||
| 14 | 450986 | 8.26 | 9.99 | |
| No information available, not orderable | ||||
| 15 | 400312 | |||
| No information available, not orderable | ||||
| 16 | 232957 | |||
| BRUSH HOLDER RAP 150.03 E | ||||
| 17 | 450797 | 20.57 | 24.89 | |
| BRUSH RAP 150.03 E | ||||
| 18 | 488530 | 20.57 | 24.89 | |
| No information available, not orderable | ||||
| 19 | 488519 | |||
| No information available, not orderable | ||||
| 20 | 450985 | |||
| Self-tapping ra 3,5x68 28 019 01 | ||||
| 21 | 400470 | 1.39 | 1.68 | |
| MAGNETICAL RING RAP 150.03 E | ||||
| 22 | 488531 | 32.79 | 39.68 | |
| No information available, not orderable | ||||
| 23 | 450981 | |||
| Ball bearing 627 2RS C3 27 684 09 | ||||
| 24 | 400462 | 31.94 | 38.65 | |
| BALL BEARING RAP 150.03 E | ||||
| 25 | 489122 | 42.35 | 51.24 | |
| Return guide ri RAP 150.03 E 62 477 01 | ||||
| 26 | 450980 | 35.21 | 42.60 | |
| SCREW PLASTIC WET-A | ||||
| 27 | 435103 | 2.18 | 2.64 | |
| COVER RAP 150.03 E | ||||
| 28 | 450284 | 25.29 | 30.60 | |
| No information available, not orderable | ||||
| 29 | 400472 | |||
| No information available, not orderable | ||||
| 30 | 450989 | |||
| No information available, not orderable | ||||
| 31 | 400474 | |||
| No information available, not orderable | ||||
| 32 | 203793 | |||
| Conical gear wh RAP 150.03 E 57 127 01 | ||||
| 33 | 450988 | 162.14 | 196.19 | |
| Adjustment wash RAP 150.03 E 39 696 02 | ||||
| 34 | 450990 | 9.84 | 11.91 | |
| No information available, not orderable | ||||
| 35 | 450987 | |||
| Ball bearing 6202 2RS DIN 625 | ||||
| 36 | 789775 | 9.24 | 11.18 | |
| Plug RAP 150.03 E 48 895 01 | ||||
| 37 | 450991 | 67.28 | 81.41 | |
| No information available, not orderable | ||||
| 38 | 400473 | |||
| No information available, not orderable | ||||
| 39 | 450998 | |||
| Auxiliary handle | ||||
| 40 | 487865 | 10.01 | 12.11 | |
