Here you will find all available parts and drawings of the 'Festool 495503 (QT-MFT/3)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

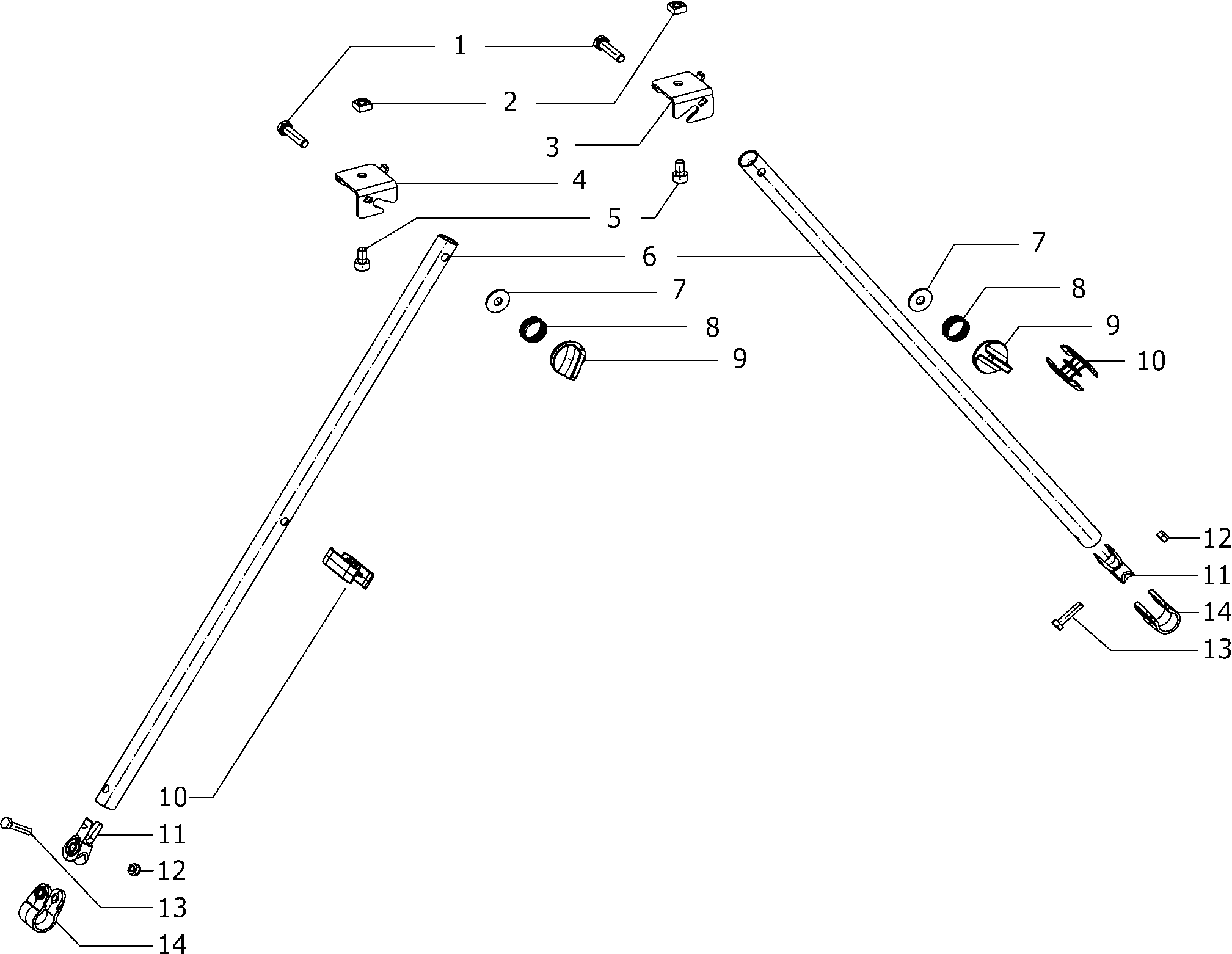

Technical drawing of model Festool 495503 (QT-MFT/3)
Spare parts list of model Festool 495503 (QT-MFT/3)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Lock bolt QT-MFT/3 | ||||
| 1 | 474318 | 17.18 | 20.79 | |
| Square nut DIN 557-M8-05 | ||||
| 2 | 219098 | 1.51 | 1.83 | |
| Retaining angle QT-MFT/3 right | ||||
| 3 | 474317 | 7.20 | 8.71 | |
| Retaining angle QT-MFT/3 left | ||||
| 4 | 473766 | 7.63 | 9.23 | |
| Ch. head screw DIN 912-M8x14-8.8 | ||||
| 5 | 228639 | 1.51 | 1.83 | |
| Support QT-MFT/3 | ||||
| 6 | 473765 | 37.75 | 45.68 | |
| Disc DIN 9021-8,4-100 HV | ||||
| 7 | 219049 | 1.51 | 1.83 | |
| Pressure spring QT-MFT/3 | ||||
| 8 | 475400 | 6.84 | 8.28 | |
| Rotary knob D34 M8/11T blue | ||||
| 9 | 473902 | 12.34 | 14.93 | |
| Clamp QT-MFT/3 | ||||
| 10 | 475638 | 5.54 | 6.70 | |
| Pivot bearing QT-MFT/3 | ||||
| 11 | 475203 | 6.62 | 8.01 | |
| Hexagon nut DIN 985-M6-04 | ||||
| 12 | 228541 | 1.51 | 1.83 | |
| SCREW M6x28 DIN 933 | ||||
| 13 | 400785 | 2.16 | 2.61 | |
| Clip QT-MFT/3 | ||||
| 14 | 474316 | 6.98 | 8.45 | |
