Here you will find all available parts and drawings of the 'Festool 496056 (PS400EBQ230V)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

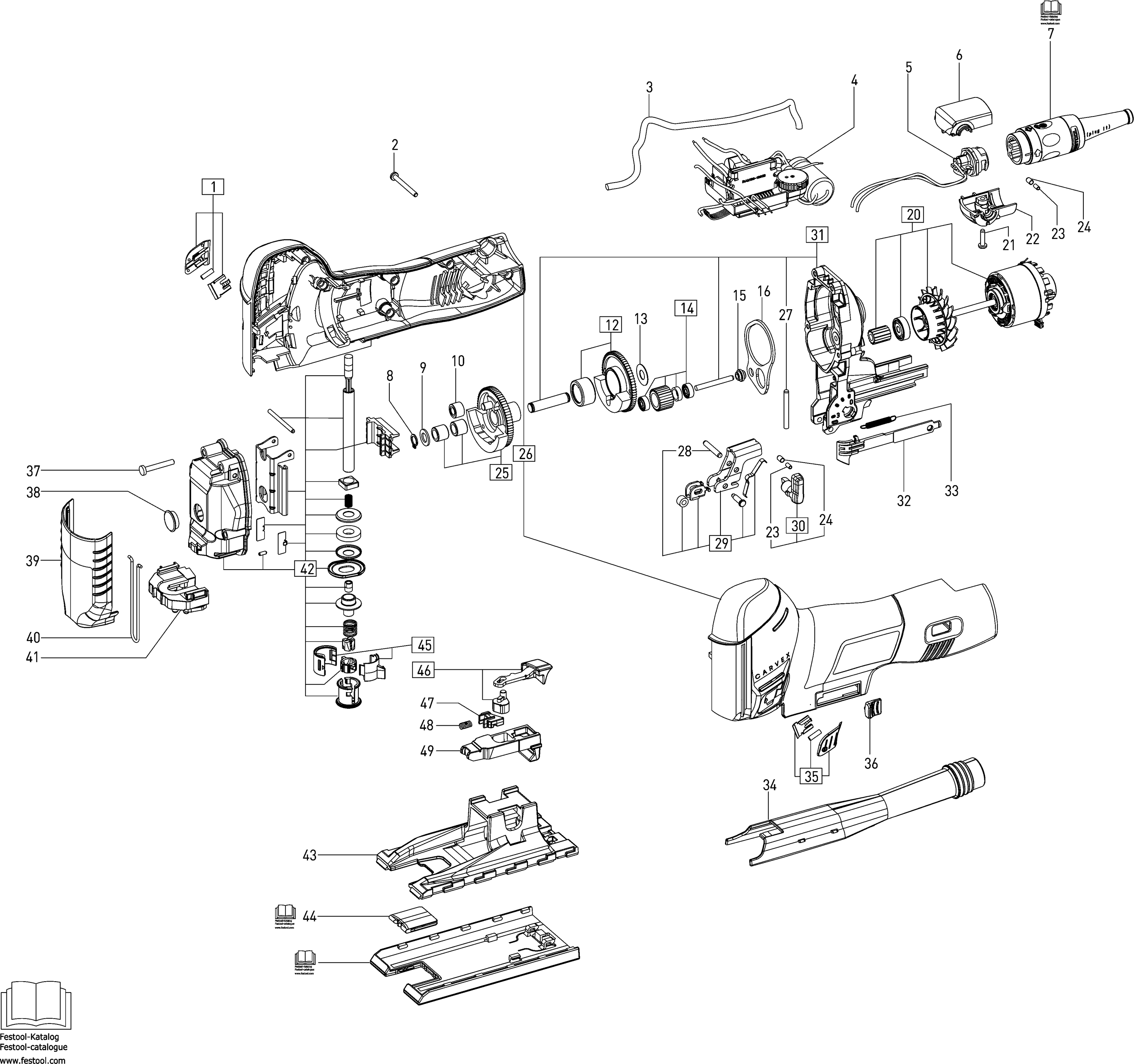

Technical drawing of model Festool 496056 (PS400EBQ230V)
Spare parts list of model Festool 496056 (PS400EBQ230V)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Switch PS 420 | ||||
| 1 | 499756 | 20.93 | 25.33 | |
| Oval head screw PT-3,5x35-PZV | ||||
| 2 | 477002 | 1.51 | 1.83 | |
| Cable PS 400 5xAWG28 310mm | ||||
| 3 | 475571 | 24.81 | 30.02 | |
| Electronics PS 420 230V | ||||
| 4 | 499402 | 128.02 | 154.90 | |
| Socket housing PS 420 | ||||
| 5 | 499651 | 42.35 | 51.24 | |
| Casing box PS 400 | ||||
| 6 | 475460 | 1.78 | 2.15 | |
| PLUG IT-KABEL H05 RN-F-4 | ||||
| 7 | 203914 | 24.00 | 29.04 | |
| Circlip DIN 471-8x0,8 | ||||
| 8 | 200617 | 1.51 | 1.83 | |
| Supporting ring DIN 988-S-8x14 | ||||
| 9 | 400009 | 1.51 | 1.83 | |
| Bearing PS 400 | ||||
| 10 | 10184323 | 14.88 | 18.00 | |
| C. balance unit PS 400 | ||||
| 12 | 497571 | 44.04 | 53.29 | |
| Disc PS 300 EQ | ||||
| 13 | 457043 | 1.51 | 1.83 | |
| intermed. gear PS 400 | ||||
| 14 | 497607 | 33.52 | 40.56 | |
| Collet PS 400 | ||||
| 15 | 478209 | 4.82 | 5.83 | |
| Pendulum drive PS 400 | ||||
| 16 | 475474 | 4.68 | 5.66 | |
| Motor PS 400 230V | ||||
| 20 | 497579 | 175.69 | 212.58 | |
| Oval head screw PT-3,5x14-KT15 | ||||
| 21 | 400468 | 1.51 | 1.83 | |
| Casing box PS 400 | ||||
| 22 | 475461 | 1.58 | 1.91 | |
| Compression spr DIN 2098-0,45x2,90x10,0 | ||||
| 23 | 444127 | 1.51 | 1.83 | |
| Joint piece PS 2 E | ||||
| 24 | 444126 | 1.51 | 1.83 | |
| Drive gear/whee PS 400 | ||||
| 25 | 497573 | 46.83 | 56.66 | |
| No information available, not orderable | ||||
| 26 | 499574 | |||
| Cylinder pin B 4 f8x36 ISO2338 | ||||
| 27 | 475546 | 1.51 | 1.83 | |
| Pin PS 300 EQ | ||||
| 28 | 400670 | 1.51 | 1.83 | |
| Roller retainer PS 400 | ||||
| 29 | 497574 | 49.01 | 59.30 | |
| Pendulum contro PS 400 | ||||
| 30 | 497575 | 25.17 | 30.46 | |
| Gear box PS 400 | ||||
| 31 | 498788 | 89.78 | 108.63 | |
| Slide PS 420 | ||||
| 32 | 499658 | 20.09 | 24.31 | |
| Slide PS 420 | ||||
| 33 | 499658 | 20.09 | 24.31 | |
| Extr. connector PS 420 CT | ||||
| 34 | 10027687 | 4.54 | 5.49 | |
| Switch PS 420 | ||||
| 35 | 499756 | 20.93 | 25.33 | |
| Slide switch PS 400 | ||||
| 36 | 475607 | 1.51 | 1.83 | |
| Oval head screw M4x28-TAPTITE-T20 | ||||
| 37 | 401047 | 1.51 | 1.83 | |
| Protective cap PS 400 GPN 910/2179 | ||||
| 38 | 475688 | 1.39 | 1.68 | |
| Chip guard PS 400 | ||||
| 39 | 477081 | 4.97 | 6.01 | |
| Bow PS 400 | ||||
| 40 | 477100 | 2.02 | 2.44 | |
| Electronics PS 420 ET-BG | ||||
| 41 | 497461 | 42.11 | 50.95 | |
| No longer available, no replacement | ||||
| 42 | 497577 | |||
| Base PS 420 | ||||
| 43 | 10029367 | 16.82 | 20.35 | |
| Splinter guard | ||||
| 44 | 490120 | 8.00 | 9.68 | |
| Clamping sleeve PS 400 | ||||
| 45 | 497578 | 15.73 | 19.03 | |
| Handle PS 400 | ||||
| 46 | 497572 | 30.73 | 37.18 | |
| Wedge PS 400 | ||||
| 47 | 477371 | 1.51 | 1.83 | |
| Compression spr PS 400 | ||||
| 48 | 700035 | 1.51 | 1.83 | |
| Claw PS 400 | ||||
| 49 | 10742111 | 8.42 | 10.19 | |
| Claw PS 400 | ||||
| 49 | 475588 | 7.73 | 9.35 | |
